Craftsman Plan 341-00184


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,170
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 1.5
Width 62'
Depth 52'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #341-00184

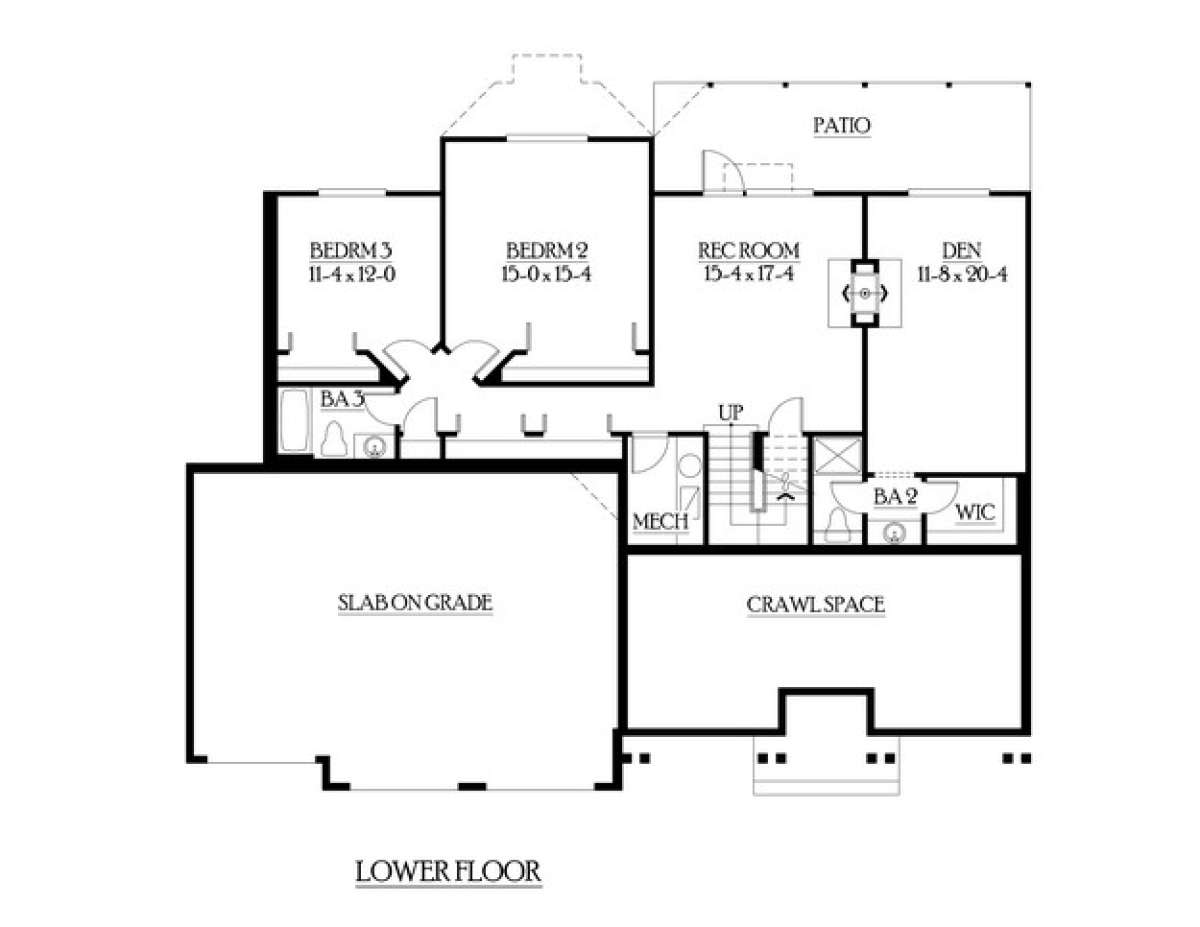

Floorplan 2
Floorplan 2 for House Plan #341-00184

What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.

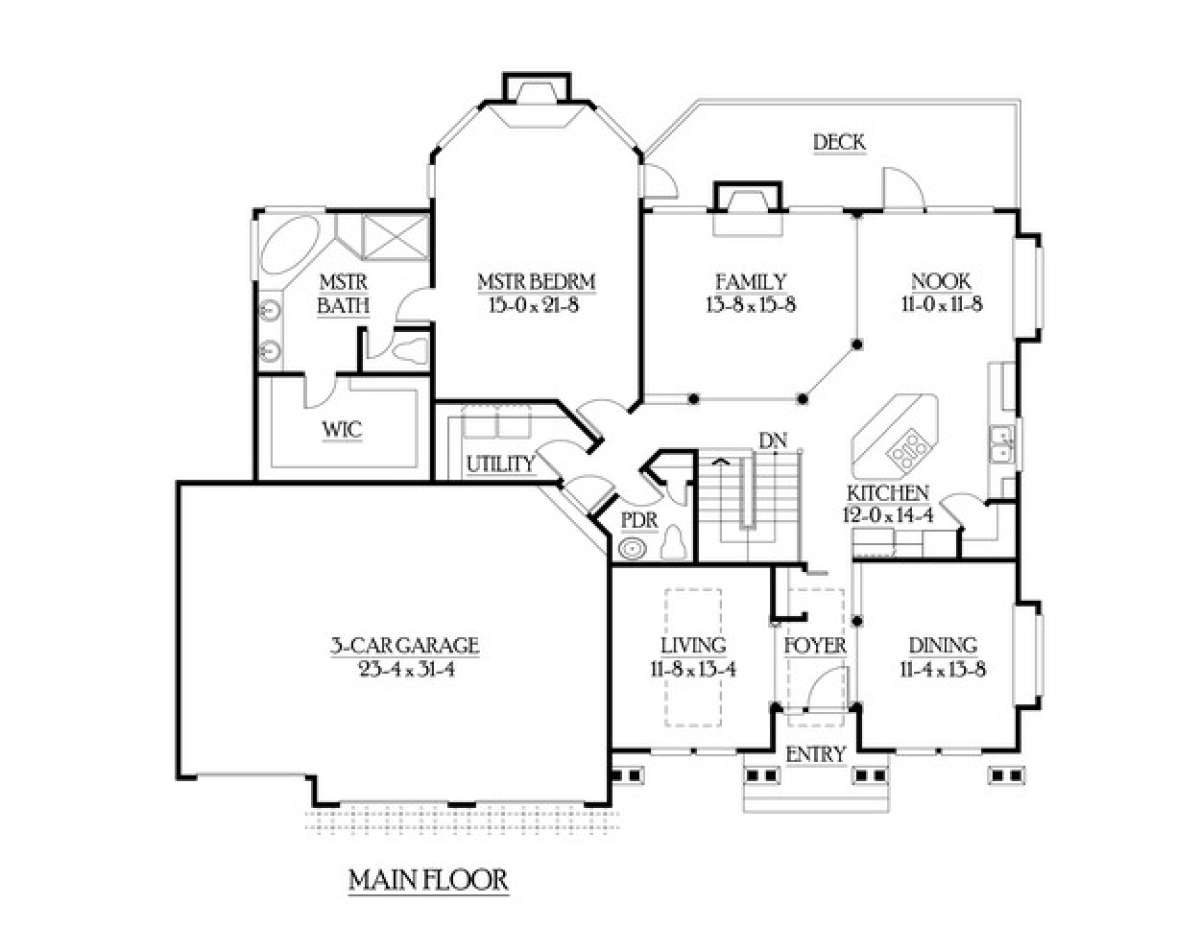

  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

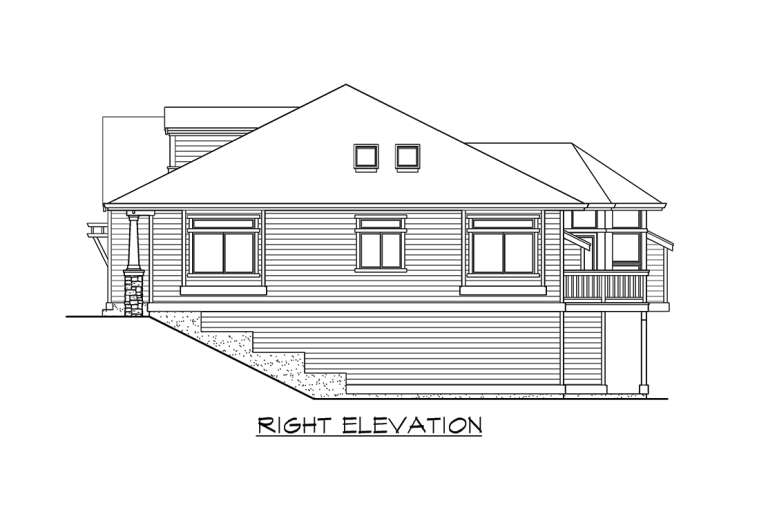

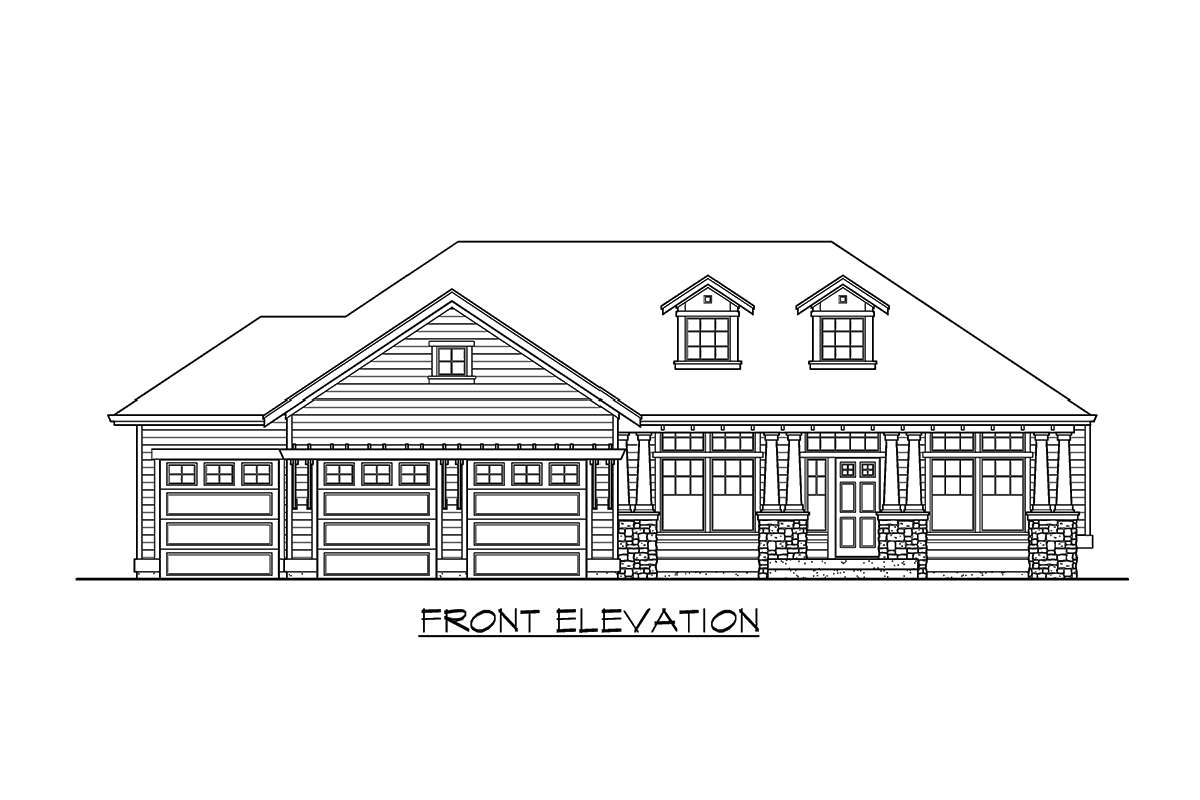

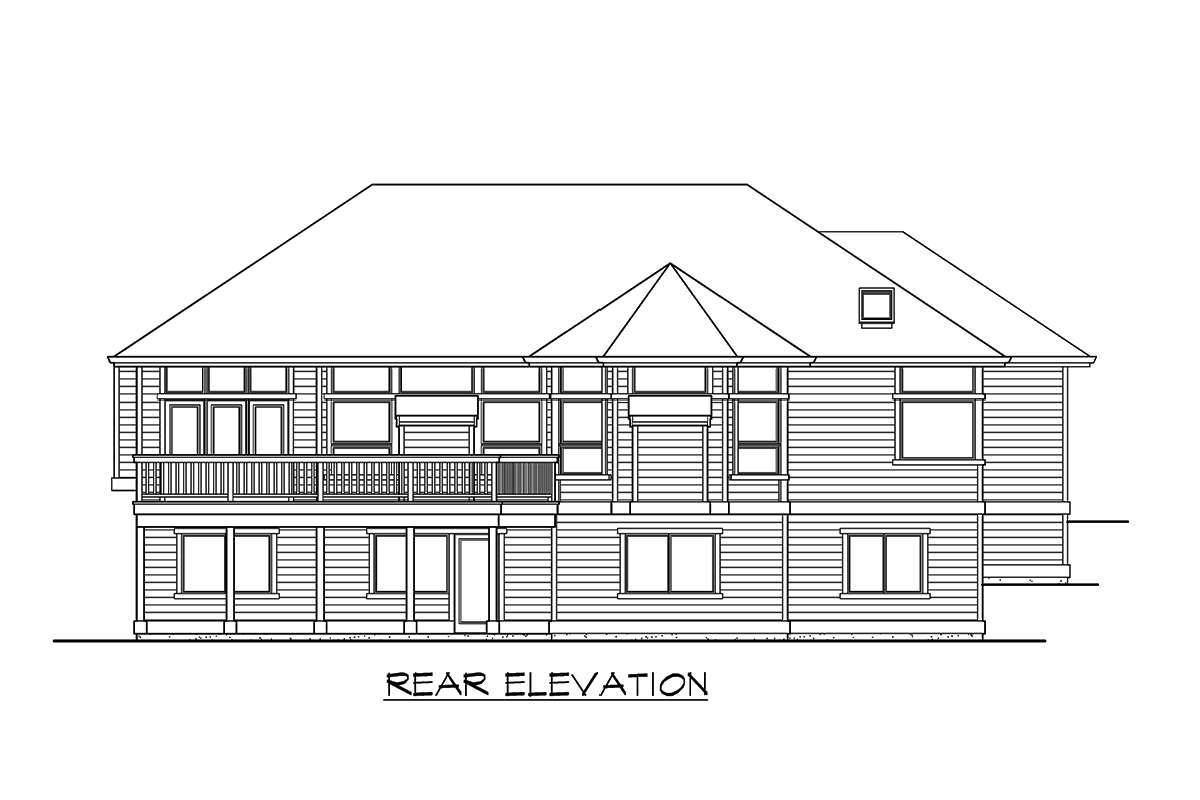

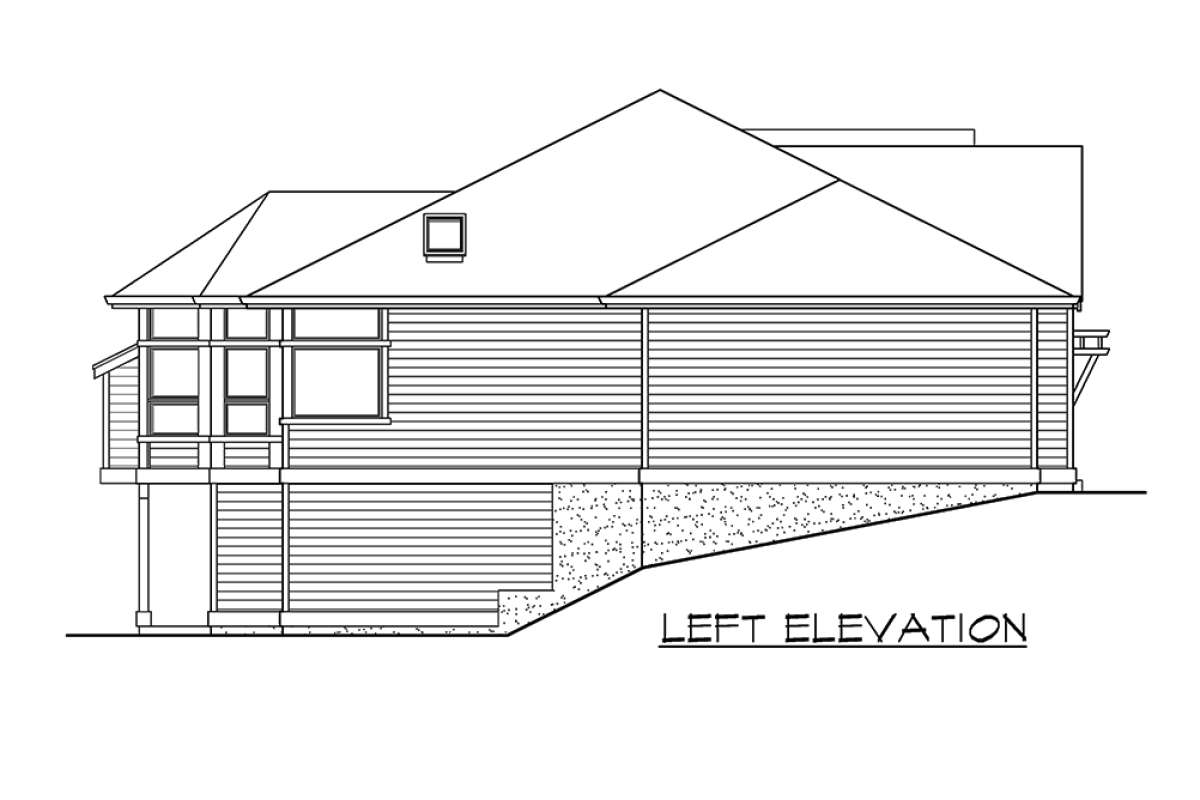

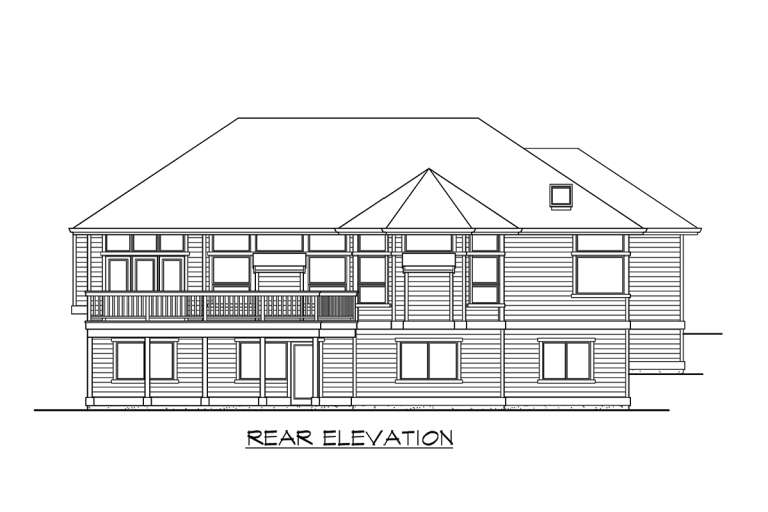

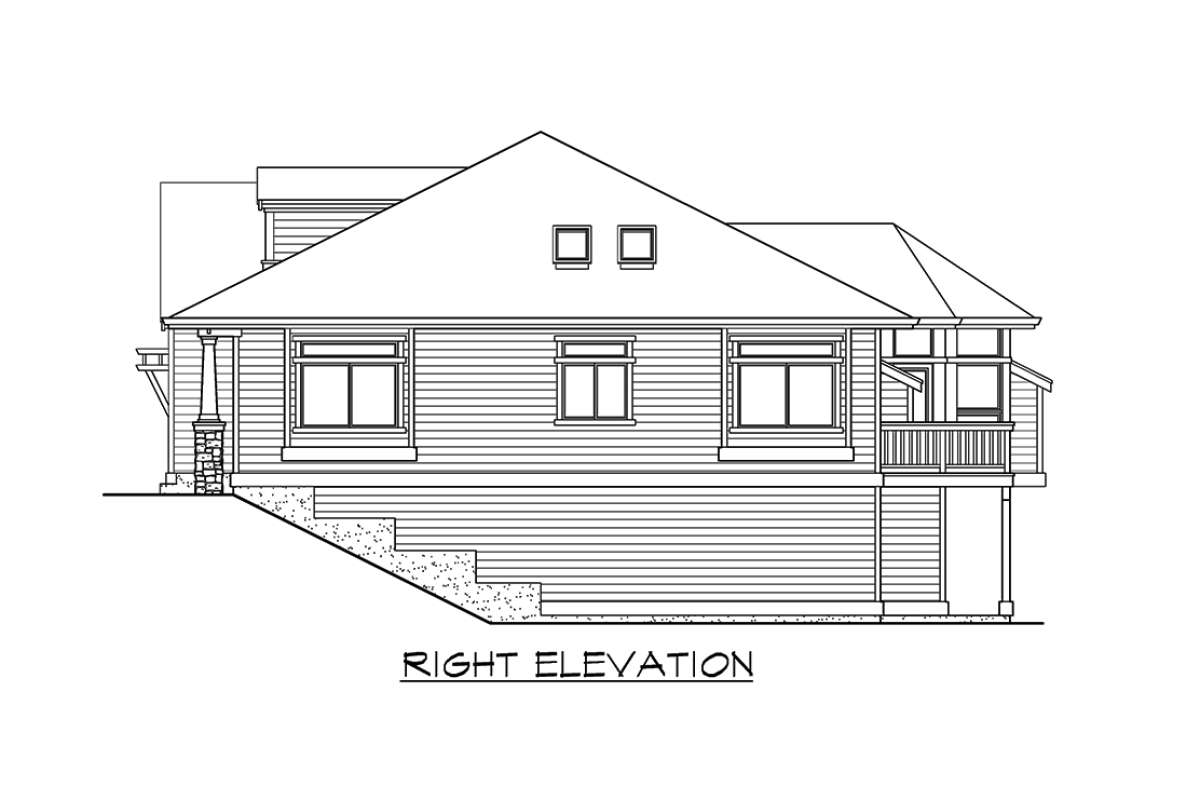

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

This lovely Craftsman house plan features a modern exterior with great curb appeal and an interior family layout that is comfortable and versatile. The attractive exterior design features include overhead dormer windows, exposed rafters and an extended front covered porch outlined with stone pillars and double set column beams. Great window views and a walk-up front staircase complement the exterior façade and adds charming detailing to the home. The interior layout features main level living space, four bedrooms and three plus baths in approximately 3,170 square feet which includes a finished basement. There is a three car front loading garage which uncharacteristically offers fine detailing to the exterior appearance of the home. Along with providing continued great detailing, the garage features a double and single bay as well as plenty of vehicle and storage space. Once entering the home, the foyer is flanked by the formal living and dining rooms; both rooms are spacious and feature double window views overlooking the front covered porch. Beyond the foyer is an open floor plan consisting of the family room, kitchen and breakfast nook. The family room is highlighted with a rear positioned warming fireplace with side picturesque window views and columns outline the space nicely. The breakfast nook is sunny and bright and features access onto the rear deck. The grand kitchen features a center island, a corner pantry and plenty of additional counter and cabinet space. The guest powder room and utility room are located directly off the garage for convenience and the master suite is situated on the main floor as well. There is a large master bedroom with a handsome fireplace situated in the bay window and private access onto the rear deck. The master bath is highlighted with modern amenities; dual vanities, a corner garden tub, a separate shower and a compartmentalized toilet area. The oversized walk-in master closet lies just beyond the bath.

The terrace level of the home has additional entertaining space as well as baths and sleeping quarters. There is a centrally located recreation room with plenty of space, access to the rear patio and a double sided fireplace is shared with the nearby den. The den features a walk-in closet and full bath with a shower making this a versatile space as either a den or fourth bedroom. Bedroom two is situated on the other side of the recreation room, is oversized and features wall-to-wall closet space. The third bedroom is slightly smaller and has plentiful closet space. There is a shared hall full bath located conveniently nearby. This entire lower level is a great set-up for older children or an in-law suite with its assortment of living space, bedrooms and baths. This family friendly home is versatile, features an attractive exterior and generous outdoor space.
