Lake Front Plan 341-00153

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,592
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 77'
Depth 67'

Floorplan Drawings

Floorplan 1

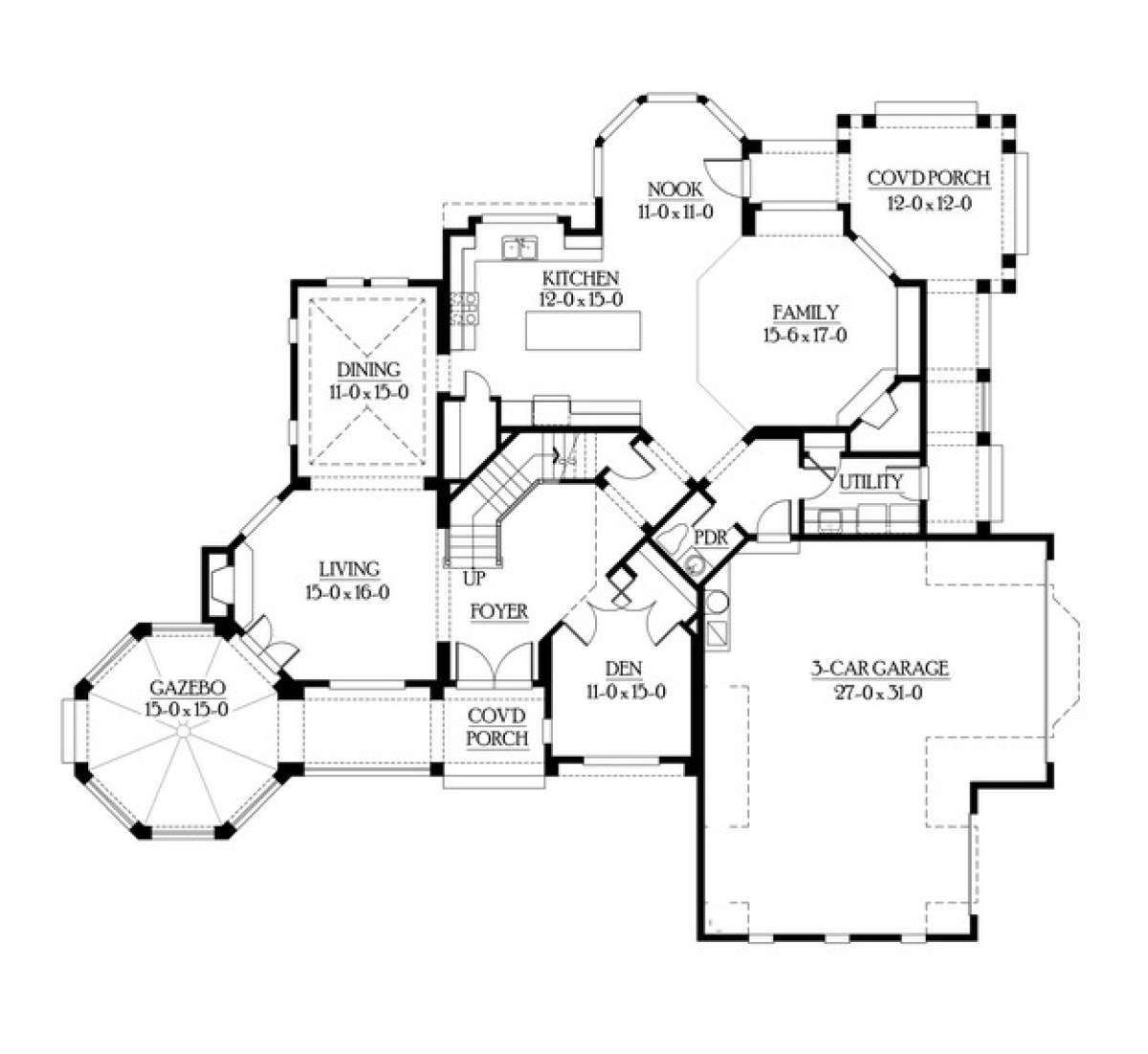

Floorplan 1 for House Plan #341-00153
Floorplan 2

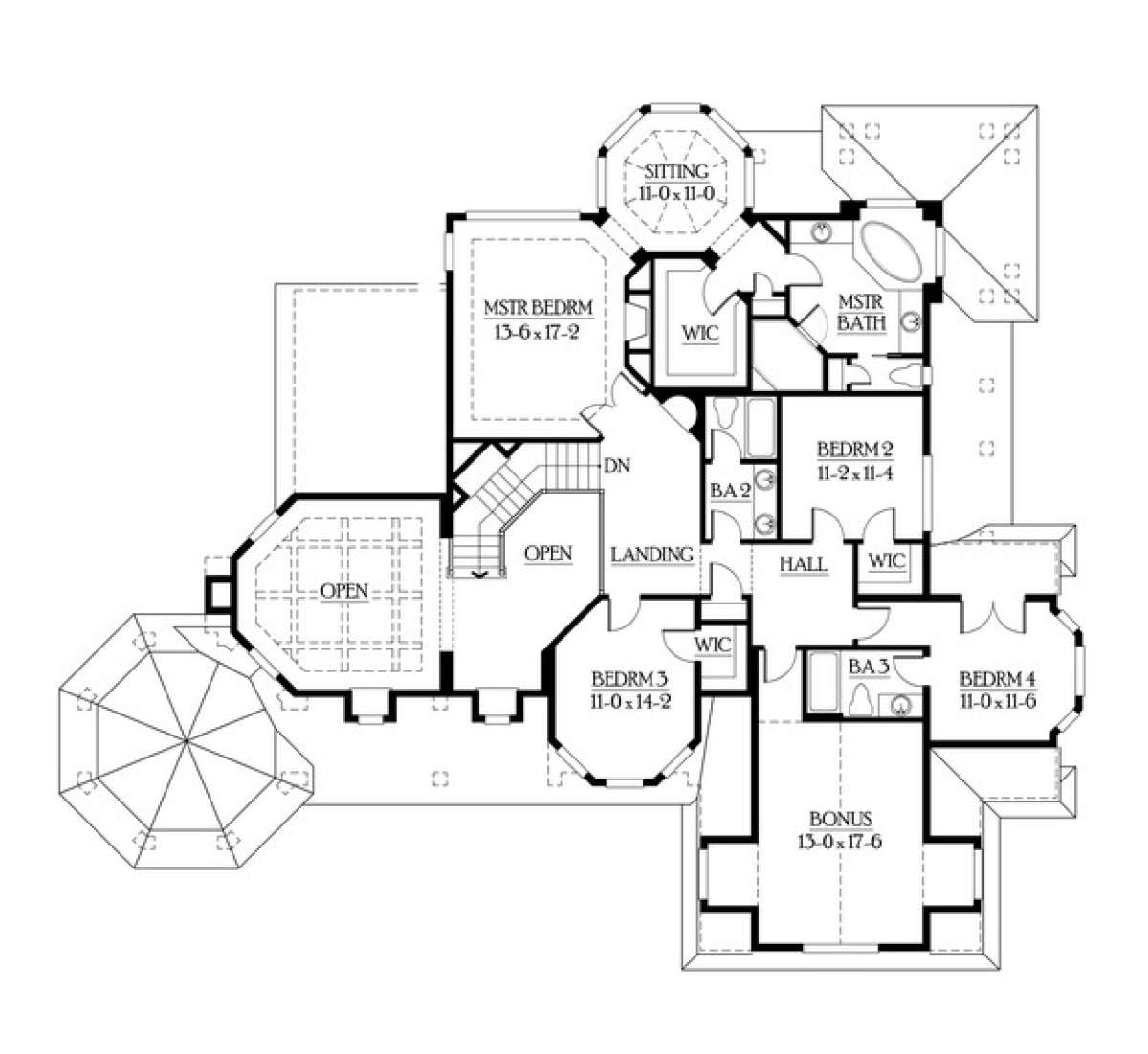

Floorplan 2 for House Plan #341-00153


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

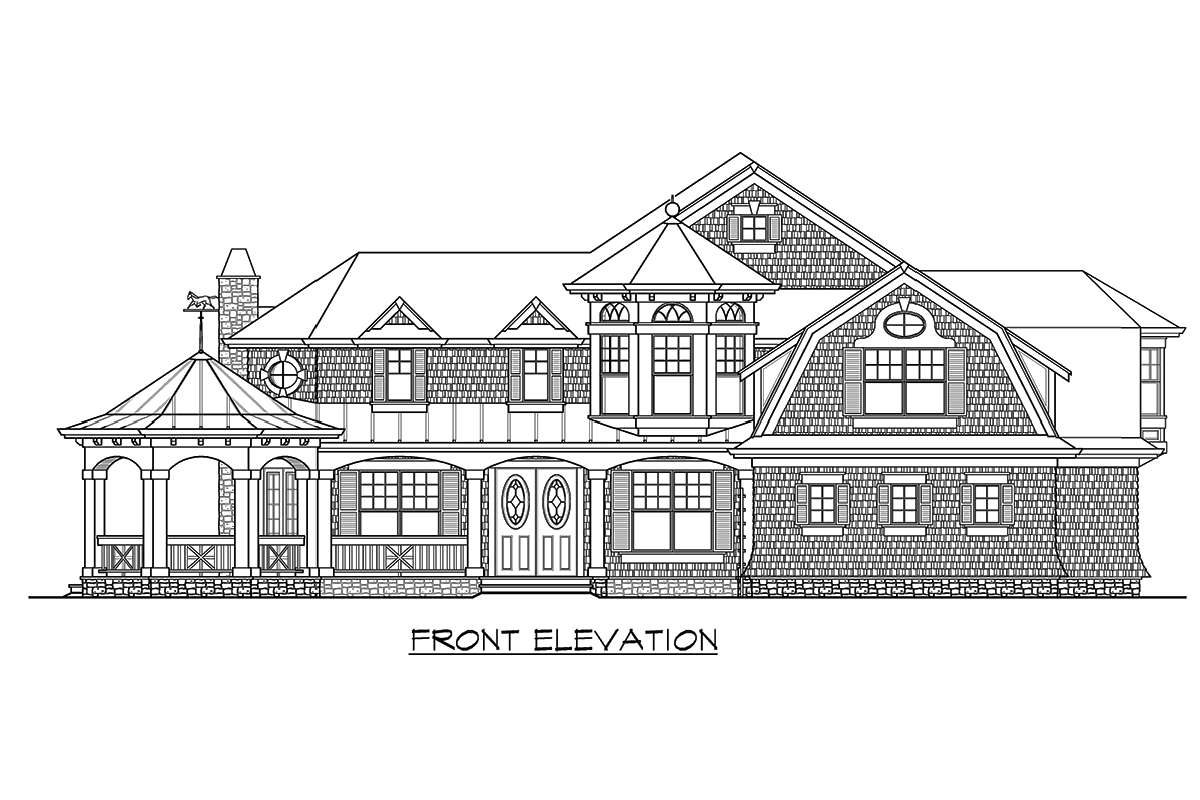

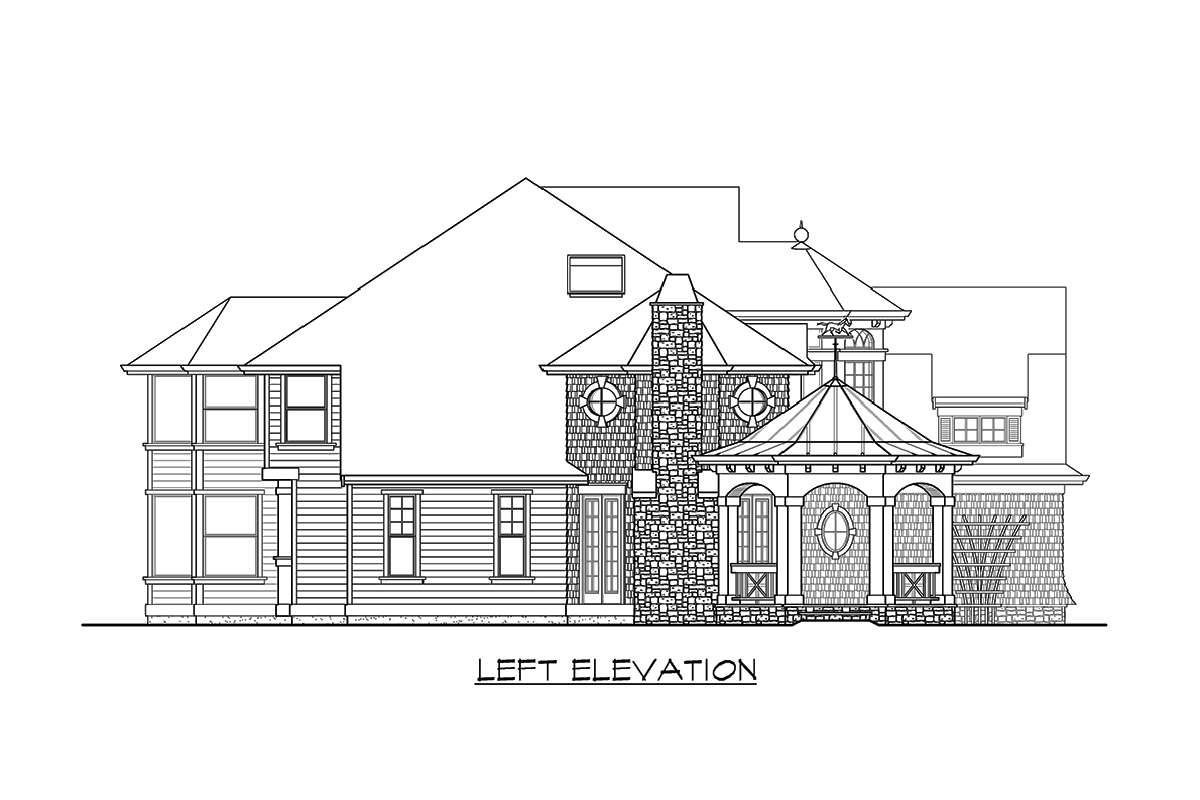

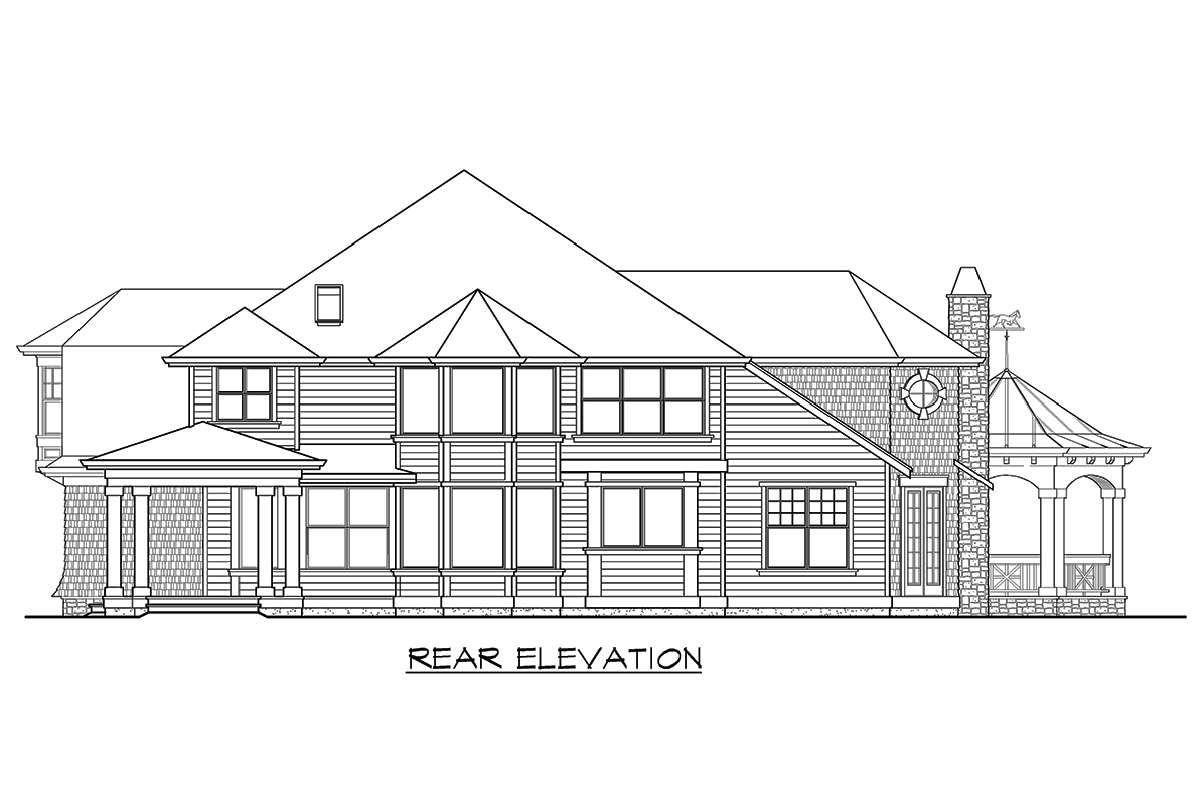

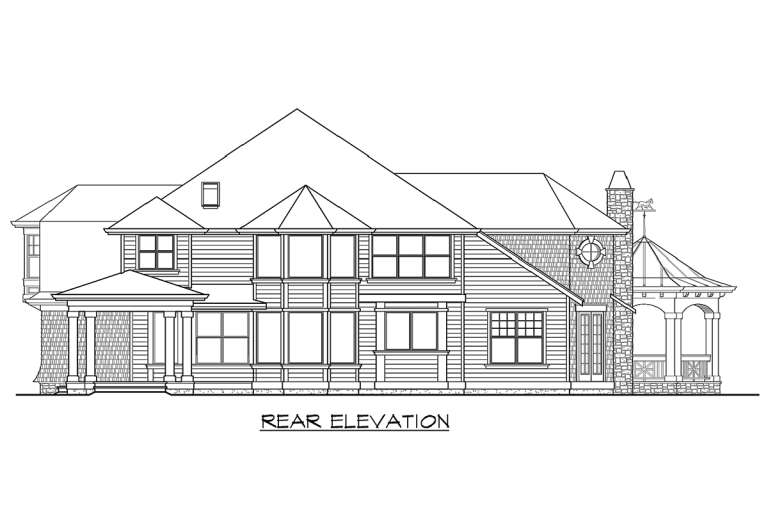

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.


Generously proportioned both on the interior and exterior of the home, this Lakefront house plan offers an amazing and gracious sense of style. The façade of the home features cedar shakes, a turret, a barn shaped/gambrel roofline over the garage/bonus space and a huge front covered porch culminating into gazebo space. This attractive exterior is aesthetically pleasing, functional and a great space to spend some outdoor time in. Four bedrooms, three plus baths and large rooms are revealed in the approximate 3,592 square feet of interior living space. French door access into the home showcases an elegant foyer with beautiful winding staircase; this luxurious entryway is flanked by the living room and den. The den is accessed through French doors, features a large closet and is perfect for entertaining business associates or intimate friends. The large living room offers a warming fireplace and double door access onto the gazebo. The formal dining room is situated on the opposite side of the living room and features a pass-thru to the grand kitchen and casual dining space. The kitchen is highlighted with a large center island, loads of counter and cabinet space and a separate walk-in pantry. The sundrenched breakfast nook is situated in a bay window alcove surrounded with window views and offers outdoor access onto the rear covered porch. A massive family room adjoins the kitchen area and features a warming fireplace and great family space. A guest powder room and large utility room are located off the garage which has three vehicle bays and good storage space.

The second story staircase features beautiful overviews onto the foyer below before stepping onto the landing where the family bedrooms, baths and bonus room are situated. There are three family style bedrooms; all feature walk-in closets, two are highlighted with gorgeous window views and the fourth bedroom also contains a private full bath. Bedrooms two and three share a hall bath with double sinks to alleviate morning chaos and there is a linen closet nearby. The bonus room is excellent space for an additional bedroom, a teen-age lounge or playroom for young children or it could be utilized as a multi-purpose room. The master suite is rear positioned for privacy and features an amazing suite of rooms; there is a large master bedroom with trey ceiling, a gorgeous octagonal shaped sitting room and a warming fireplace. The large master walk-in closet and modern en suite bath sits beyond the sitting room where you will find dual vanities, a corner garden tub, a large walk-in separate shower and a compartmentalized toilet area. This lovely home fulfills the desire for an attractive exterior and well thought-out interior floor plan along with plenty of outdoor and entertaining space.
