Northwest House Plan 341-00073

Sq Ft2,675
1/2 Baths1
Width36' 0"
Depth50' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #341-00073
Floorplan 2 for House Plan #341-00073
Floorplan 3 for House Plan #341-00073

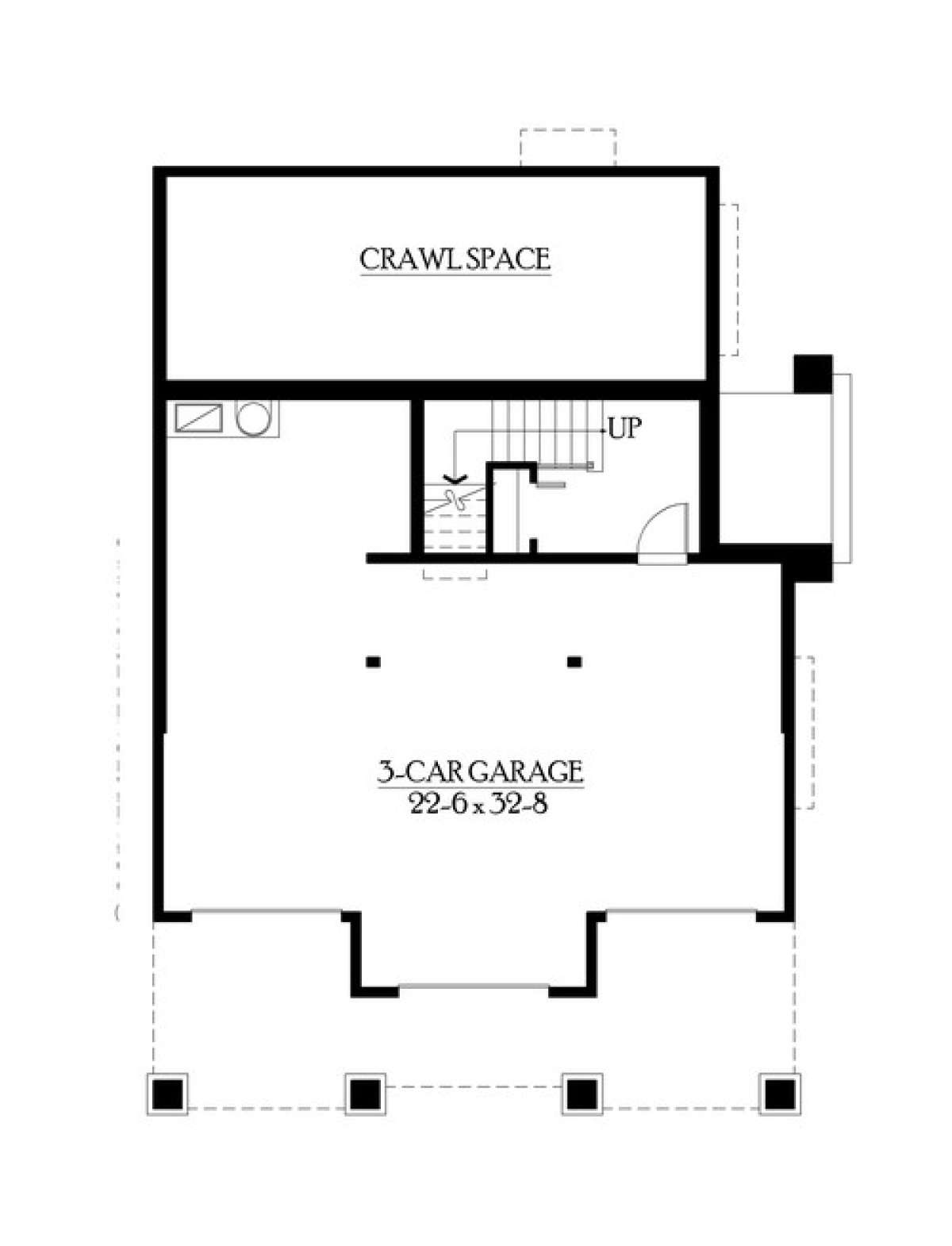

Floorplan 1
Floorplan 1 for House Plan #341-00073
Floorplan 2
Floorplan 2 for House Plan #341-00073
Floorplan 3
Floorplan 3 for House Plan #341-00073

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

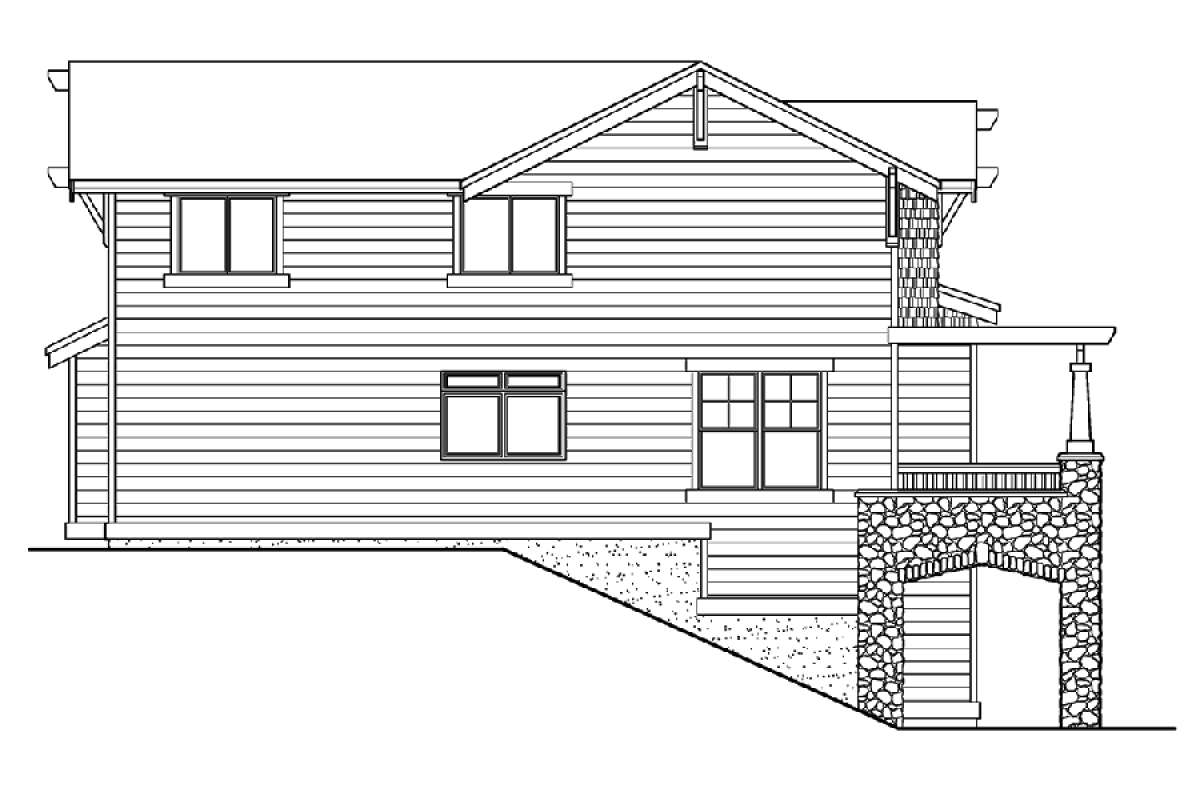

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

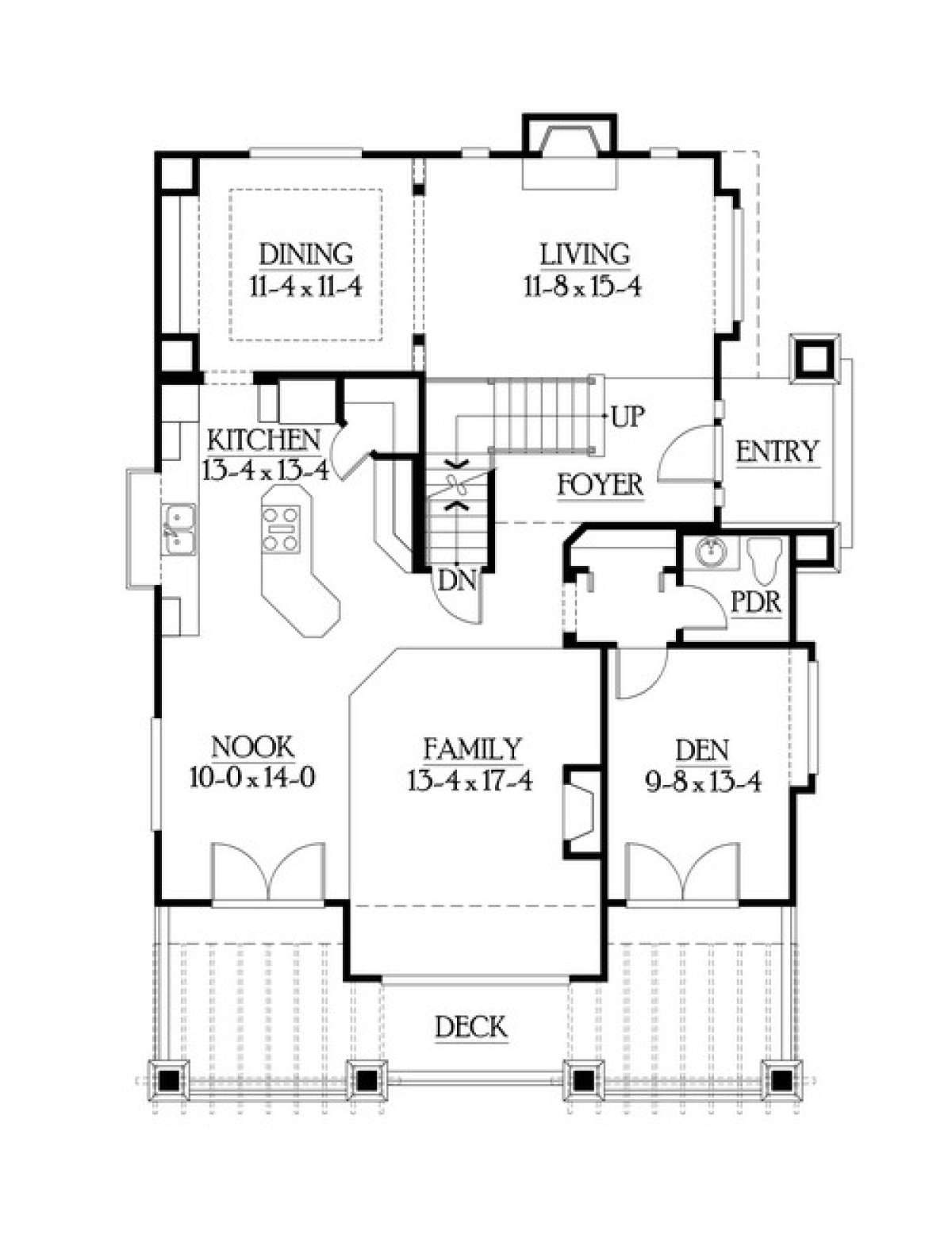

Highlighted with gorgeous exterior design elements, this attractive house plan features amazing curb appeal and a spacious interior layout. Cedar shakes, exposed rafters, accompanying wide eaves and a beautiful front covered porch outlined with substantial tapered columns and stone pillars add to the charm of the home’s exterior. The home is well suited for a narrow property lot with its 36’ width dimension and yet it offers excellent living space. There are three bedrooms and two plus baths in approximately 2,675 square feet of living space located within the home’s interior. There is a three car rear loading garage designed for unobstructed front exterior views and highlighted with an abundance of arched stonework overhead. The garage space is in excess of 845 square feet of space; perfect for multiple vehicles and storage. The front covered porch grants access into the home’s foyer and double staircase along with the large living room. The living room features gorgeous window views, a handsome fireplace and a columned opening into the dining room which is also spacious and includes a trey ceiling accent. There is a pass-thru to the grand kitchen which is highlighted with an angled breakfast bar, a walk-in pantry and an abundance of counter and cabinet space. The casual breakfast nook is light and airy with window views and French door access onto the outdoor pergola, open deck and second semi-covered outdoor space off the den. An adjacent family room features generous floor space and a warming fireplace. A guest powder room and cozy den, ideal for casual entertaining and close friends completes the main floor.

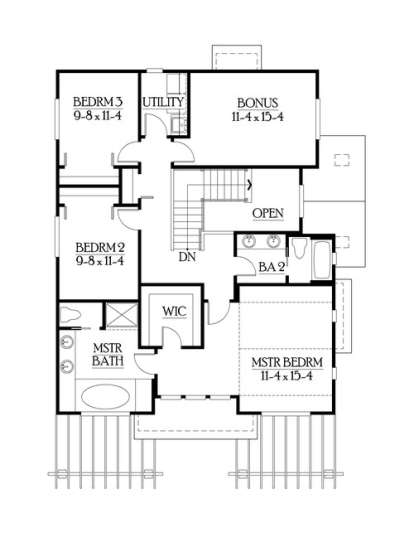

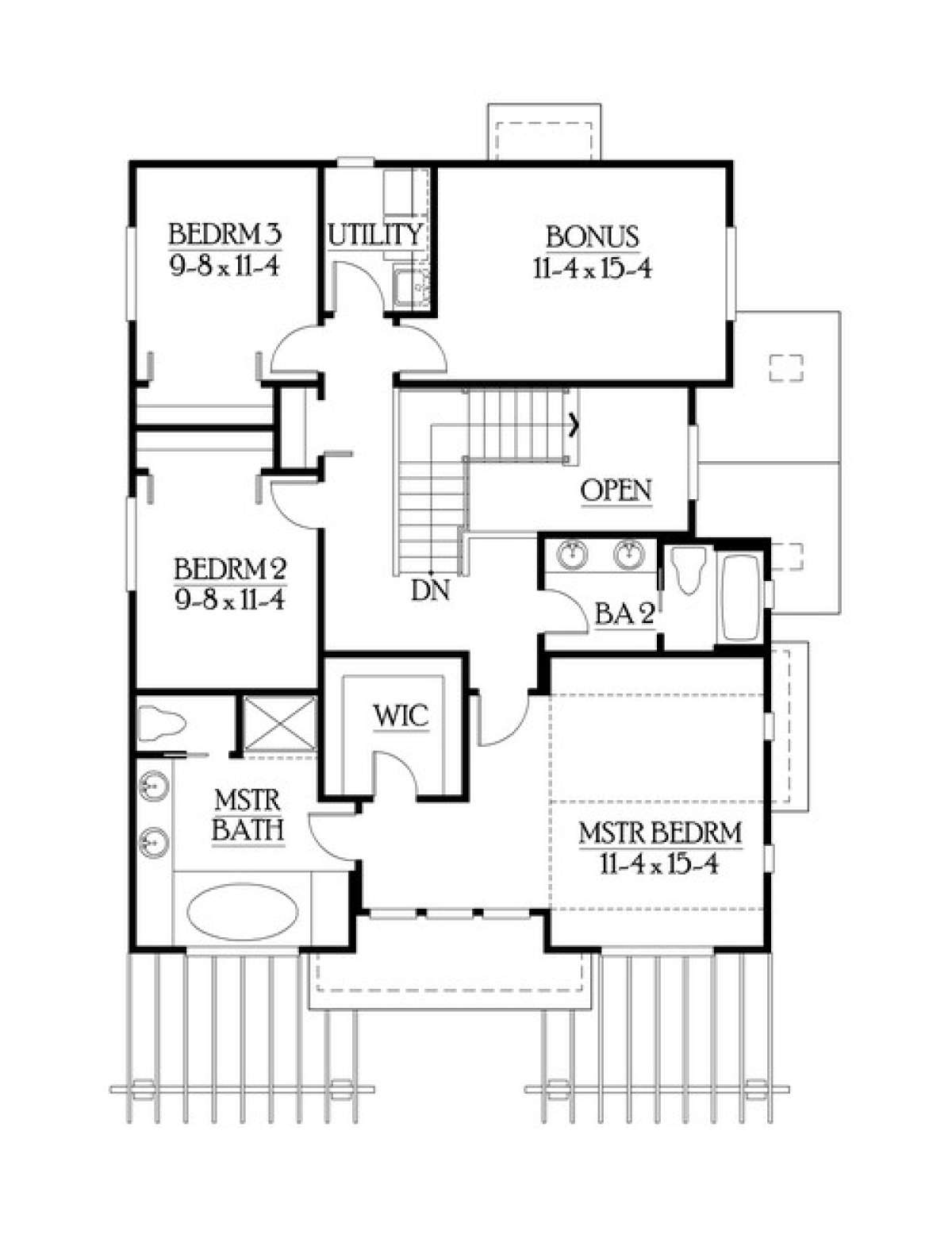

The second floor of the home offers a large master suite that is compelling and private. There is a spacious master bedroom with beautiful window views, a large entrance area and an attached walk-in master closet. The master bath features modern amenities today’s homeowner’s desire that include a large garden tub, a separate shower, a private toilet area and dual vanities. Bedrooms two and three are identical in size, feature double window views and good closet space. A shared hall bath is nearby and features double sinks, a toilet area and a tub/shower combination. The bonus room is quite large, measuring in excess of 11’ x 15’ and could be utilized as a fourth bedroom, a study for older children or a playroom for small children. This house plan is highlighted with an amazing exterior, a functional and versatile floor plan and those little details that “make a house a home.”
