Bungalow Plan 341-00059


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,505
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 2
Width 30'
Depth 70'

Floorplan Drawings

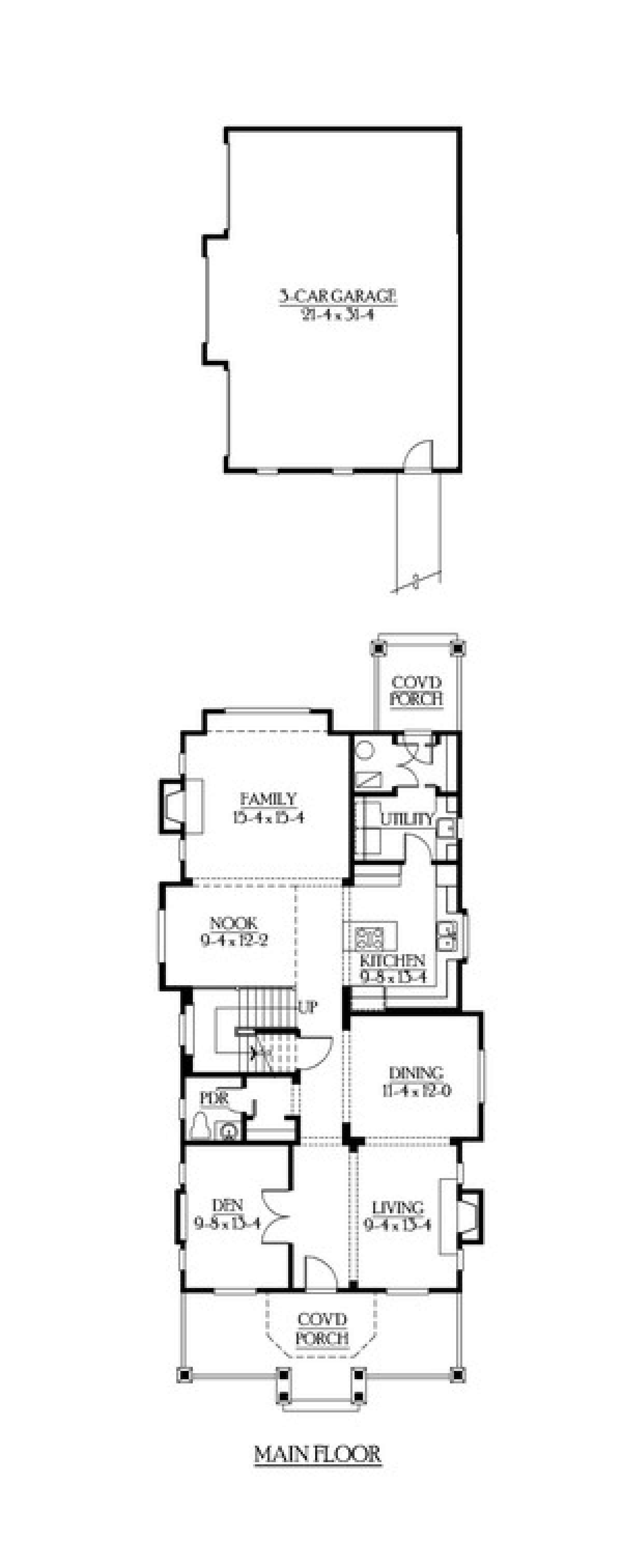

Floorplan 1
Floorplan 1 for House Plan #341-00059

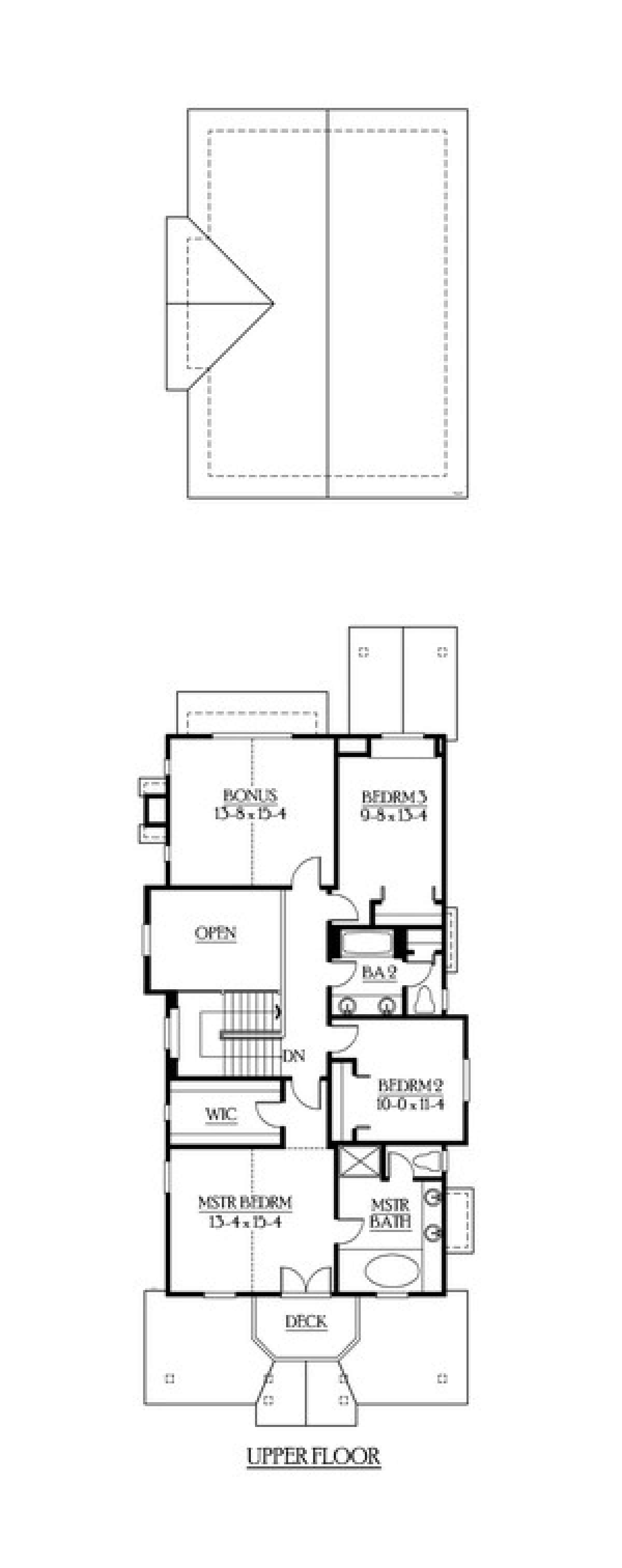

Floorplan 2
Floorplan 2 for House Plan #341-00059

What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

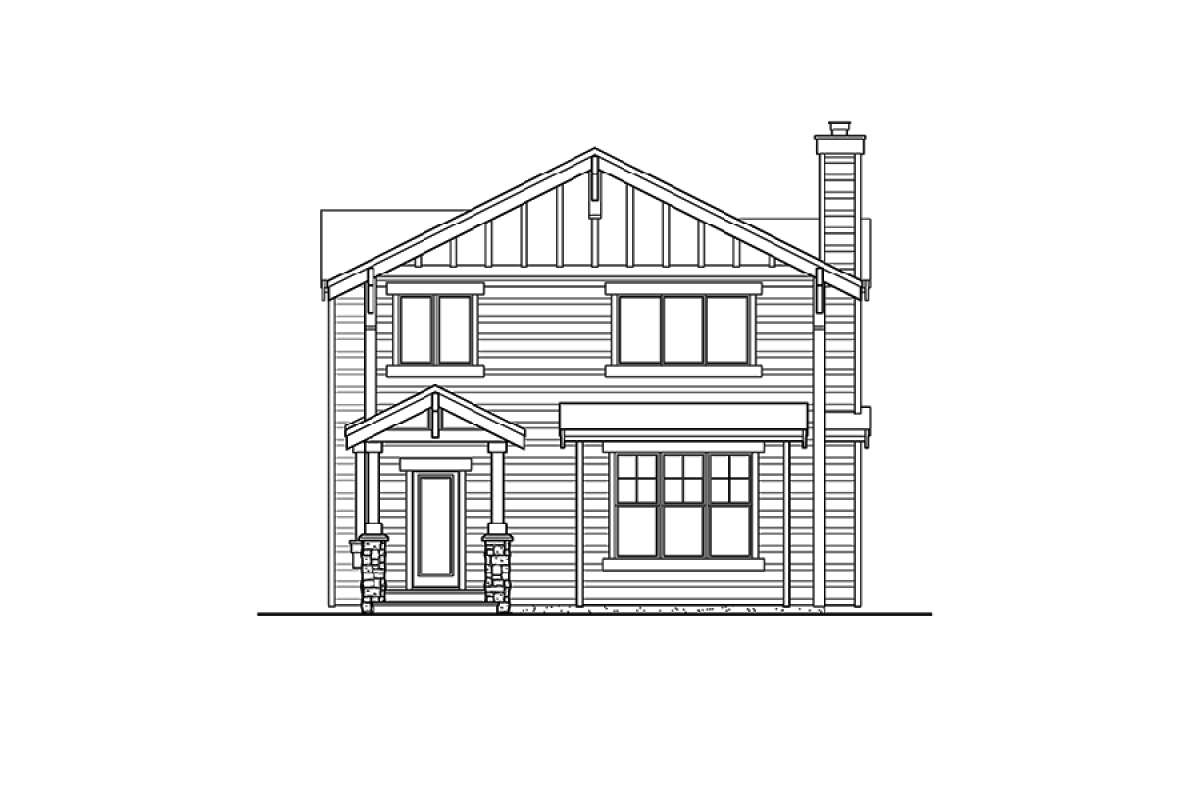

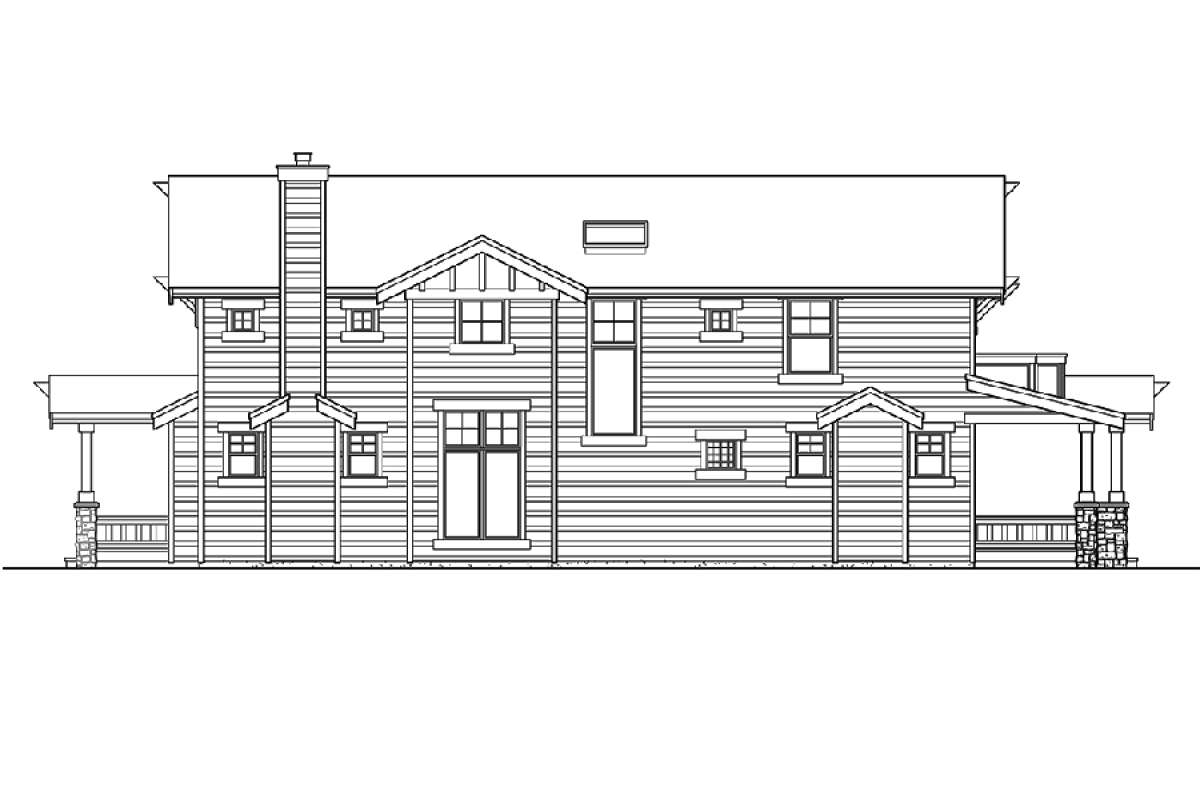

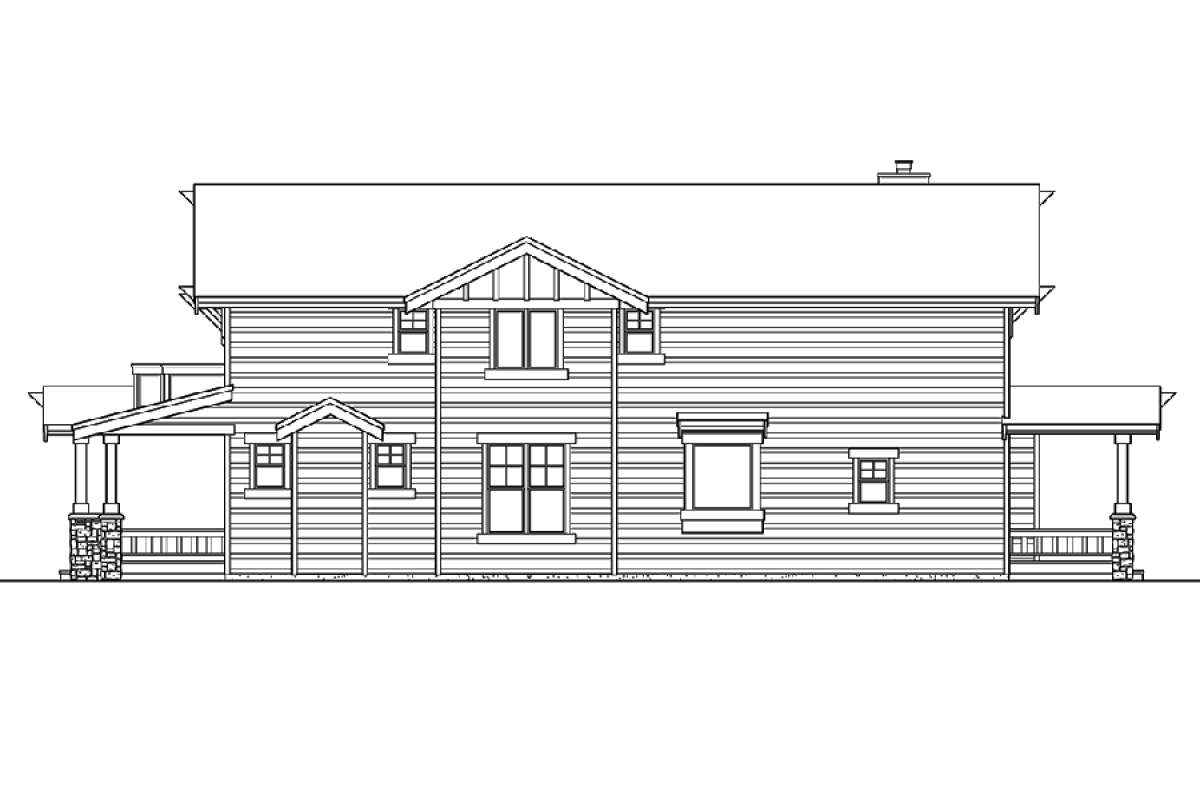

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A well mapped out interior layout has made entertaining family and friends easy in this Bungalow house plan. It is matched by its exterior appearance of natural elements blended together with a covered porch to bring about a simple and polished curb appeal. Perfect for a narrow lot, this house plan measures approximately 2,505 square feet with three bedrooms, two plus bathrooms, and a detached three car garage.

With the main level dedicated to common areas optimizing family time, the foyer opens to the den and living room featuring a handsome fireplace. The living room and dining room are two open spaces which make entertaining flow easily. The kitchen, extra nook, and family room are just beyond the staircase. Likewise, these rooms are open to each other allowing for easy entertaining and flowing conversations. The family room features a second fireplace, while the kitchen contains an L-shaped countertop offering plenty of cabinetry and a center cooktop island. It opens to the laundry room which leads out to the rear covered porch. The guest powder room and hall closet are just before the staircase leading to the second floor.

The second floor houses the sleeping quarters and a bonus room that could function as a media room, a home office, or a guest bedroom. The master bedroom features a walk-in closet, a master bathroom, and access to the private deck covered by an awning. Bedroom #2 and #3 share a hall bathroom and each has good closet space and window views. This Bungalow house plan optimizes flowing entertainment wrapped up in simple curb appeal.
