Luxury Plan 341-00025

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 5,250
Beds 4
Bath 4
1/2 Baths 1
Car 4
Stories 2
Width 71'
Depth 91' 6"

Floorplan Drawings

Floorplan 1

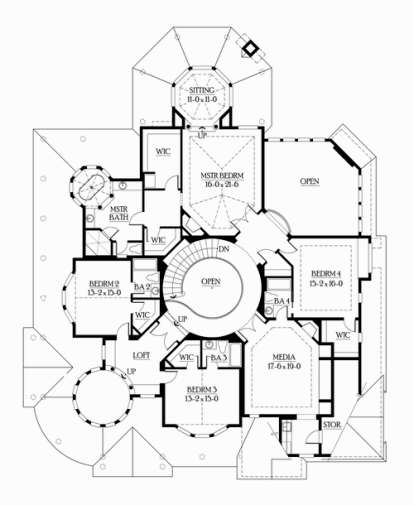

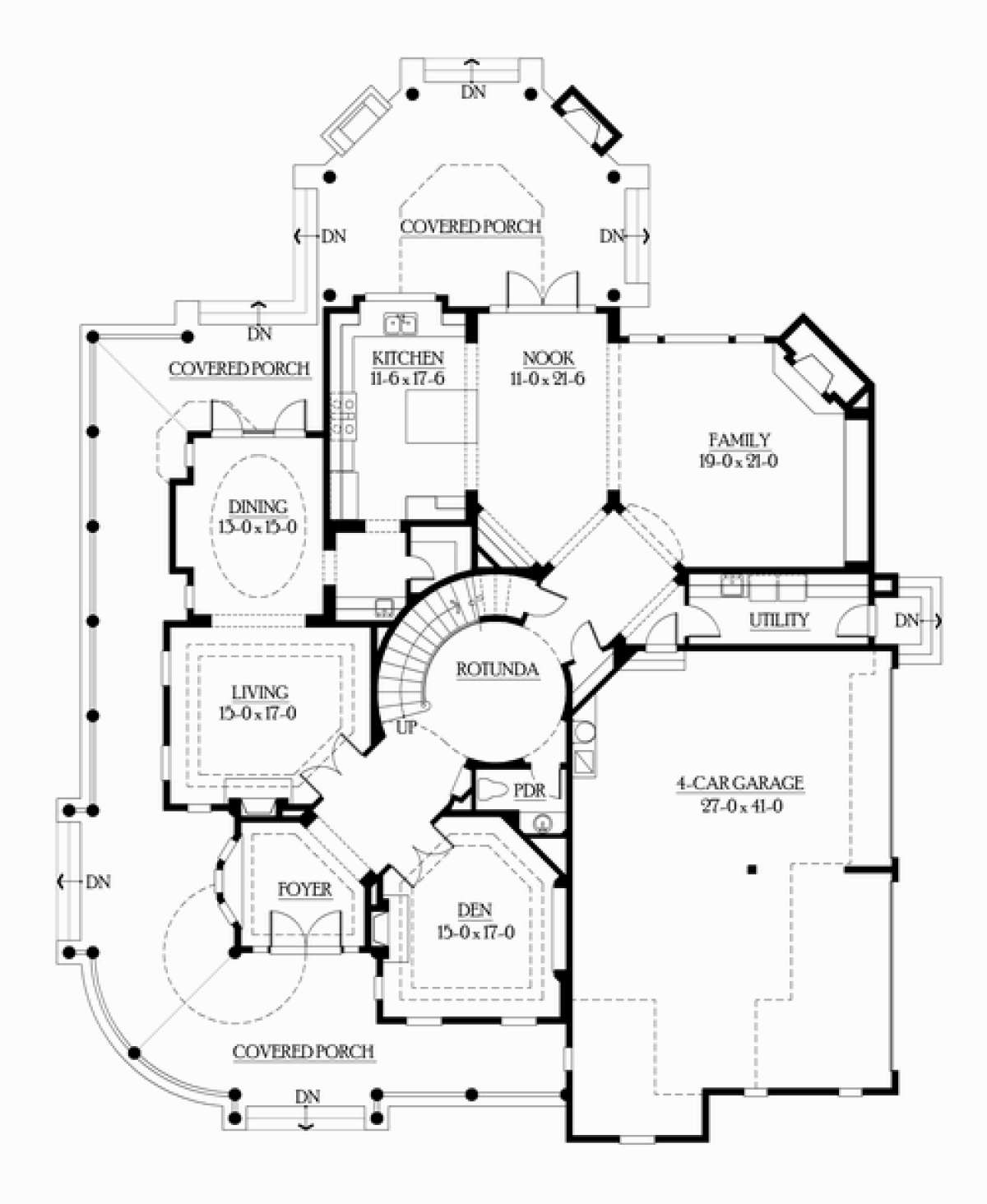

Floorplan 1 for House Plan #341-00025
Floorplan 2

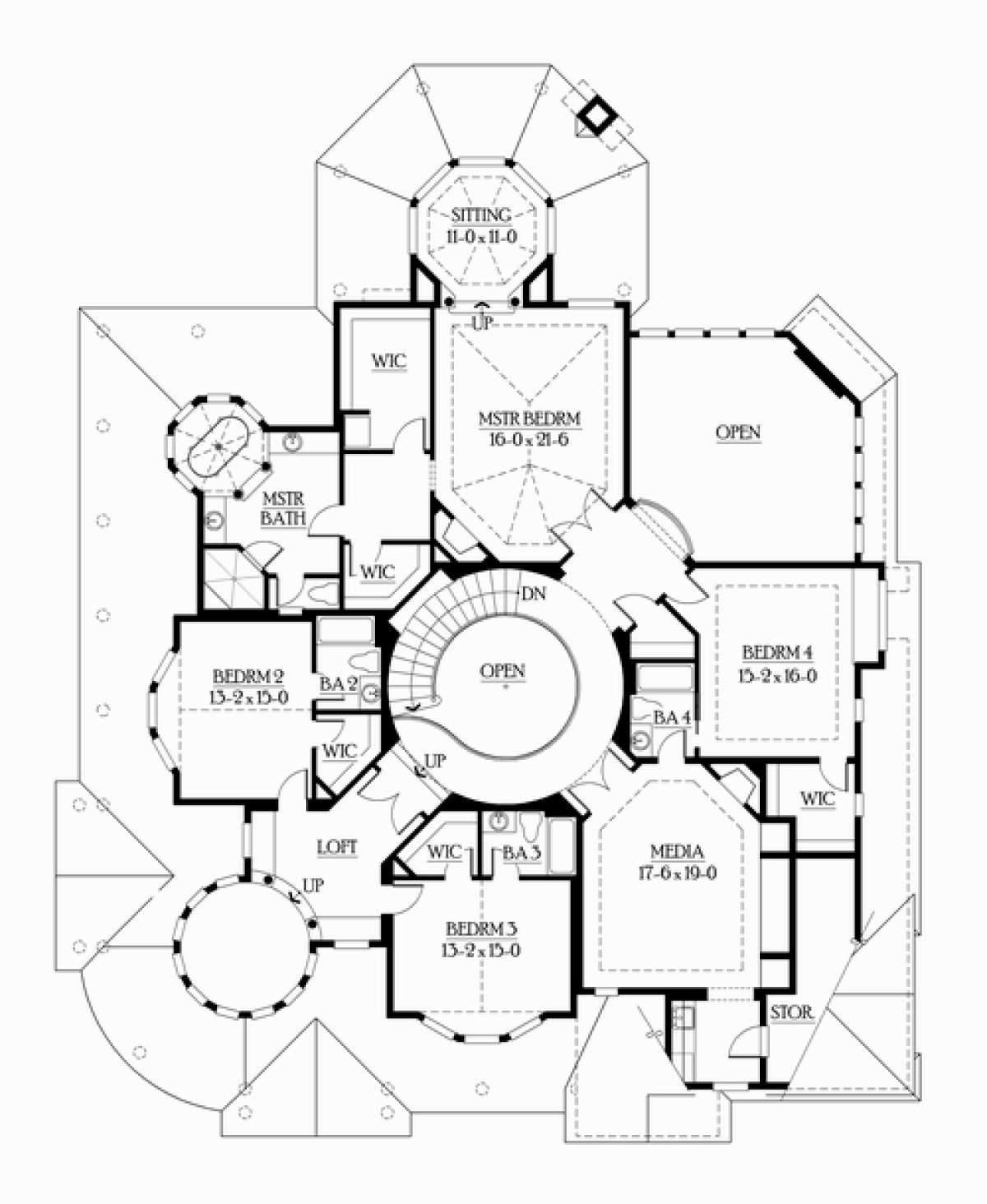

Floorplan 2 for House Plan #341-00025


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

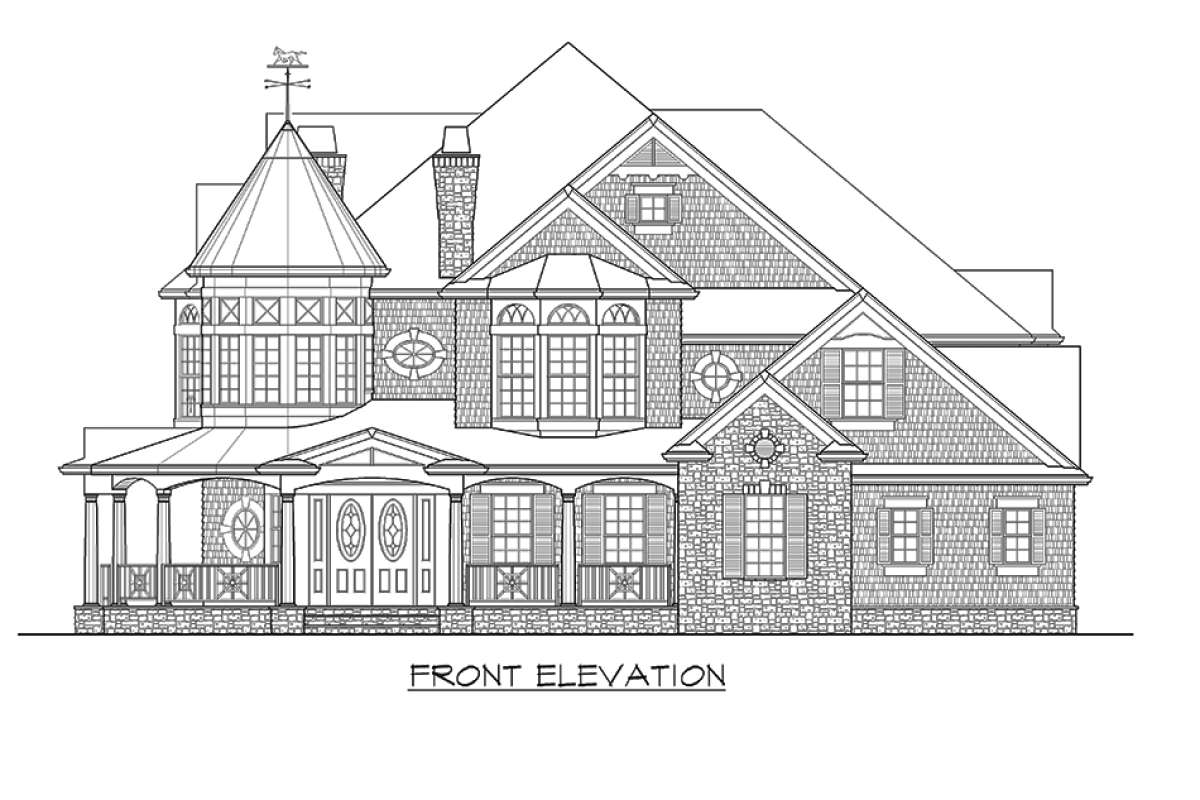

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

The ultimate Victorian Farmhouse is featured in this house design, the perfect expression of a luxurious, yet casual lifestyle. The sculptural facade consisting of extravagant exterior elements and expansive verandahs create an image of comfort and warm welcome. The front covered porch is widely proportioned, deeply set and extends around the side and rear of the home with open railing and double walk-ups onto the porch boasting of overhead gables. This Luxury house plan is highlighted with an interior floor plan that includes approximately 5,250 square feet of usable living space. A huge four car side loading garage features plenty of vehicle and storage space with direct access into the family laundry room. There are four bedrooms, four plus baths and an open floor plan designed for gracious entertaining located within the home’s interior. Double door entry into the spacious foyer reveals the rotunda, a side sweeping staircase and a dramatic 80-foot view axis through the rotunda to the great room fireplace. The convenient circular floor plan provides easy access to the den and formal living room, while connecting the kitchen and formal dining room via the butlery. An enormous rear covered outdoor dining and BBQ porch connect the family living areas to the outdoors for grand entertaining space.

The rotunda's circular staircase leads to the second level of the home where spacious and well-appointed rooms are located. The elegant master suite is accessed through French doors and features a large bedroom with a gorgeous trey ceiling accent. An adjacent sitting room is ensconced in surrounding window views offering the very best in luxurious accommodations. His and her master walk-in closets flank the hallway to the master bath where dual vanities, a separate shower and a spa inspired tub feature inspiring window views. There is a guest suite featuring a walk-in closet and private access to a full bath as well as a large media room with popcorn kitchen. Two children’s suites offer private bathrooms, walk-in closets and they share the turreted play loft which could also function as a teen-ager’s lounge. This Luxury house plan is highlighted with a grand and elegant exterior and an interior floor plan that is versatile, functional and offers superior design detailing.
