Craftsman House Plan 341-00021

Sq Ft4,100
Beds4
Baths3
1/2 Baths1
Stories2
Cars3
Width90' 0"
Depth66' 6"

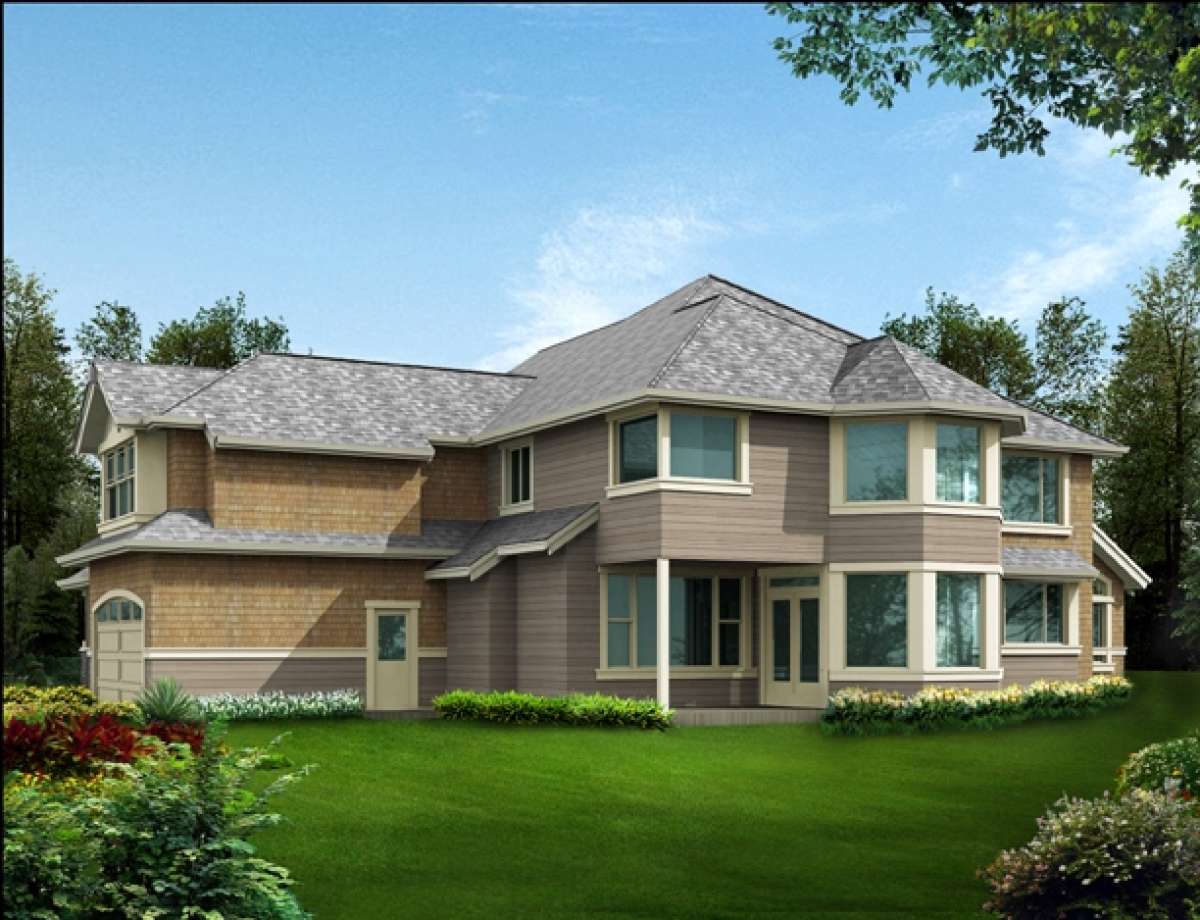

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

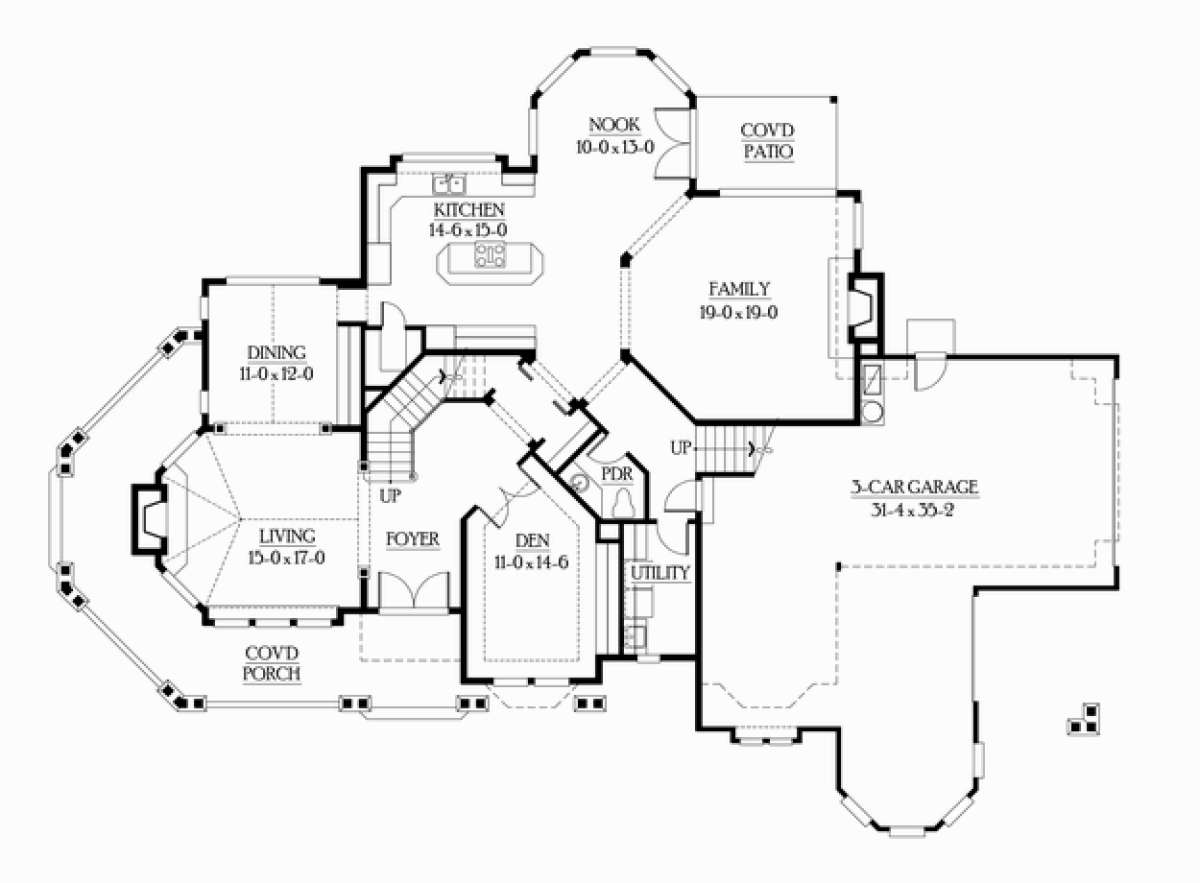

Floorplan 1 for House Plan #341-00021
Floorplan 2 for House Plan #341-00021
Floorplan 1
Floorplan 1 for House Plan #341-00021

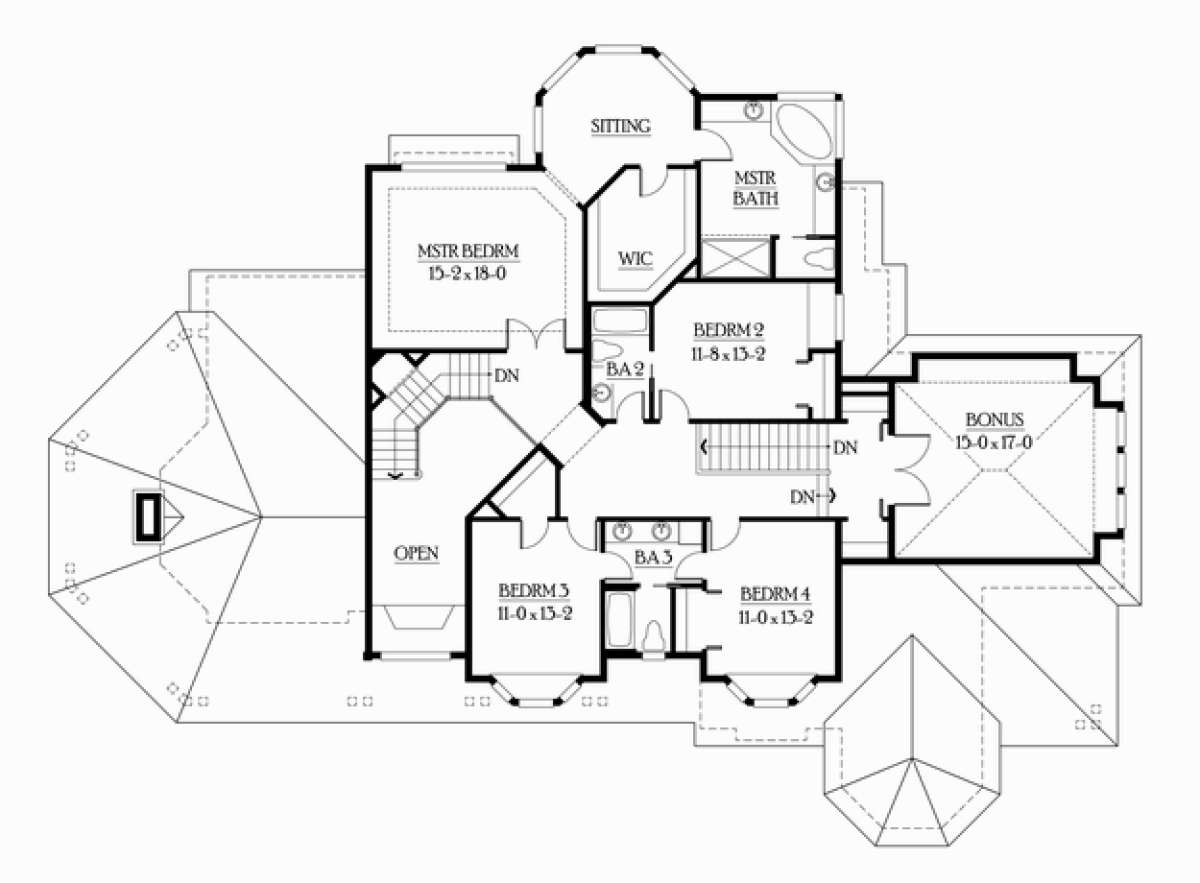

Floorplan 2
Floorplan 2 for House Plan #341-00021


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.
  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

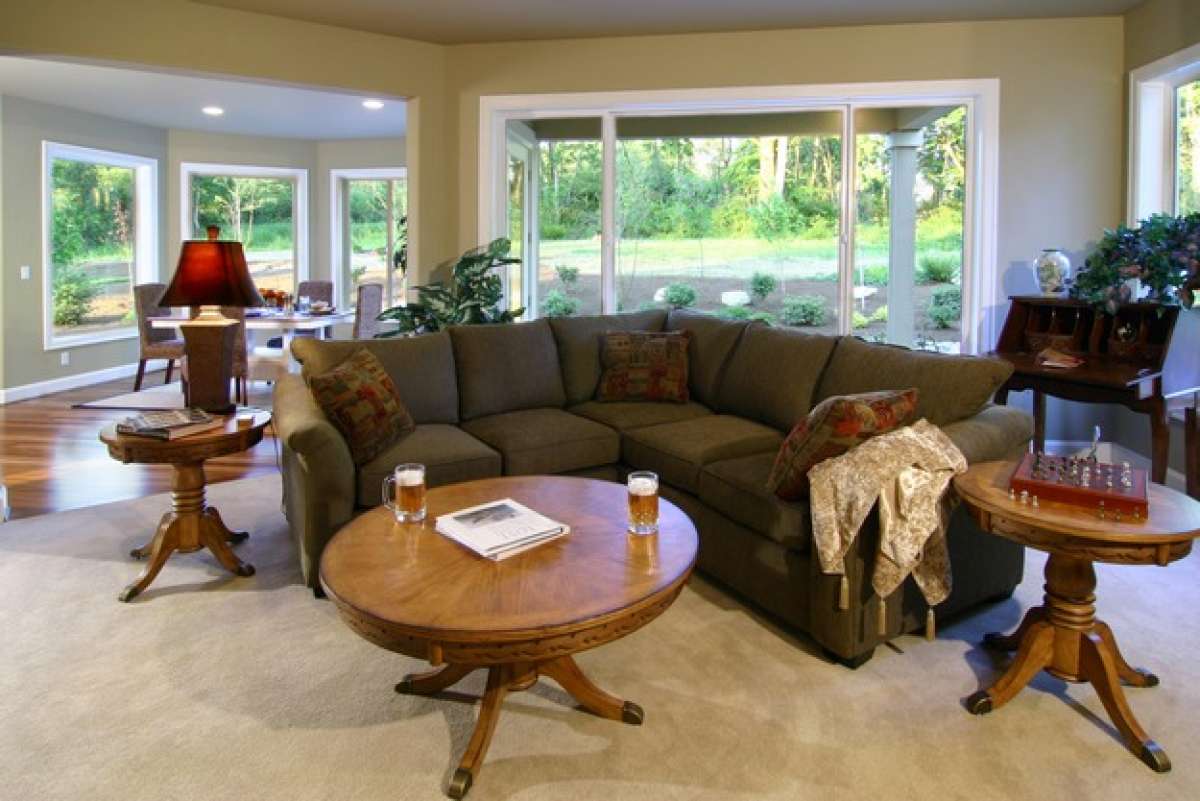

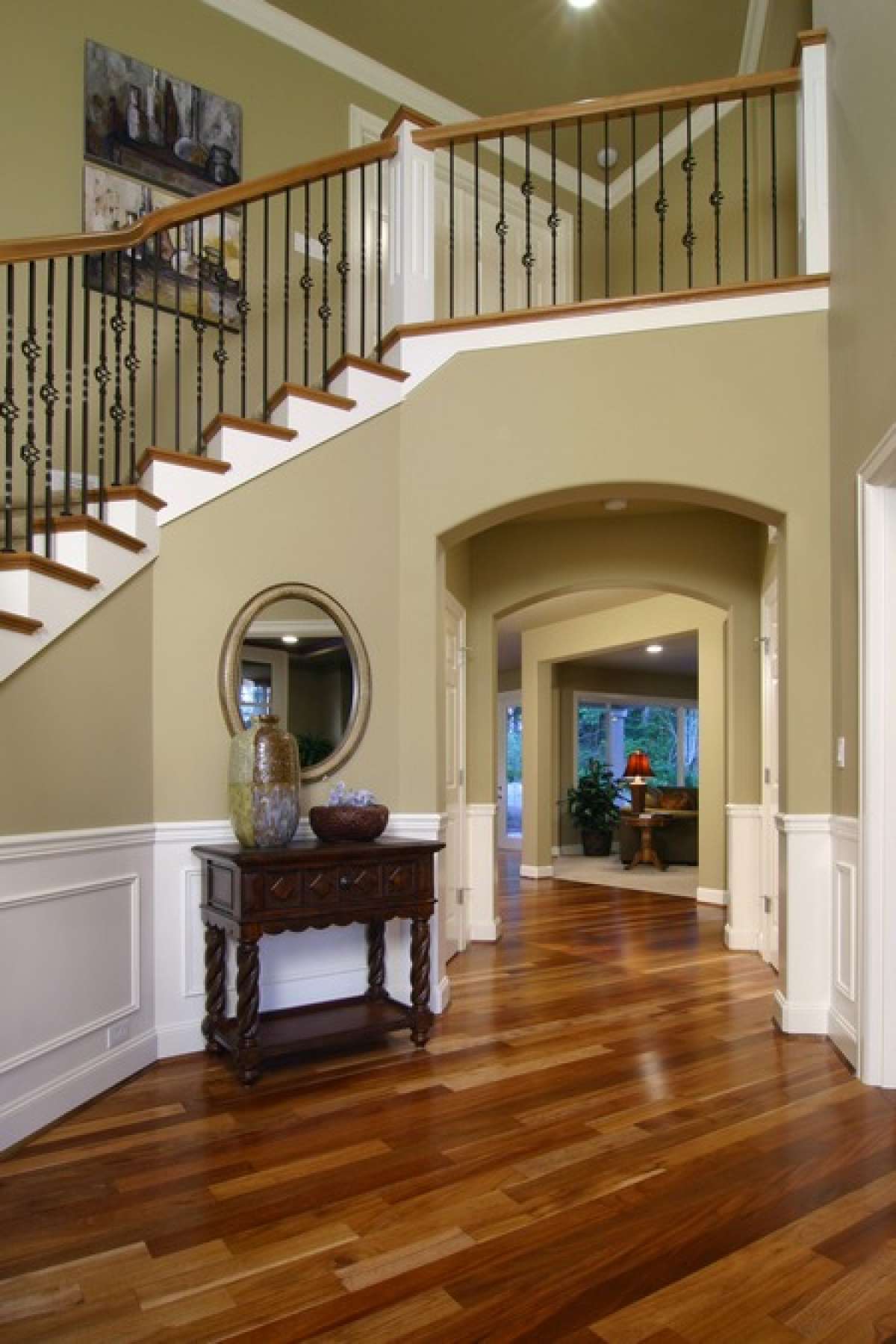

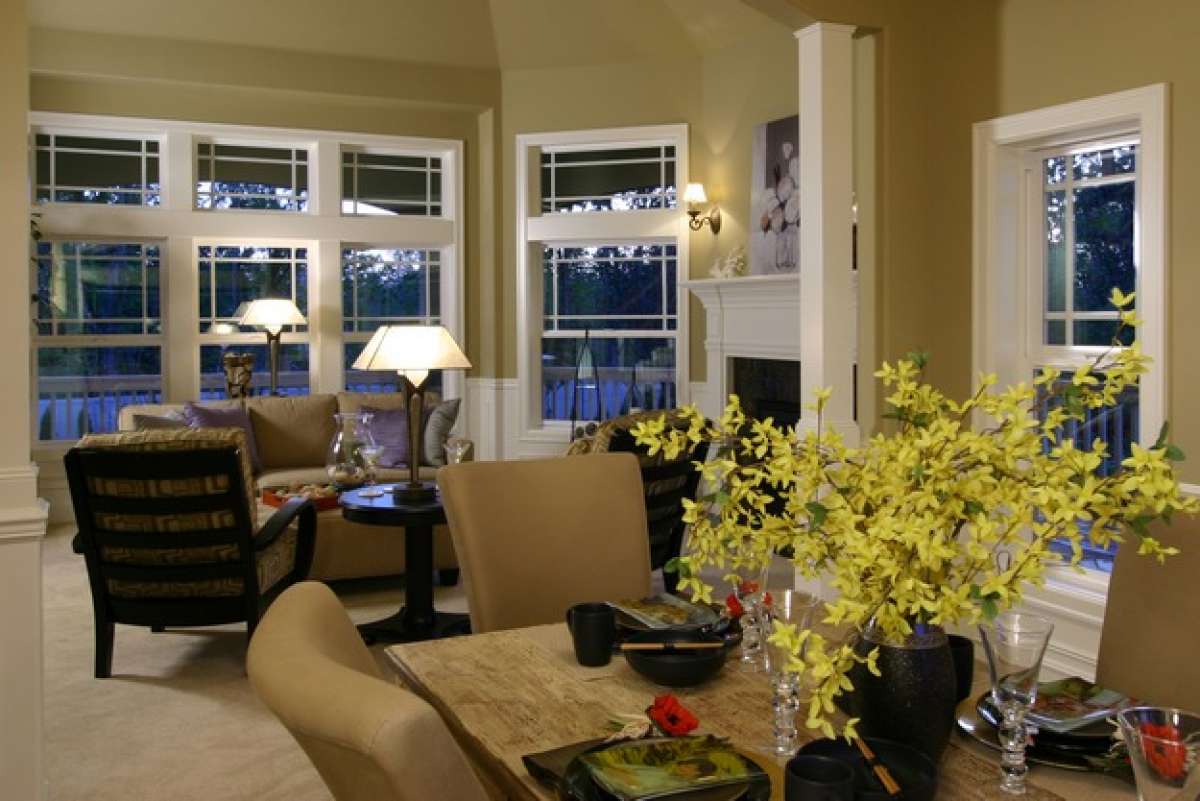

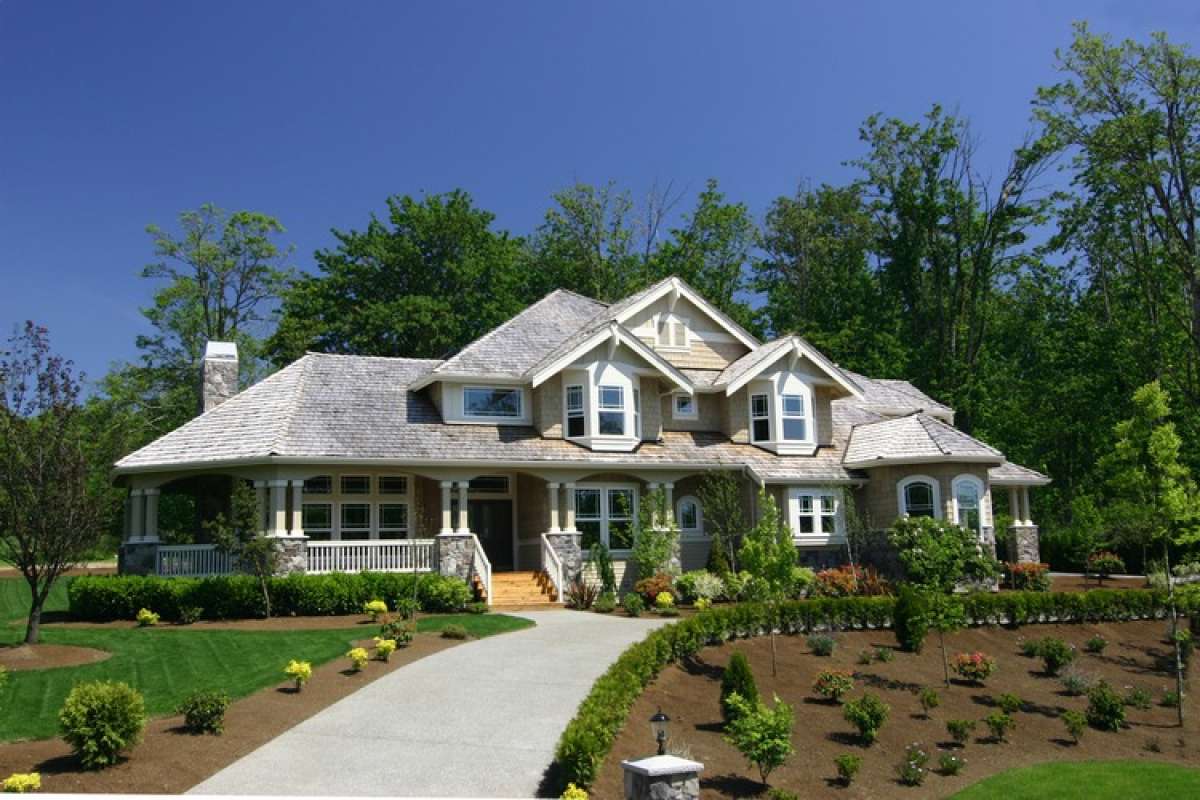

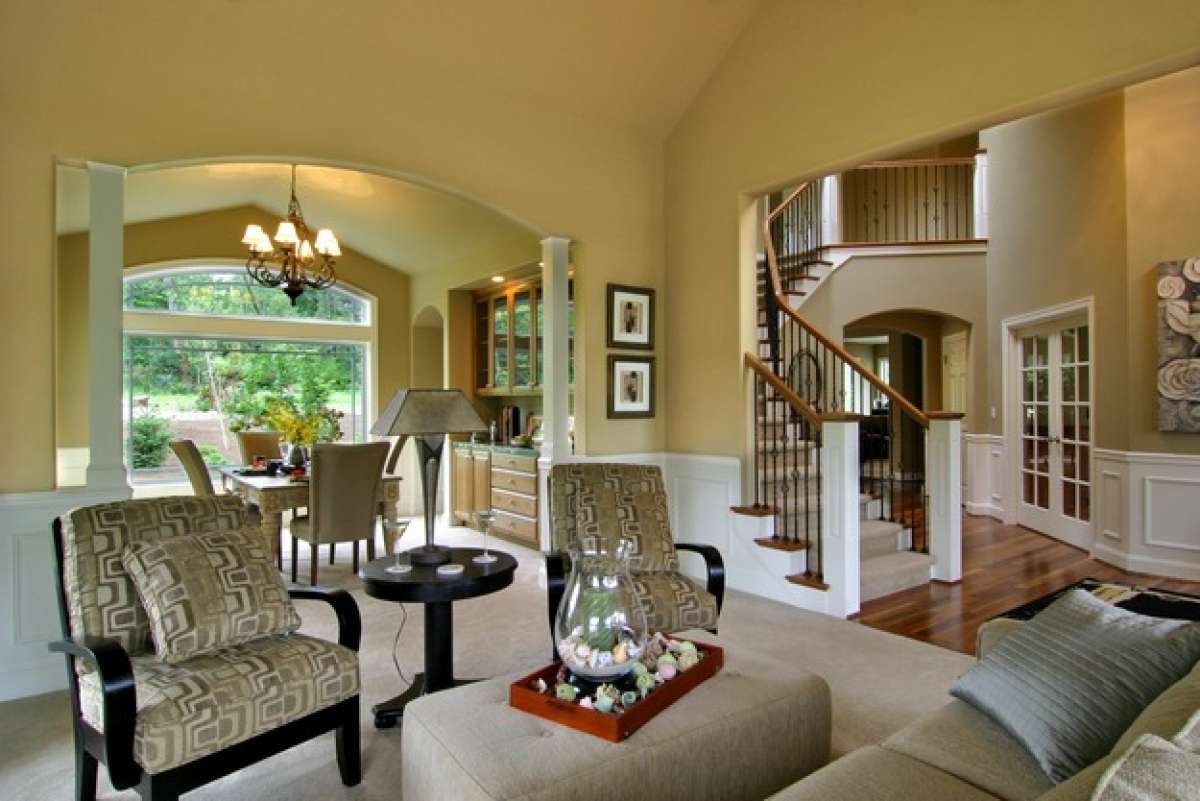

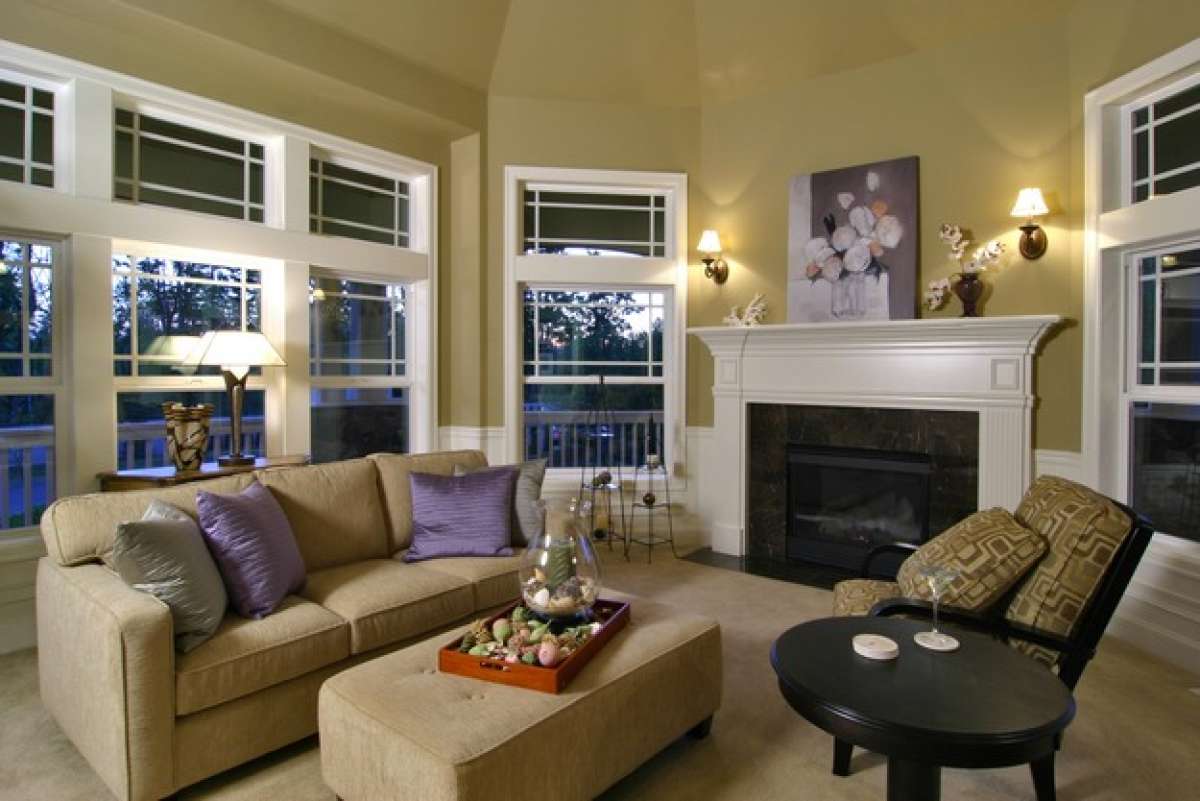

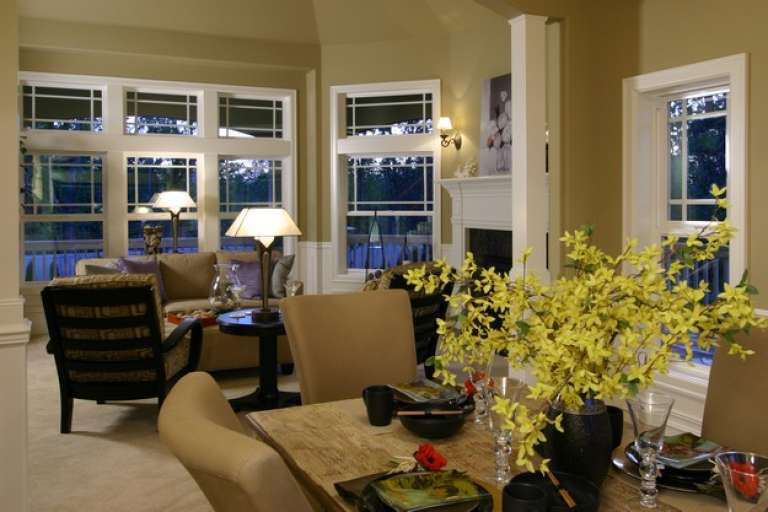

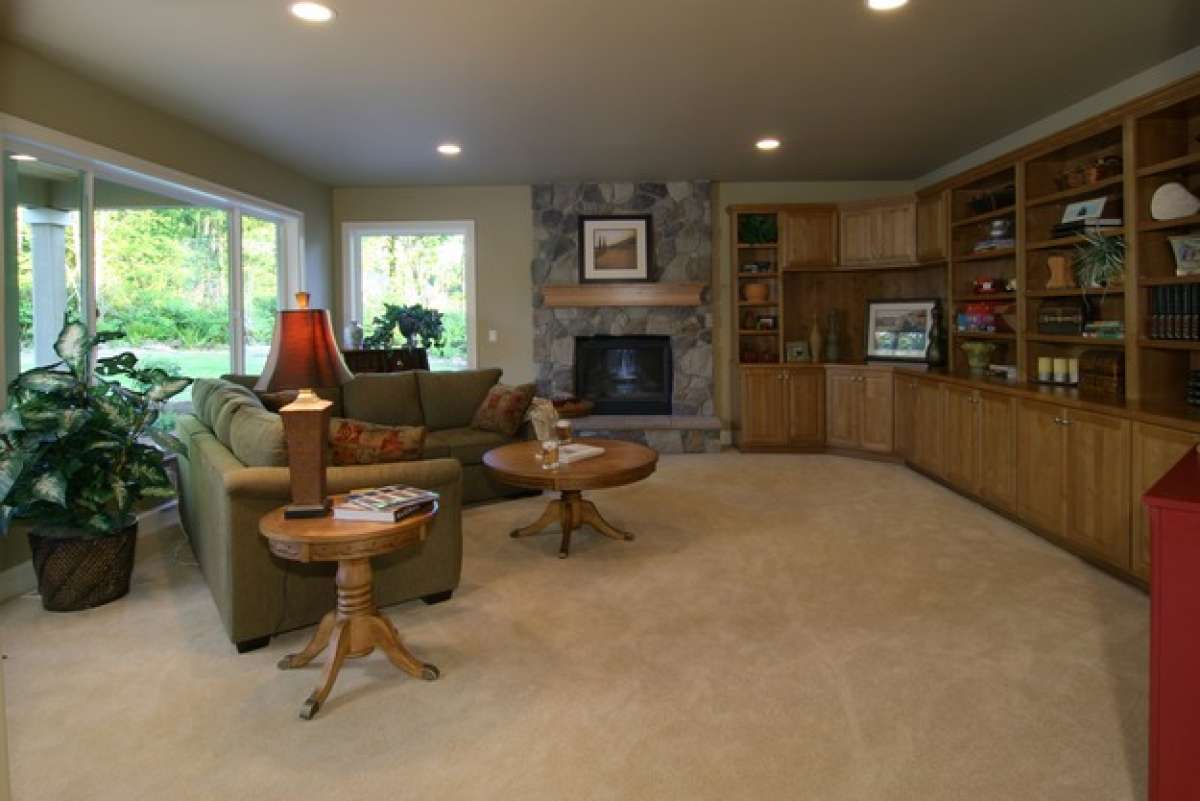

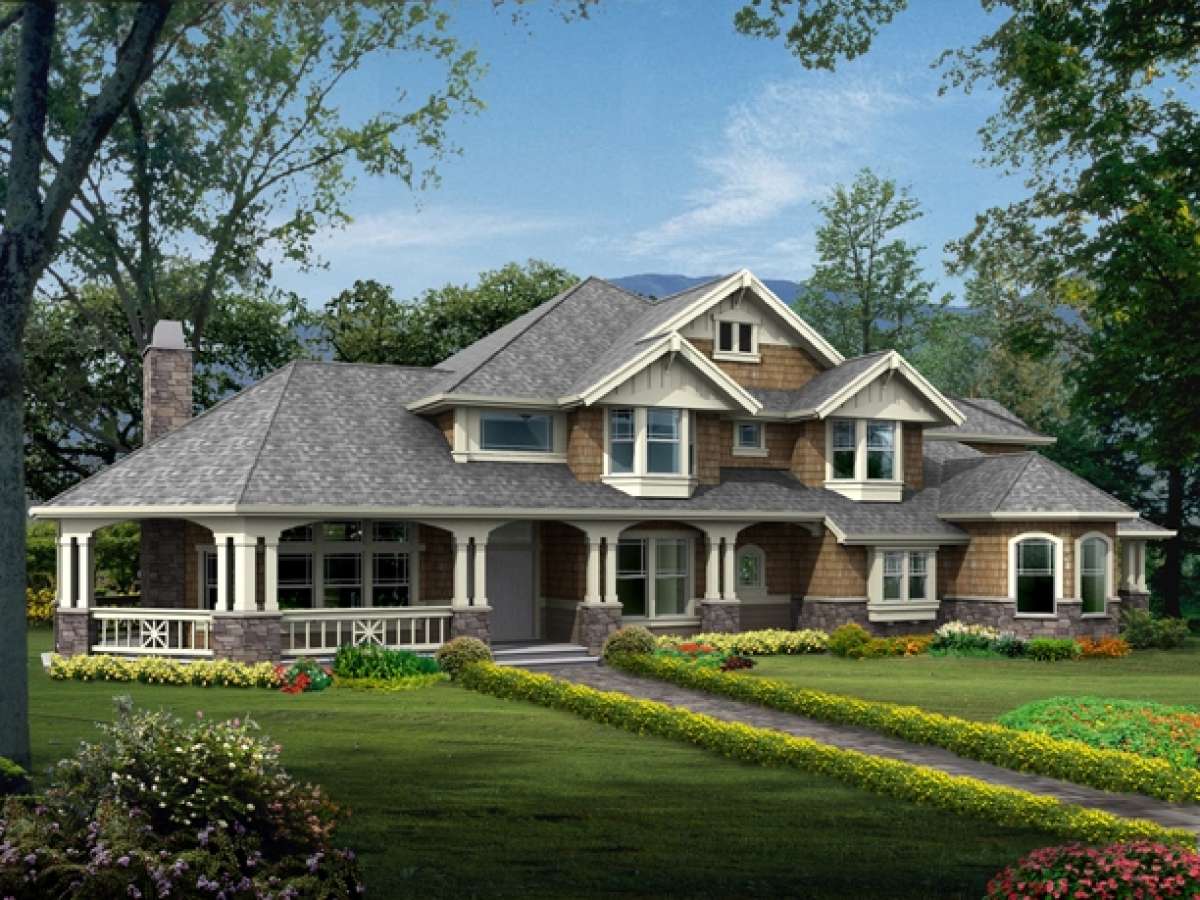

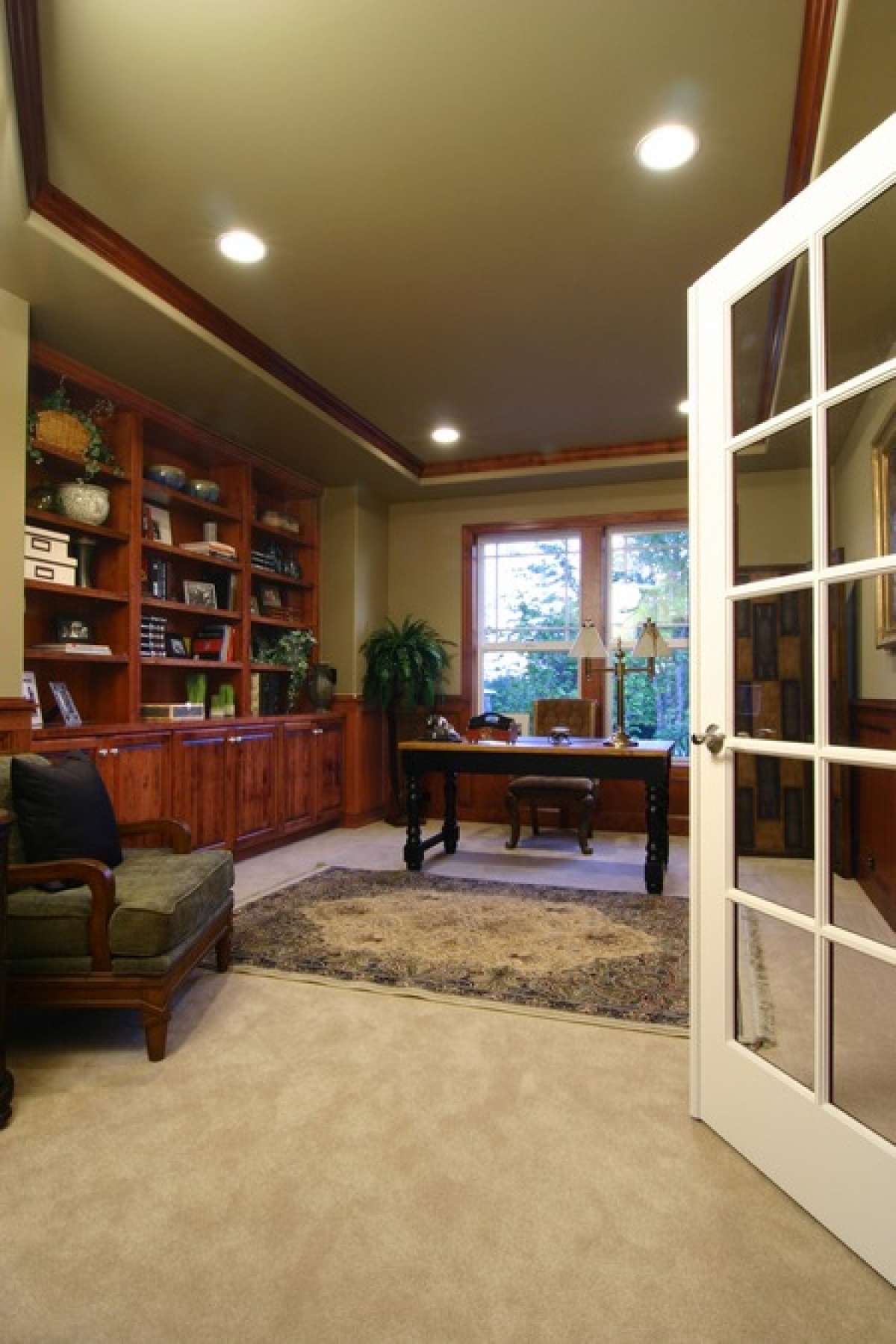

This gorgeous Craftsman house plan features a stunning exterior and an interior that is spacious and well laid-out. The exterior elements include cedar shakes, stonework, numerous gables, a seemingly endless selection of window views and a front covered porch. The wraparound front porch is highlighted with a series of multiple columns, stone pillars, and open railing. This is a wonderful space to greet your family and guests as well as gracious entertaining space. The interior floor plan is highlighted with approximately 4,100 square feet of usable living space which incorporates four bedrooms and three plus baths into two floors. The three car side entry garage is huge with a bayed workshop area and the detailing outlining the garage is in keeping with the exterior of the home which enhances the curb appeal of the home. A spacious foyer and winding staircase add dramatic flair to the home’s entryway and there are multiple entry/exit points to the remainder of the home’s interior. One side of the foyer is flanked by the private den; perfect for a home/office and appealing for entertaining business associates and close friends. The living room features great living space with a warming fireplace and a stylistic ceiling enhancement that opens onto the formal dining room which is spacious and sunlit. The adjoining kitchen, breakfast nook and family room provide casual spaces where the family can gather in comfort and relax. The grand kitchen is highlighted with a large center island, a separate walk-in pantry and plentiful cabinet/counter space. The breakfast nook is situated in a sunny bay window with access onto the rear covered patio while the family room is huge with a handsome fireplace and built-in cabinetry. The powder room for guests and utility room are located directly off the garage for convenience and a tidy home environment.

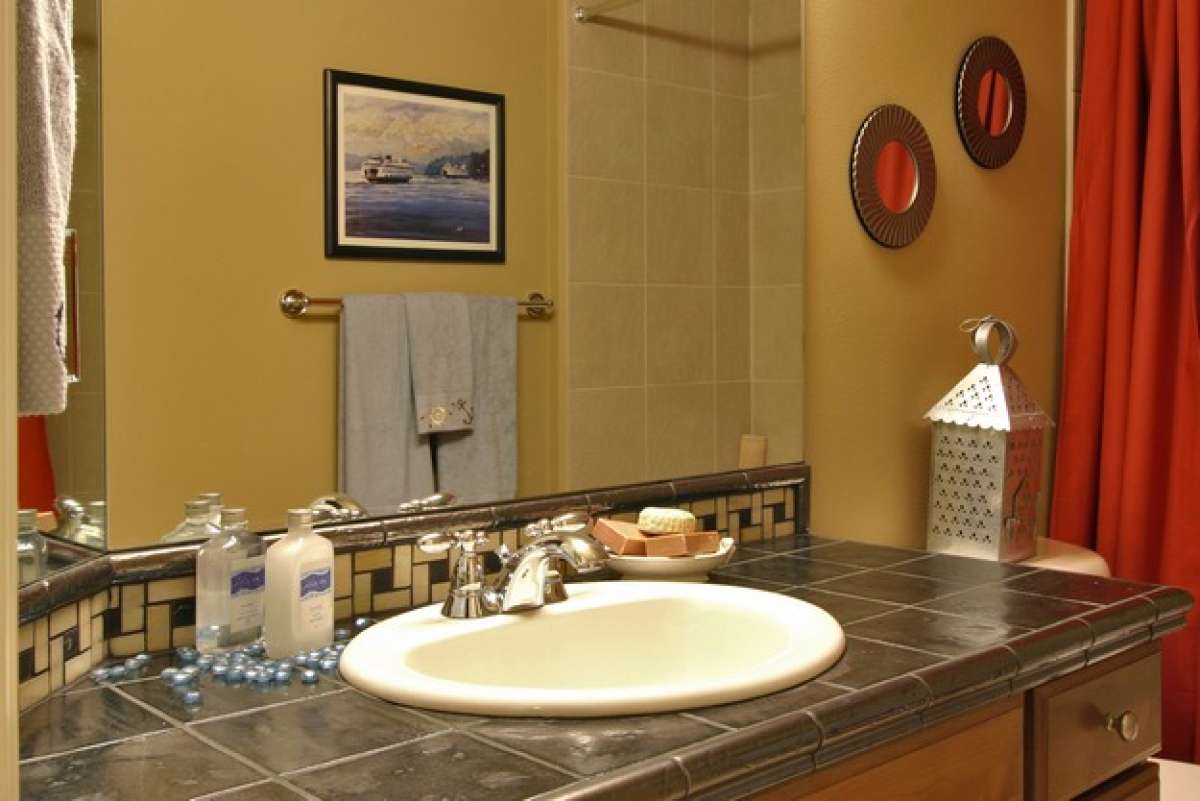

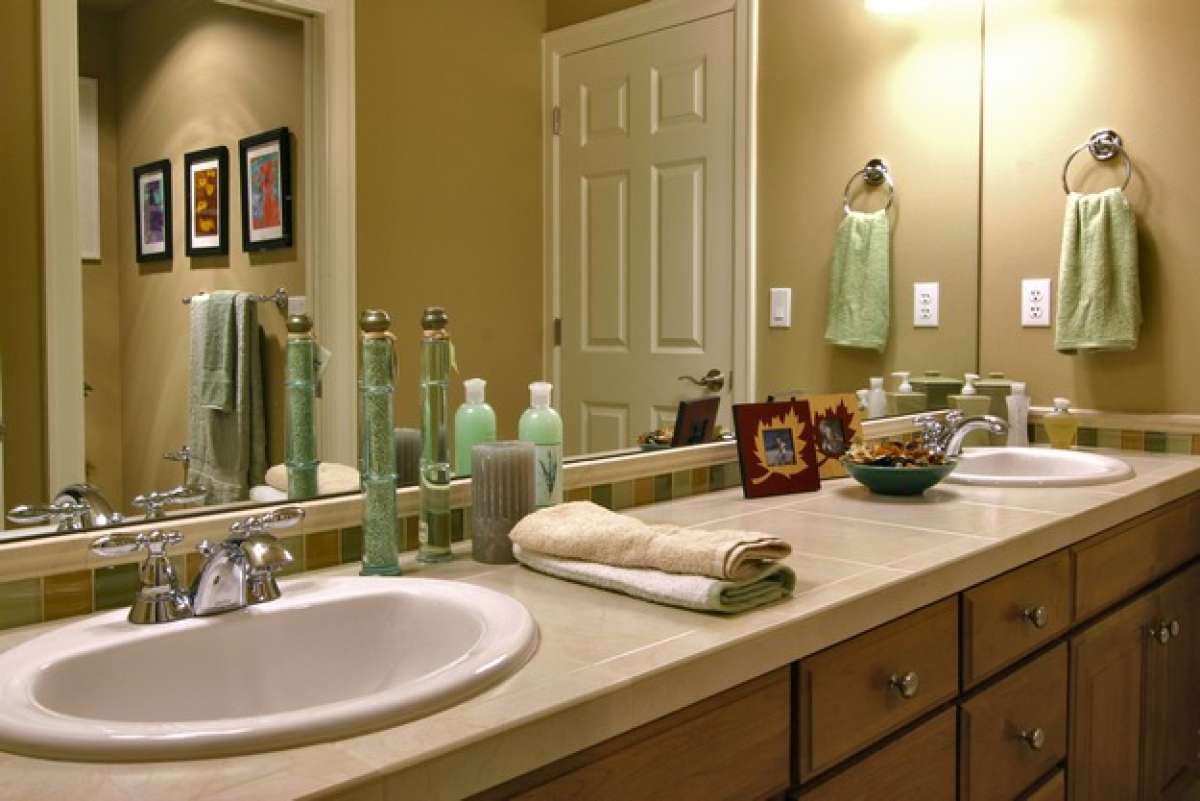

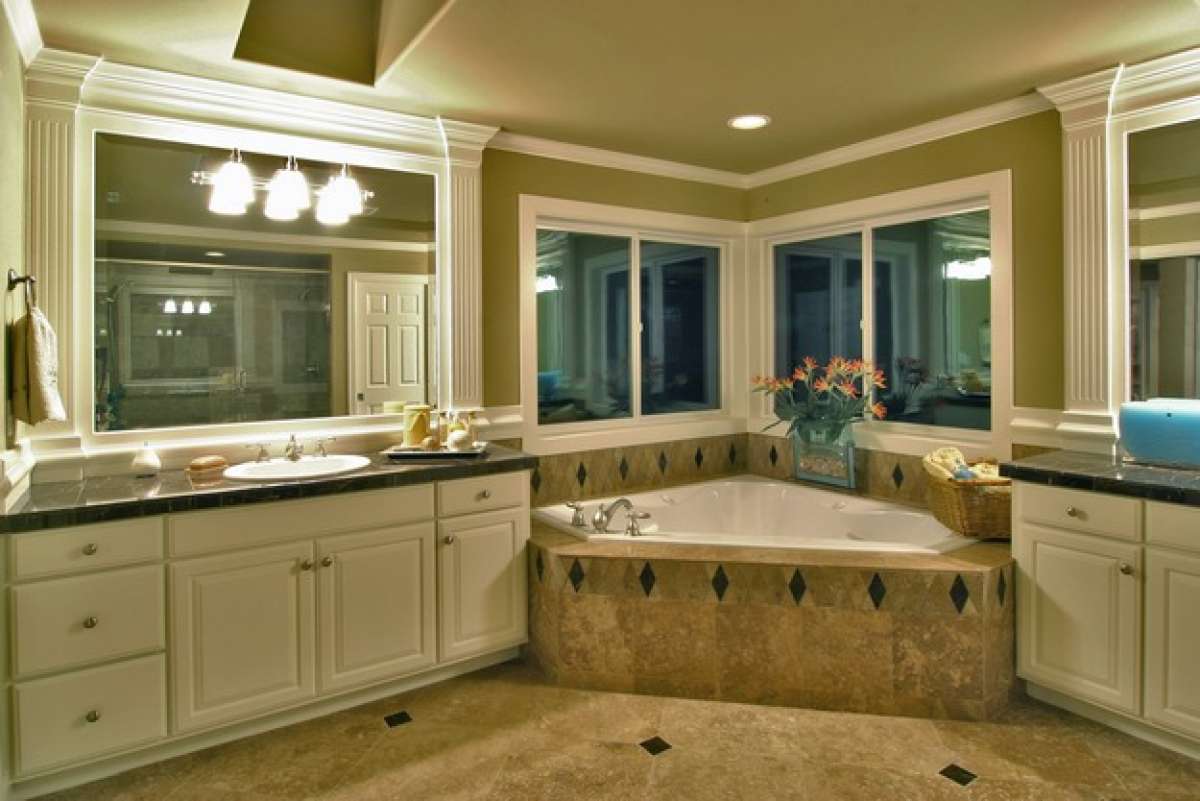

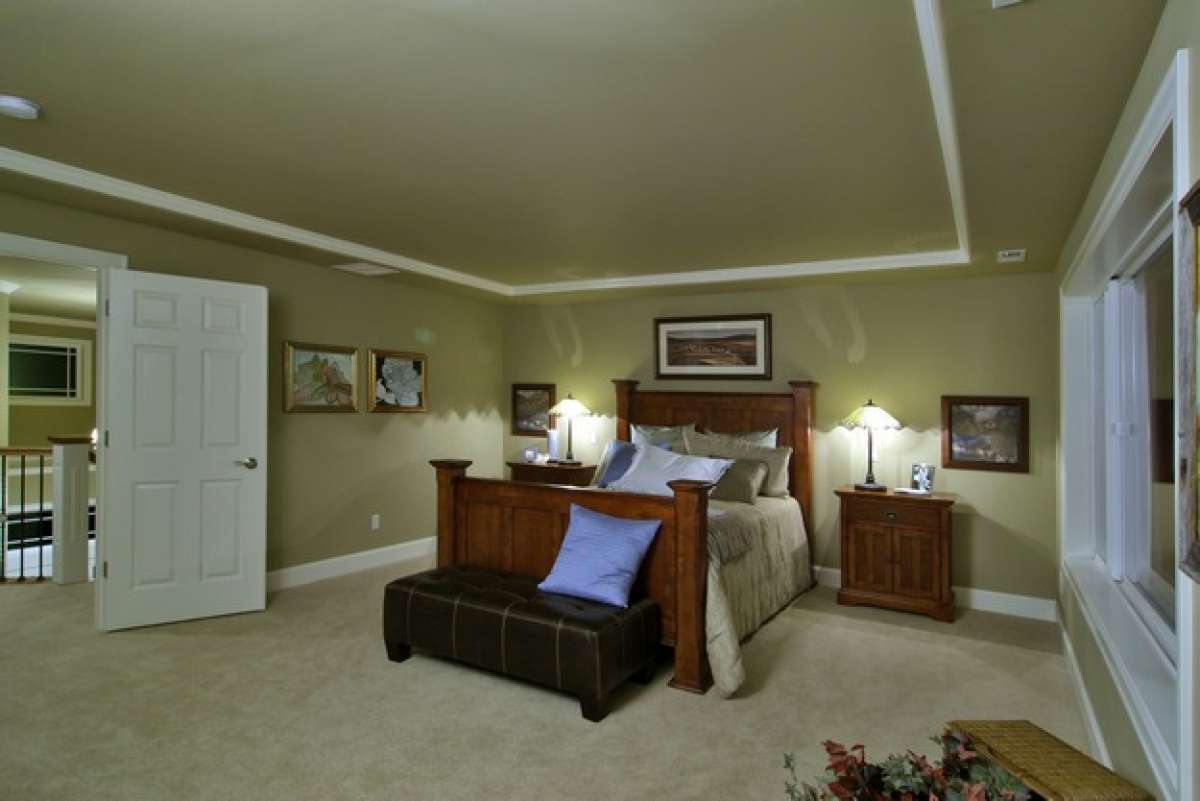

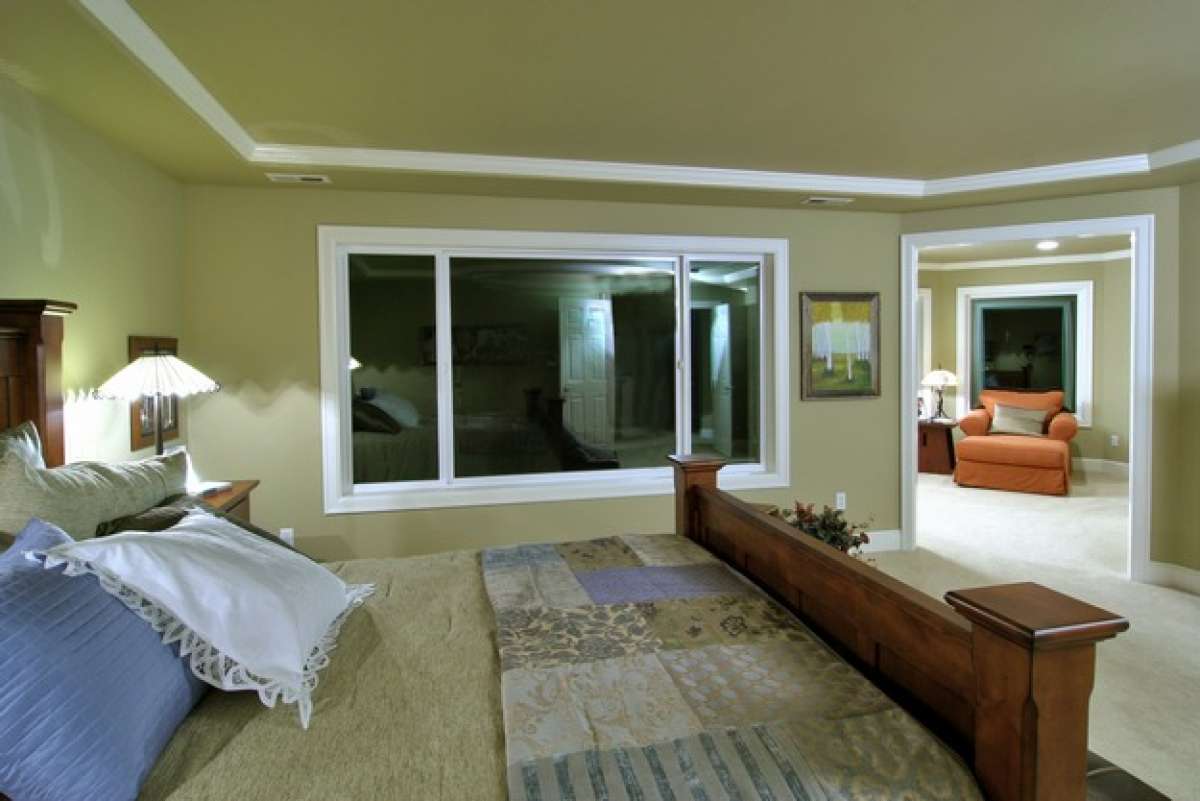

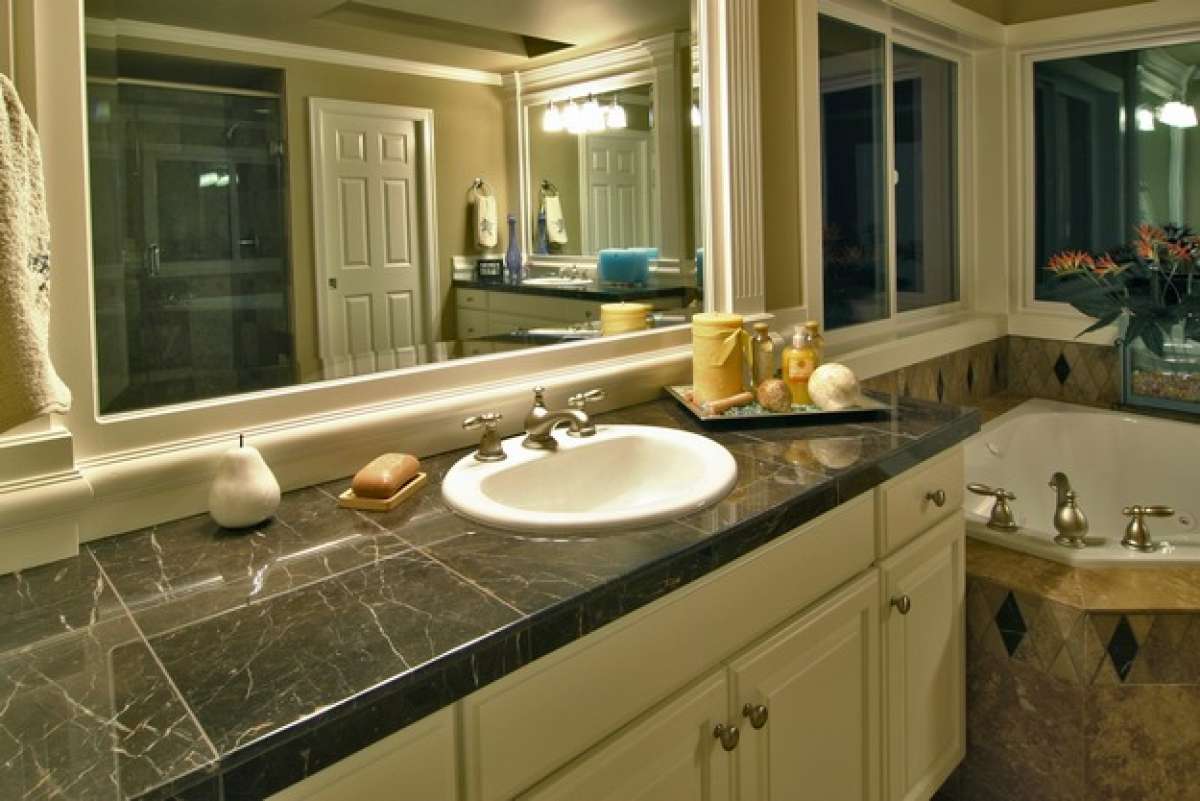

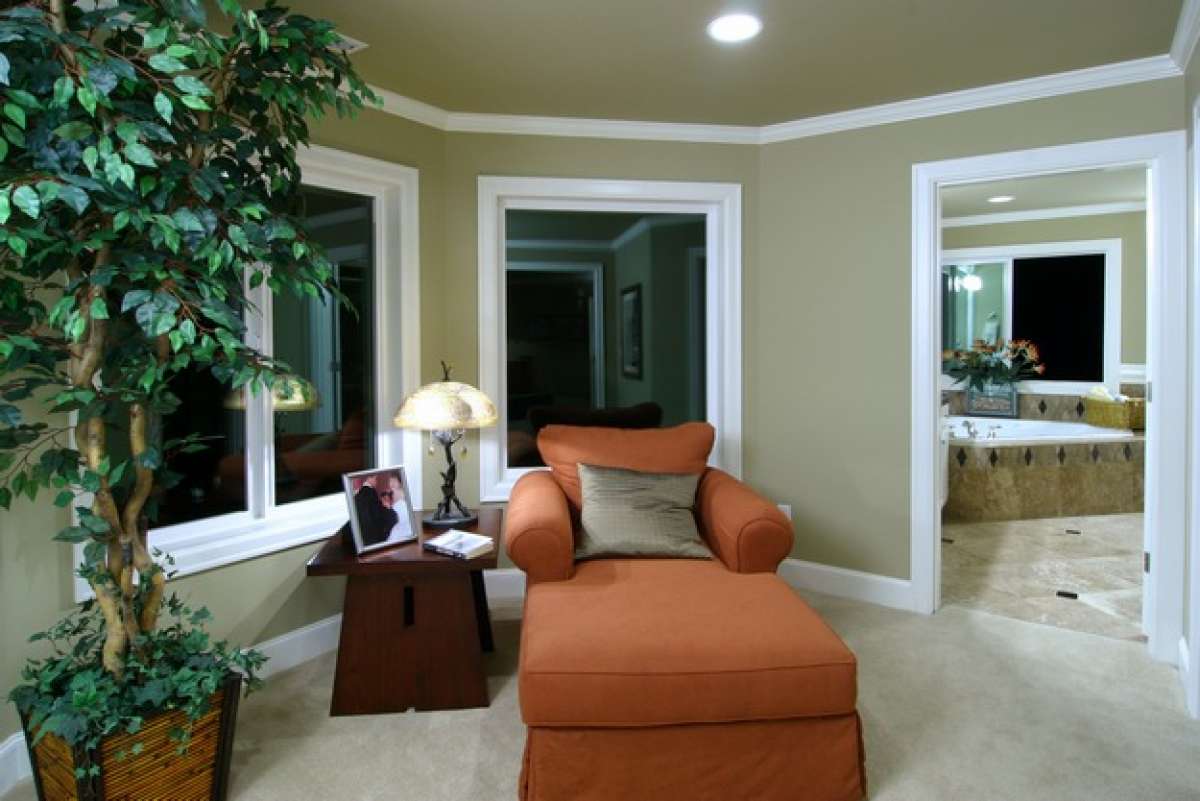

The winding staircase from the first to the second floor features gorgeous overviews below and leads to the private family bedrooms and baths. In addition, there is a large bonus room with French door access at the endcap of the hallway. This space could be utilized as an additional bedroom, a media/theatre room or a multi-purpose family room. Bedroom two features good floor space, private access into the full bath and plentiful closet space. Bedrooms three and four are equal size with bay window views and excellent closet space. There is a jack and jill bathroom with a toilet area, tub/shower combination and double sink vanities. The master bedroom is a beautiful compilation of large rooms designed for the homeowner’s pleasure and comfort. The master bedroom is highlighted with a trey ceiling and there is an attached private sitting room surrounded with window views. A large walk-in closet is nearby and the master bath features separate dual vanities, a corner garden tub, a separate shower and a compartmentalized toilet area. This Craftsman masterpiece is highlighted with a striking exterior and a floor plan designed for entertaining while maintaining plenty of private family space.
