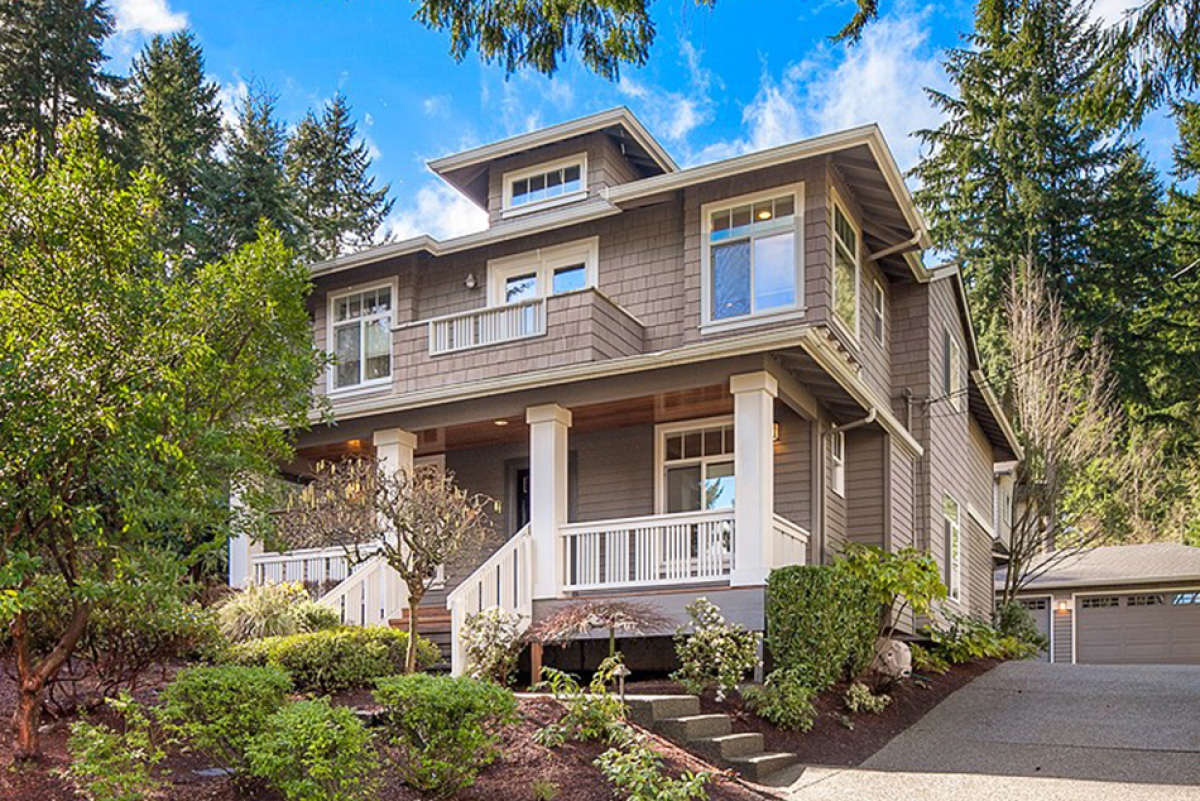

Craftsman House Plan #341-00003 Elevation Photo

Craftsman House Plan #341-00003 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,505

Beds 3

Bath 2

1/2 Baths 1

Car 3

Stories 2

Width 30'

Depth 68'

See What's Included

Select Package

PDF (Single Build)

$1,800.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Plus PDF, Unlimited Build)

$3,250.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once and also includes a PDF set!

Select Foundation

Crawlspace Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $300.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

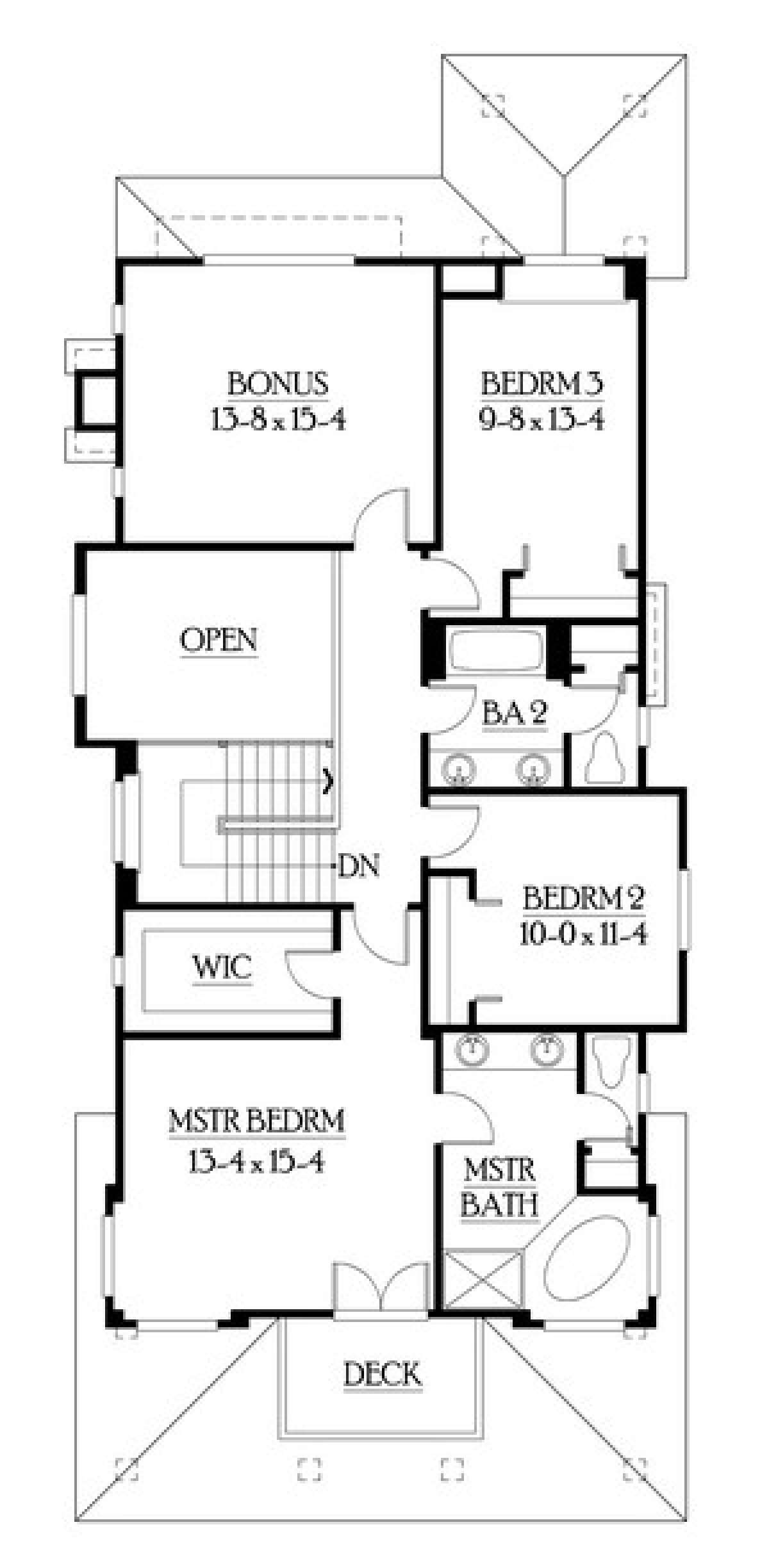

Floorplan Drawings

REVERSE PRINT DOWNLOAD

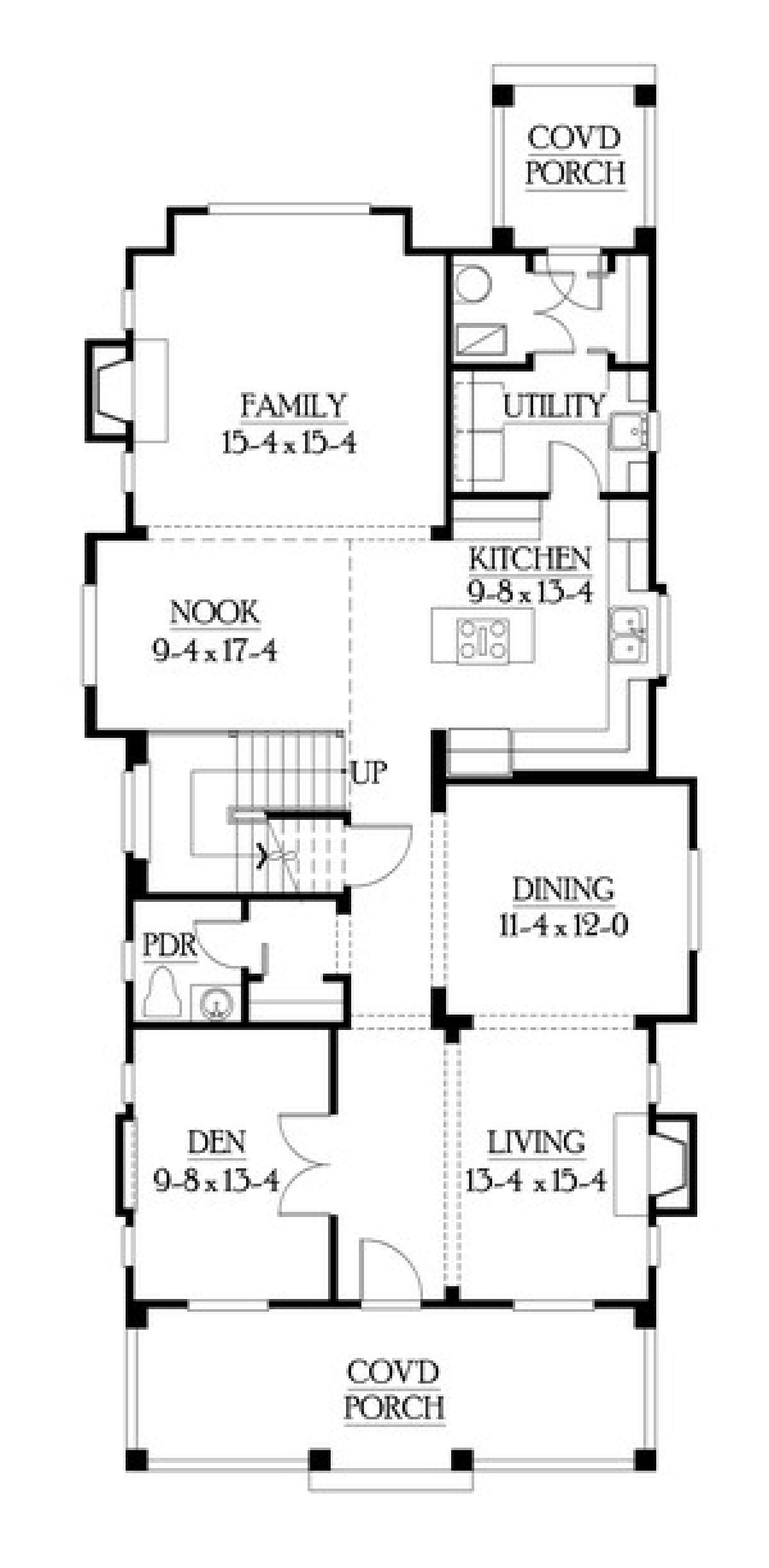

Floorplan 1

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features. The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

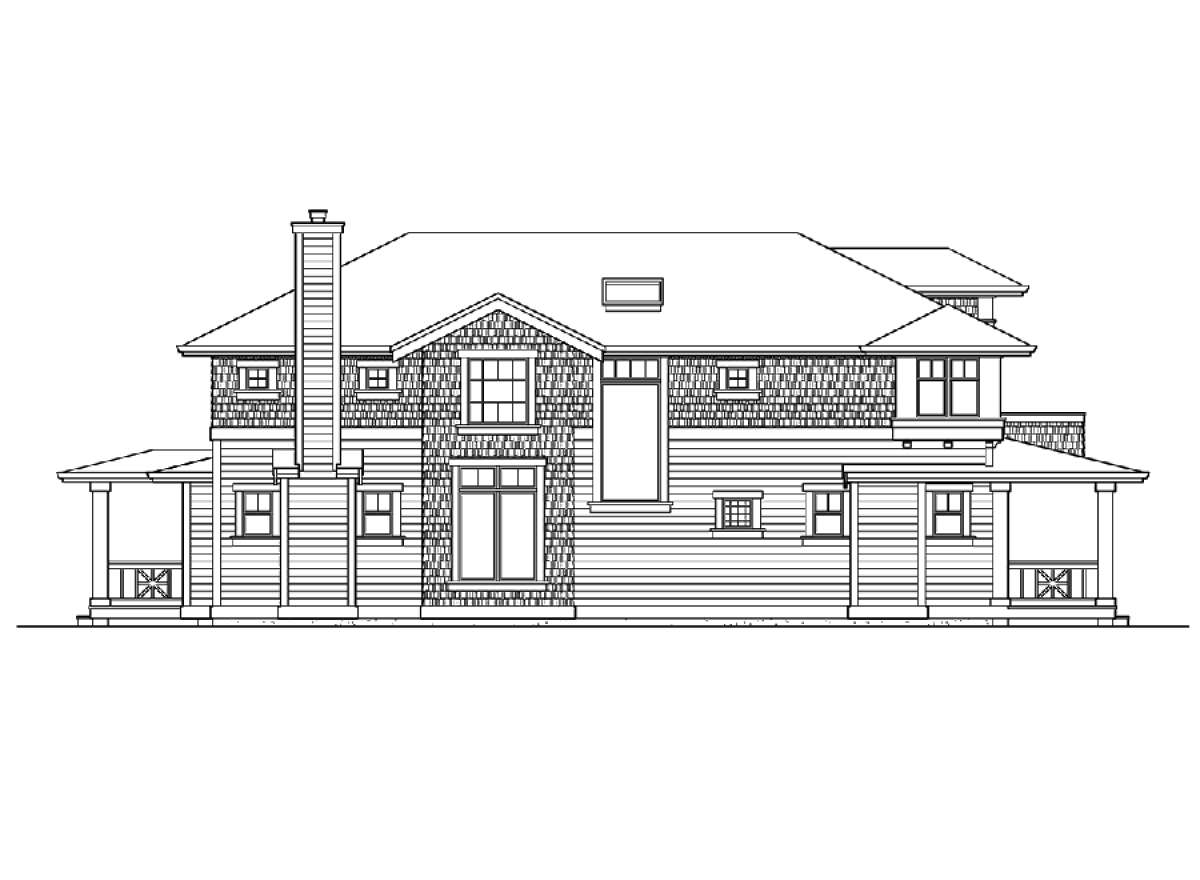

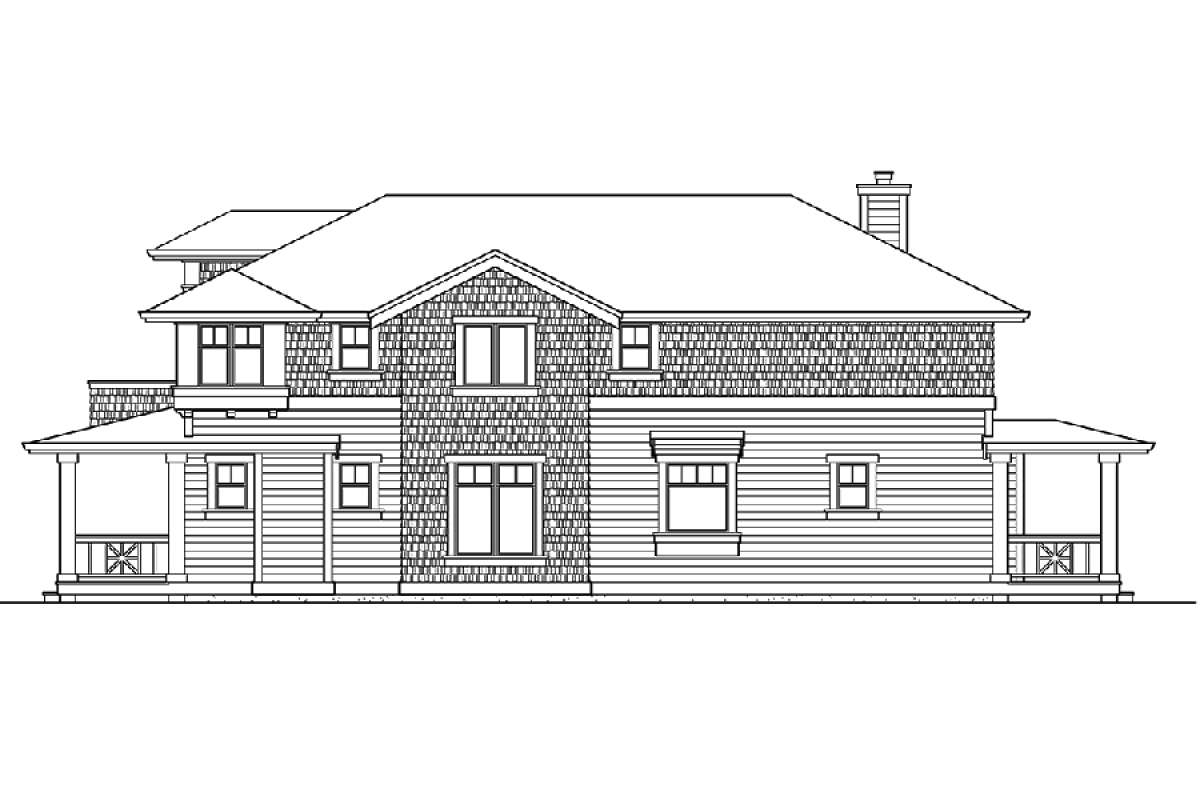

Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation. The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Plan FAQs

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State. The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.

Ask Us A Question

About This Plan

IMPORTANT NOTE: Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information.

This beautiful two storied Bungalow home features a classic and timeless exterior and a spacious interior designed for a modern lifestyle. Stylish cedar shakes, horizontal siding, wide window casements and a front covered porch highlighted with substantial columned beams and decorative railing add architectural interest and enormous curb appeal to the home’s appearance. Approximately 2,505 square feet of interior space features three bedrooms, two baths and bonus space while the 30’ width dimension is perfect for a narrow lot without compromising on space. The extended foyer flows from the front of the home to the rear affording great views and access into the common living areas. There is a den accessible through French doors and the living and dining rooms are situated across the hallway. A second story stairwell and nook flood the center of the home with sunlight as you travel the foyer to where the rear positioned family rooms are located. A huge breakfast room is open to both the family room with a warming fireplace and the grand kitchen with a center island cook top and loads of counter and cabinet space. The rear covered porch provides access to the mudroom and adjoining laundry room.
The upper level of the home features excellent secondary bedrooms; both bedrooms are spacious with good closet space, window views and a shared hall bath with double vanities. The bonus room features 230 square feet of space, perfect for a playroom for young children or a lounge for older children. The master suite holds a bevy of elegant rooms that include a large bedroom with a private deck accessible through French doors. There is an oversized walk-in closet and an en suite bath that enjoys a large footprint and modern amenities including dual vanities, a separate shower and a huge corner garden tub for soaking. Modern living, plenty of interior space and a gorgeous exterior form this Coastal Bungalow house plan.
