Ranch Plan 340-00015


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,051
Beds 3
Bath 1
1/2 Baths 1
Car 1
Stories 1
Width 38'
Depth 34'

Floorplan Drawings

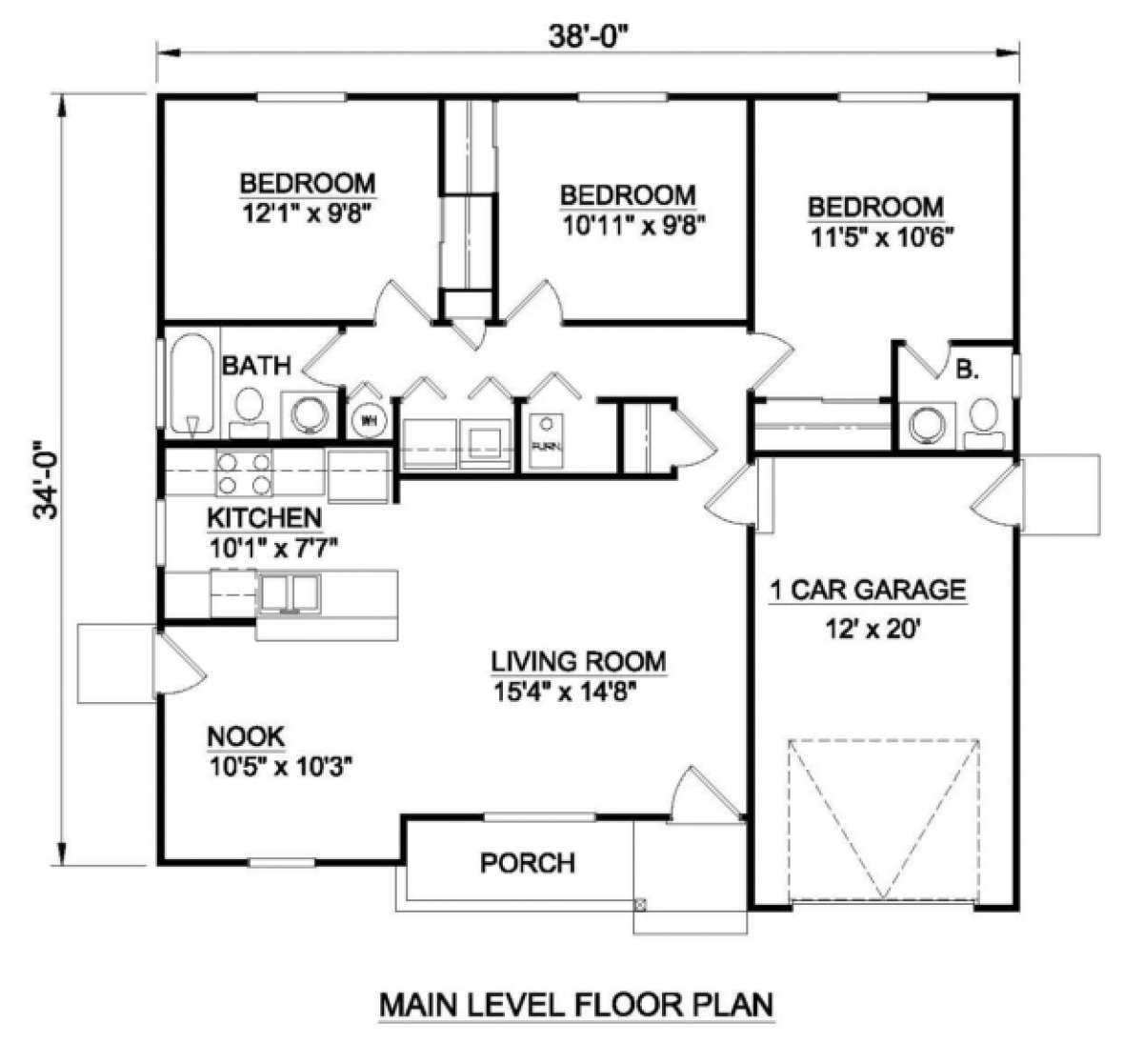

Floorplan 1
Floorplan 1 for House Plan #340-00015

What's Included in these plans?

  • Cover Sheet
    General notes and Sheet index.
  • Sheet A-2
    Current International Residential Code notes.
  • Floor Plan(s)
    Includes floor plans drawn at 1/4" scale for each level showing room dimensions, wall partitions, door and window type and sizes noted on the floor plan. Floor plans are available with 2x4 and 2x6 exterior walls.
  • Exterior Elevations
    House plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Cross Section
    A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.  Additional foundation types may be available for a given house plan, and include specific details relating to foundation design.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Monolithic concrete slab consists of a reinforced slab poured over granular fill with turn down edges. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Framing Plan
    Includes a roof framing plan which will show the schematic layout, type and size of all roof framing members.
  • Floor Framing Plan(s)
    Includes floor framing plans for each level which will show the schematic layout  and spacing of all beams, support columns, rim joist, and floor joists.
  • Electrical Plan with electrical symbols legend
    Includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • License to Build
    Includes ONE license to build.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 1 bathroom Ranch house plan features 1,051 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
