Ranch Plan 340-00011


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,200
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 44'
Depth 30'

Floorplan Drawings

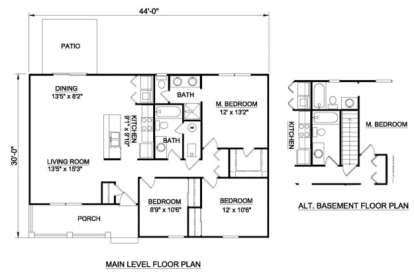

Floorplan 1
Floorplan 1 for House Plan #340-00011

What's Included in these plans?

  • Cover Sheet
    General notes and Sheet index.
  • Sheet A-2
    Current International Residential Code notes.
  • Floor Plan(s)
    Includes floor plans drawn at 1/4" scale for each level showing room dimensions, wall partitions, door and window type and sizes noted on the floor plan. Floor plans are available with 2x4 and 2x6 exterior walls.
  • Exterior Elevations
    House plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Cross Section
    A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.  Additional foundation types may be available for a given house plan, and include specific details relating to foundation design.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Monolithic concrete slab consists of a reinforced slab poured over granular fill with turn down edges. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Framing Plan
    Includes a roof framing plan which will show the schematic layout, type and size of all roof framing members.
  • Floor Framing Plan(s)
    Includes floor framing plans for each level which will show the schematic layout  and spacing of all beams, support columns, rim joist, and floor joists.
  • Electrical Plan with electrical symbols legend
    Includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • License to Build
    Includes ONE license to build.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan features an attractively simple exterior framed with a front covered porch and rear patio. The exterior includes horizontal siding, great window views, wide eaves and the front porch is highlighted with substantial beams and open railing. With plenty of room to greet family and friends, the porch is the perfect welcoming spot. The interior layout features approximately 1,200 square feet of living space with an open layout, three bedrooms and two baths on one level. There is an option for either a slab, crawl space or basement foundation with the basement being a great choice for expansion possibilities. The home is an ideal fit for a narrow and/or small lot with its respective width and depth dimensions of 44’ and 30’.

The front entrance into the foyer reveals a coat closet and the open floor plan. There is a large living room with double window views overlooking the porch and the adjacent dining room is spacious allowing for great family meals. The slider onto the rear patio is perfect for dining al fresco or enjoying a summer cook out. The grand kitchen is highlighted with a large center island, plenty of counter and cabinet space and there is an adjoining laundry nook nearby. The hallway of the home grants access into the family bedrooms and baths along with a mechanical room. Bedroom two could be configured to hold bunk beds and a double bed; there is sizable closet space and a window view. The third bedroom is slightly larger with a window view and matching closet space. There is a shared hall bathroom which offers a large vanity, a toilet area and a tub/shower combination. The owner's suite is highlighted with a spacious bedroom, double window views and an attached, oversized walk-in primary closet. The en suite bath features dual sinks, an enclosed toilet area and a shower. This simply constructed home is ideal for a small family, young professionals and empty nesters and can be expanded either now or in the future as family needs change.
