Ranch Plan 340-00001

What's Included in these plans?

• Cover Sheet
  General notes and Sheet index.
• Sheet A-2
  Current International Residential Code notes.

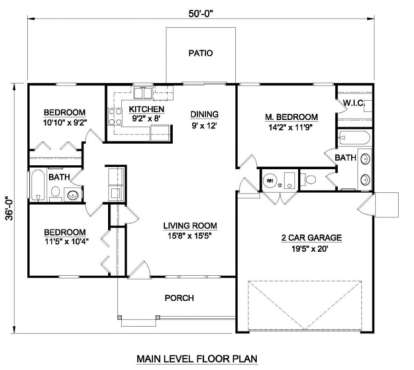

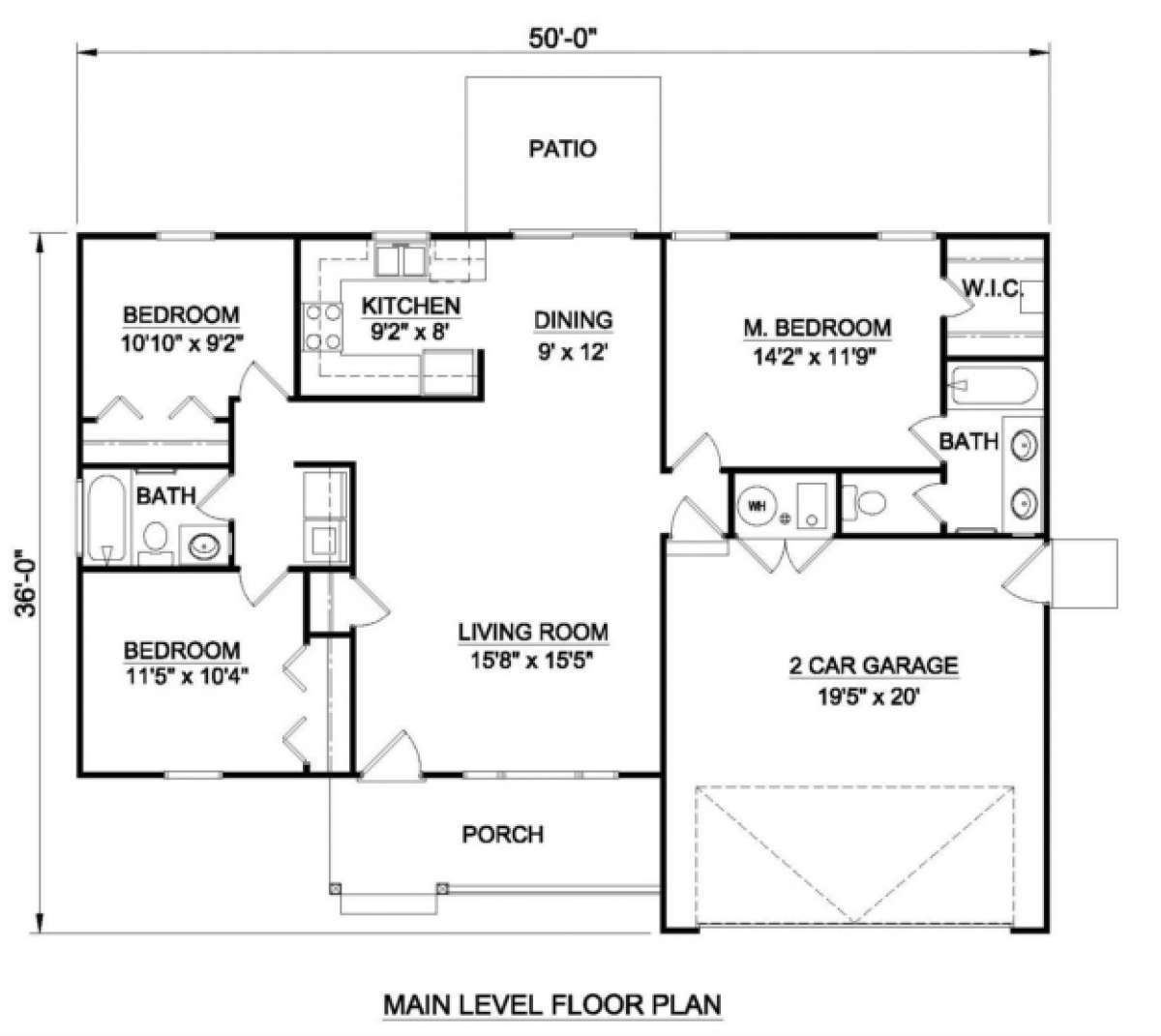

• Floor Plan(s)
  Includes floor plans drawn at 1/4" scale for each level showing room dimensions, wall partitions, door and window type and sizes noted on the floor plan. Floor plans are available with 2x4 and 2x6 exterior walls.
• Exterior Elevations
  House plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
• Interior Elevations
  Where applicable, house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
• Cross Section
  A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
• Foundation Plan and Details
  Each house plan set includes one foundation type.  Additional foundation types may be available for a given house plan, and include specific details relating to foundation design.
• Foundation types typically offered: (each type may or may not be available for a given design)
  -Slab: Monolithic concrete slab consists of a reinforced slab poured over granular fill with turn down edges. No accessible space exists underneath slab construction.
  -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
  -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
• Roof Framing Plan
  Includes a roof framing plan which will show the schematic layout, type and size of all roof framing members.
• Floor Framing Plan(s)
  Includes floor framing plans for each level which will show the schematic layout  and spacing of all beams, support columns, rim joist, and floor joists.
• Electrical Plan with electrical symbols legend
  Includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
• License to Build
  Includes ONE license to build.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
