Traditional Plan 3323-00549


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 7,017
Beds 5
Bath 5
1/2 Baths 1
Car 3
Stories 3
Width 75' 5"
Depth 76' 4"

Floorplan Drawings

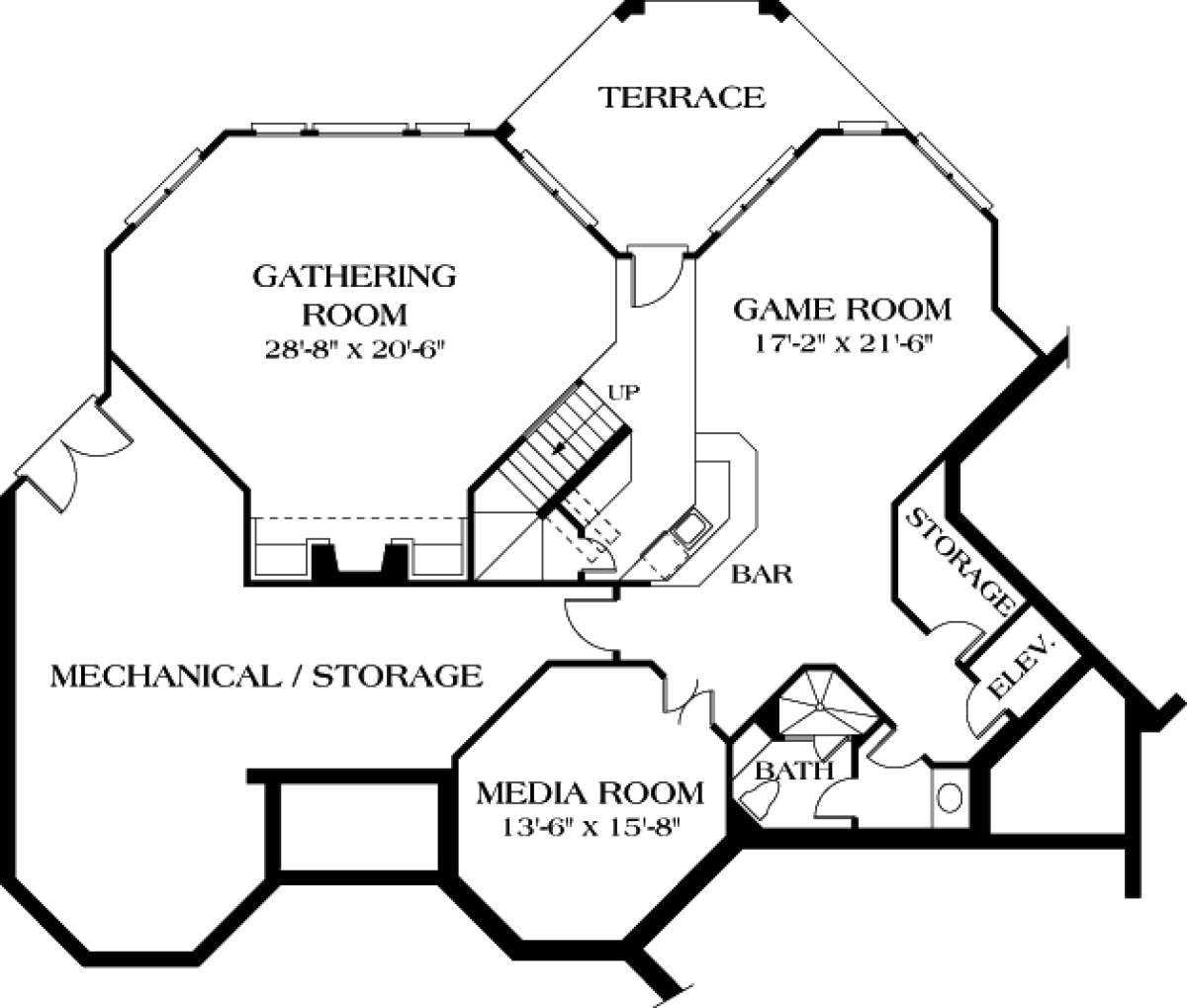

Floorplan 1

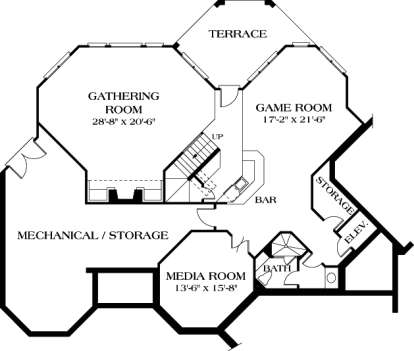

Floorplan 1 for House Plan #3323-00549
Floorplan 2

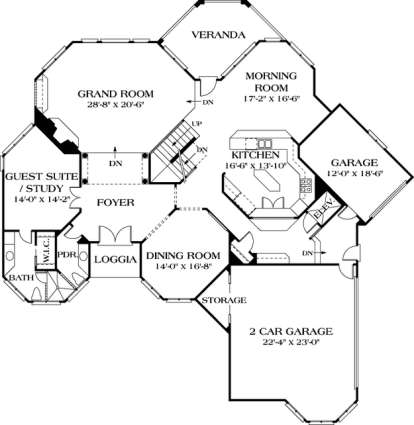

Floorplan 2 for House Plan #3323-00549
Floorplan 3
Floorplan 3 for House Plan #3323-00549
Floorplan 4
Floorplan 4 for House Plan #3323-00549

What's Included in these plans?

  • Foundation plan
  • Dimensioned and detailed floor plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (when available)
  • Typical foundation details, wall sections, and cornice details necessary for construction.
  • Separate electrical plan (may be shown on floor plans in some cases).

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

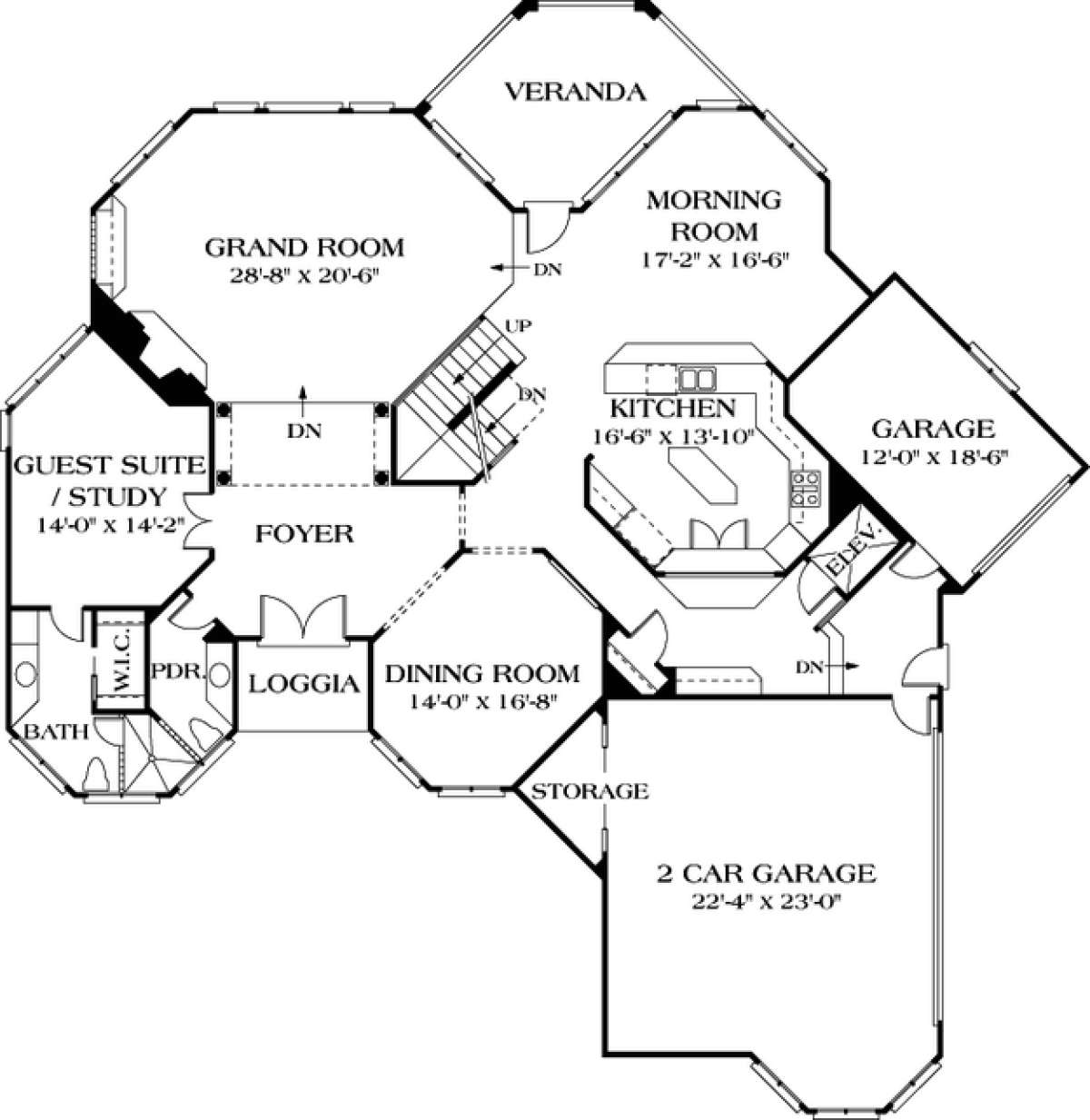

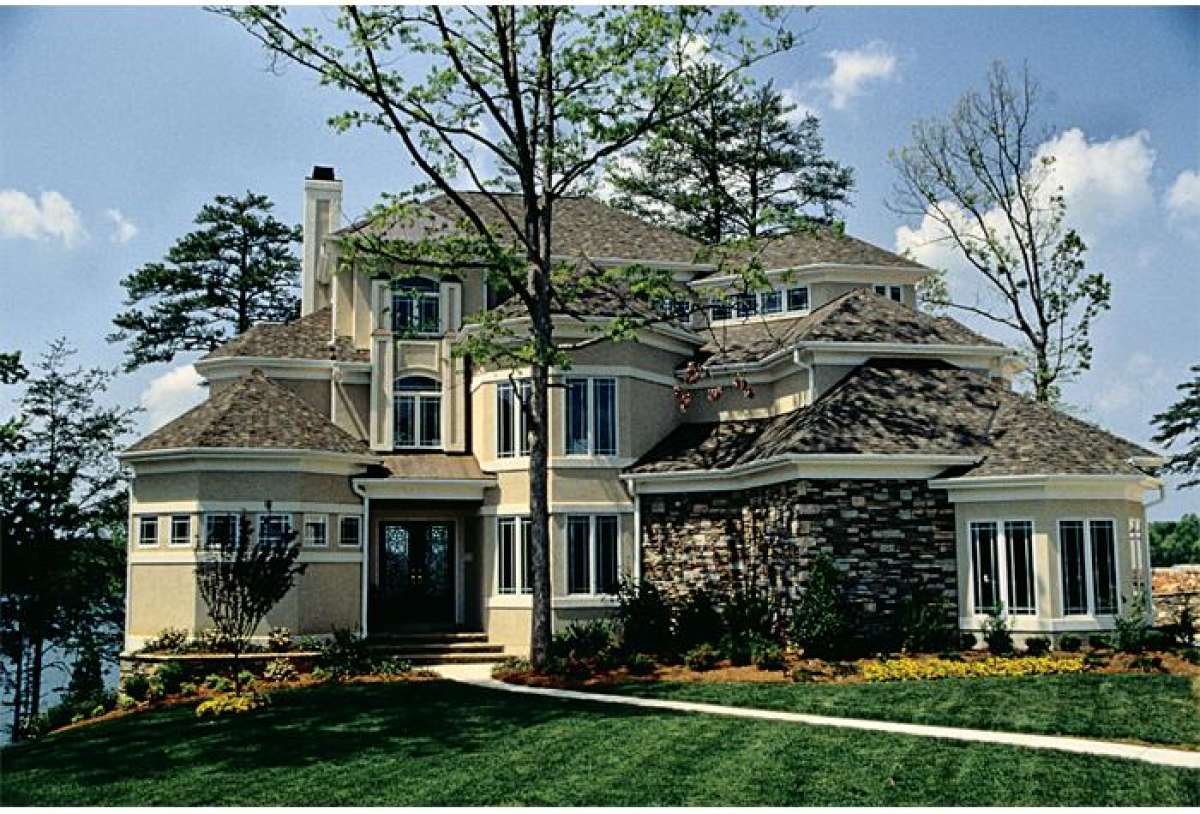

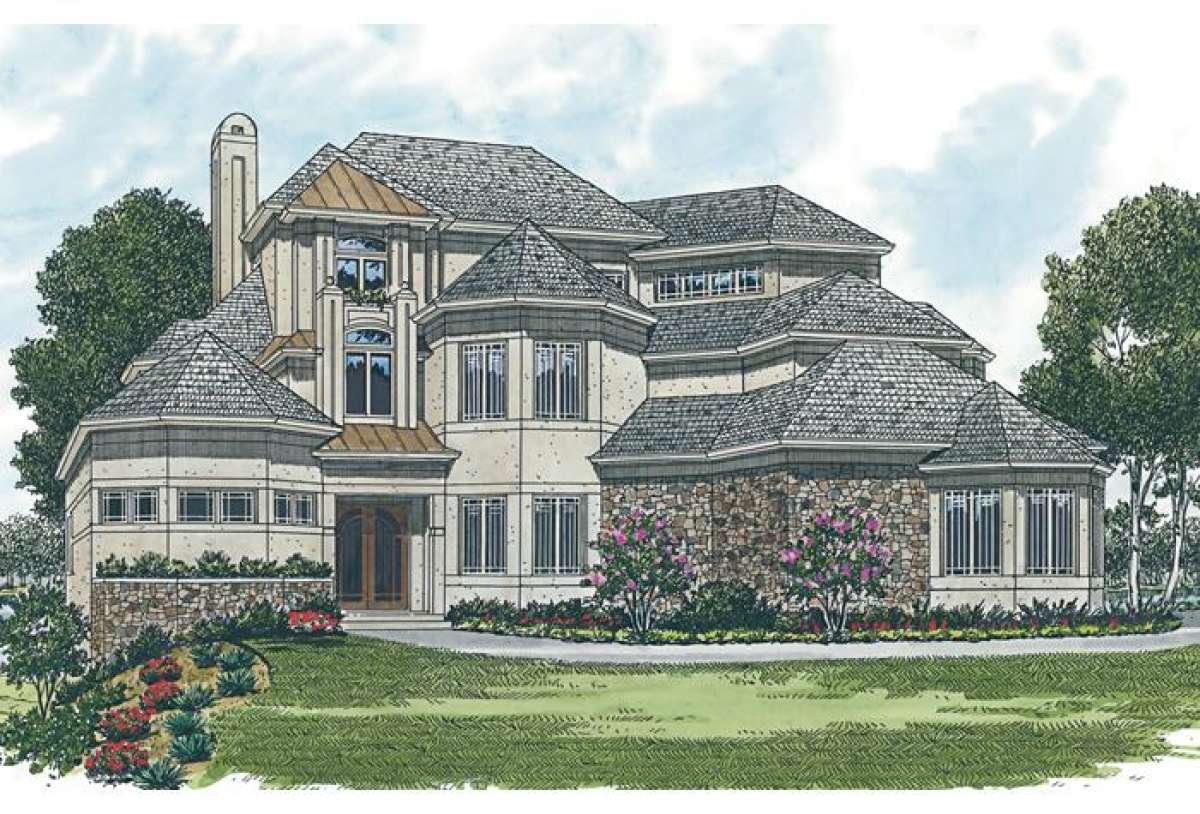

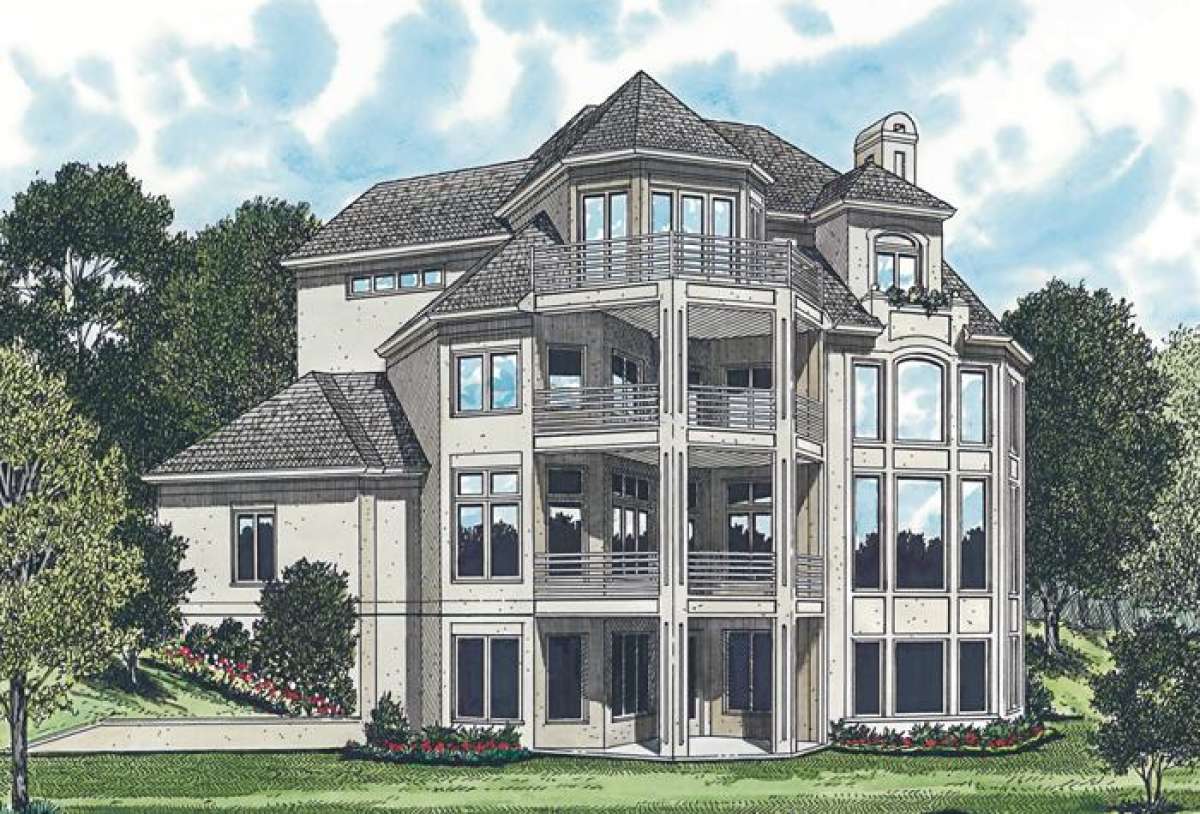

An absolutely gorgeous exterior and spacious family friendly floor plan are found in this Traditional house design. A striking combination of smooth stucco, stone accented walls and inspiring window views are found on the home’s front façade while four floors of fantastic outdoor entertaining space is featured on the rear façade. The interior floor plan features approximately 7,017 square feet of living space on a basement foundation which includes five bedrooms, five plus baths and a combination of well-appointed entertaining and living spaces. The main floor offers a generous foyer that breaks off in different directions with a nearby guest bath, a spacious formal dining room and across the gallery hall is the grand room. Flanking the foyer is a self-contained guest suite with a large bedroom, a walk-in closet and a private full bath with a shower. The grand room provides luxurious entertaining space with a warming fireplace and surrounding window views. The morning room is sunlit and features access onto the main floor veranda. The adjacent kitchen is highlighted with a breakfast bar, a center island and plenty of additional counter and cabinet space. There is a double and single bay garage nearby with access into the home’s interior and residential elevator for managing packages and assorted other items to be carried throughout the home. The terrace level of the home offers casual entertaining space in the form of a second gathering room as well as a game room and separate media room. A full bath is available on this floor and there are large amounts of storage space as well as a mechanical room.

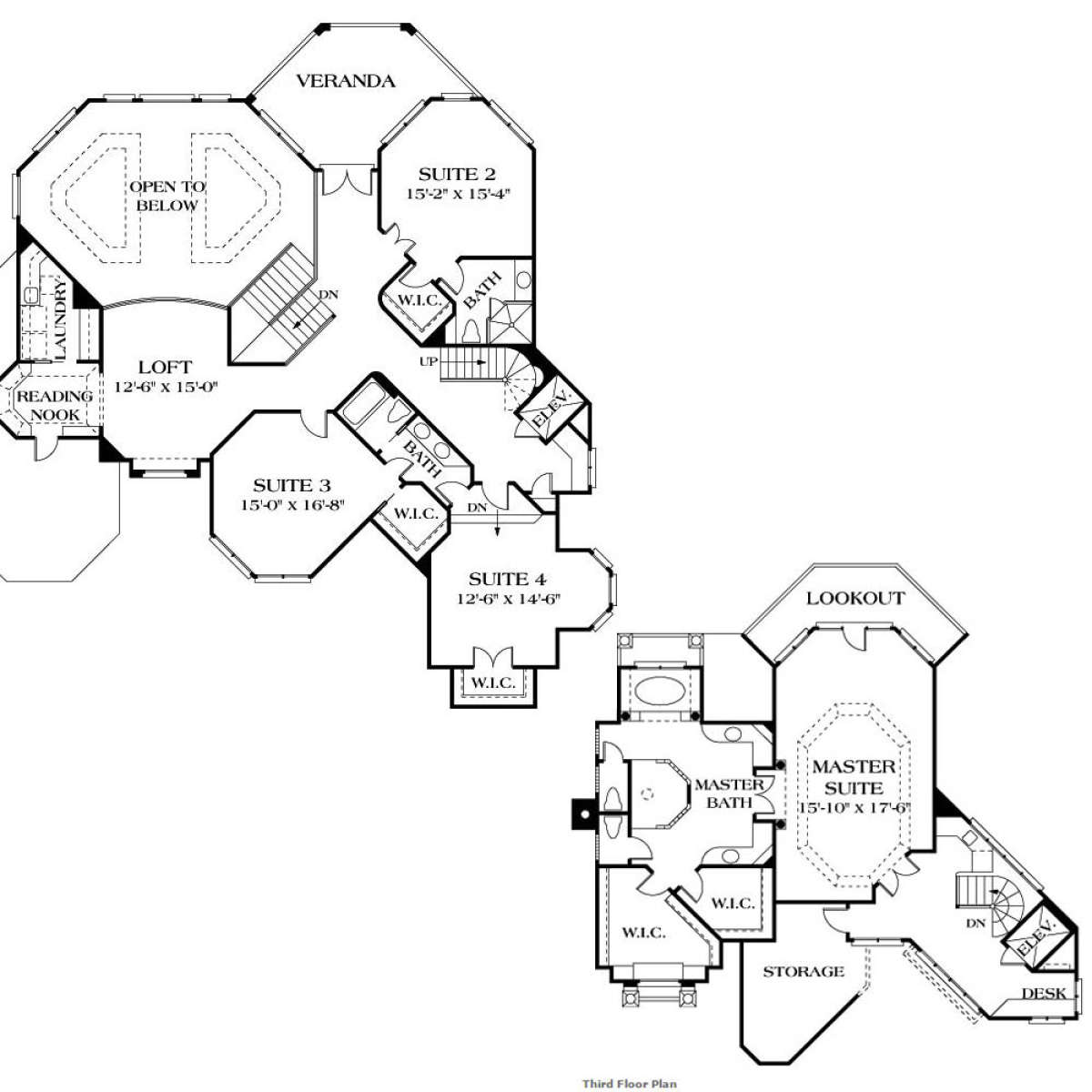

The upper level of the home’s interior houses the family’s sleeping quarters and baths. Bedroom two is a complete suite with a walk-in closet, excellent floor space and a private full bath. The third and fourth bedrooms offer equally generous floor space and both feature a walk-in closet. A jack and jill bath features double sinks, a toilet area and a tub/shower combination. Along with the bedroom suites, there is access to the veranda at the rear of the floor. Additionally, there is a loft area overlooking the grand room below and a reading nook and spacious laundry room are situated nearby. A stunning master retreat sits above the secondary bedroom floor and is accessible from the elevator or staircase. There is a desk/office area and a large storage room at the far end of the floor. The main suite is highlighted with a large bedroom featuring a double step trey ceiling and access to the private look-out veranda. French doors lead to the elegant master bath which houses an impressive array of modern amenities such as a Roman spa inspired tub, a sweeping separate shower, dual separate vanities and double compartmentalized toilet rooms. His and her walk-in closets are located off the bathroom for privacy and convenience. This stunning study in architectural design genius features an aesthetically pleasing façade and an interior with all the comfort and pleasures of modern life.
