Luxury Plan 3323-00530


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 10,467
Beds 6
Bath 6
1/2 Baths 1
Car 4
Stories 2
Width 122' 1"
Depth 99' 1"

Floorplan Drawings

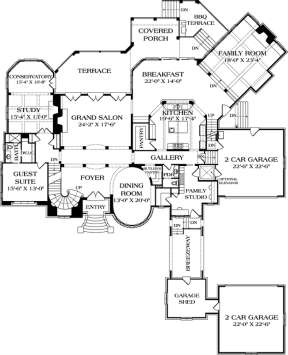

Floorplan 1
Floorplan 1 for House Plan #3323-00530

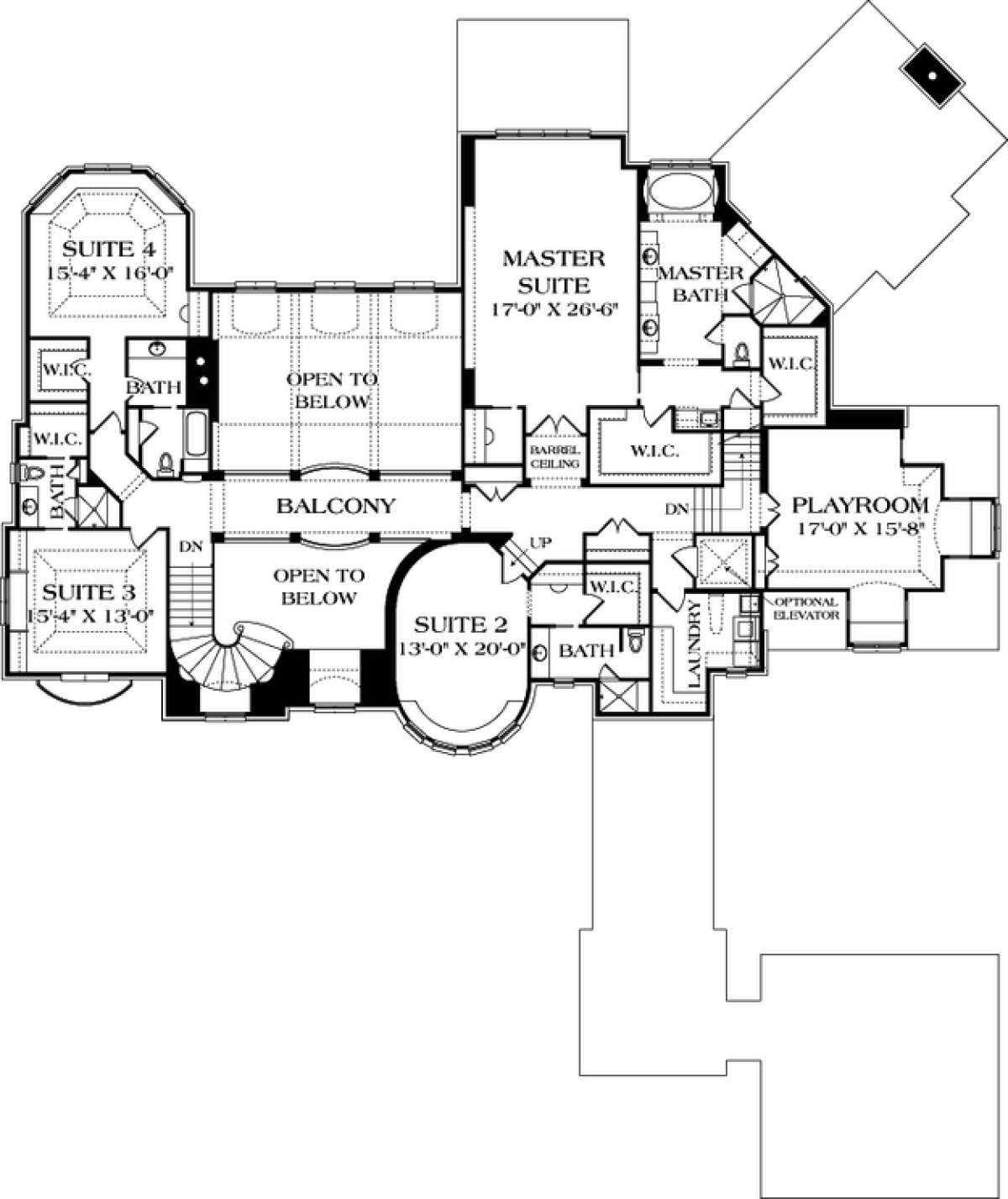

Floorplan 2
Floorplan 2 for House Plan #3323-00530
Floorplan 3
Floorplan 3 for House Plan #3323-00530

What's Included in these plans?

  • Foundation plan
  • Dimensioned and detailed floor plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (when available)
  • Typical foundation details, wall sections, and cornice details necessary for construction.
  • Separate electrical plan (may be shown on floor plans in some cases).

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This plan cannot be built within 50 miles of Charlotte.

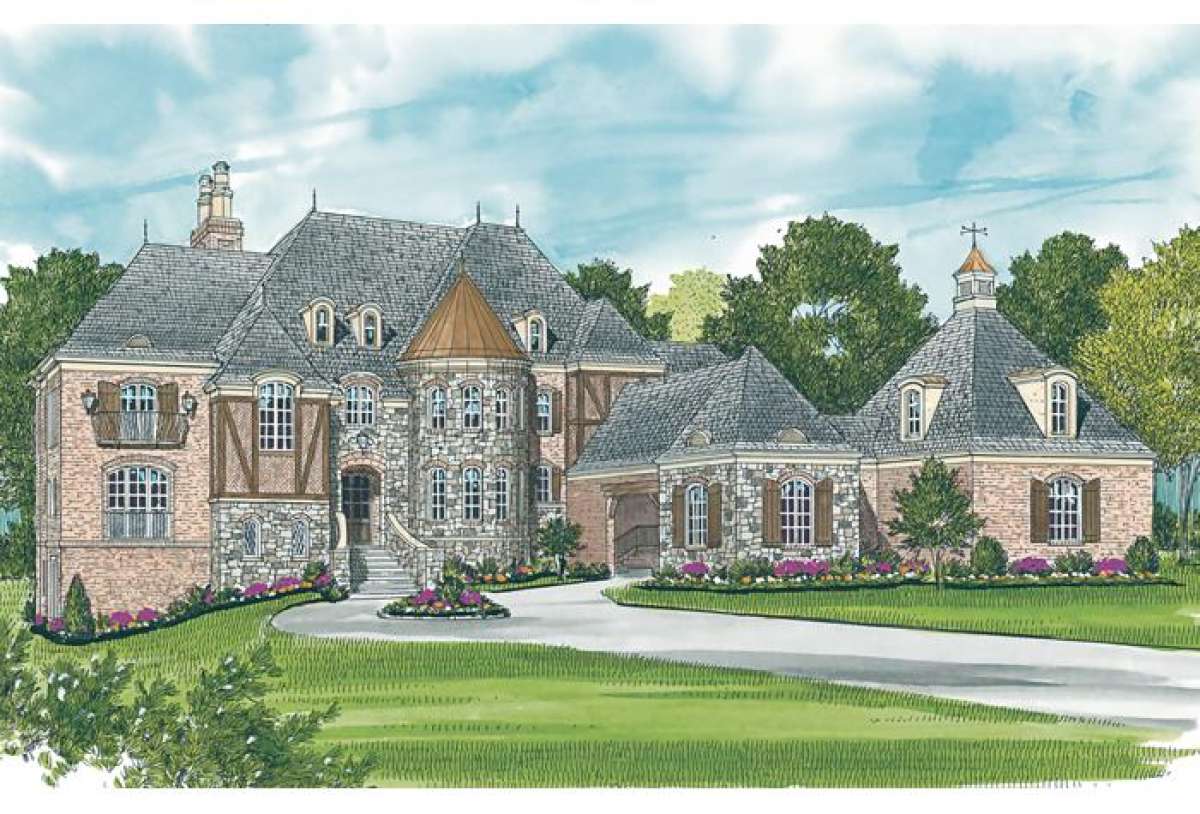

This extraordinary Manor home design features in excess of 10,000 square feet of luxurious living space and an exterior reminiscent of the Medieval Ages. This castle inspired home with it tall towers, thick brick walls and arched window moldings which make up the rock walls of the perimeter offer the finest in modern craftsmanship. Exceeding industry standards on all fronts, the use of varying hues and materials enhance the exterior beautifully and when combined with an interior floor plan incorporating modern amenities, this home cleverly practices Old World charm meets 21st century new in the most elevated fashion. The three tiered home features an expansive amount of living space that includes superior entertaining space along with six bedrooms and six plus bathrooms. A four car garage is highlighted by an impressive amount of vehicle and storage space in 1,533 additional square feet that offers a two car bay, adjoining breezeway, a garage shed and a second two car bay. Entrance into the home is a multiple step-up brick staircase into a grand foyer housing a beautiful winding staircase and simultaneously opens onto the formal dining room with butler’s pantry. The grand salon is situated beyond the gallery hall and provides excellent entertaining space with its stately fireplace and triple point access to the rear terrace and subsequent porch with adjoining bar-b-que terrace. The gourmet kitchen is highlighted by a large center island, walk-in pantry and opens onto the casual breakfast room and family room. This family space is large with a warming fireplace and coffered ceilings where private family time is valued. There is a second family studio, powder room for guests and an optional elevator for elderly or infirmed guests or family members. The main level guest suite features a large bedroom with walk-in closet and full bath while further along the hallway is a private study with fireplace and rear conservatory providing access to the terrace.
Ascending the second story staircase are balcony overlooks onto the foyer and salon below. Three gorgeous bedroom suites all supply an enormous amount of floor space, a walk-in closet and private baths. There is a conveniently located laundry room on this level along with a massive playroom for the children which could also be utilized as a homework station or computer room. The magnificent master retreat features a barrel ceiling, large master bedroom, a morning room and his and hers oversized walk-in master closets. The sumptuous master bathroom is highlighted with dual lavatories, a separate shower and a gorgeous garden tub ensconced in window views. The lower level of the home is a copious amount of entertaining and/or private family space; there is a media lounge with walk-in bar and wine cellar, a hobby room, an exercise room and a billiards room. A second guest suite is featured on the terrace level with a private bath and generous closet space. A second full bath and laundry room, loads of storage, mechanical space and a covered patio complete this level’s space. This captivating house design offers the finest in home design with an exterior façade that defines grandeur and luxury and an expansive interior floor plan “fit for a king and queen and their family.”
