Luxury House Plan #3323-00498 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 5,245

Beds 4

Bath 4

1/2 Baths 2

Car 2

Stories 2

Width 60'

Depth 111' 2"

See What's Included

Select Package

PDF (Single Build)

$2,250.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

Select Foundation

Crawlspace Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $50.00

Reverses the plan, however, the text and dimensions will not read correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

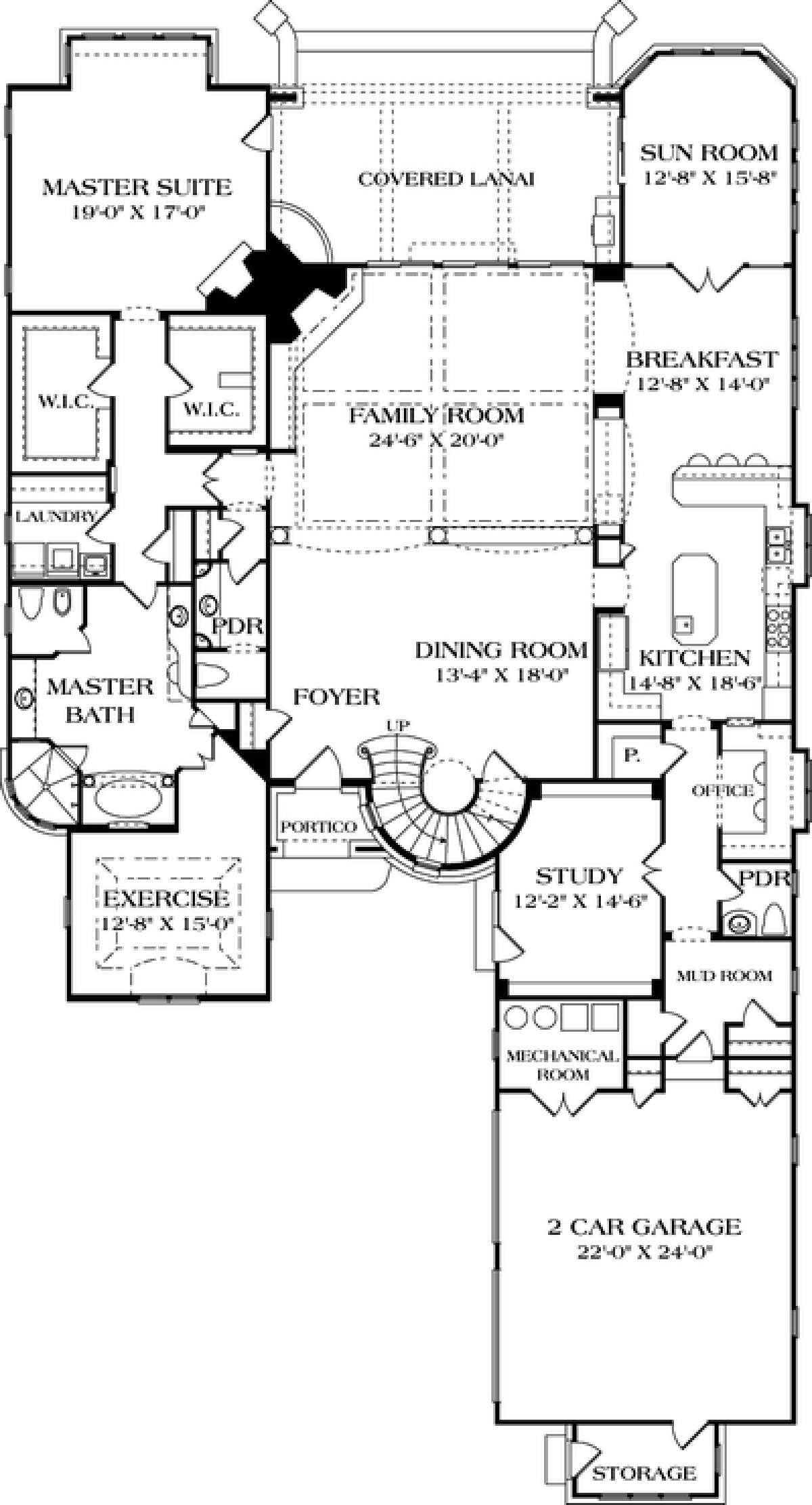

Floorplan 1

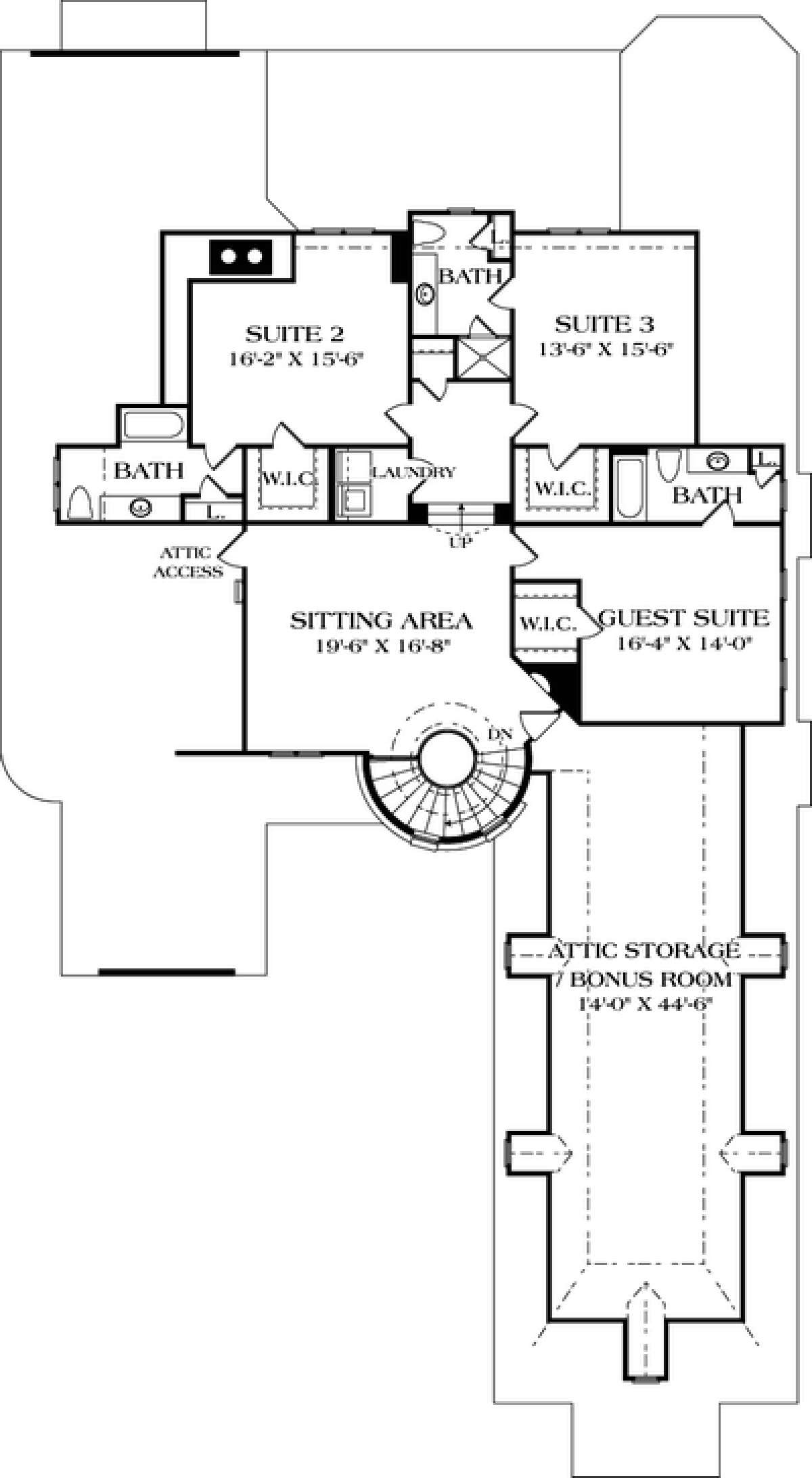

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Foundation plan
Dimensioned and detailed floor plans
Complete front, side and rear elevations
Roof plan
Typical building sections (when available)
Typical foundation details, wall sections, and cornice details necessary for construction.
Separate electrical plan (may be shown on floor plans in some cases).
