Luxury House Plan 3323-00497

Sq Ft7,502
1/2 Baths2
Width74' 6"
Depth92' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #3323-00497
Floorplan 2 for House Plan #3323-00497
Floorplan 3 for House Plan #3323-00497
Floorplan 1
Floorplan 1 for House Plan #3323-00497
Floorplan 2
Floorplan 2 for House Plan #3323-00497
Floorplan 3
Floorplan 3 for House Plan #3323-00497

Frequently Asked Questions


What's Included in these plans?

  • Foundation plan
  • Dimensioned and detailed floor plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (when available)
  • Typical foundation details, wall sections, and cornice details necessary for construction.
  • Separate electrical plan (may be shown on floor plans in some cases).


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

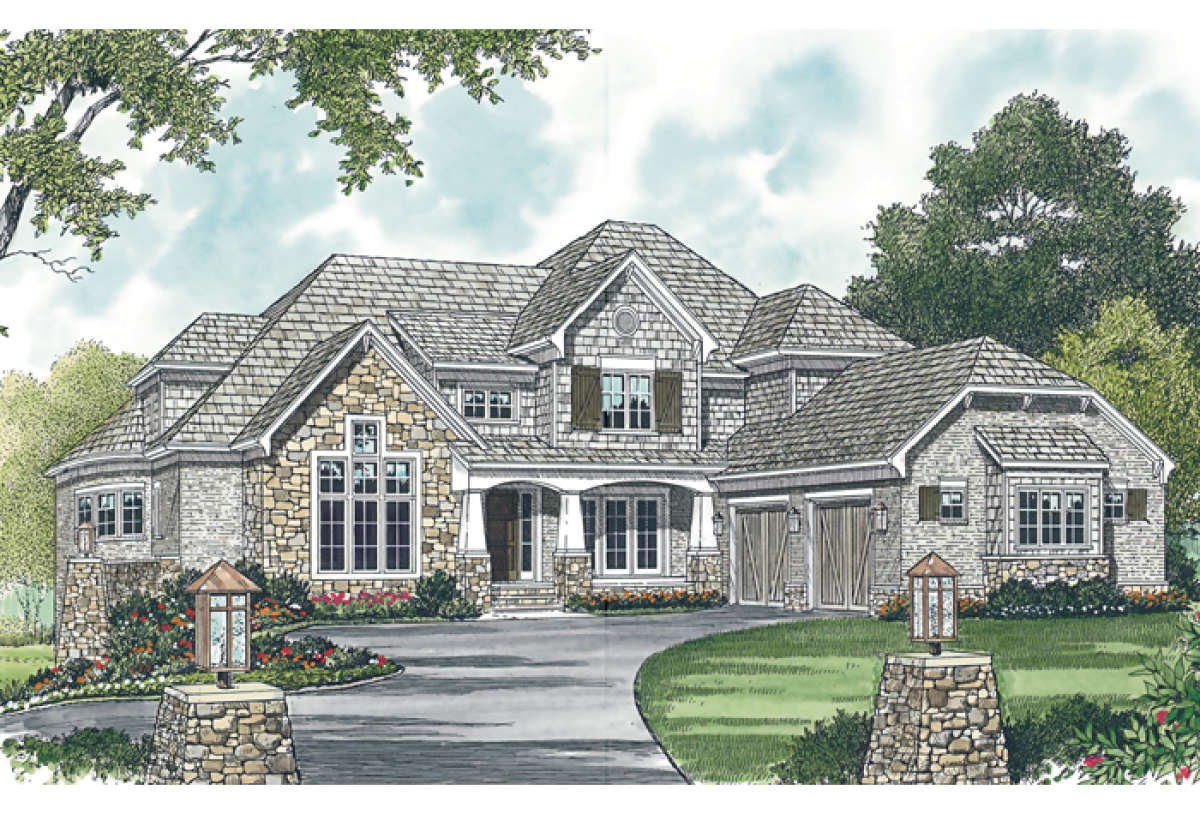

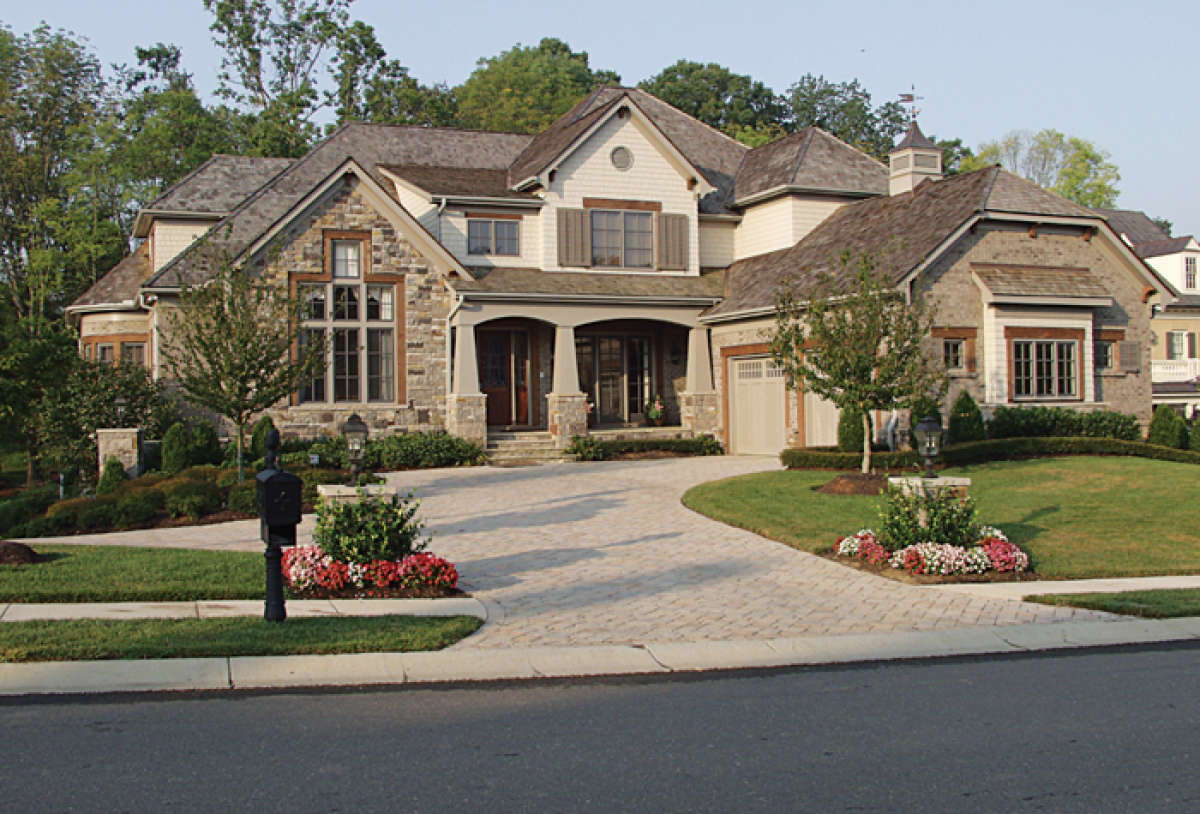

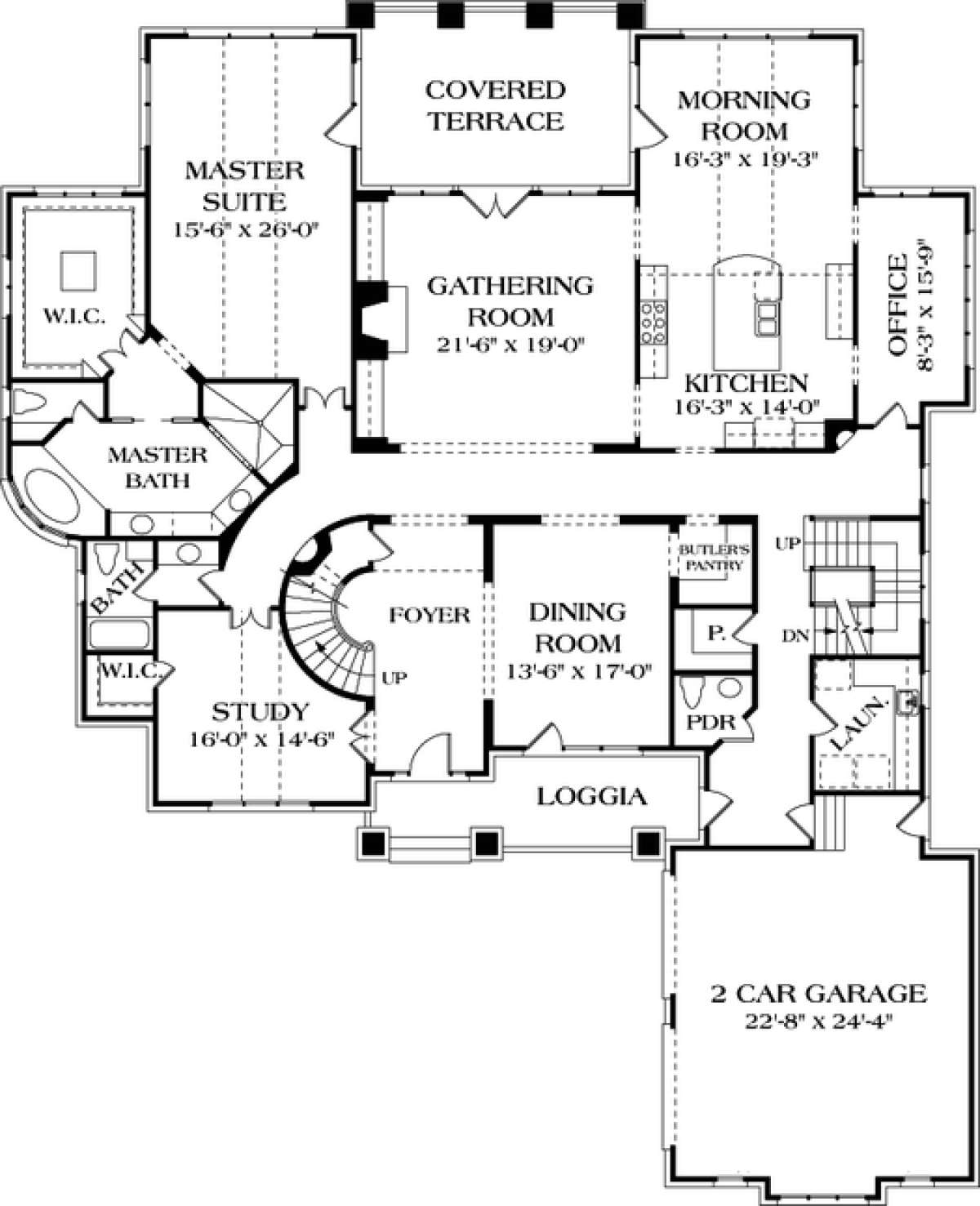

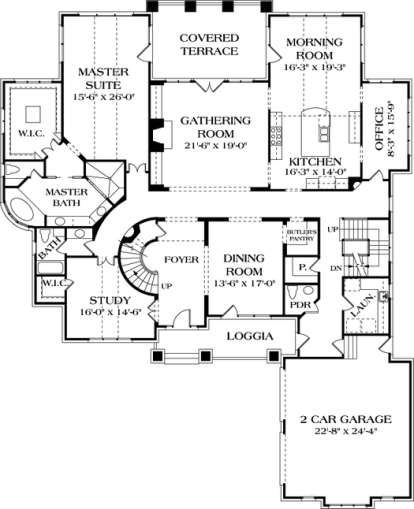

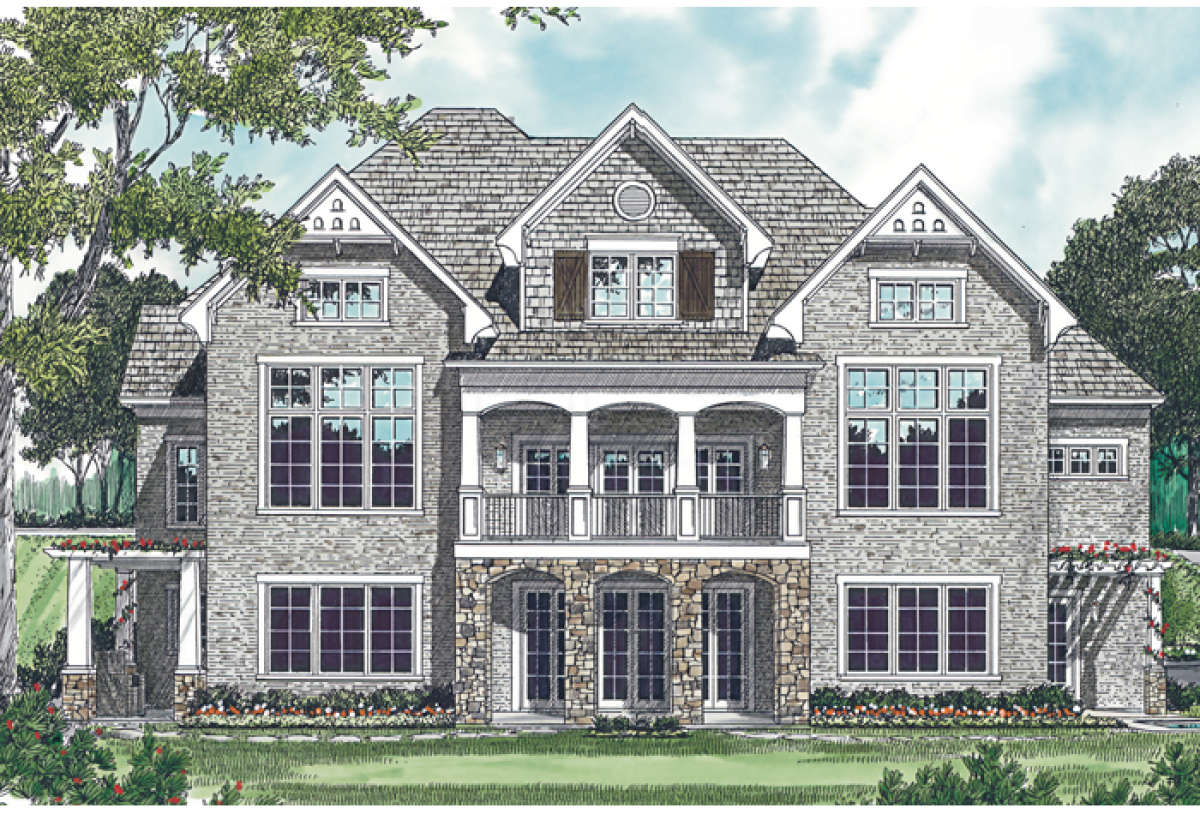

Breathtakingly beautiful, this Luxury house plan is highlighted with an elegant exterior and a large, well laid-out interior floor plan. The exterior of the house features an abundance of visually pleasing design elements which include stonework, substantial tapered beams, cedar shake detailing and beautiful window designs. The front covered porch is expansive, perfect for greeting family and friends and the overhead arches provide interesting architectural detailing. There are approximately 7,502 square feet of interior space which includes six bedrooms and six baths. The open floor plan is highlighted with a series of grand interior spaces which reflect a luxurious and compelling lifestyle. There is a two car courtyard entry garage with plentiful vehicle and storage space, a basement level one car garage and an enormous amount of expansion space is located in the basement foundation. Off the main garage is the family laundry room, the guest powder room and a double sided staircase to the second floor as well as the basement. The front loggia provides entry into the interior foyer which is flanked on either side by a study and the formal dining room as well as the second story winding staircase. The study offers a walk-in closet and there is a nearby full bath if needed for an additional bedroom. The formal dining room is spacious with window views, an adjacent butler’s pantry and access onto the front porch for easy and convenient al fresco dining. Around the corner from the butler’s pantry is the walk-in food storage pantry within easy access of the grand kitchen. The kitchen is highlighted with a large center island, plenty of additional counter and cabinet space and there is a morning room at the rear of the space as well as office space nearby. The centrally located gathering room features a large amount of relaxing and entertaining space with built-in cabinetry and a handsome fireplace. A rear wall of windows and easy access onto the rear covered terrace makes for beautiful viewing and outdoor entertaining space. The main level master suite completes the first level and offers a large master bedroom with private access onto the outdoor terrace, masterful window views and overhead beams running the length of the bedroom. There is an attached walk-in closet and the elegant master bath features generous floor space, dual vanities, a garden tub, separate shower and an enclosed toilet area.

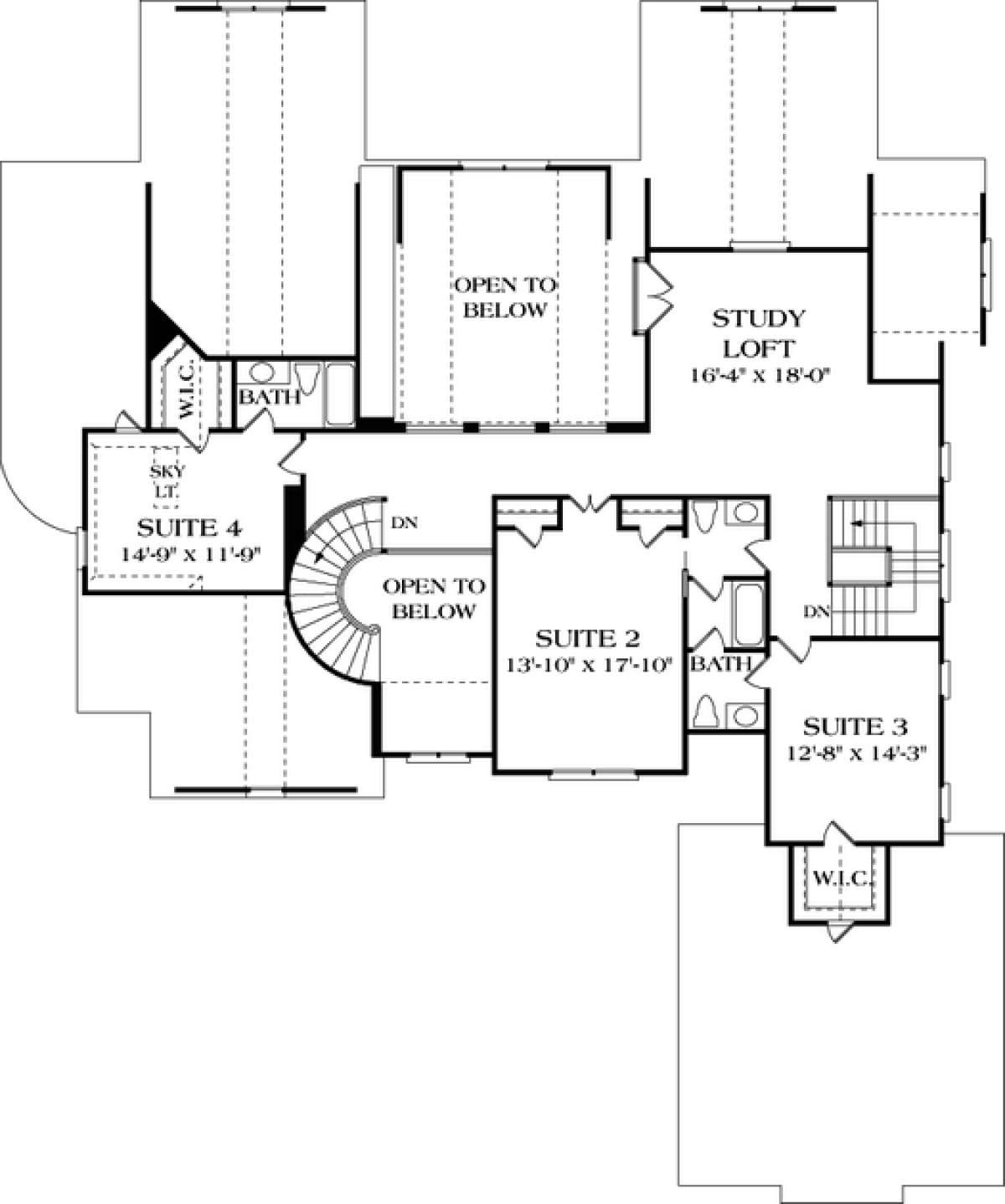

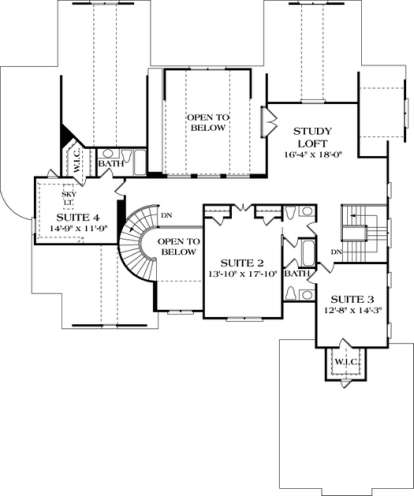

Upstairs are beautiful overviews onto the foyer and common spaces below and the elongated hallway features a study/loft area at one end; this space would be perfect as a playroom for small children or as a homework station/lounge for older children. There are three bedrooms suites; all of which are oversized and offer window views. Bedroom two and three share a jack and jill bath with separate sinks and toilet areas with a shared tub/shower combination. The second bedroom has double closets while the third features a walk-in closet. The fourth bedroom suite is self-contained and features an overhead sky light in the bedroom, a walk-in closet and a private full bath. The basement level of the home offers an enormous amount of space to include a large recreation room, exercise room, a billiards room with an open bar and double outdoor porches. One and half bathrooms are found on this floor as well as a workshop area and the one car garage. This executive home features luxurious design elements on both the exterior and interior of the home, great expansion potential and lovely outdoor space.
