Traditional Plan 2865-00044

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,469
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1.5
Width 75' 1"
Depth 44' 5"

Floorplan Drawings

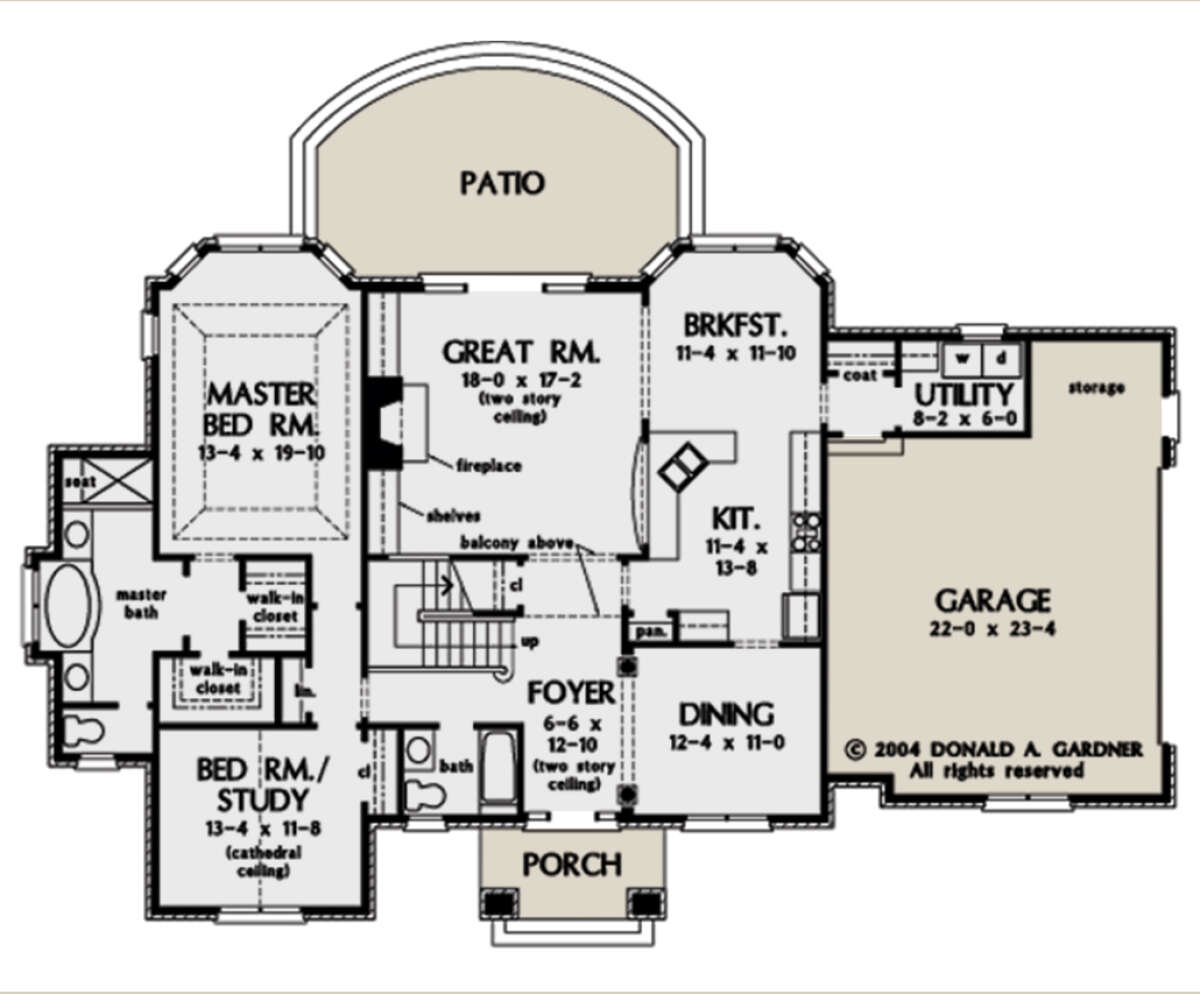

Main Floor
Main Floor  for House Plan #2865-00044

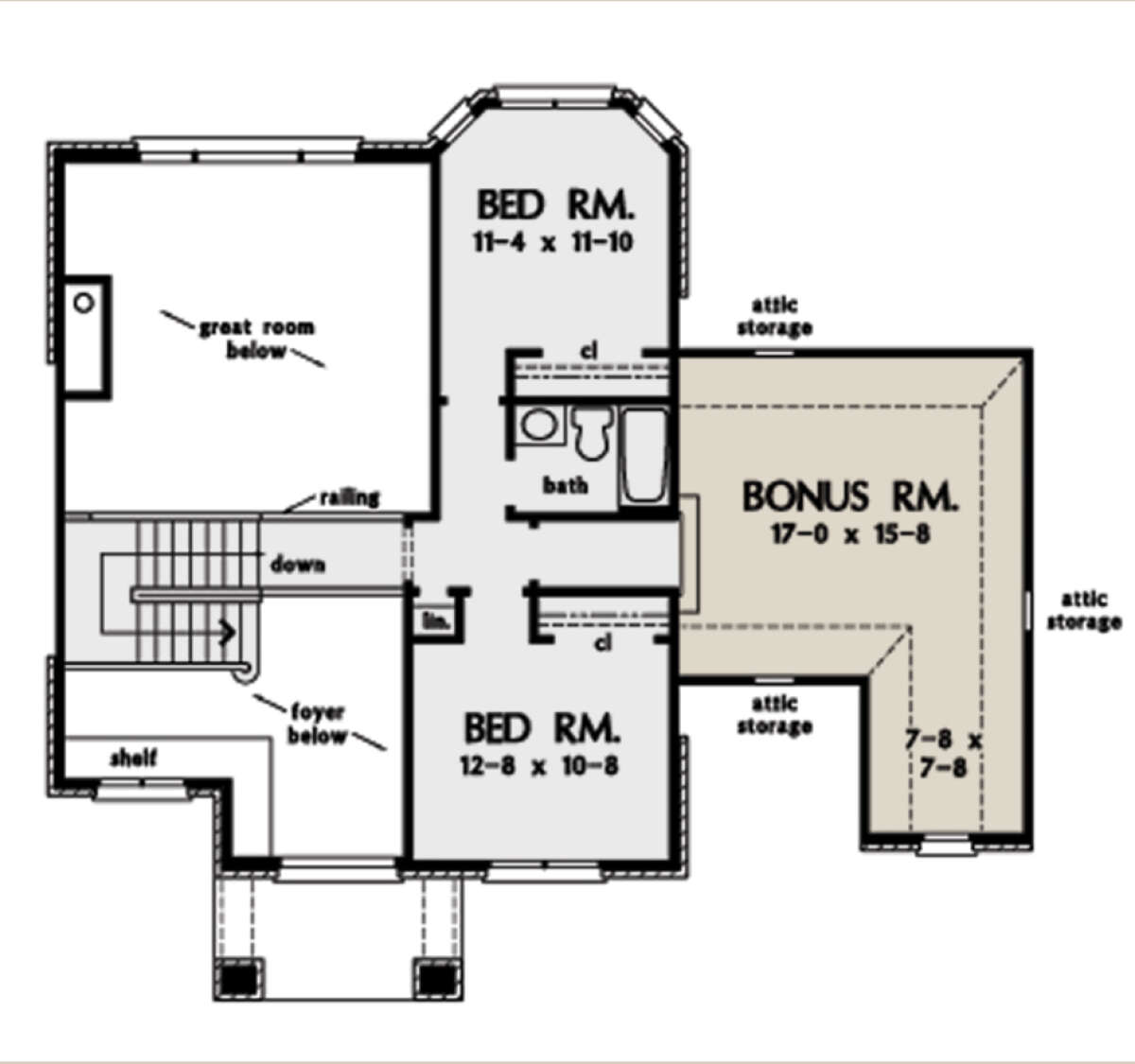

Second Floor
Second Floor for House Plan #2865-00044

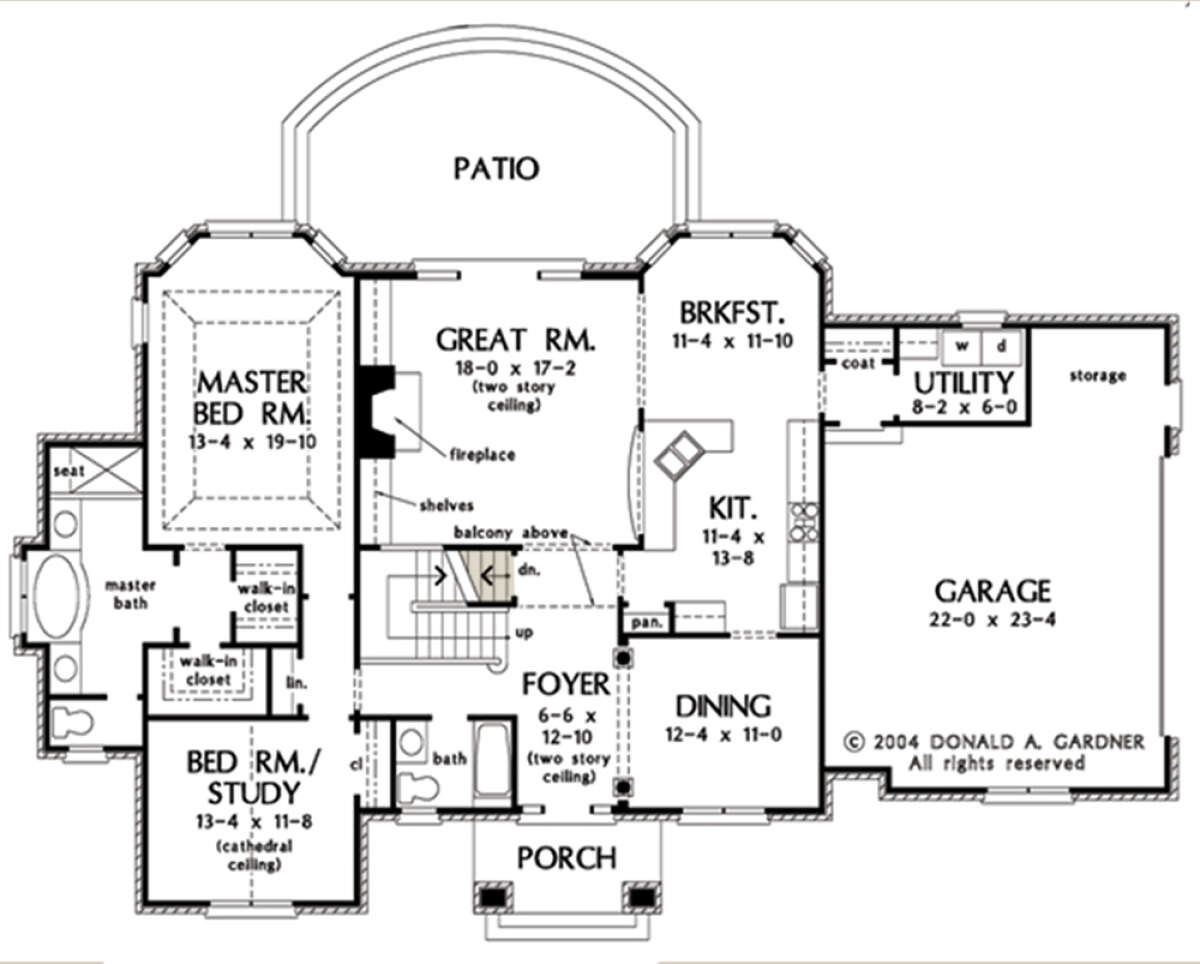

Main Floor w/ Basement Stair Location
Main Floor w/ Basement Stair Location for House Plan #2865-00044


What's Included in these plans?

  • Cover Sheet - A rendering of the front exterior of the house.
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
  • Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 3 bathroom Traditional house plan features 2,469 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
