Craftsman House Plan 286-00063

Sq Ft3,290
1/2 Baths0
Width79' 0"
Depth53' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

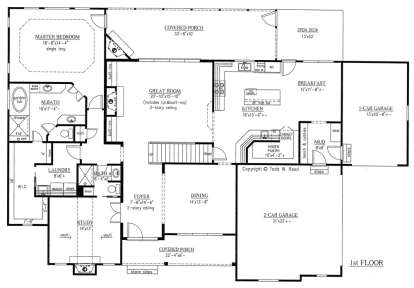

Floorplan 1 for House Plan #286-00063

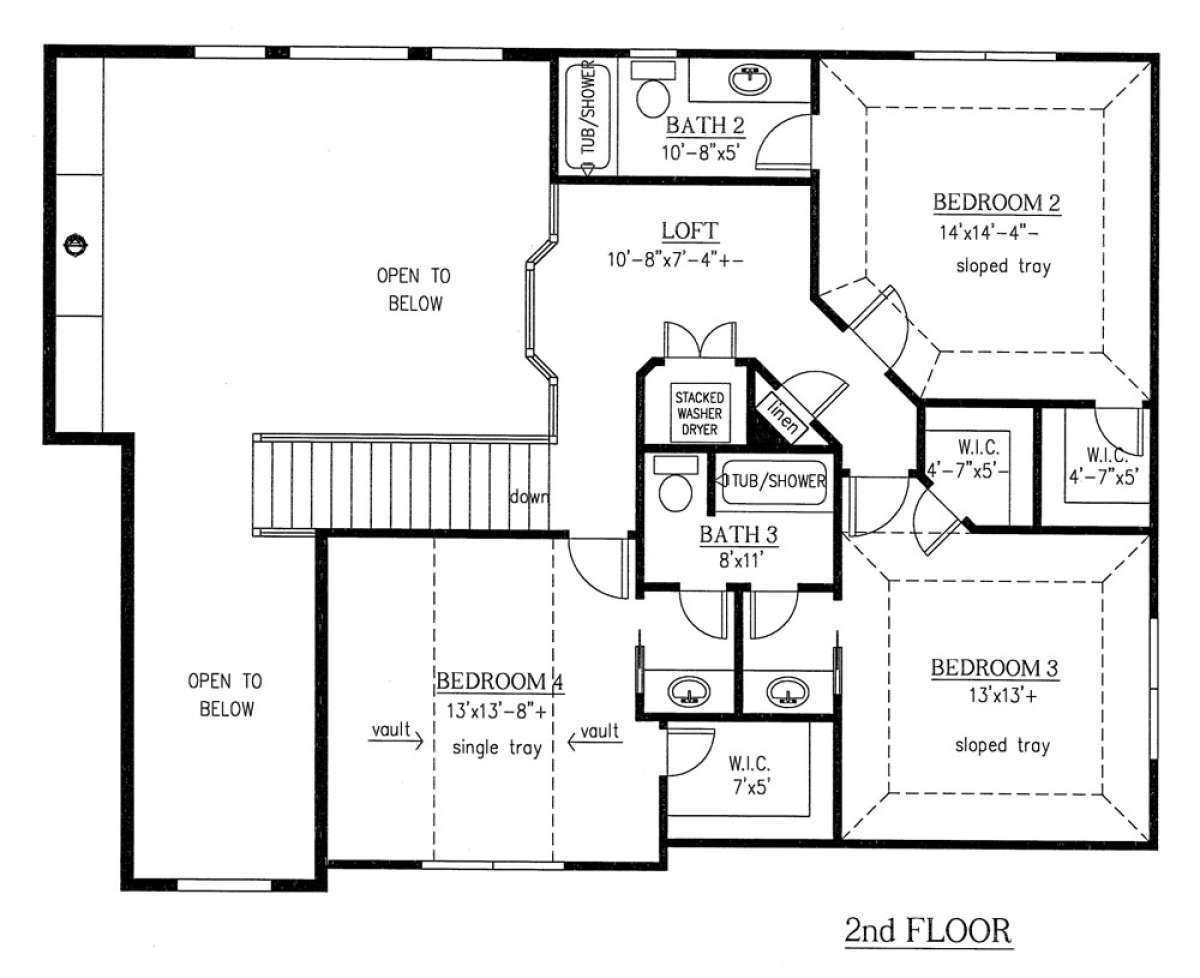

Floorplan 2 for House Plan #286-00063

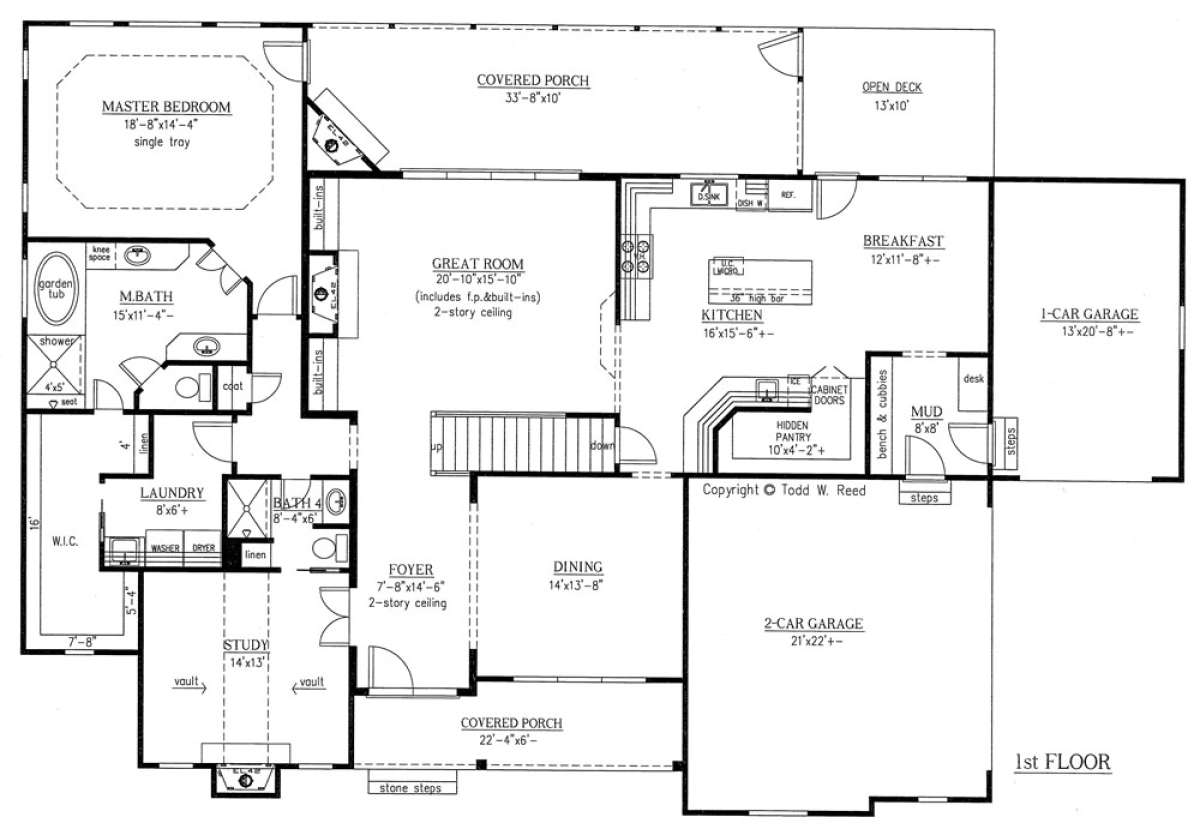

Floorplan 1
Floorplan 1 for House Plan #286-00063
Floorplan 2
Floorplan 2 for House Plan #286-00063

Frequently Asked Questions


What's Included in these plans?

-Floor Plans
-Roof Overview
-Foundation Plan
-Typical Electrical Plan
-Typical Details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

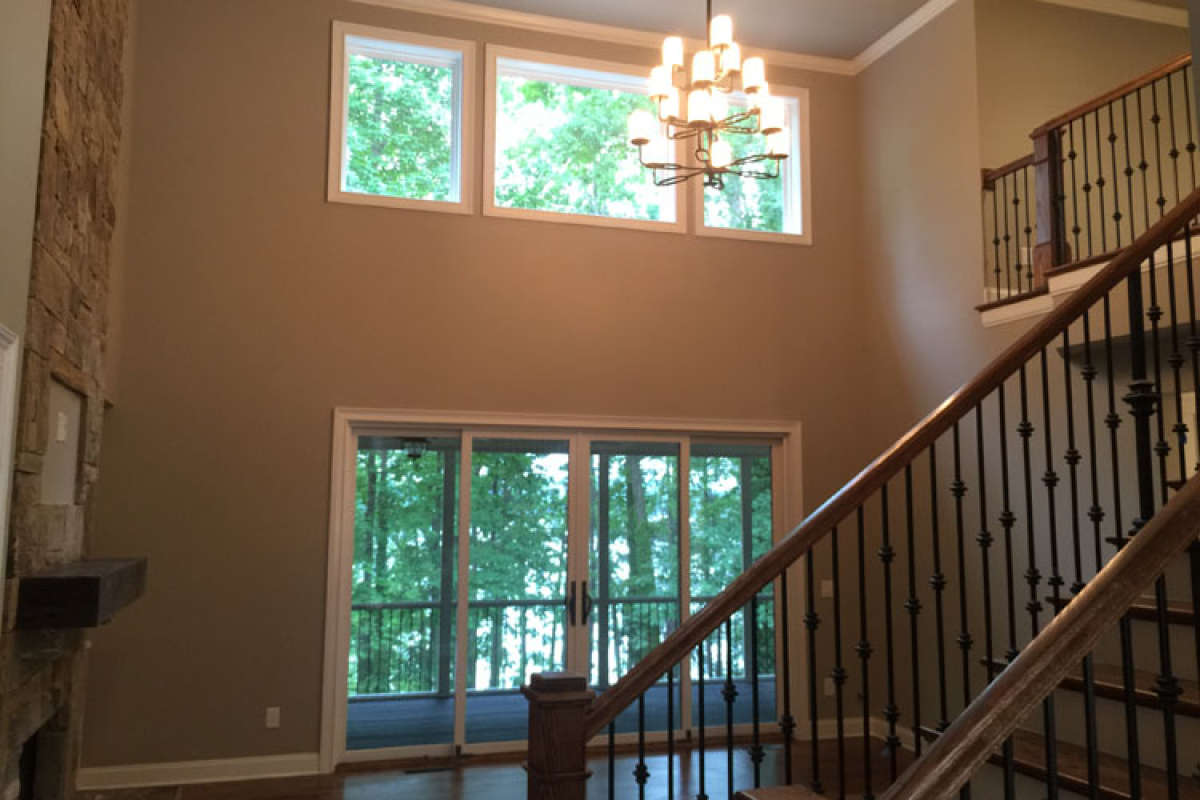

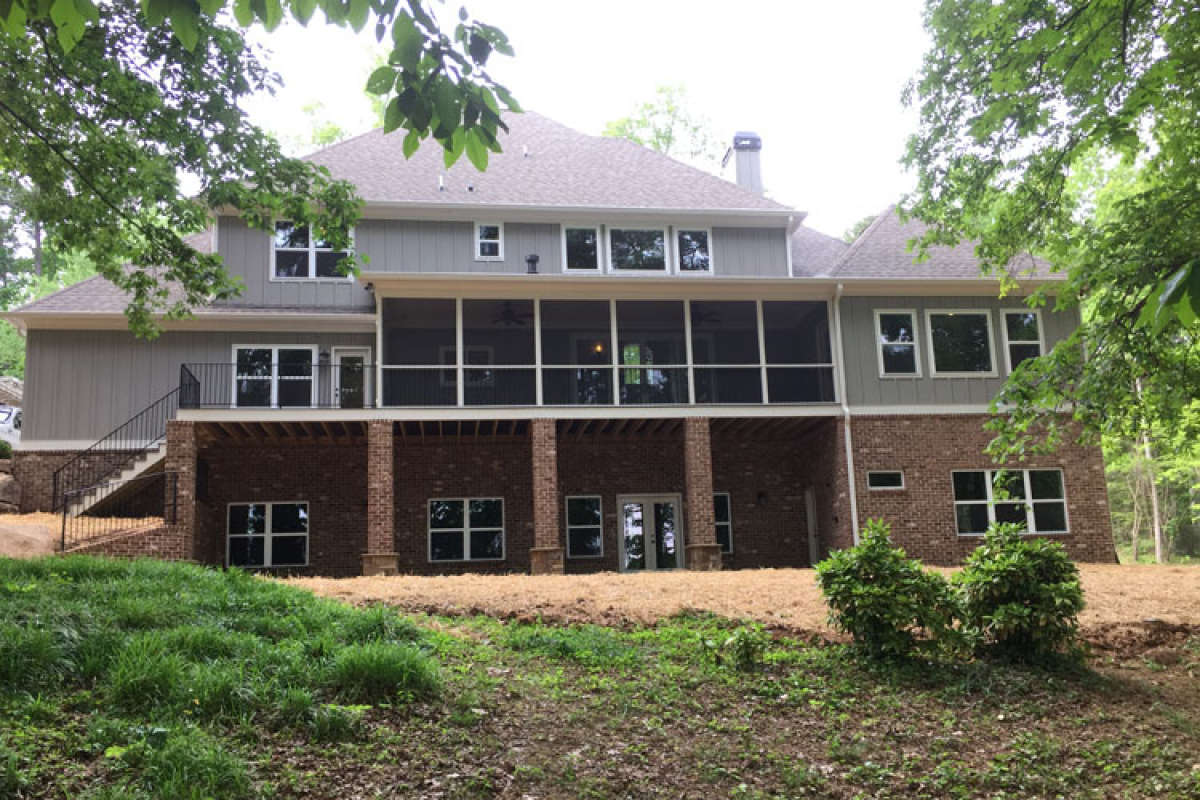

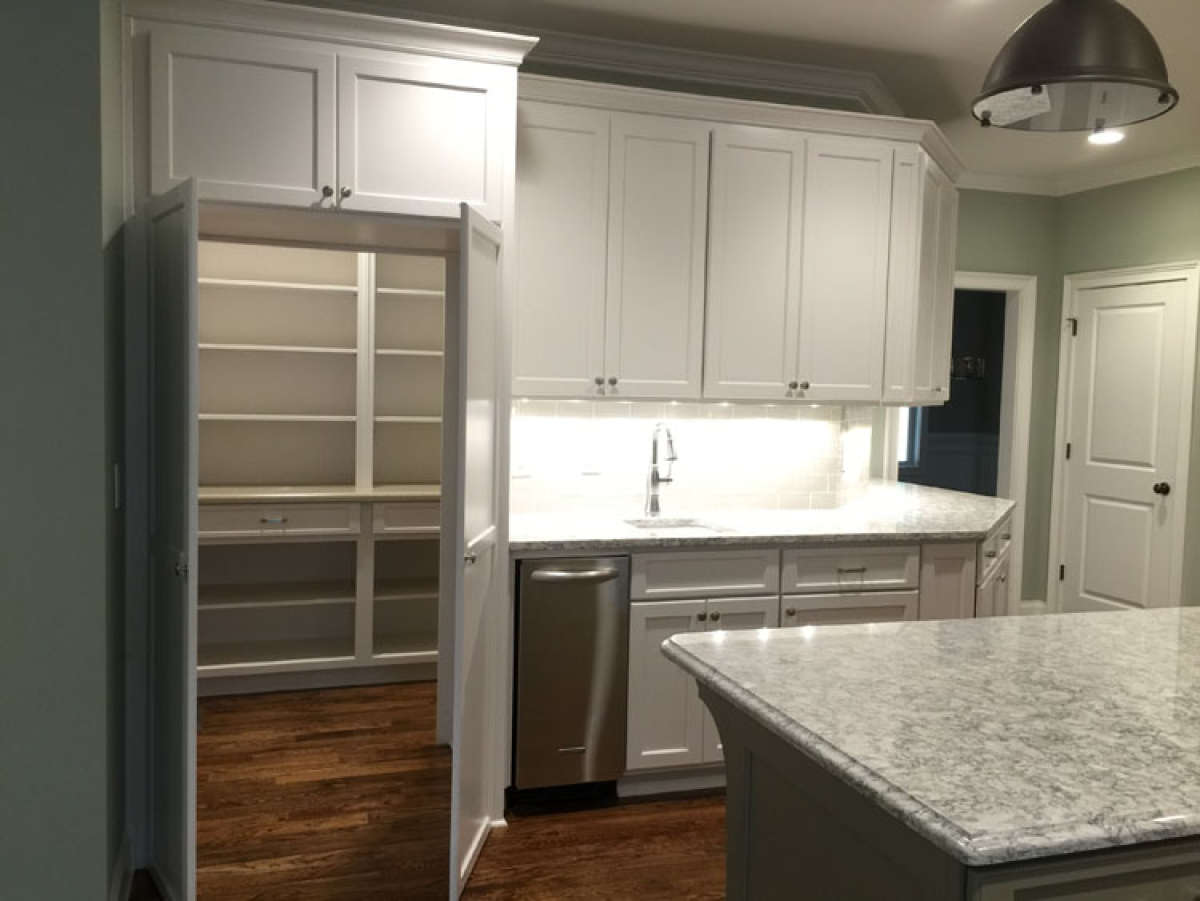

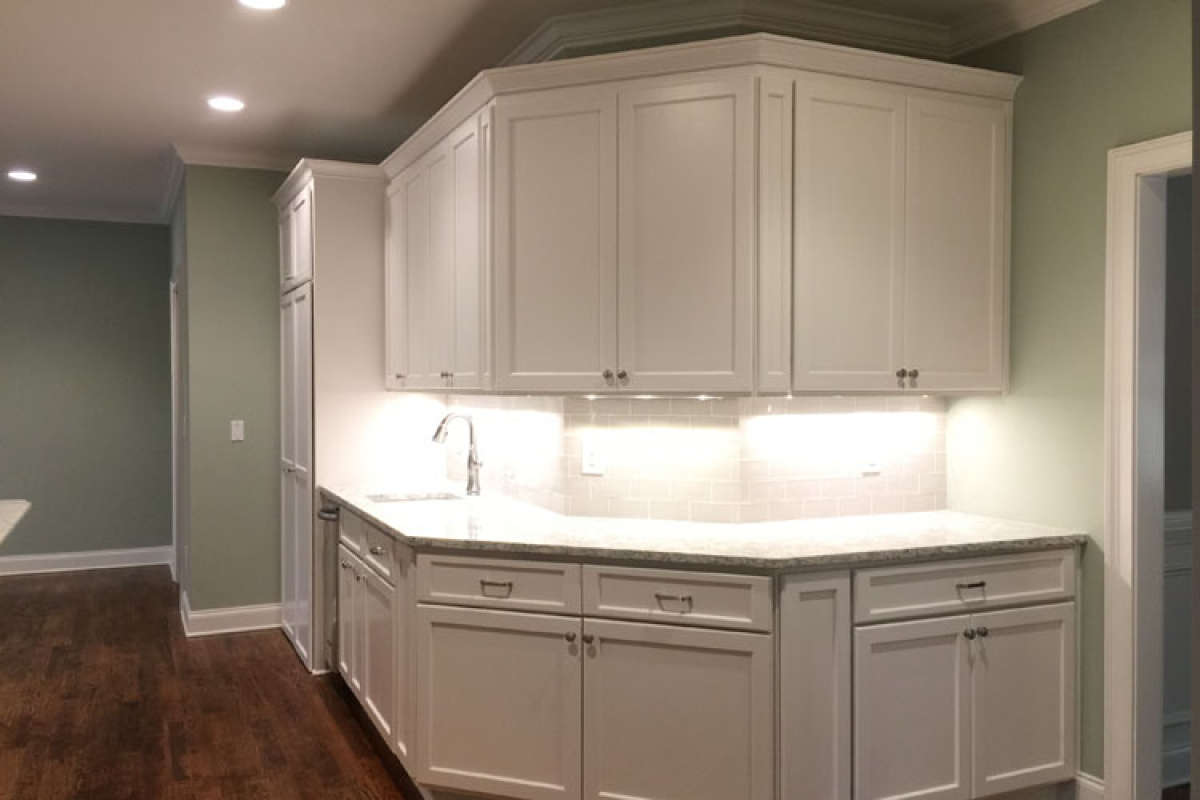

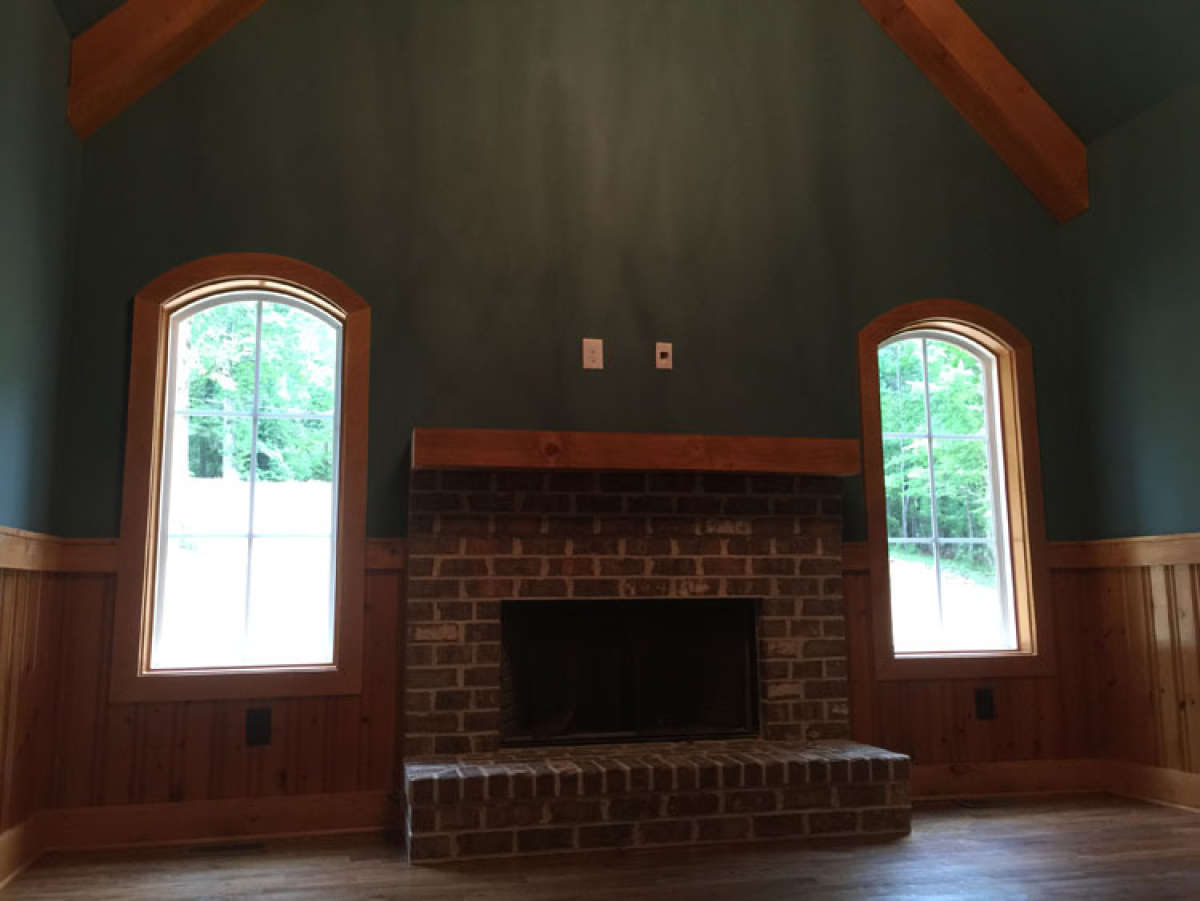

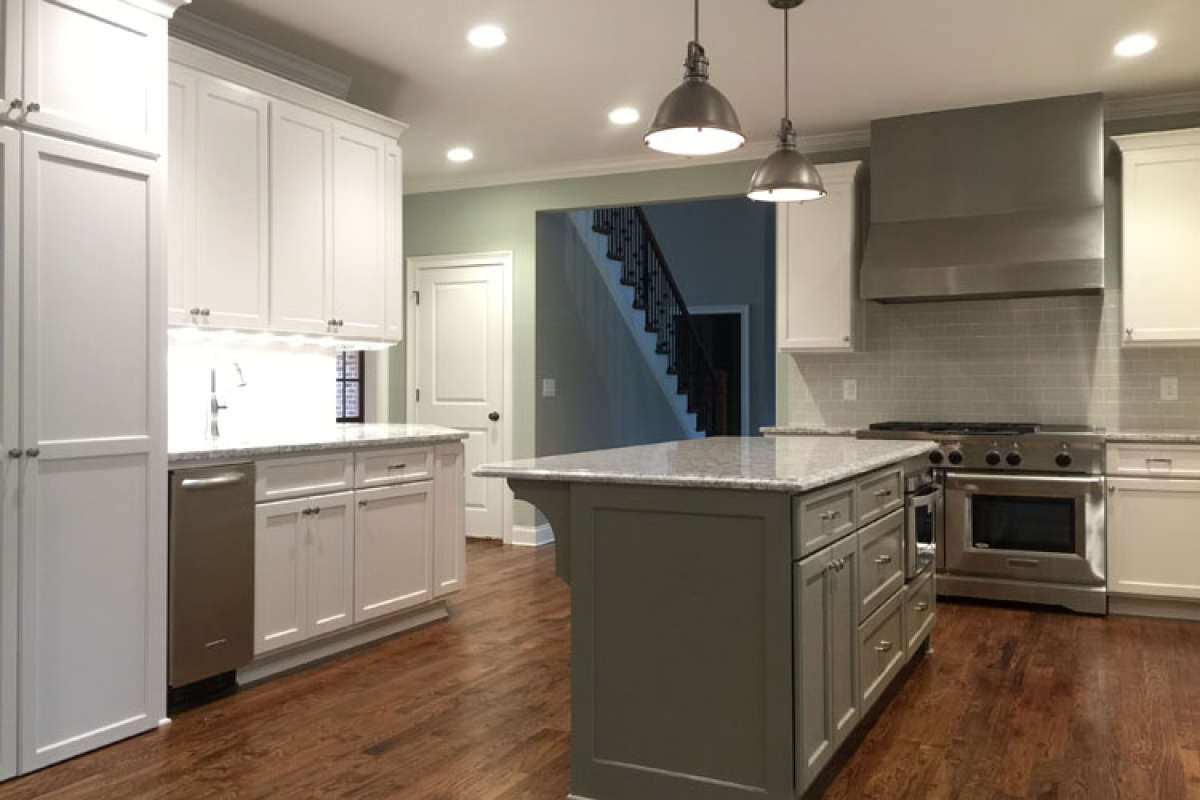

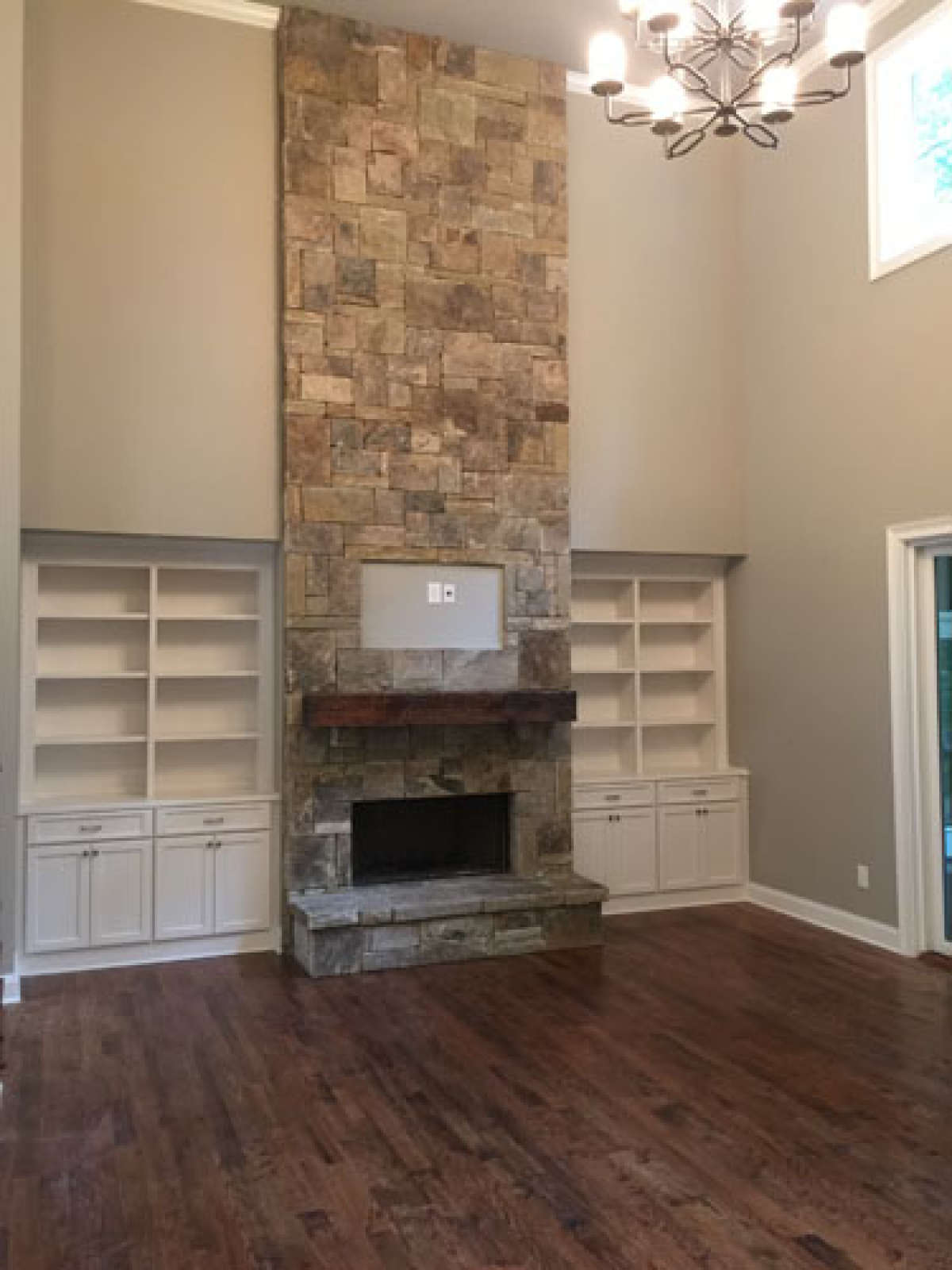

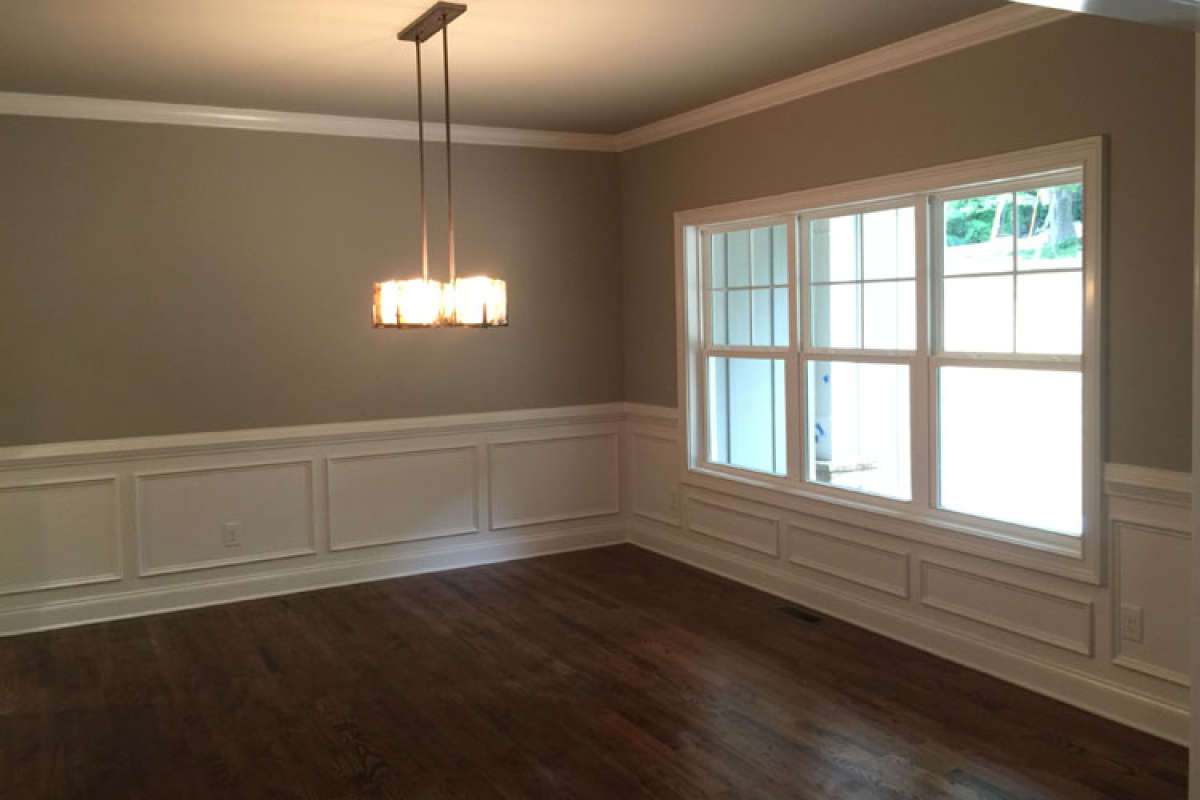

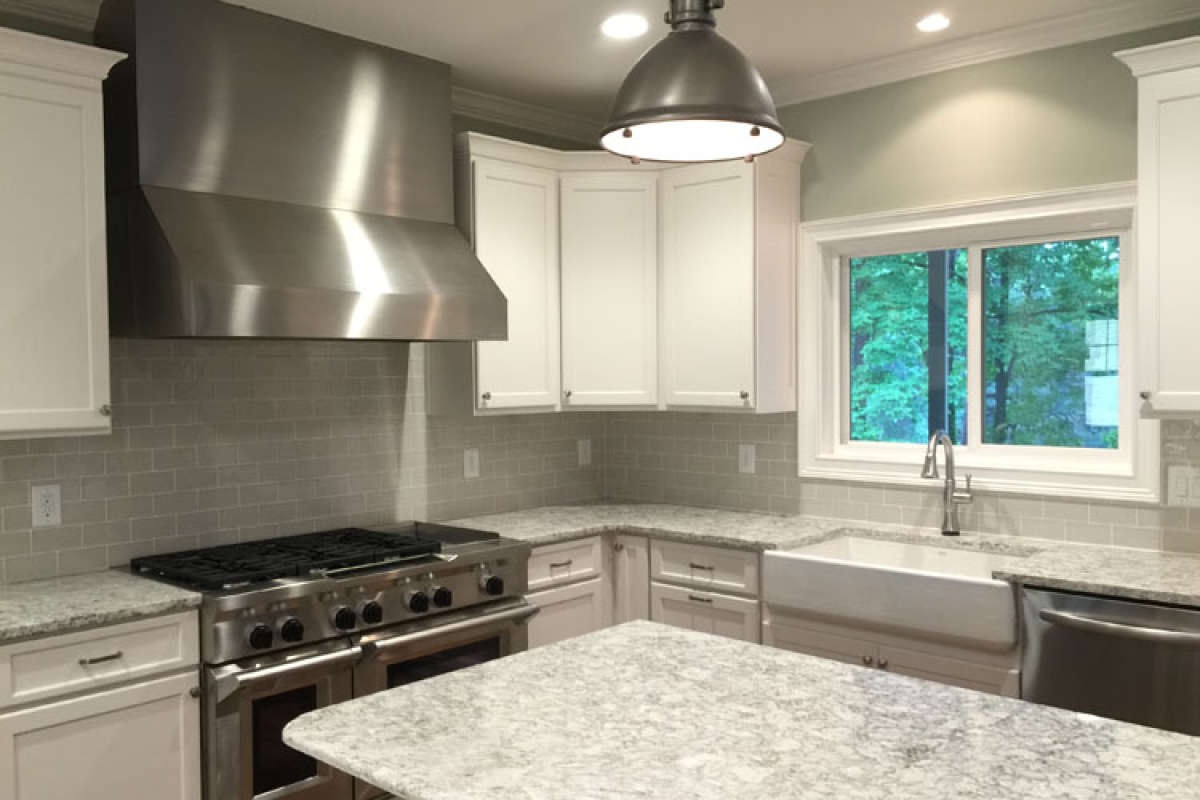

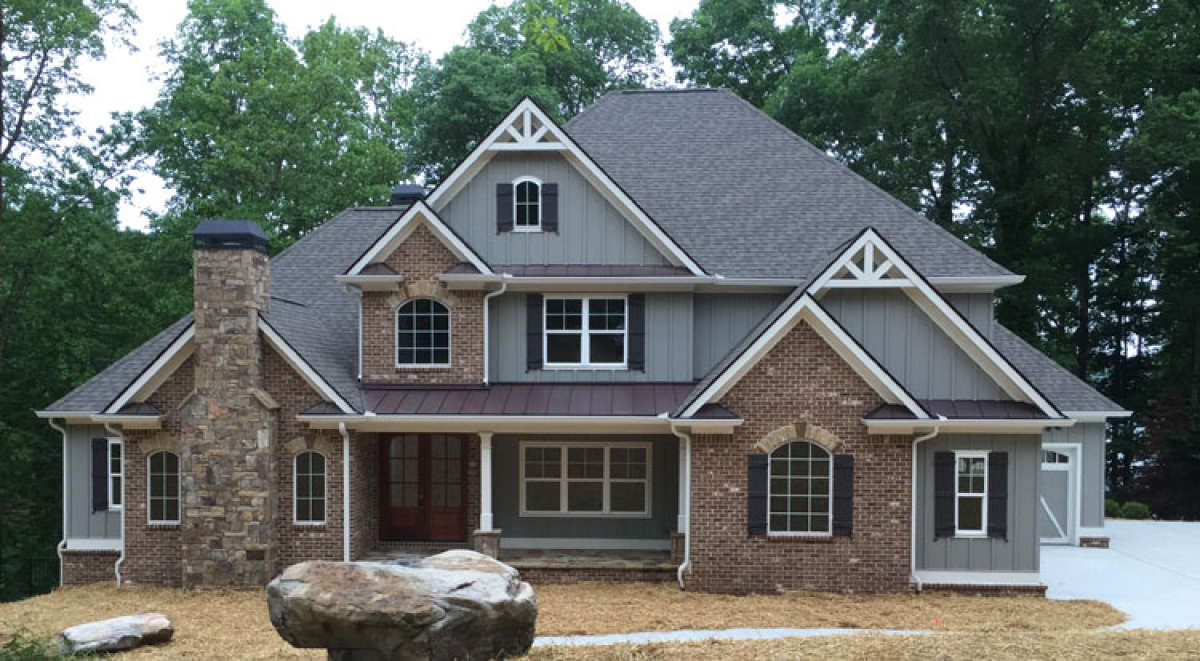

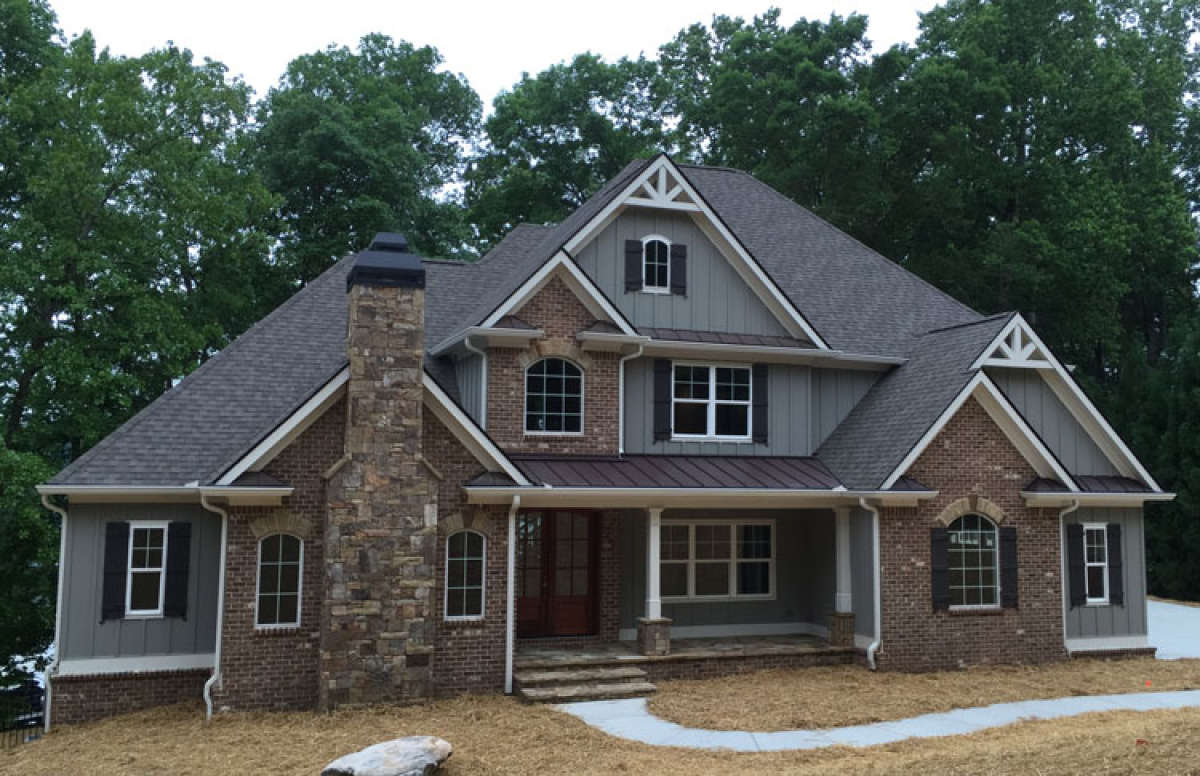

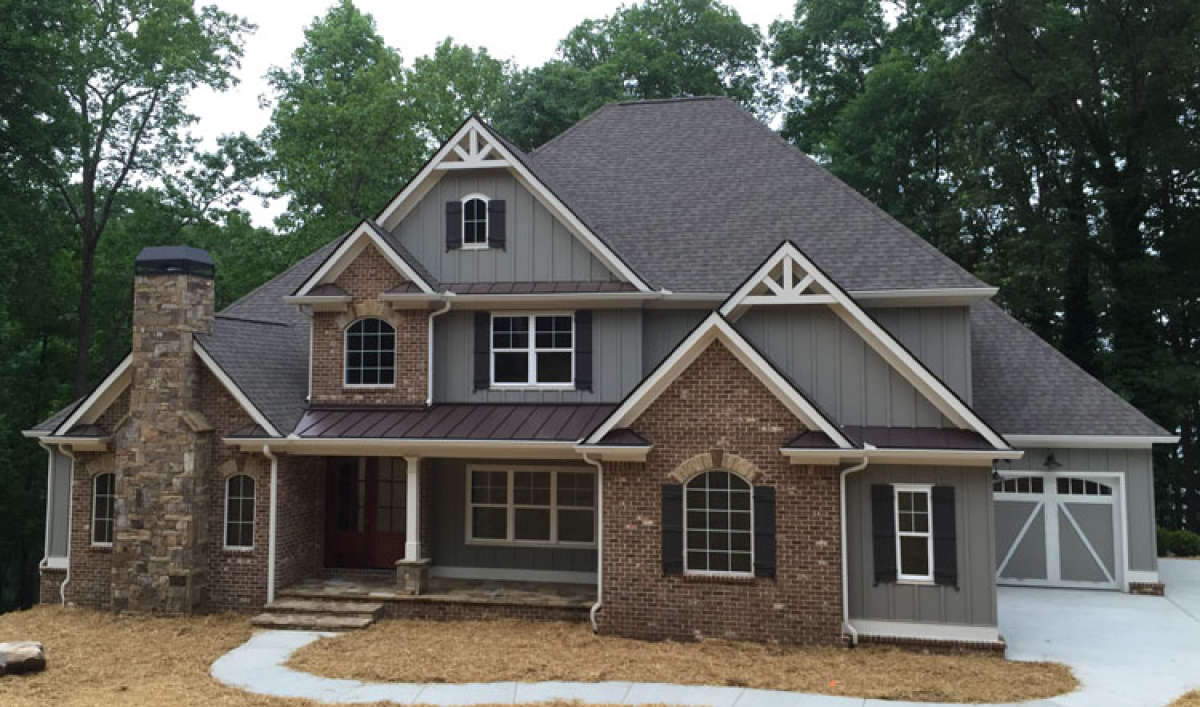

This Craftsman house plan features an exciting blend of exterior design elements composed of brick, stonework, a multitude of gables and board and batten. The large front covered porch is a great place to relax and welcome family and friends into the home. The spacious interior offers an amazing amount of space with its approximate 3,290 square feet of living space and there is additional square footage located in the walkout basement. There is a three car garage, consisting of a single bay and double bay providing plenty of space for cars and other storage items. The two story foyer opens onto a lovely floor plan and offers access into the study, dining room and subsequently the great room. The dining room features a triple window wall overlooking the front porch while the vaulted study contains a cozy fireplace and private access to a full bath. The enormous great room is highlighted with a rear wall of windows, a warming fireplace and built-in cabinetry. The family friendly kitchen and breakfast room features massive space to enjoy family time; there is a large kitchen island, a hidden food storage pantry which is huge and access to the open deck and expansive rear covered porch with outdoor fireplace. A mudroom with desk area along with a bench and cubbie area is situated off the garage allowing for quiet time and a handy area for storage. There is a large laundry room and full bath available on this floor as well as the master suite. The master suite is a private oasis for homeowner’s where well-appointed and spacious rooms are designed for privacy and comfort. The huge master bedroom features a trey ceiling accent and private access onto the covered porch while the en suite master bath is entered through French doors and includes dual vanities, a separate shower, garden tub and a private toilet area. At the rear of the bath is the massive walk-in master closet which is highlighted with plenty of space for clothing, shoes and other accessories.

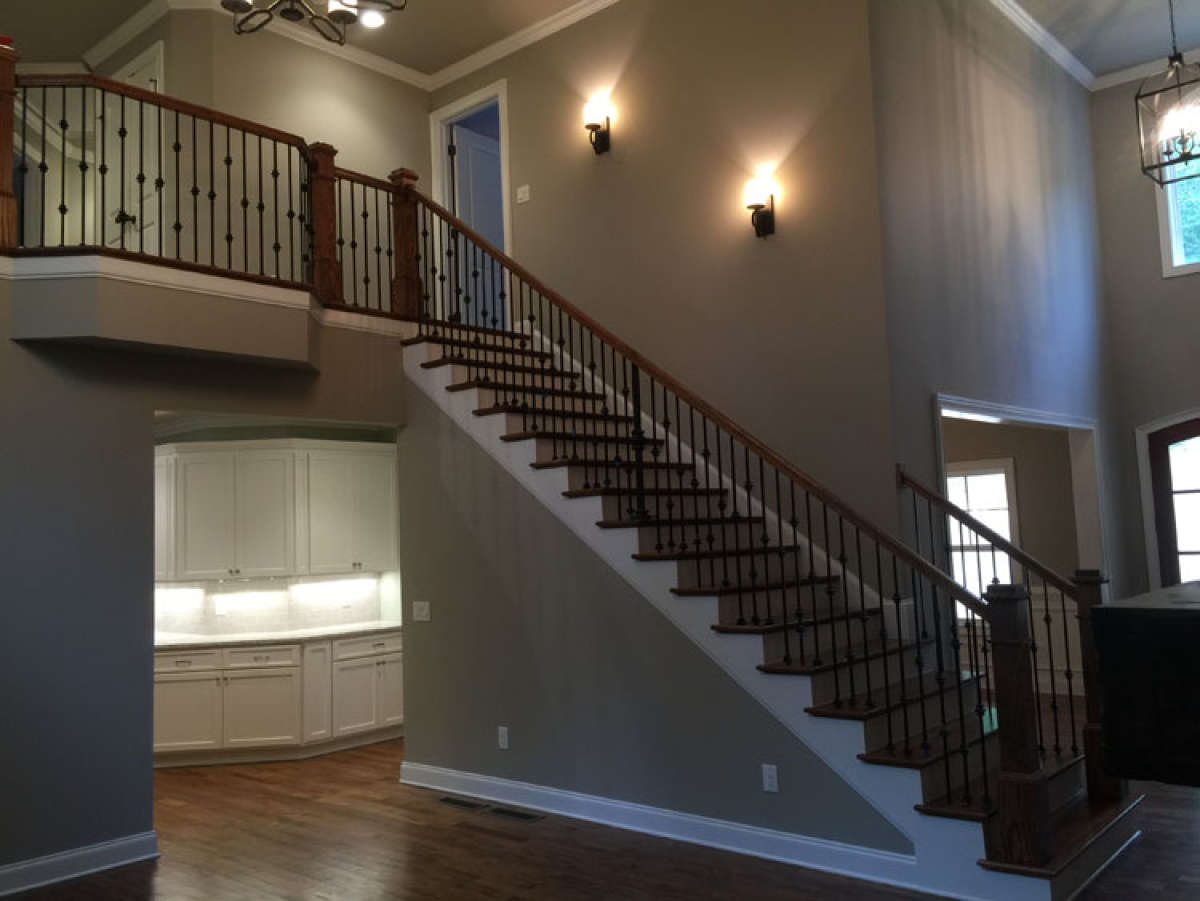

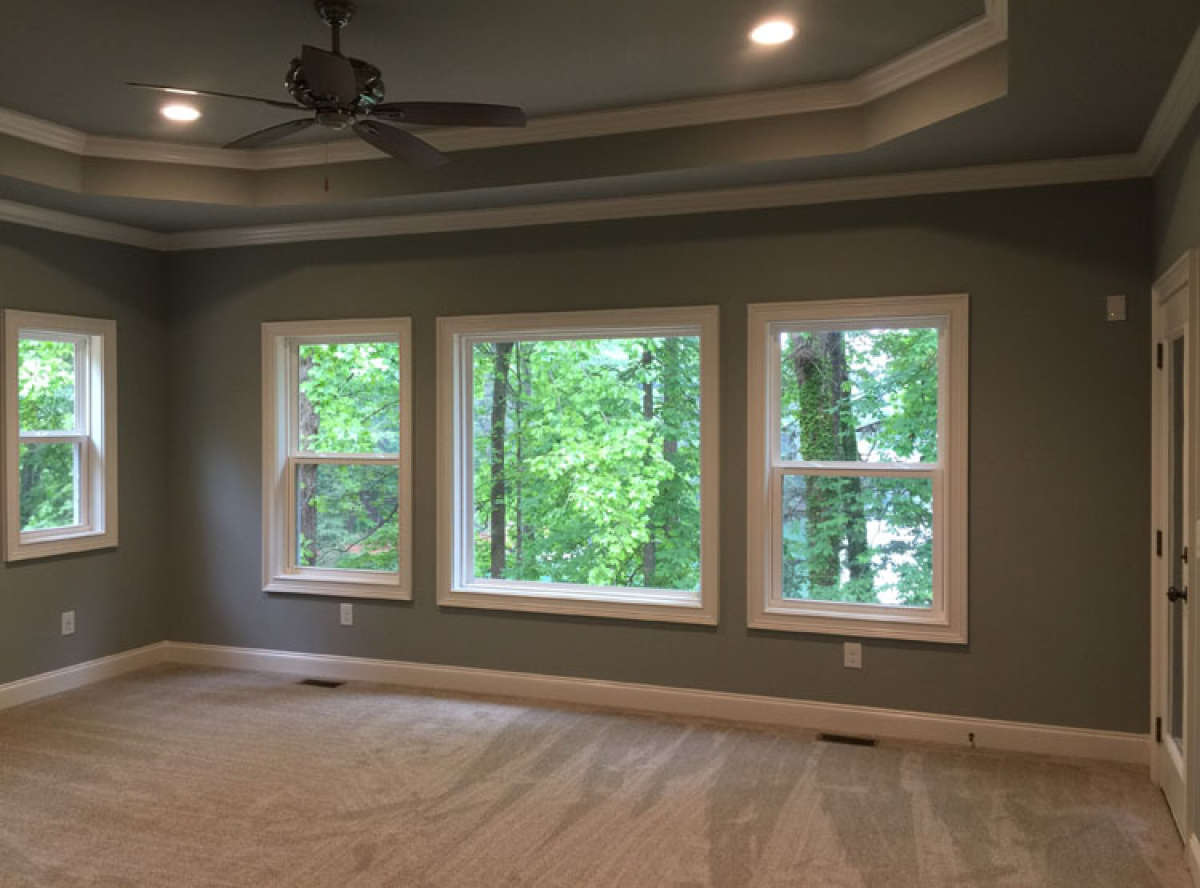

The second floor landing features overlooks onto the foyer and great room below as well as providing access to the loft area. There is a second laundry facility on this floor for convenience in addition to a hall linen closet. The three bedrooms are all quite large with trey/vaulted ceiling heights, wonderful window views and walk-in closets. The second bedroom features a private full bath while the third and fourth bedrooms offer a jack and jill bath with private vanities. This home is designed for a large family, features expansion options in the lower level and offers excellent outdoor space.
