Traditional House Plan 286-00016

Sq Ft3,065
1/2 Baths1
Width64' 0"
Depth59' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

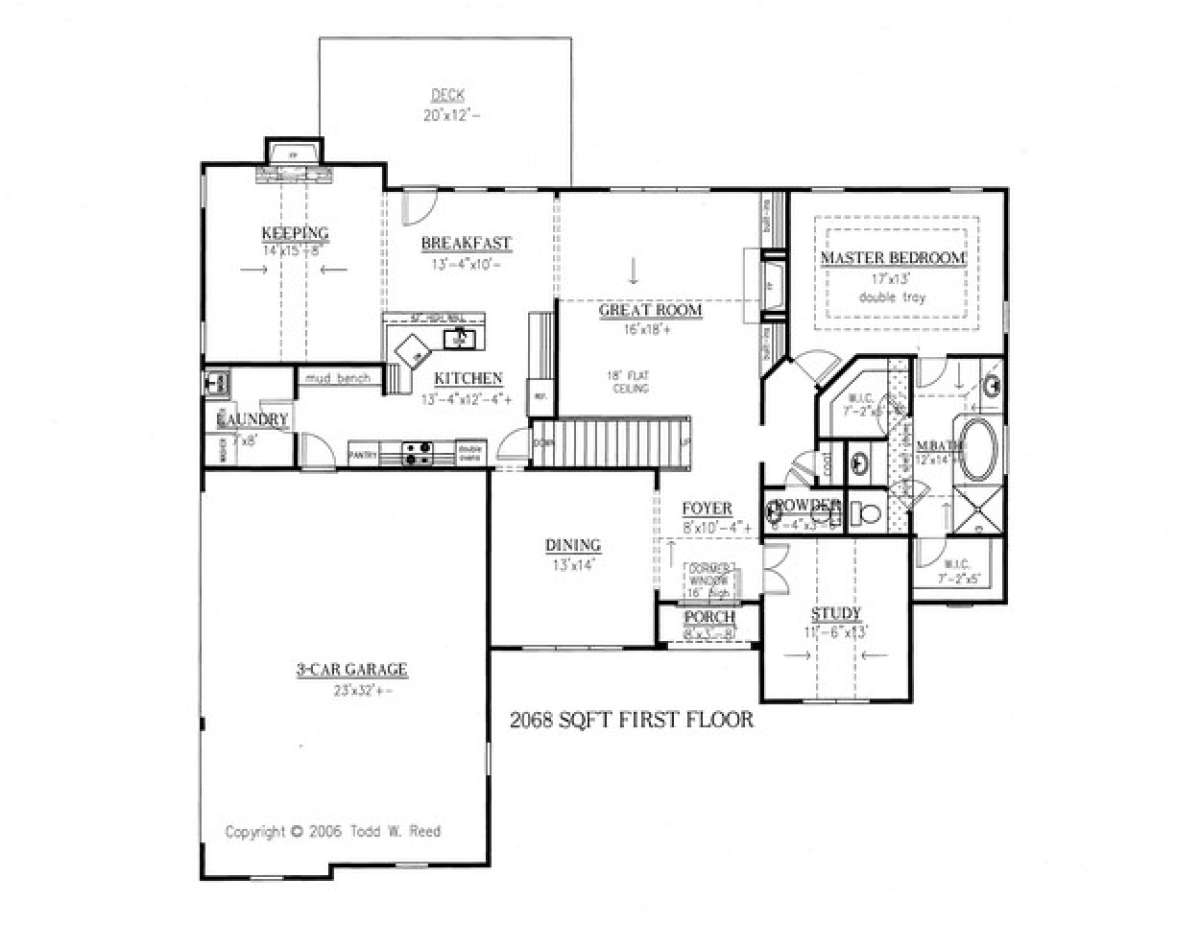

Floorplan 1 for House Plan #286-00016

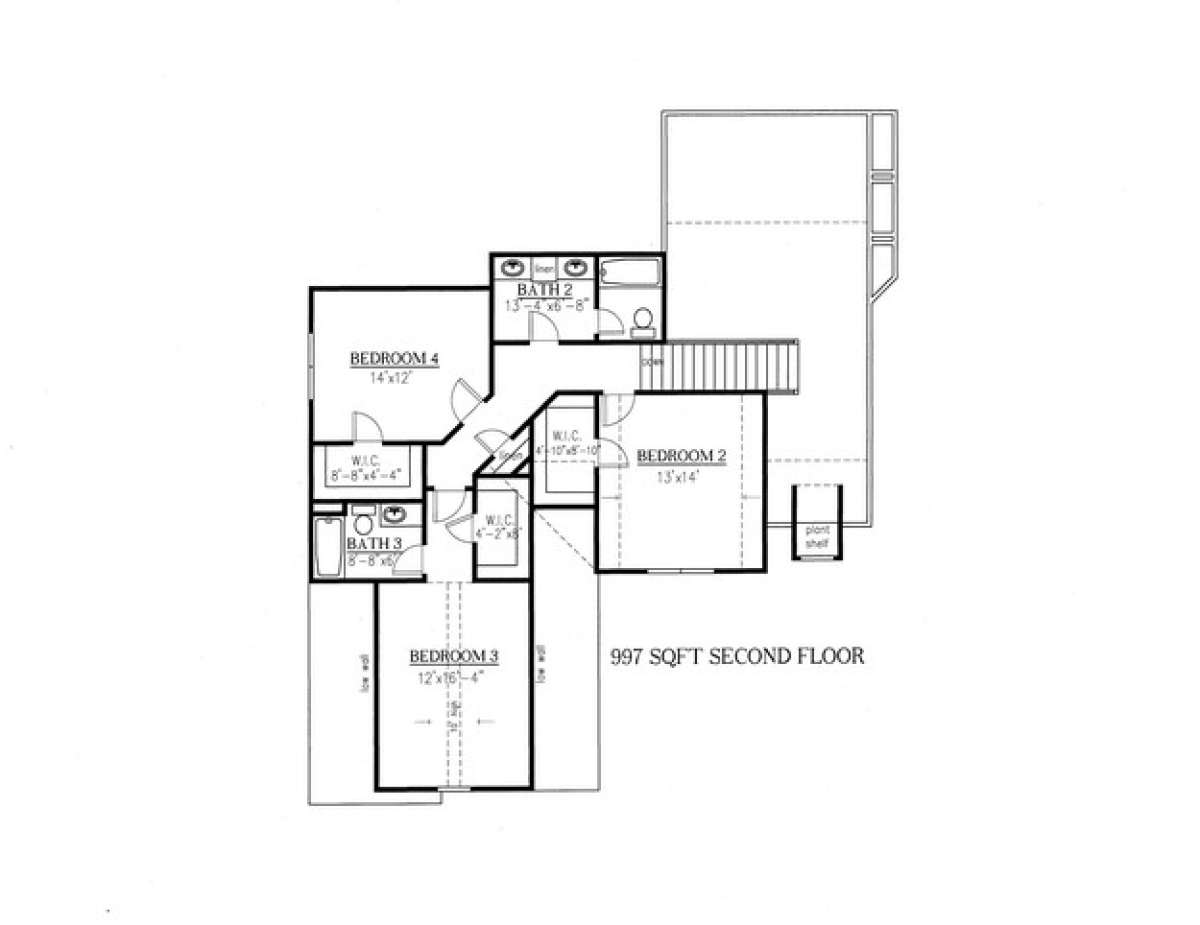

Floorplan 2 for House Plan #286-00016
Floorplan 1
Floorplan 1 for House Plan #286-00016
Floorplan 2
Floorplan 2 for House Plan #286-00016

Frequently Asked Questions


What's Included in these plans?

-Floor Plans
-Roof Overview
-Foundation Plan
-Typical Electrical Plan
-Typical Details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

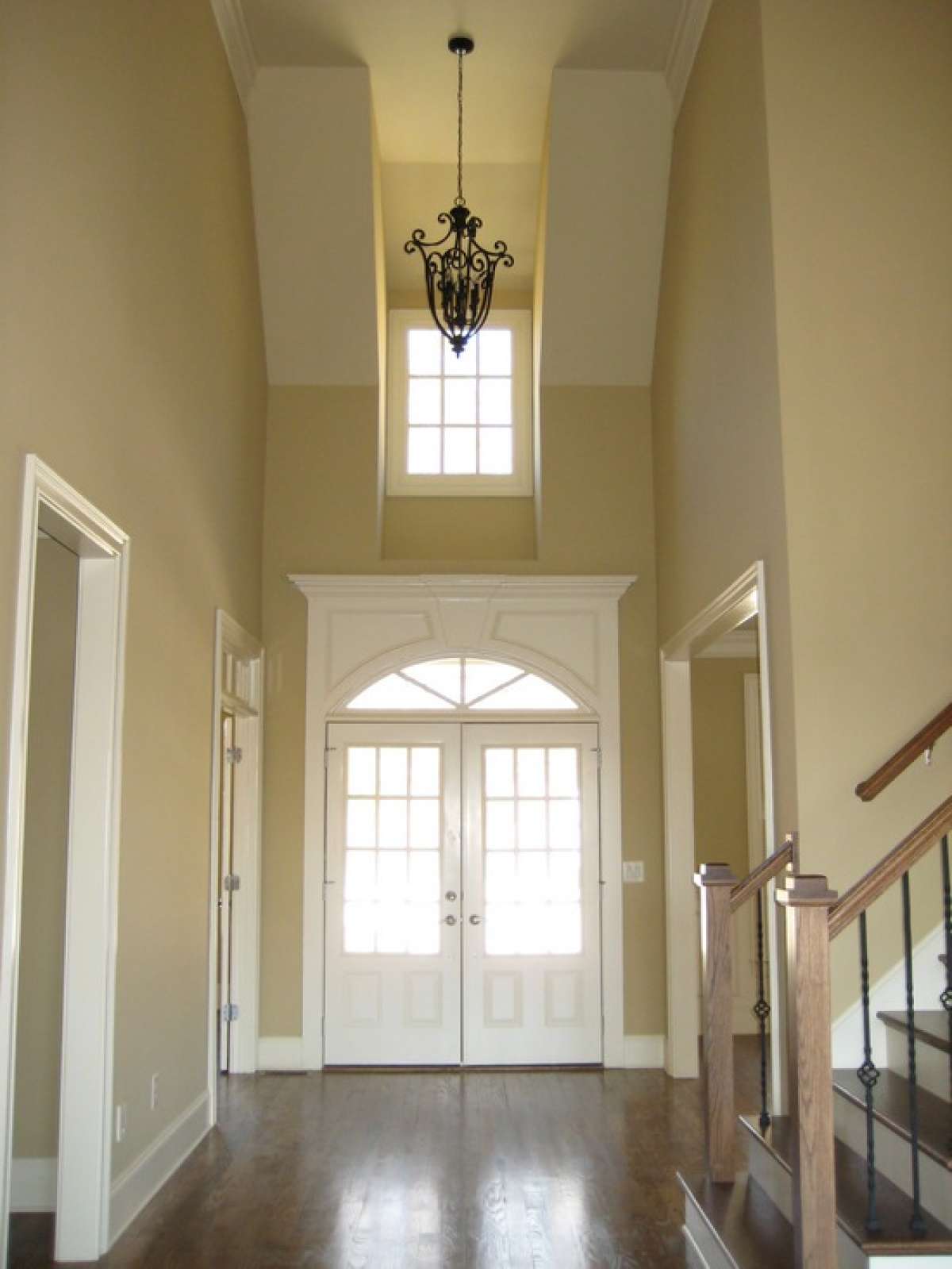

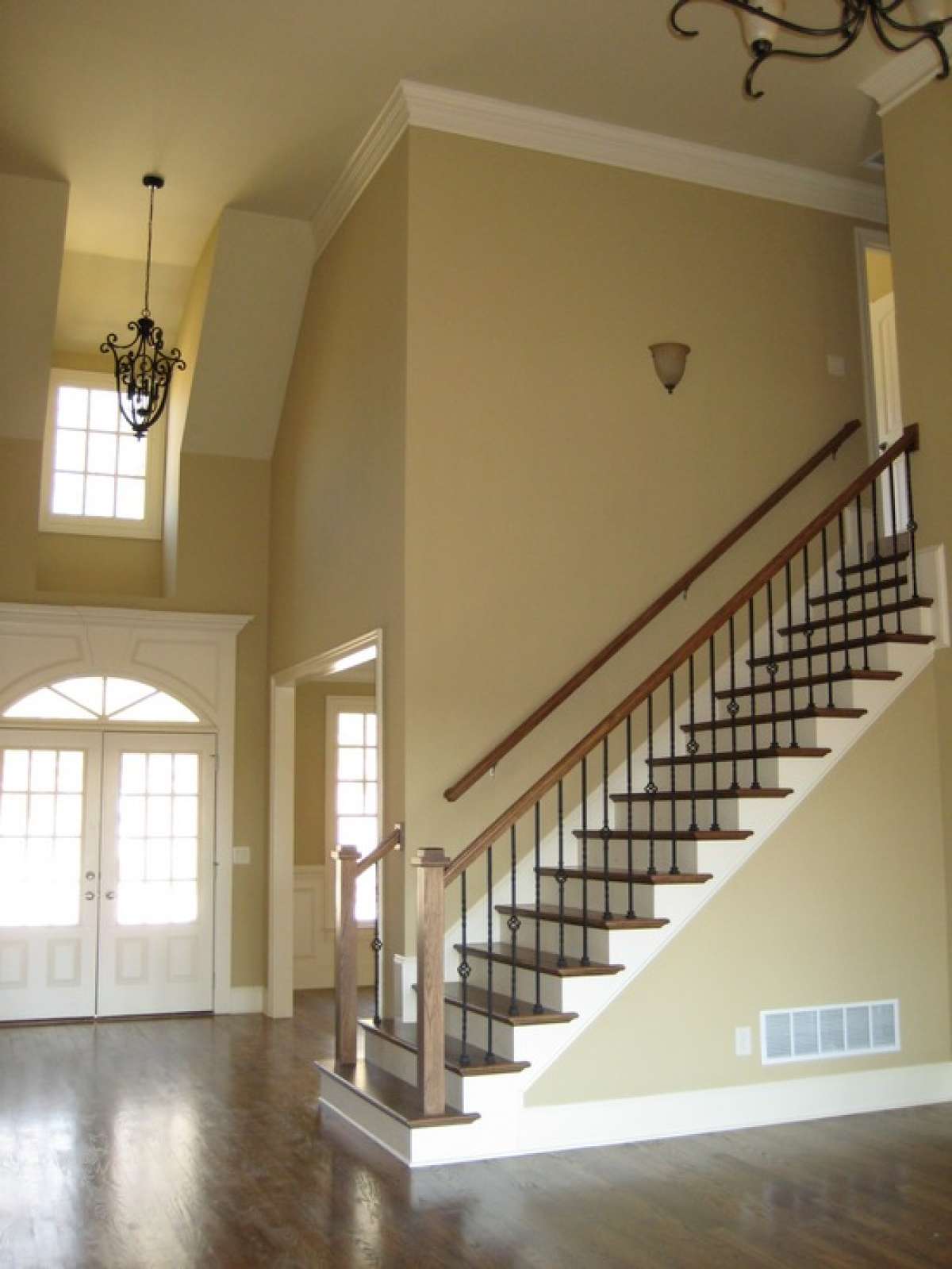

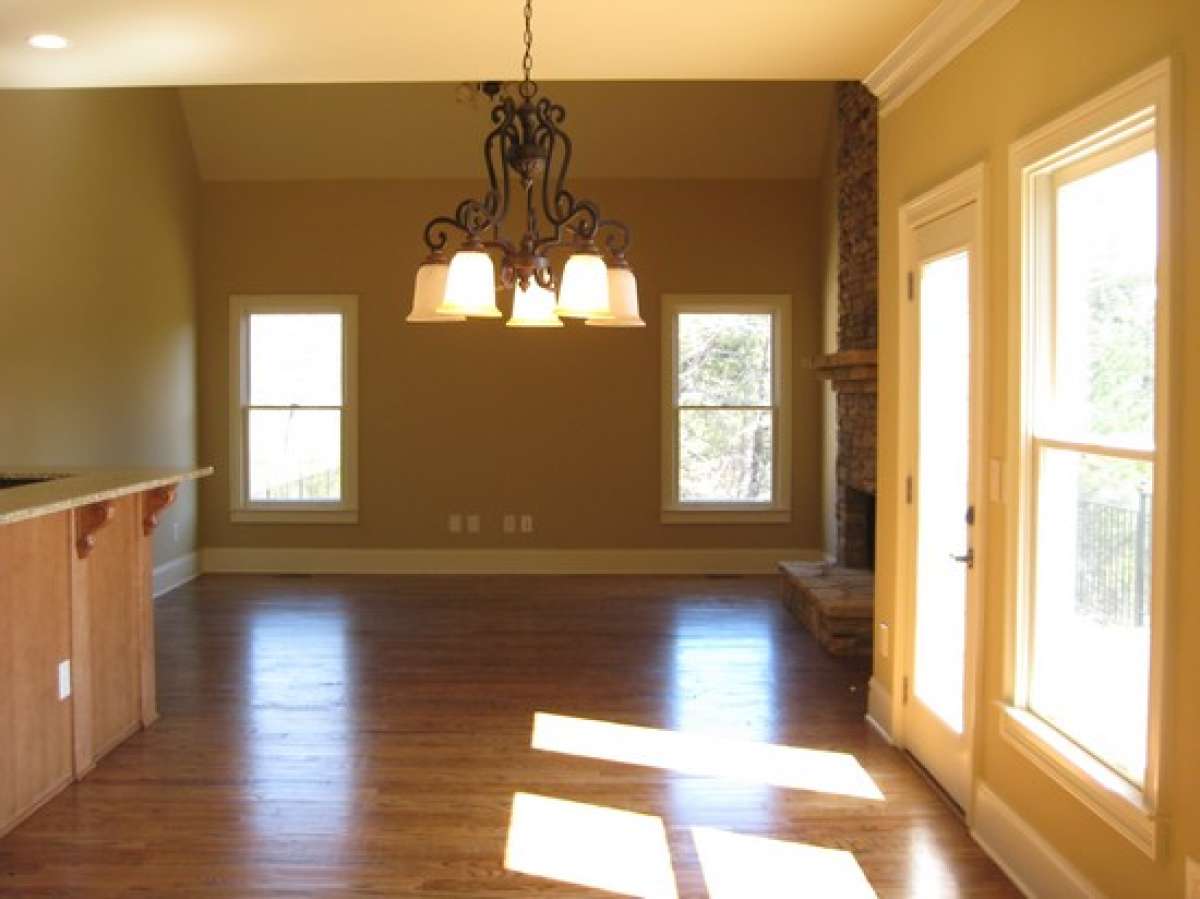

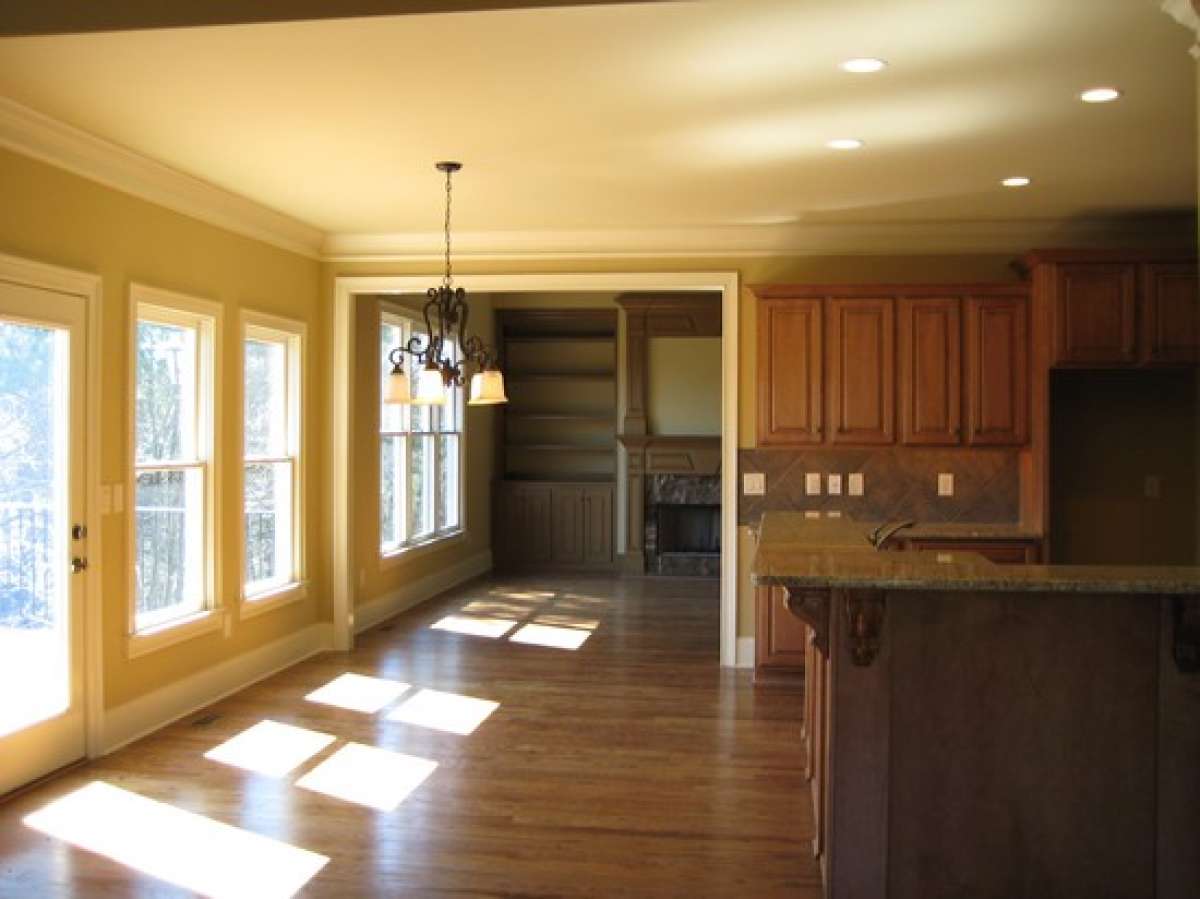

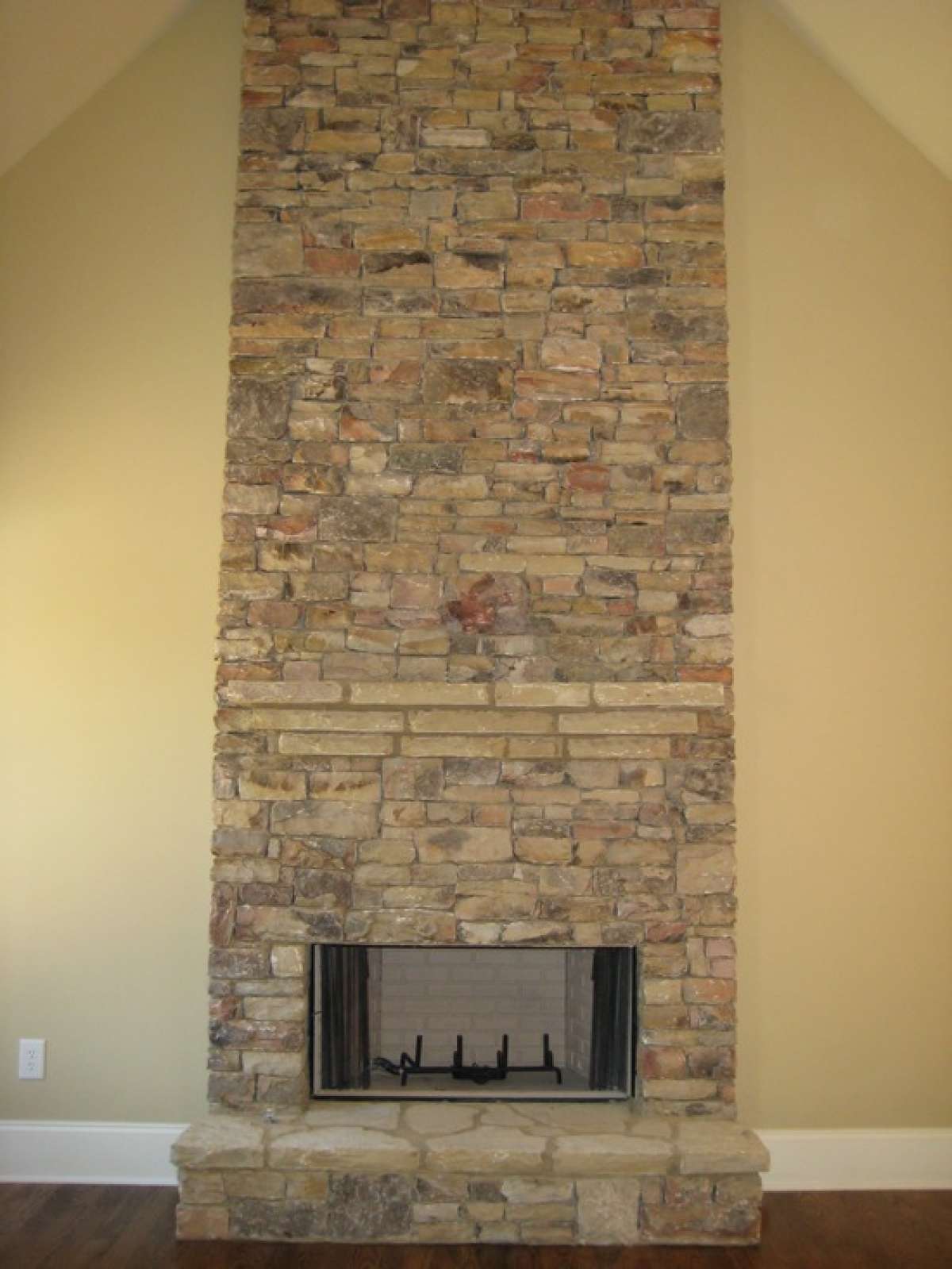

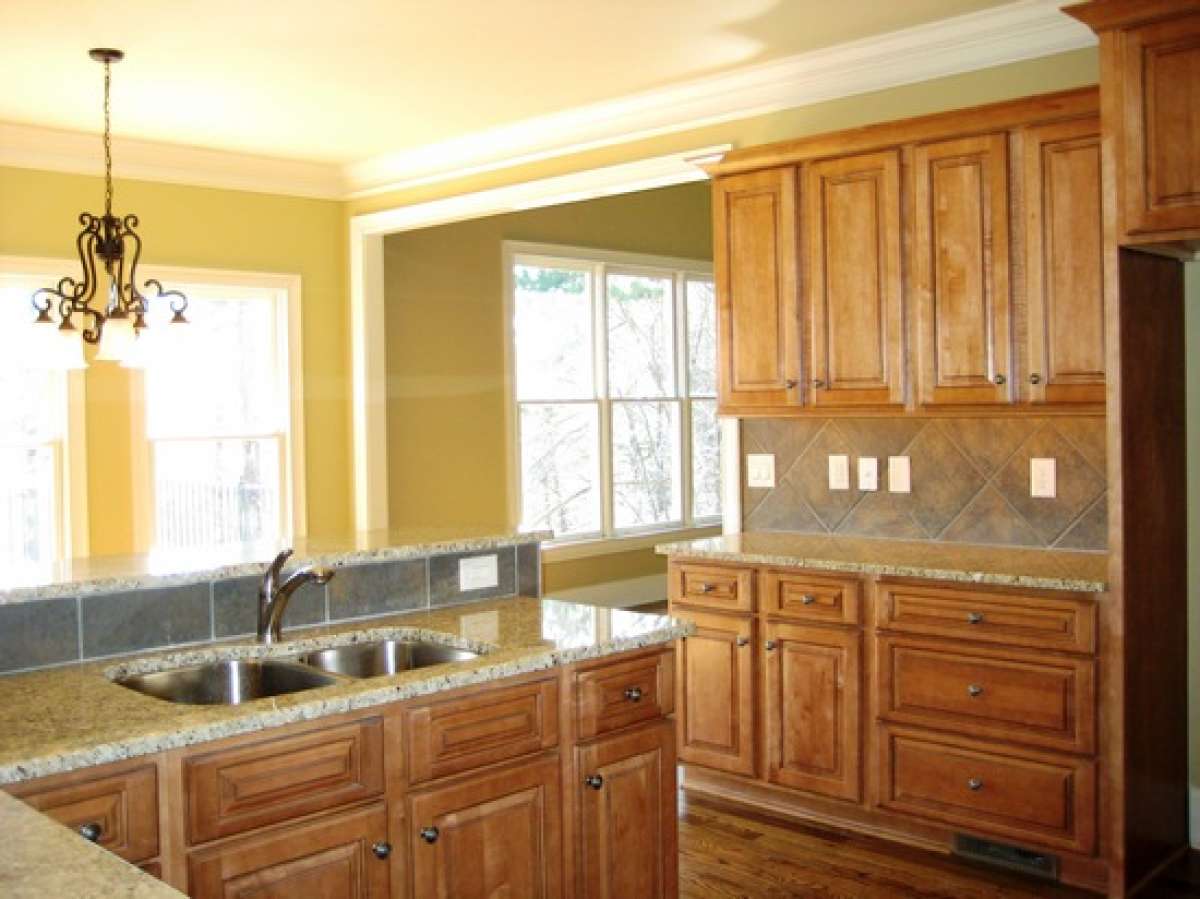

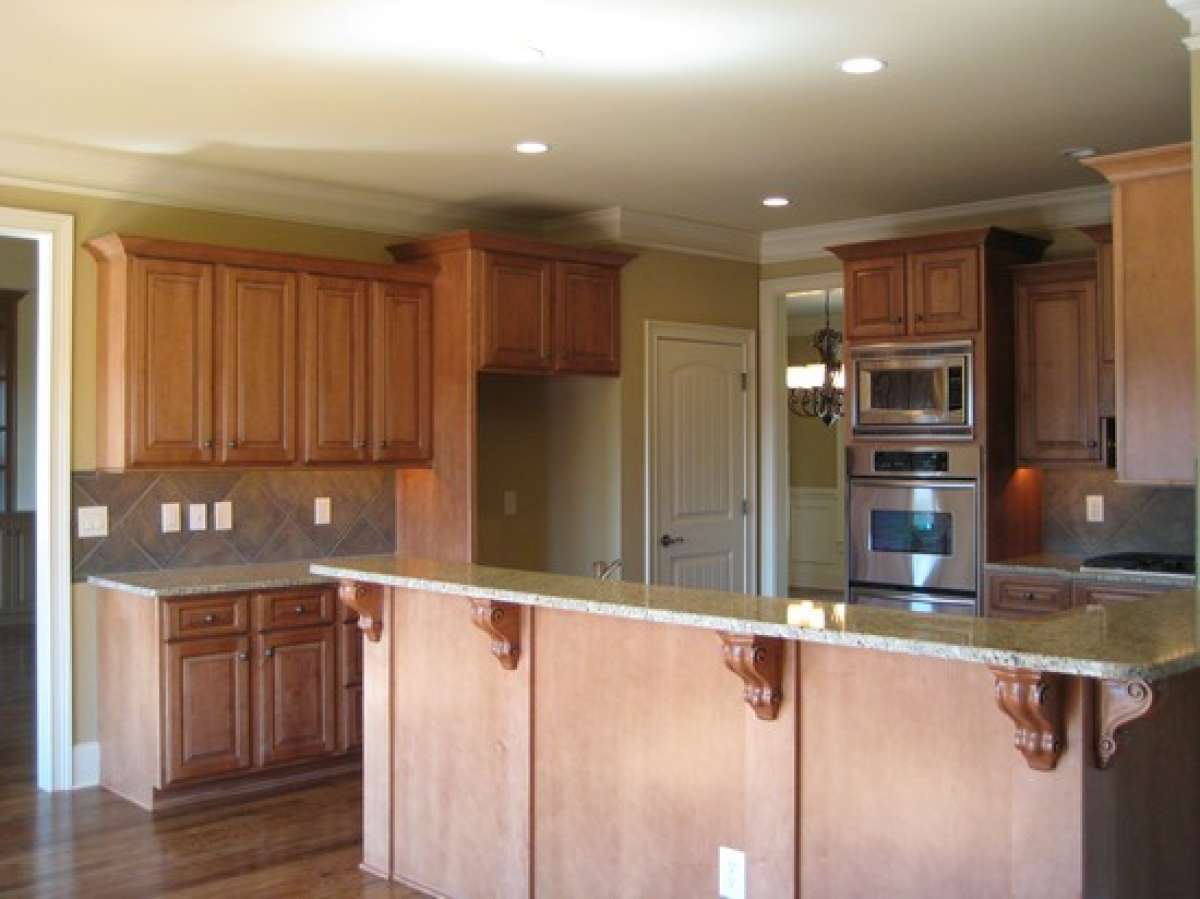

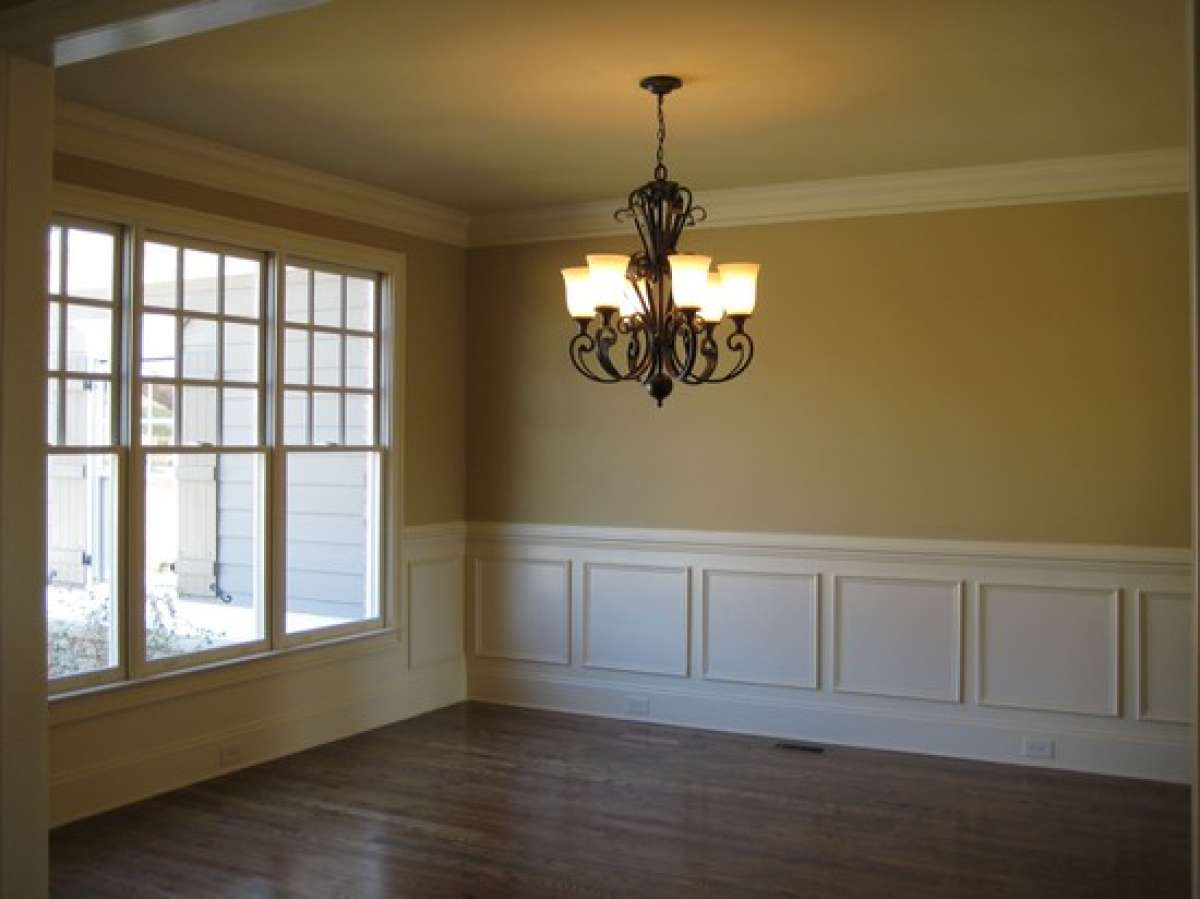

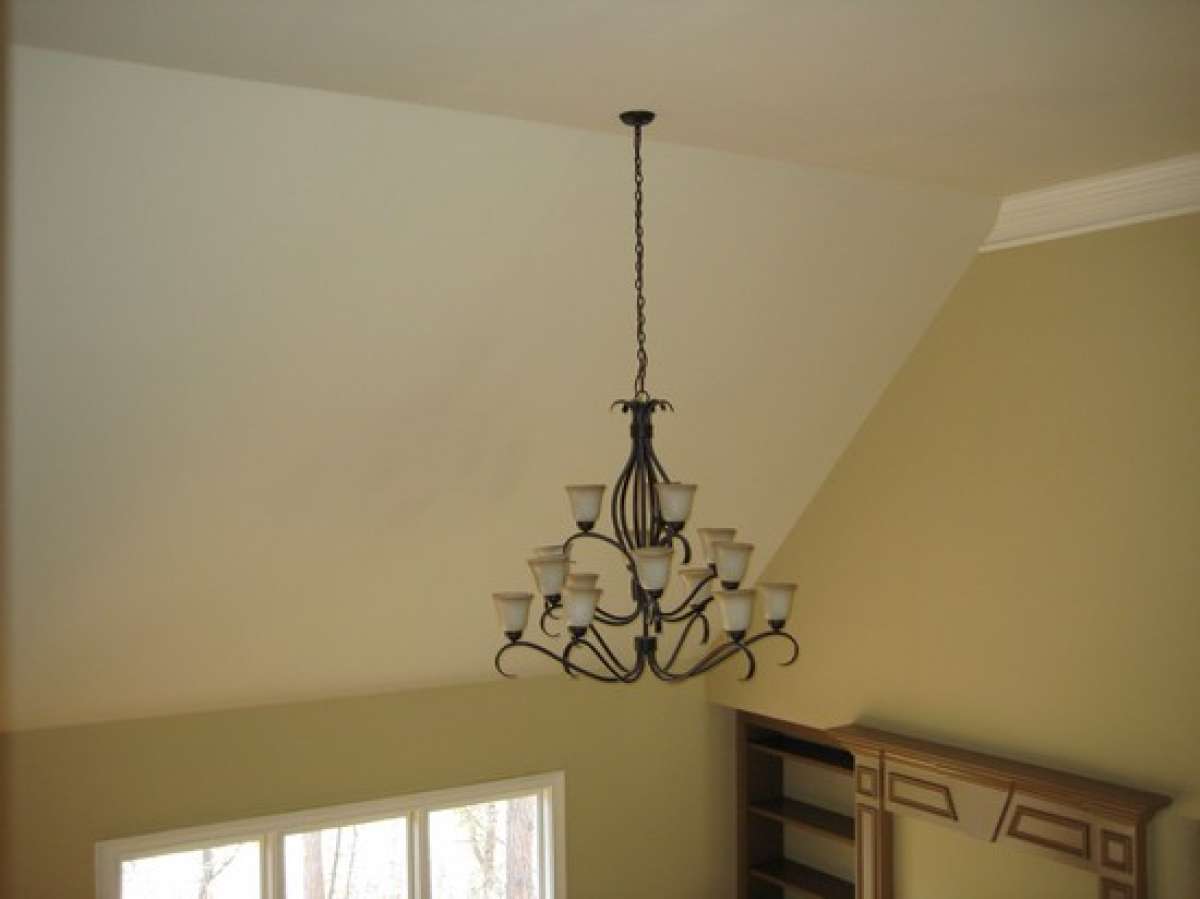

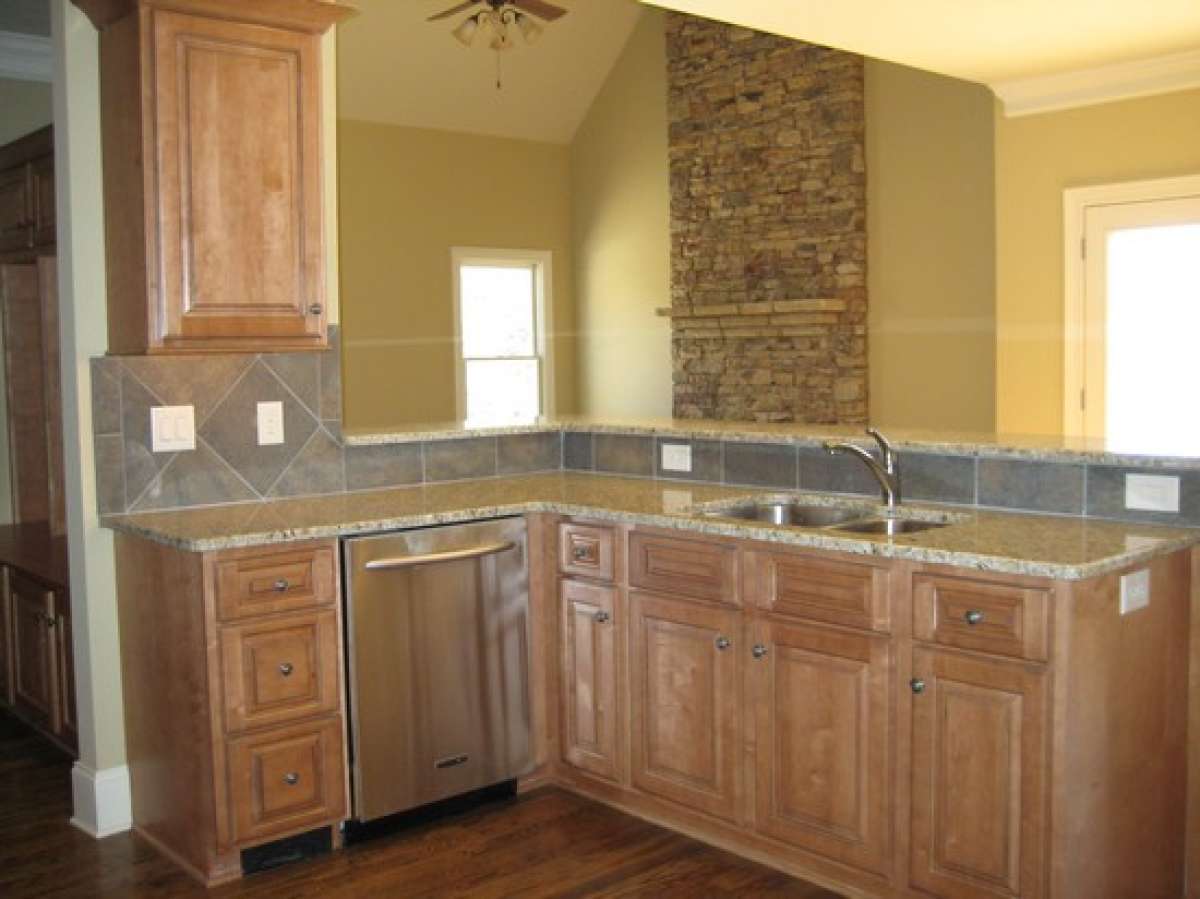

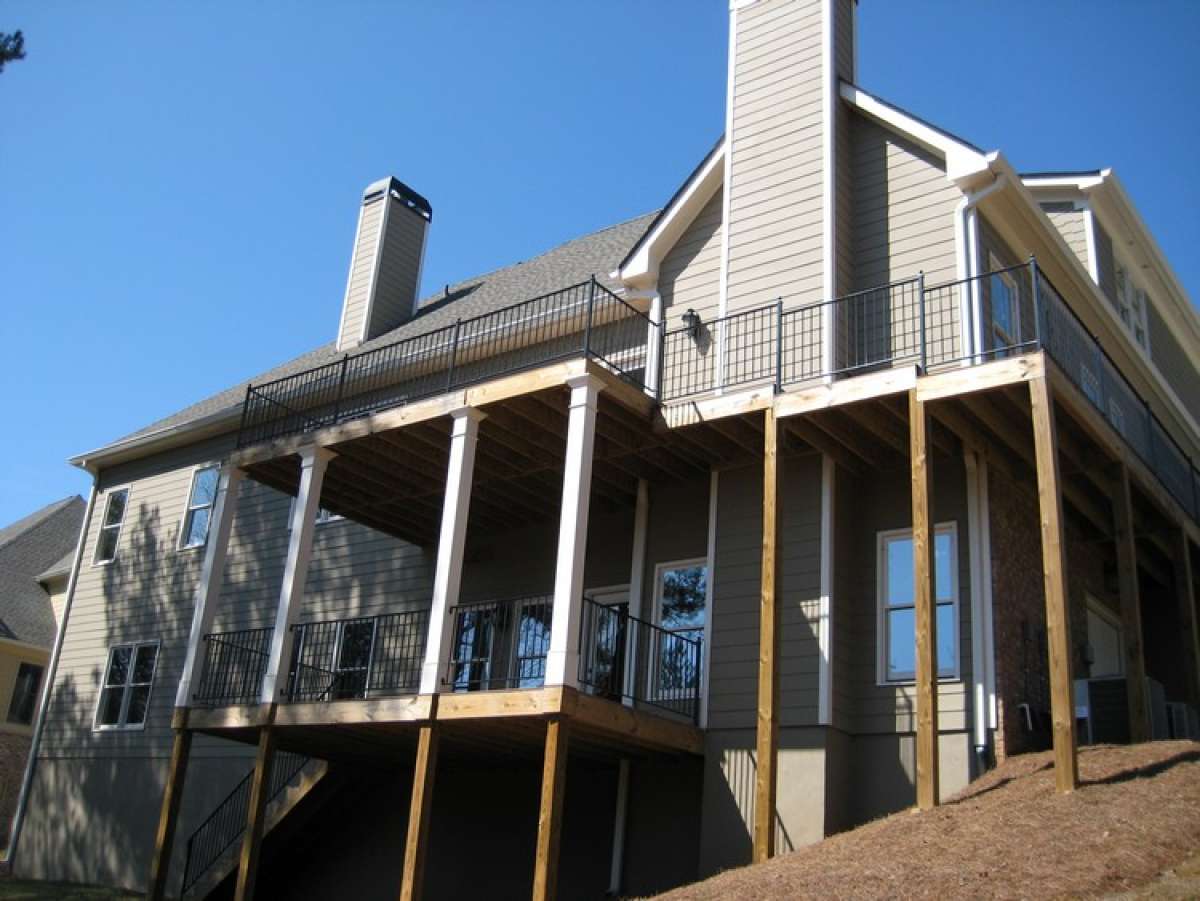

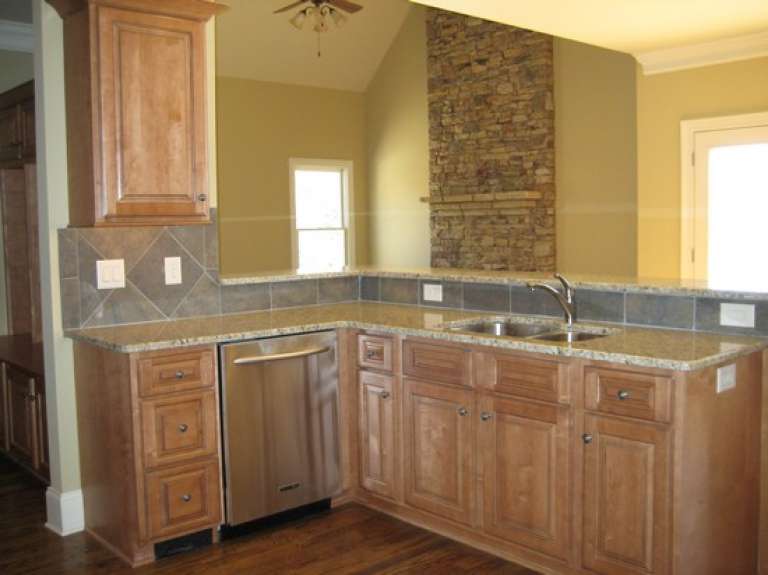

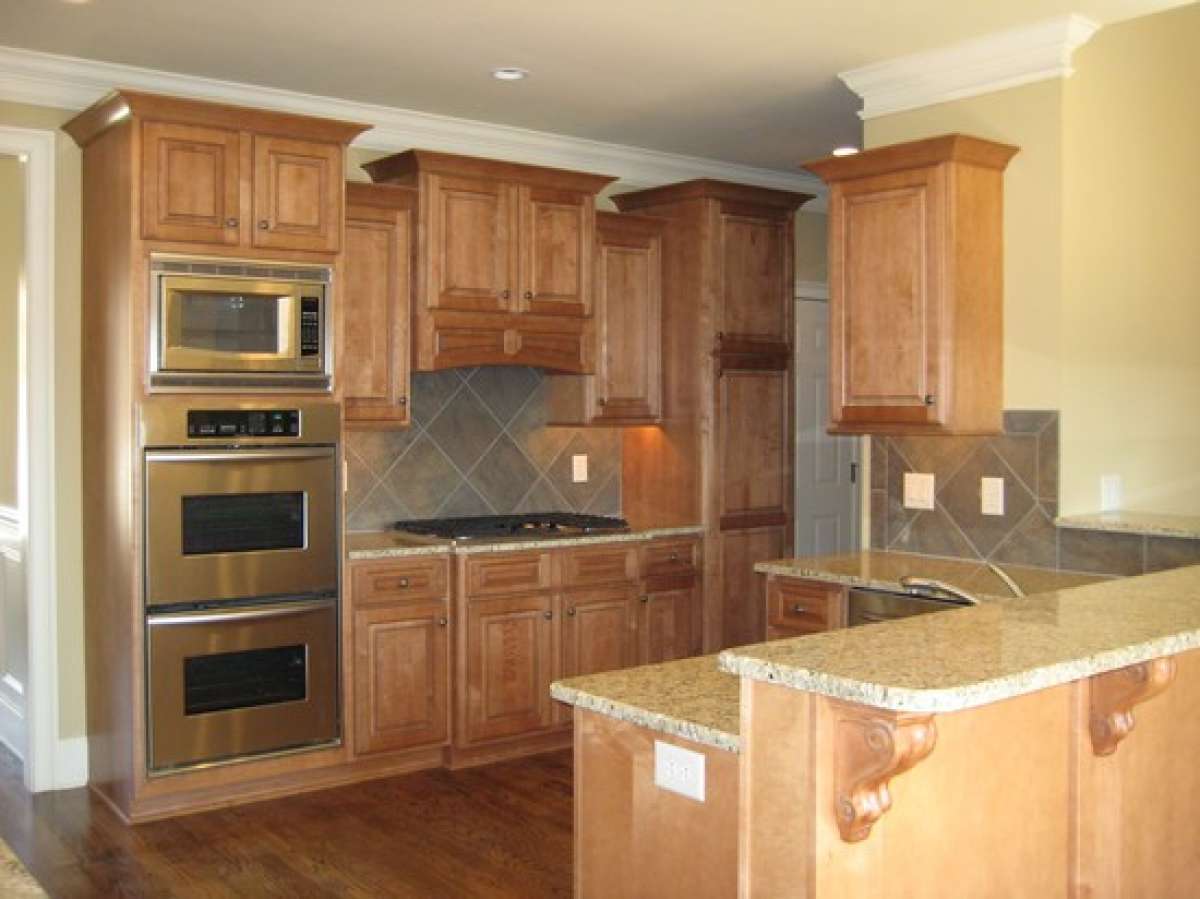

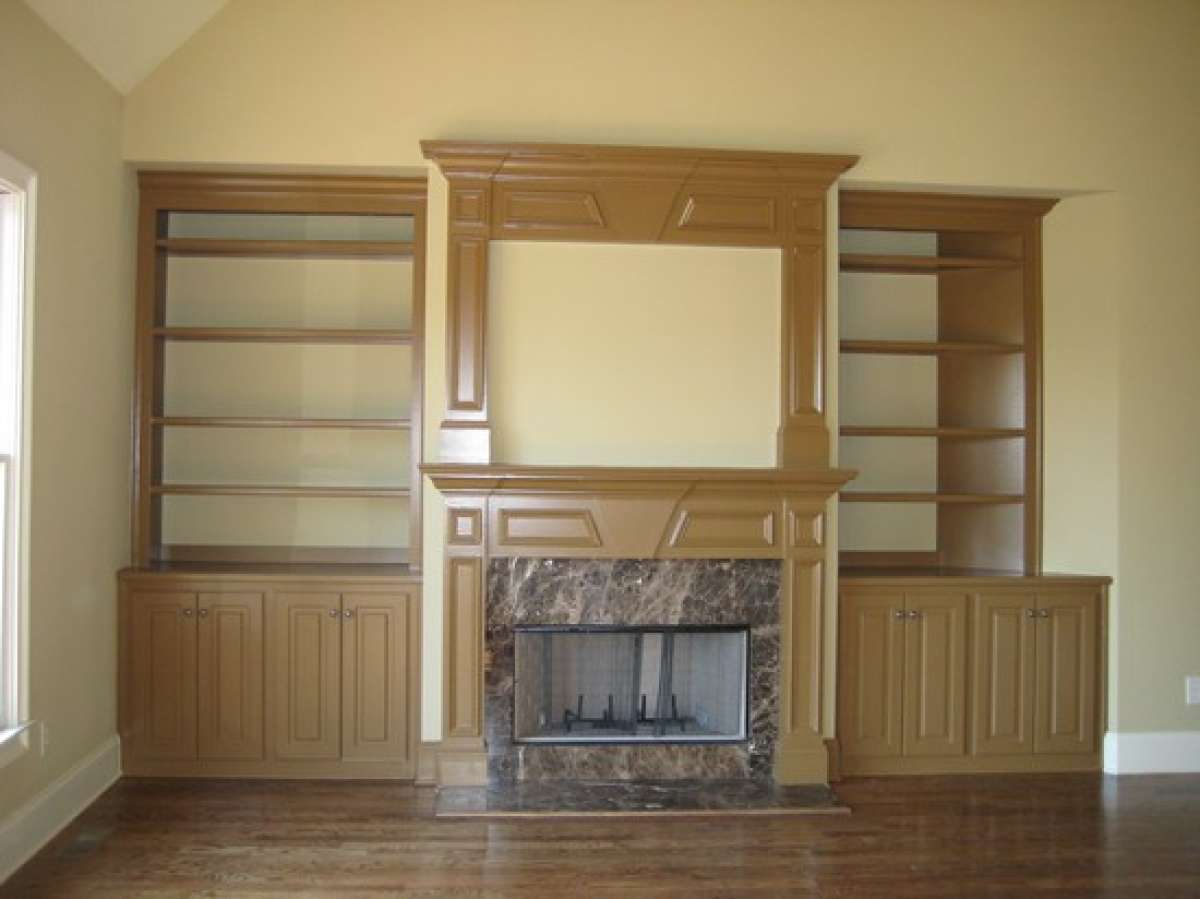

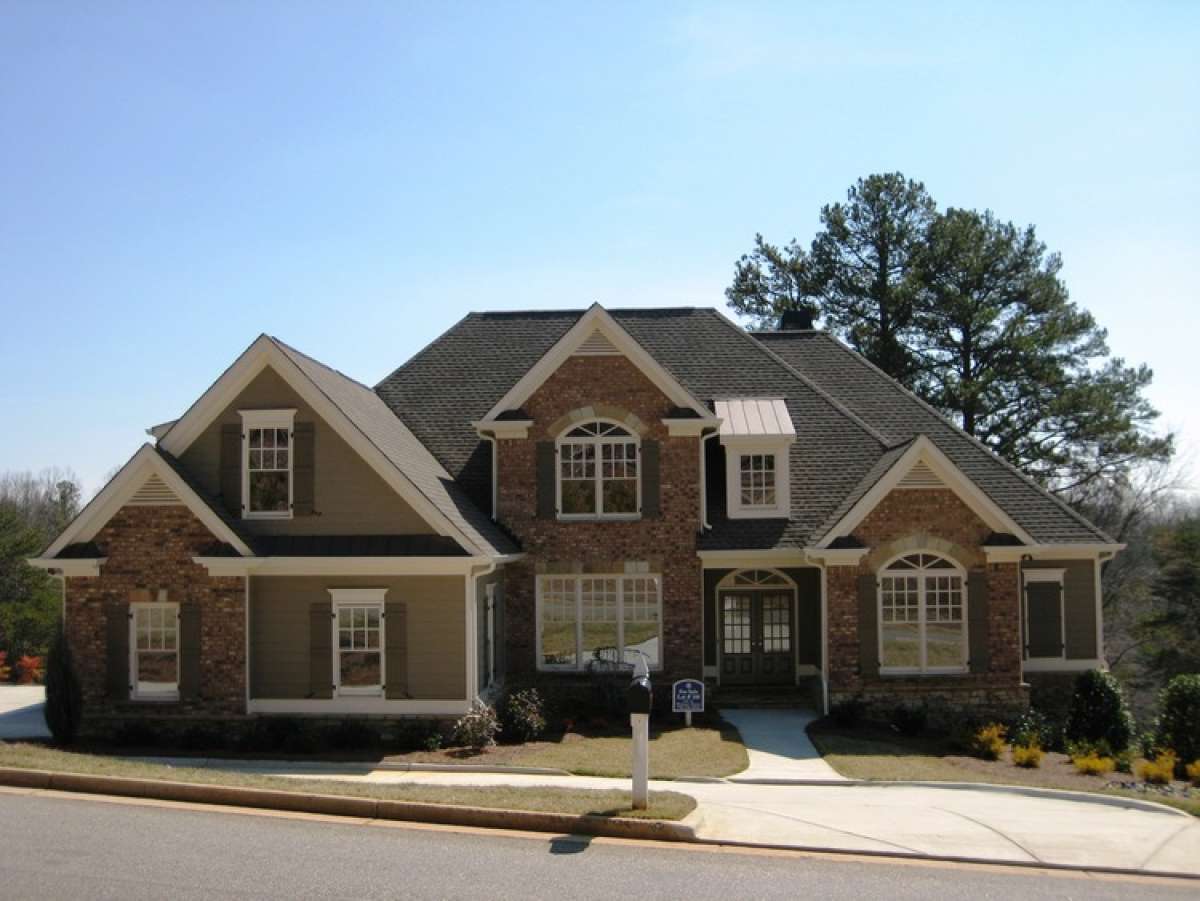

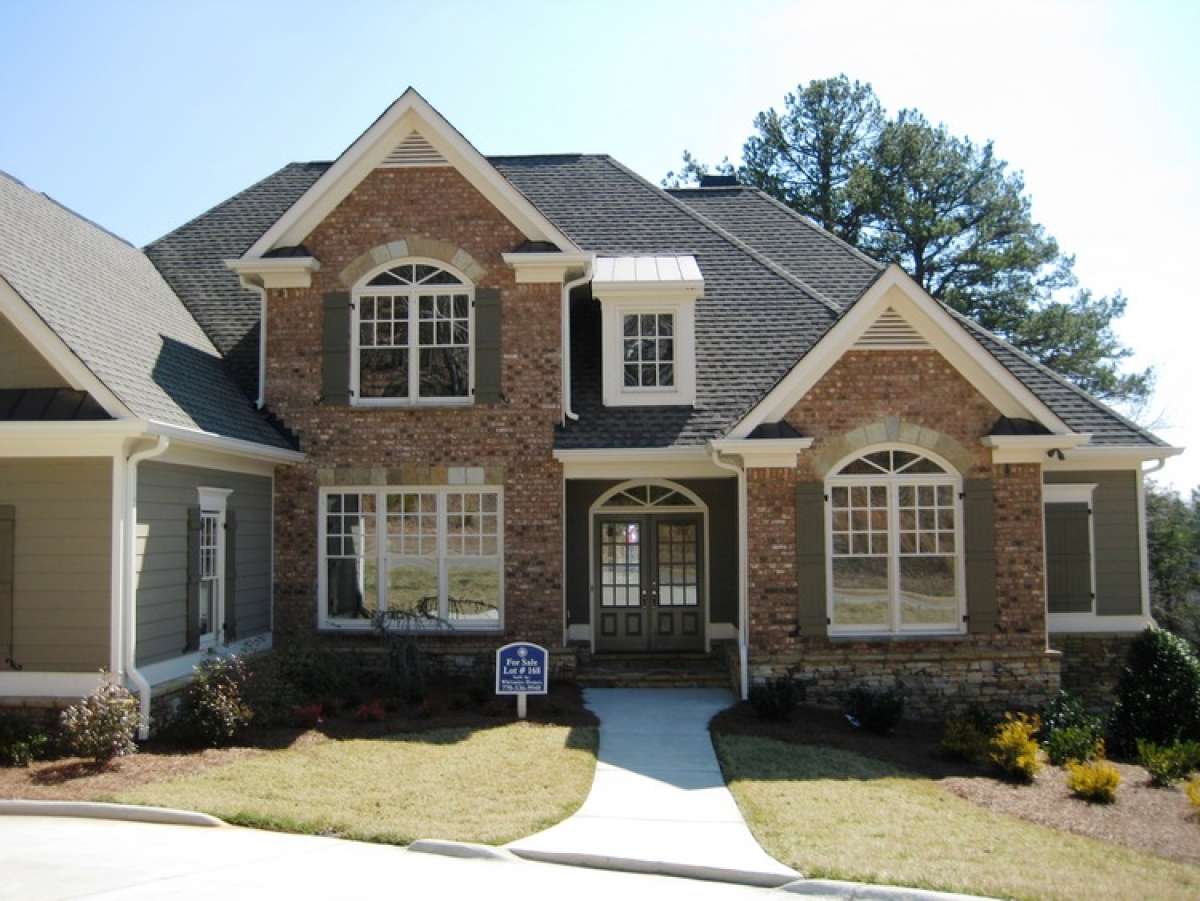

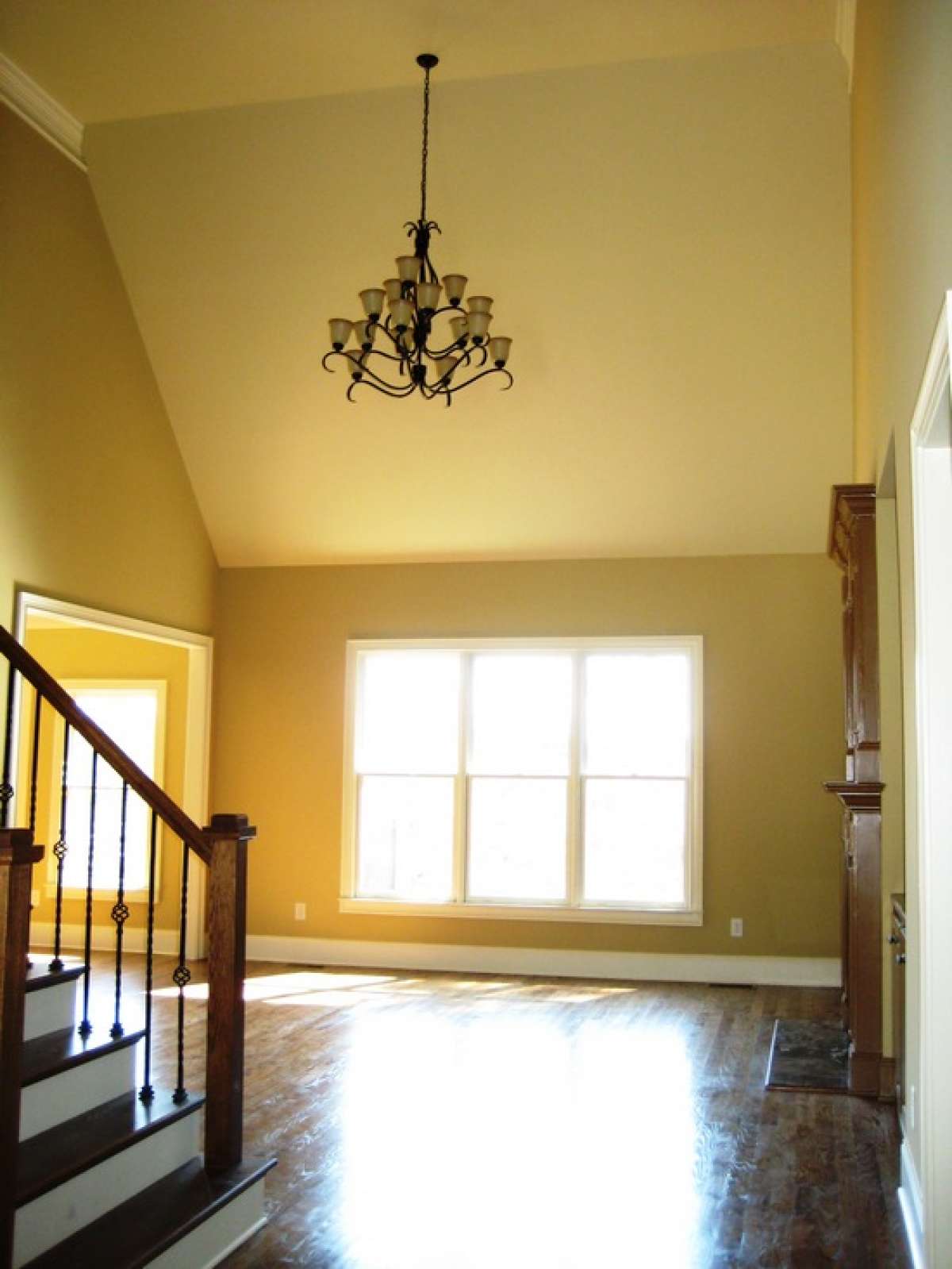

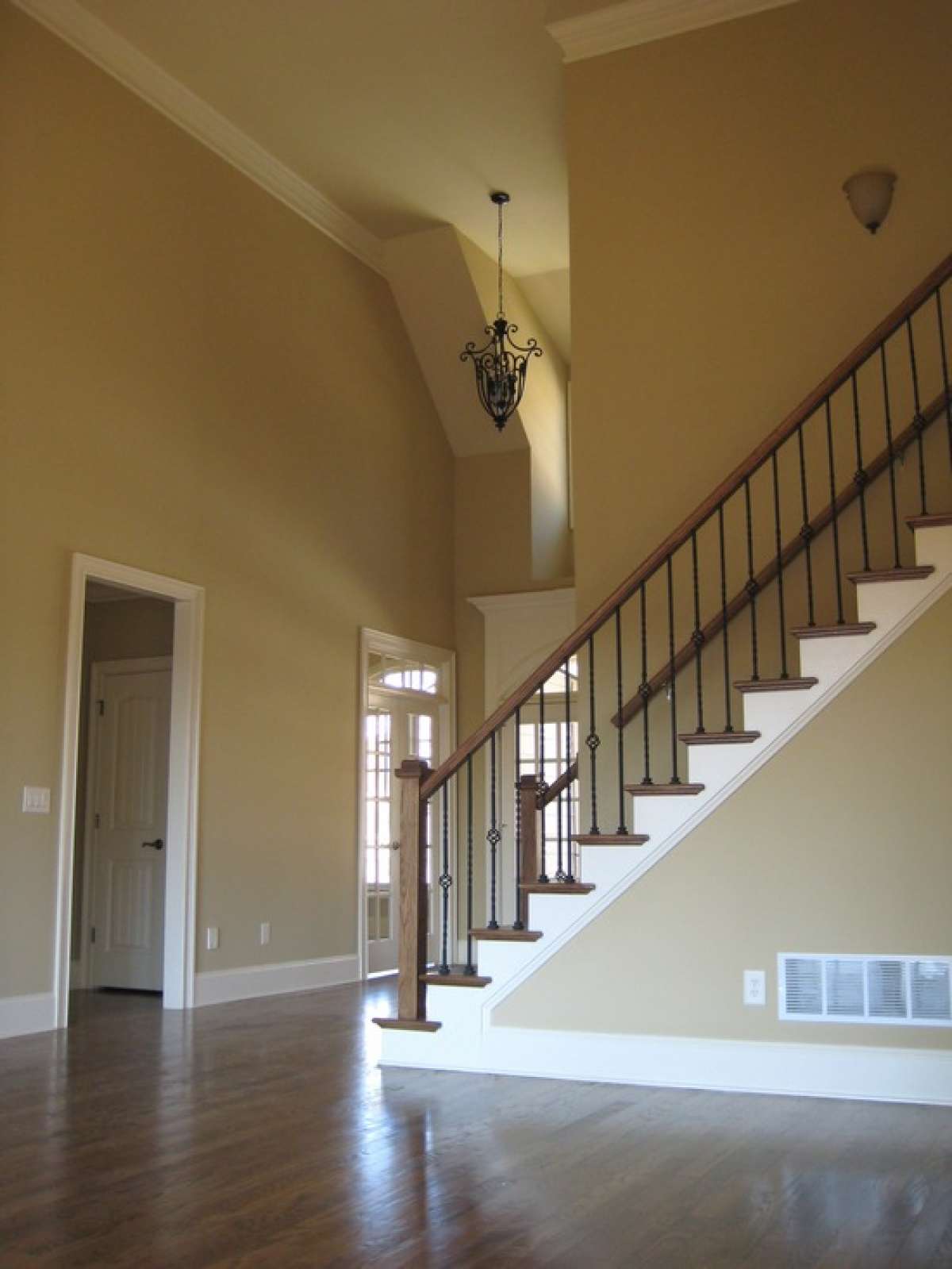

This Traditional house plan displays a luxurious exterior façade and equally stunning interior floor plan. The exterior features an abundance of sought after architectural features including split gables with broadly proportioned eaves, extensive brickwork, a window dormer, siding and sweeping window views. The classic and timeless exterior in combination with an interior featuring in excess of 3,060 square feet of living space creates a home that is striking, versatile and able to function as a complete home for years to come. The interior floor boasts of four bedrooms, three plus bathrooms and an unfinished basement that has the potential to substantially increase the home’s value and square footage. The dramatic foyer is flanked by the formal dining room with a pass-thru to the kitchen on one side and the other side offers French door access into the private study with vaulted ceilings. An enormous great room is centrally located and features soaring ceiling heights, a handsome fireplace and built-in cabinetry. The sun drenched breakfast room is huge and provides rear deck access while opening onto the kitchen and keeping room. The keeping room houses a warming fireplace and features private family space where watching a movie, doing homework or “hanging out” is a top priority. The family friendly kitchen boasts of a breakfast bar, a separate pantry and loads of counter and cabinet space. The large laundry/mudroom is conveniently located off the three car garage which provides space for ease of clean-up and a tidy space for outerwear and other gear storage. The main level master suite fully occupies one wing of the home and is highlighted by a large bedroom with double step trey ceiling. Double walk-in closets are situated on the end caps of the elegantly designed master bath for privacy and convenience. The master bath features dual vanities, a separate shower, a compartmentalized toilet and a gorgeous garden tub with window views.

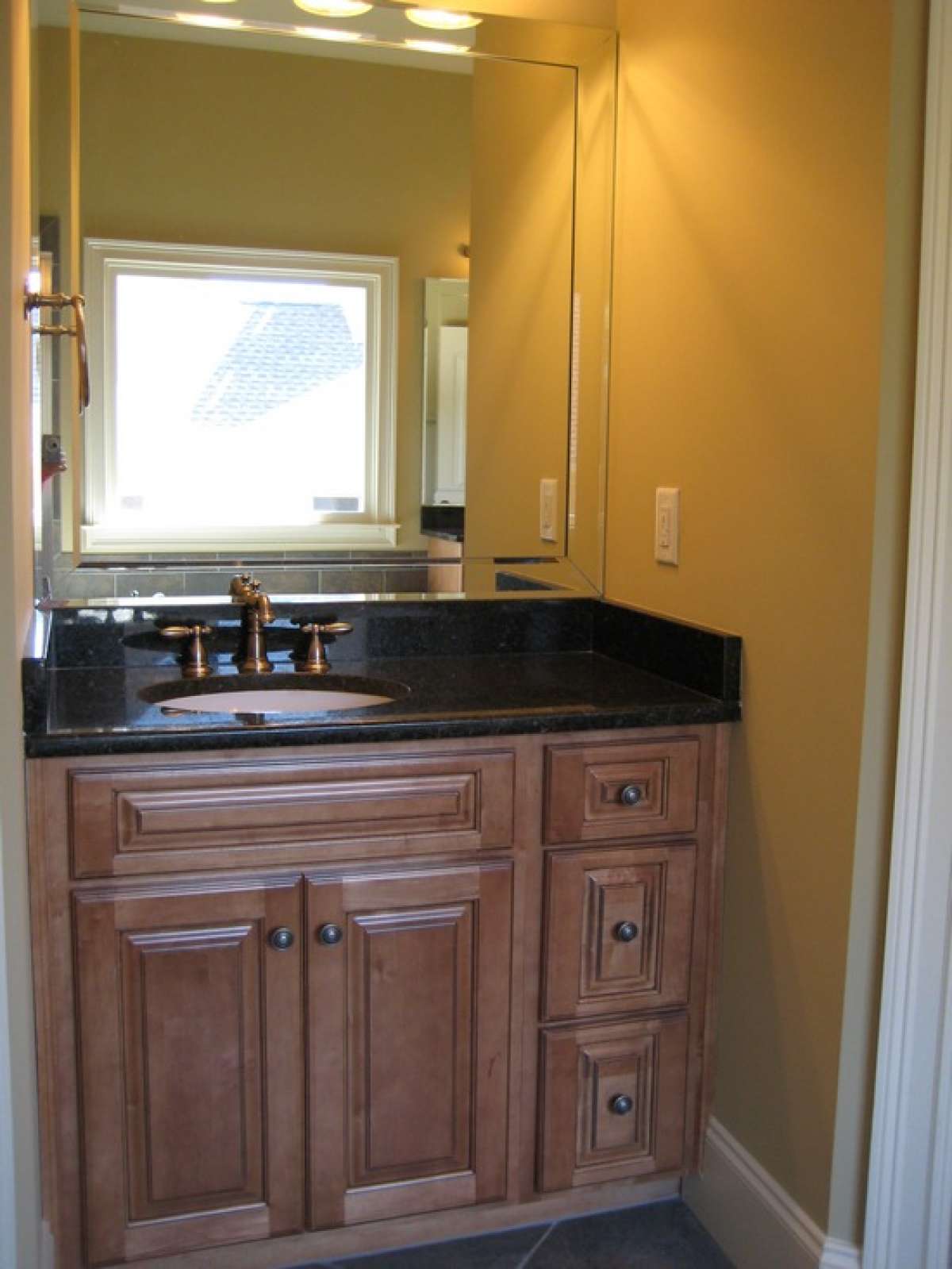

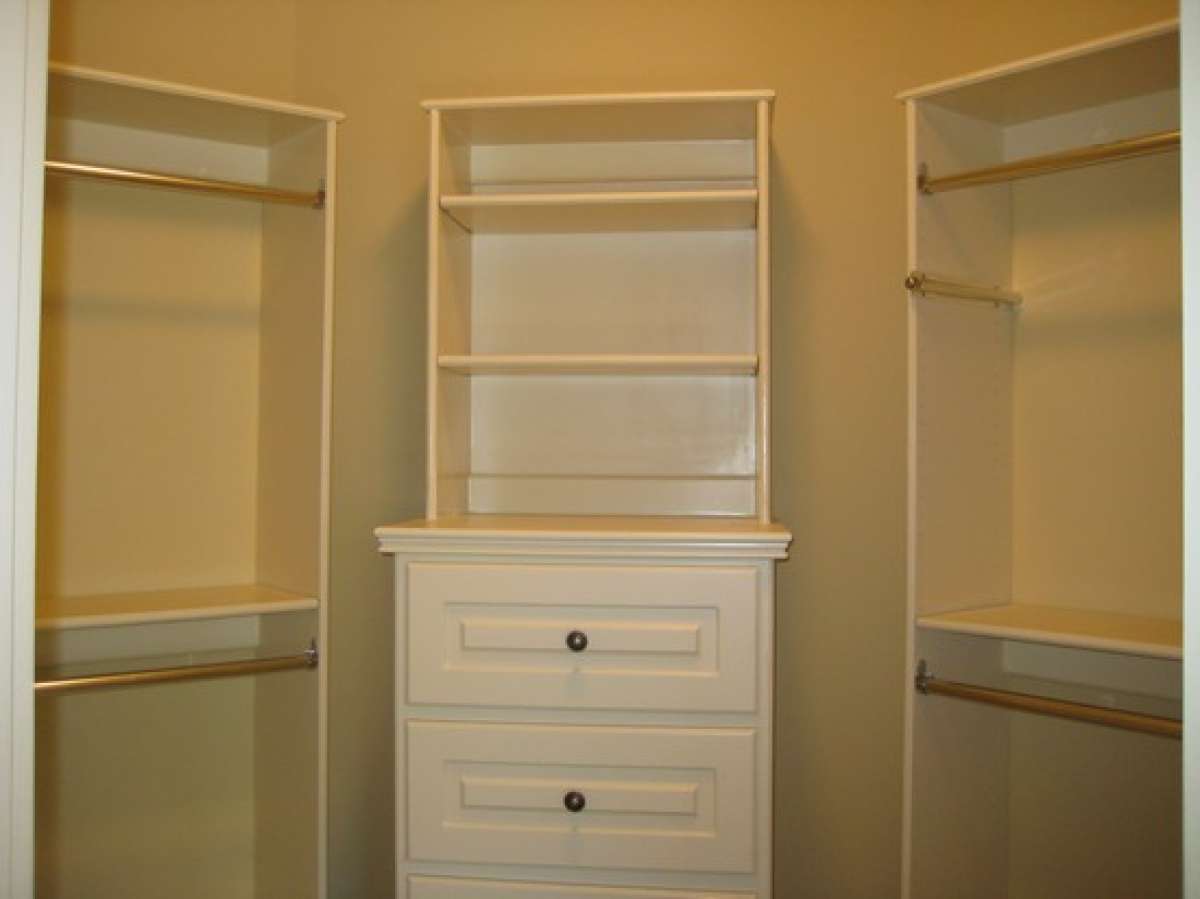

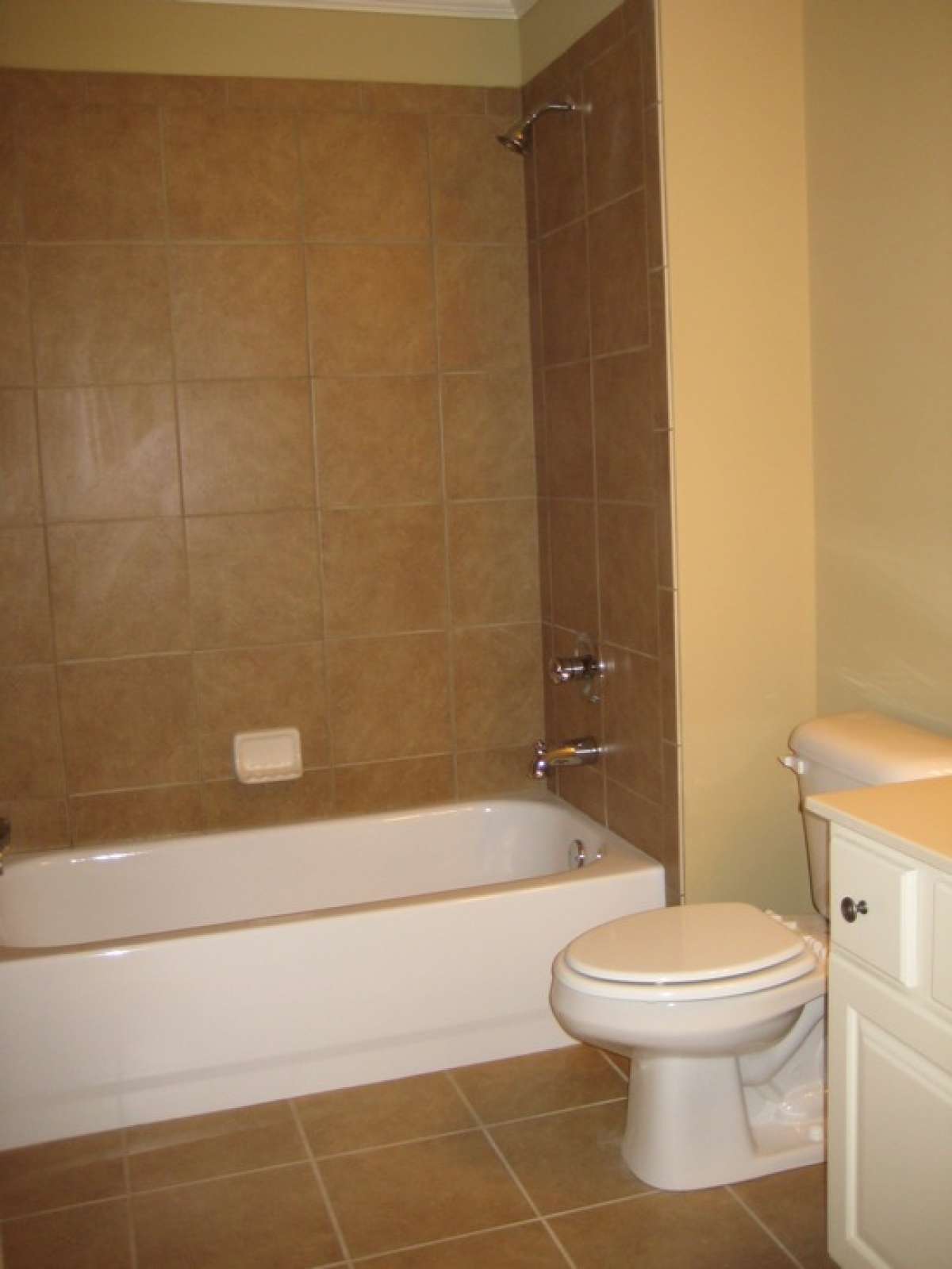

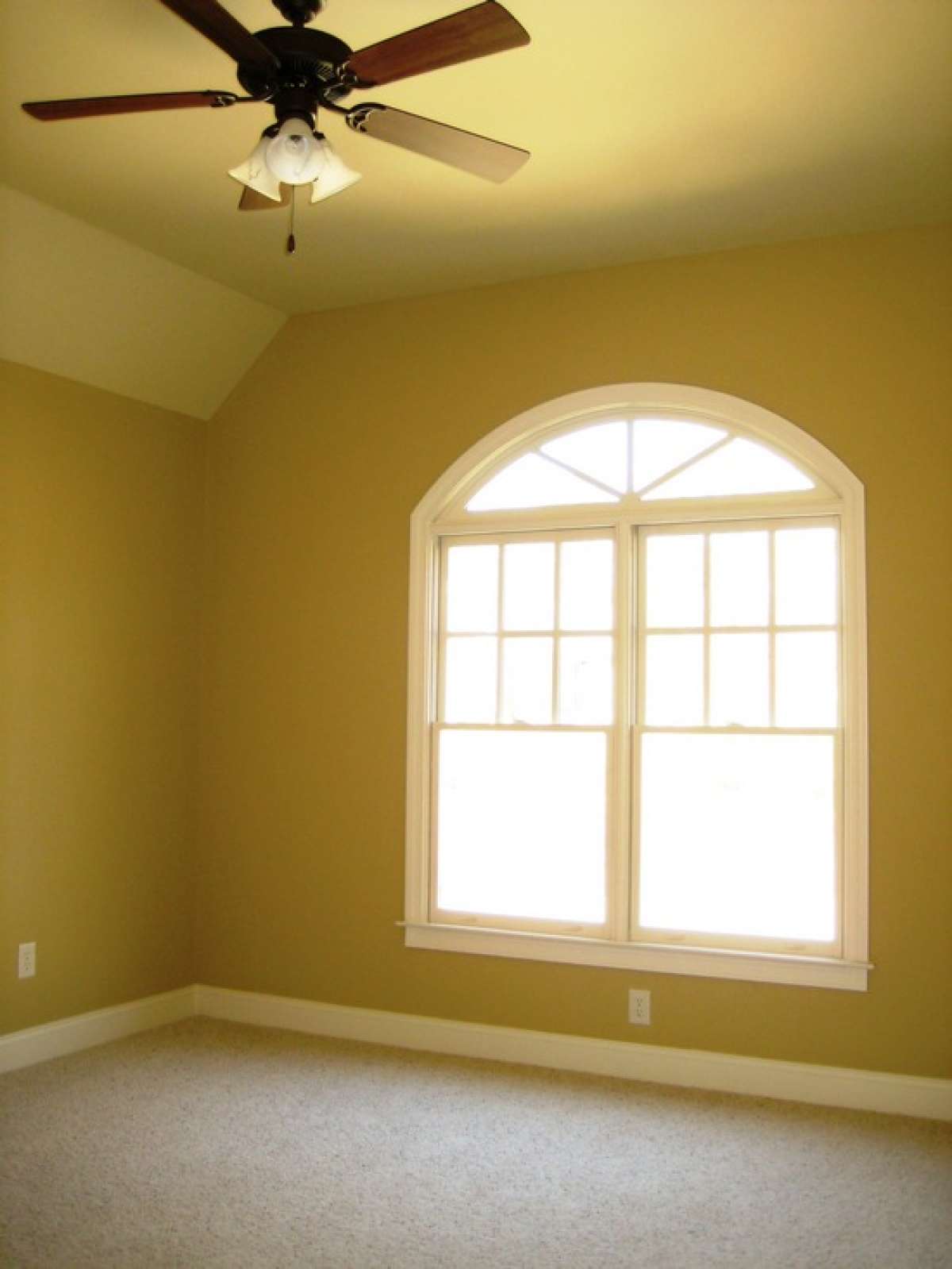

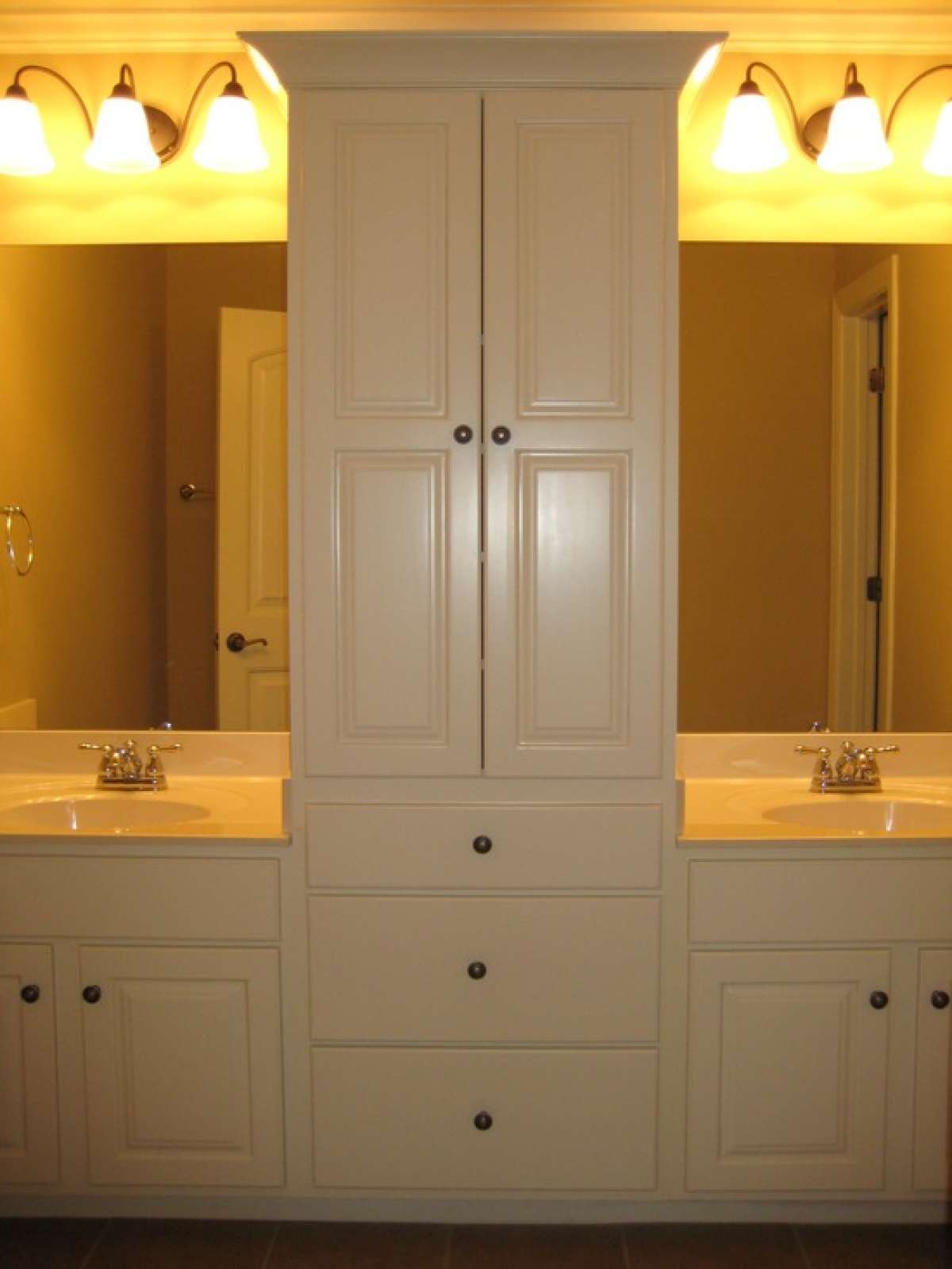

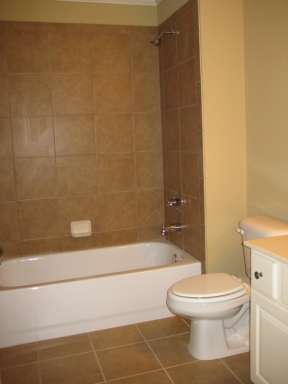

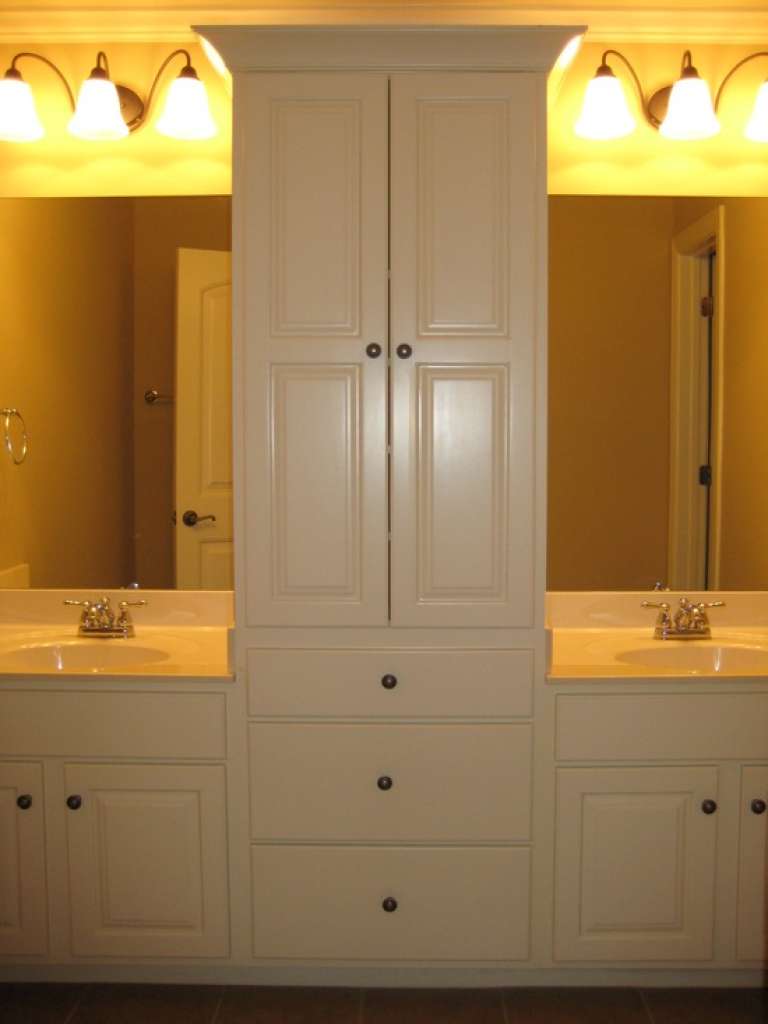

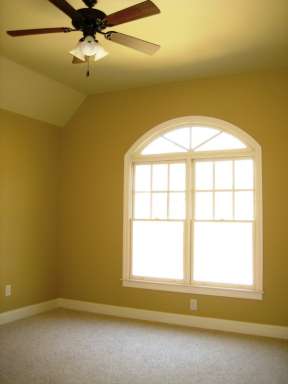

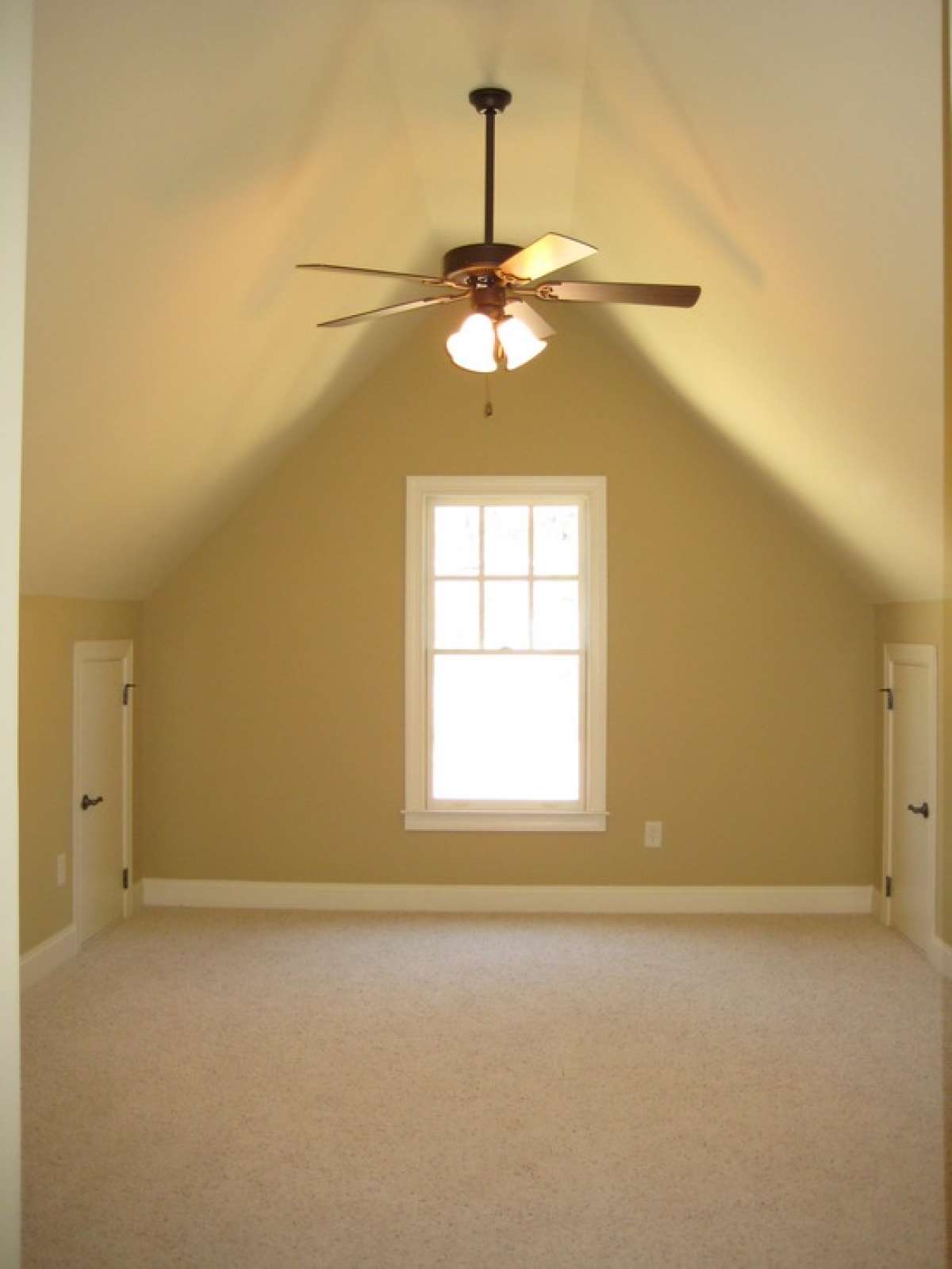

Three oversized bedrooms, each containing a walk-in closet are featured on the second level. In addition to the sleeping and storage spaces are two complete bathrooms; one of which has double lavatories and the other is privately accessed from bedroom three, and there is a hall linen closet as well. This gorgeous home design features a spectacular exterior façade and an interior floor plan with a versatile layout along with unlimited basement expansion options.
