Craftsman House Plan 2802-00069EXCLUSIVE PLAN

Sq Ft2,178
1/2 Baths1
Width56' 0"
Depth55' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

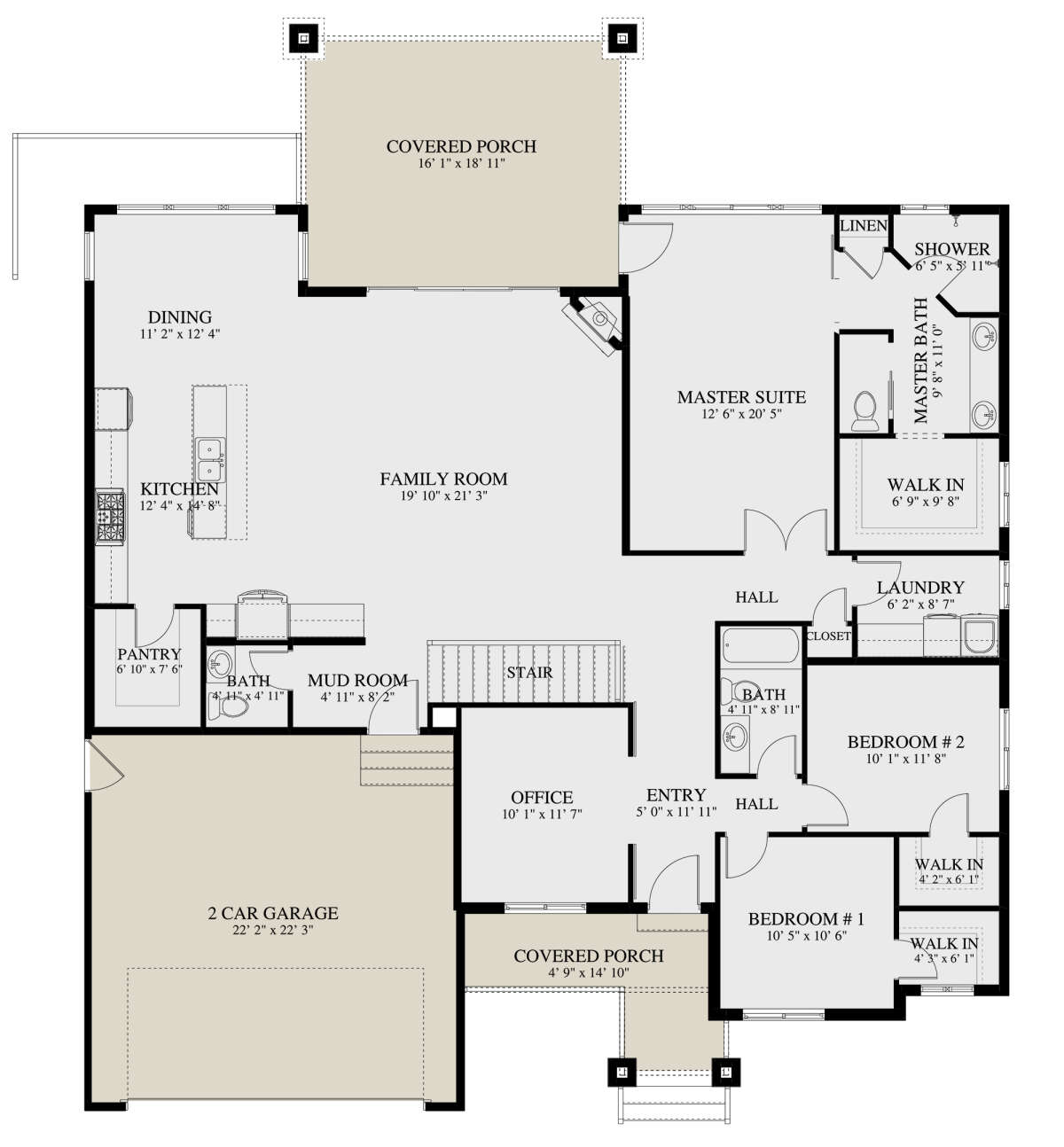

Main Floor for House Plan #2802-00069

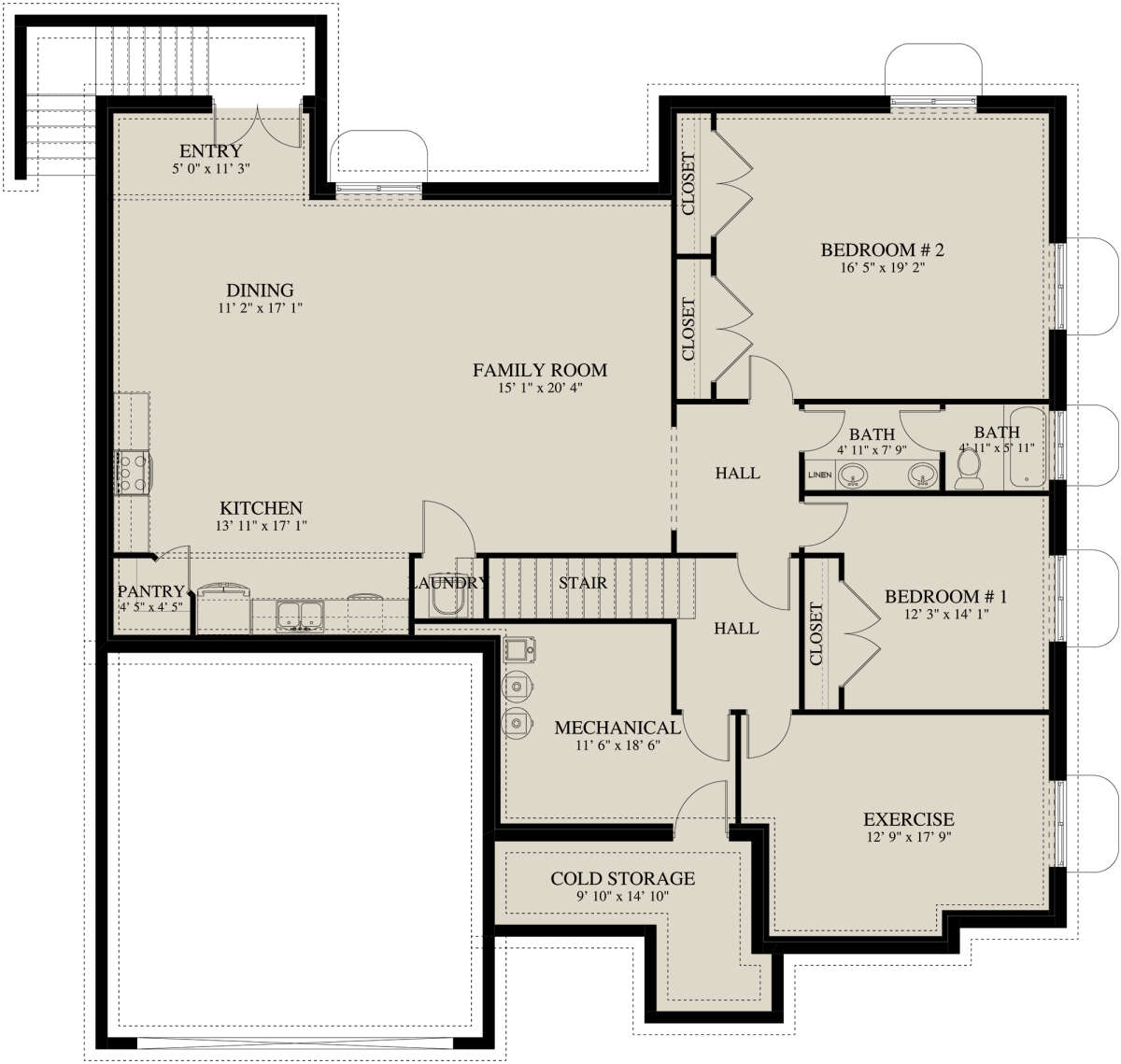

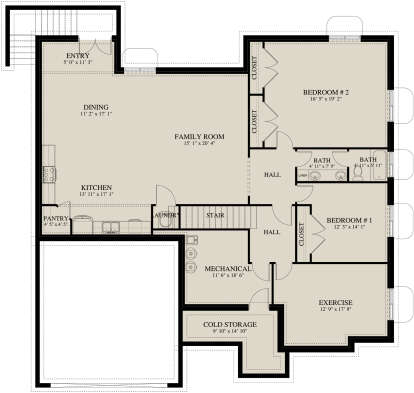

Basement for House Plan #2802-00069
Main Floor
Main Floor for House Plan #2802-00069
Basement for House Plan #2802-00069

Frequently Asked Questions


What's Included in these plans?

  • Notes
  • Foundation/Basement Layout
  • Main Floor Layout
  • Upper Floor Layout (If Applicable)
  • Main Floor Floor Framing
  • Upper Floor Floor Framing (If Applicable)
  • Roof Framing
  • Front/Rear Elevations
  • Left Right Elevations
  • Cross Sections
  • Main Floor Electrical
  • Basement Electrical
  • Upper Floor Electrical (If Applicable)
  • Details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

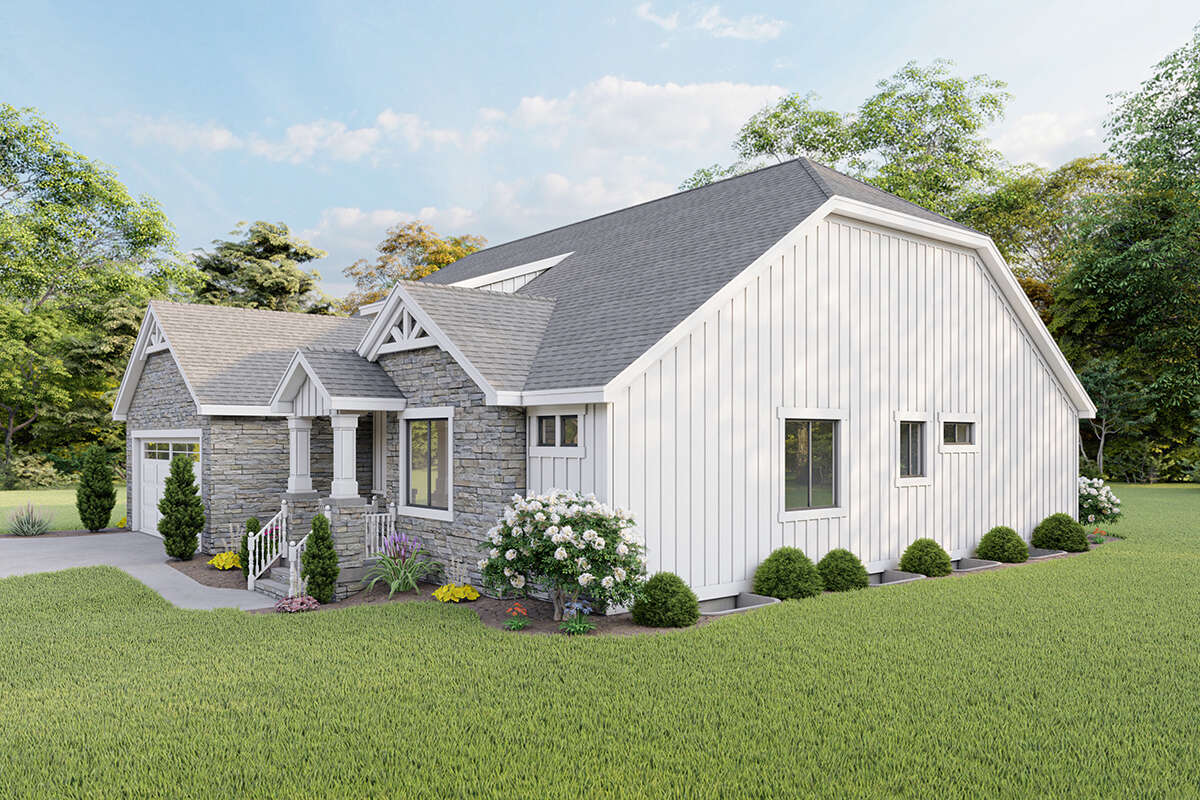

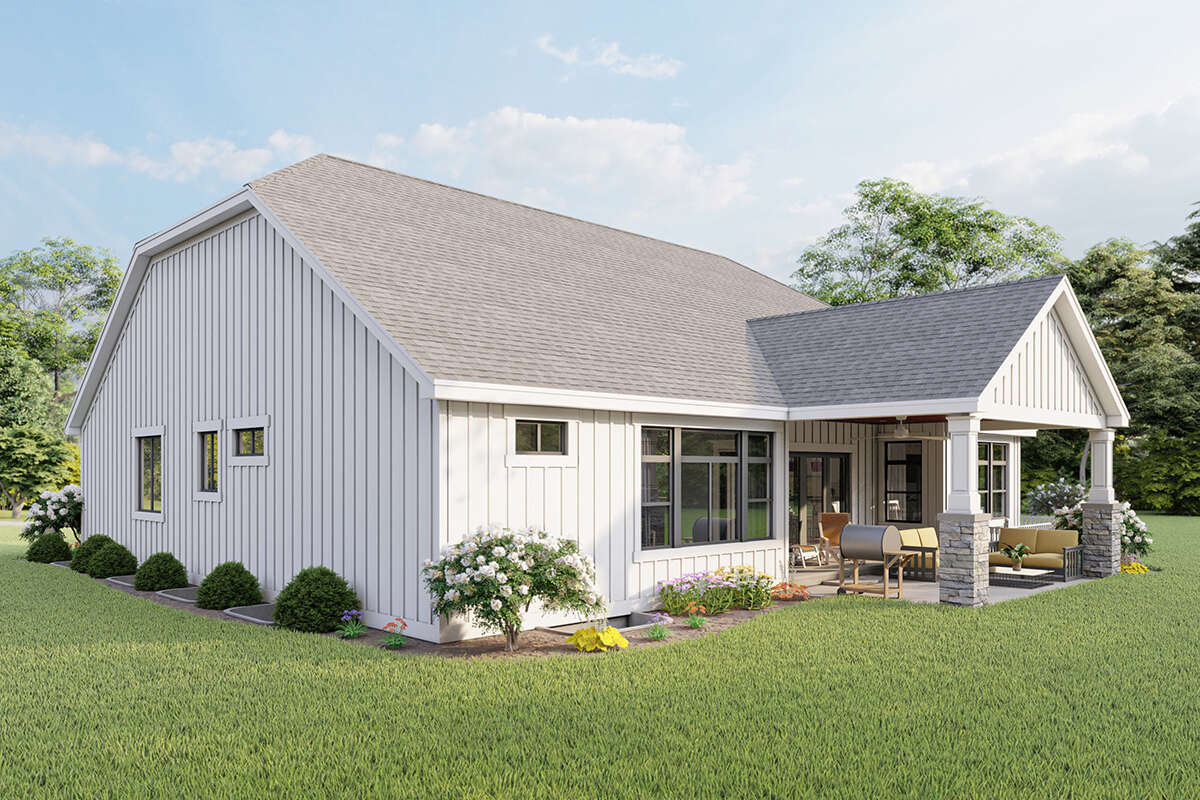

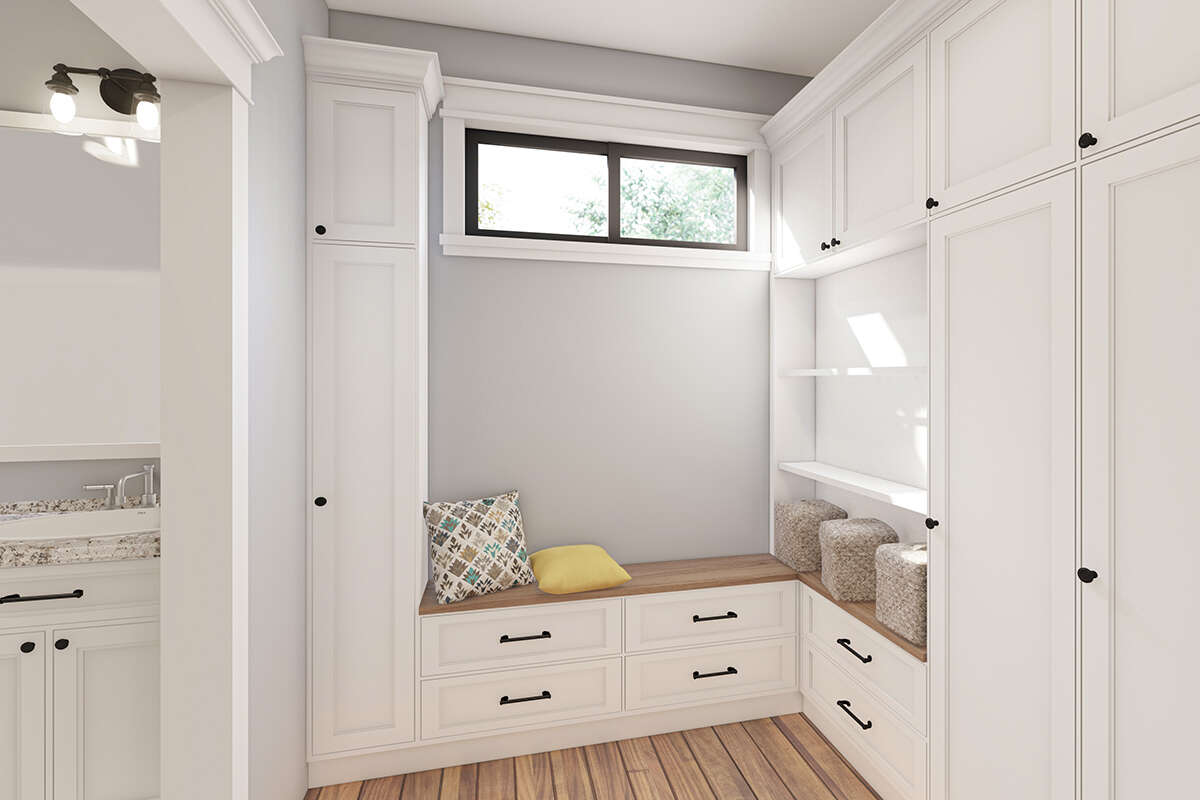

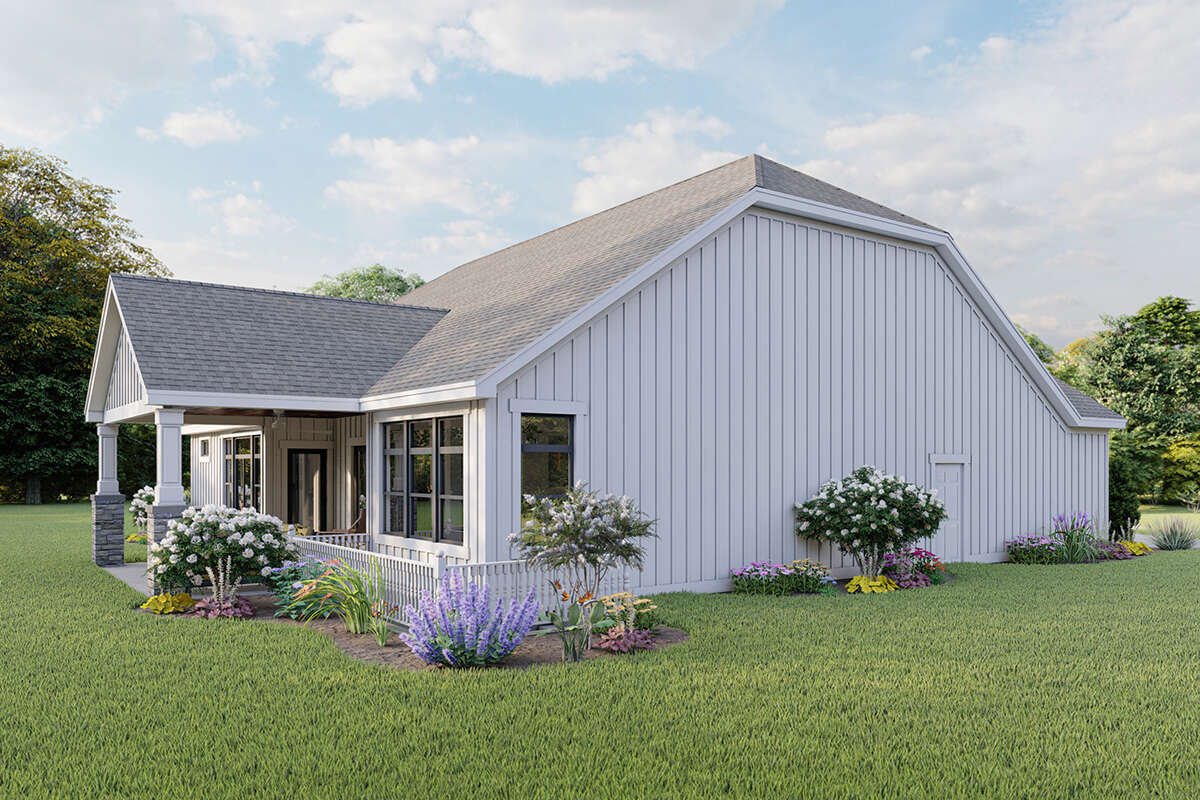

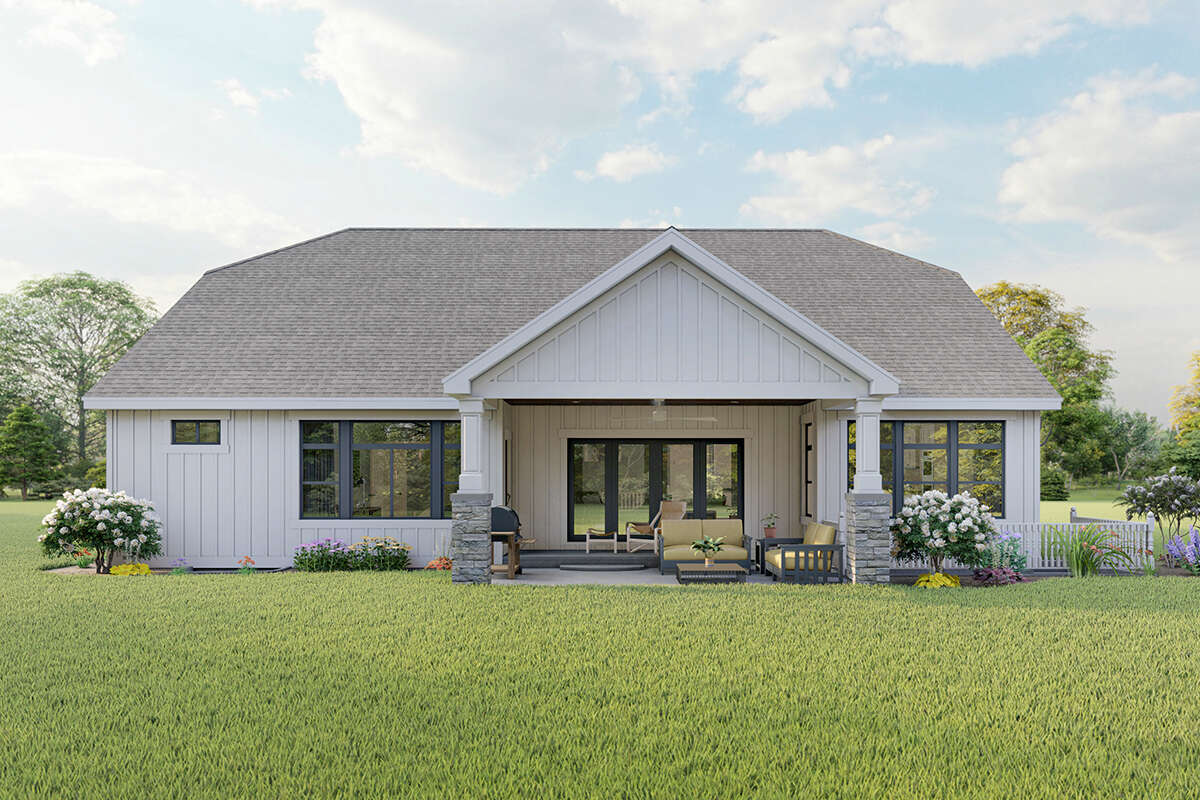

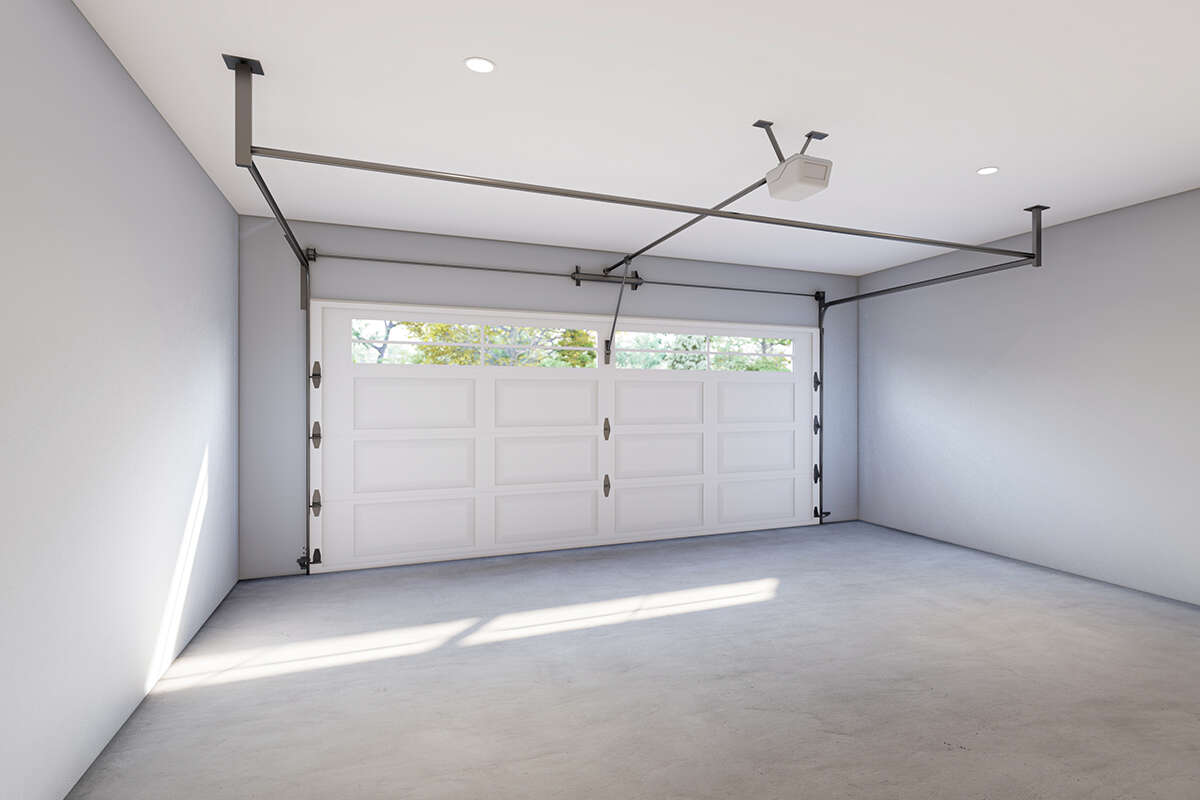

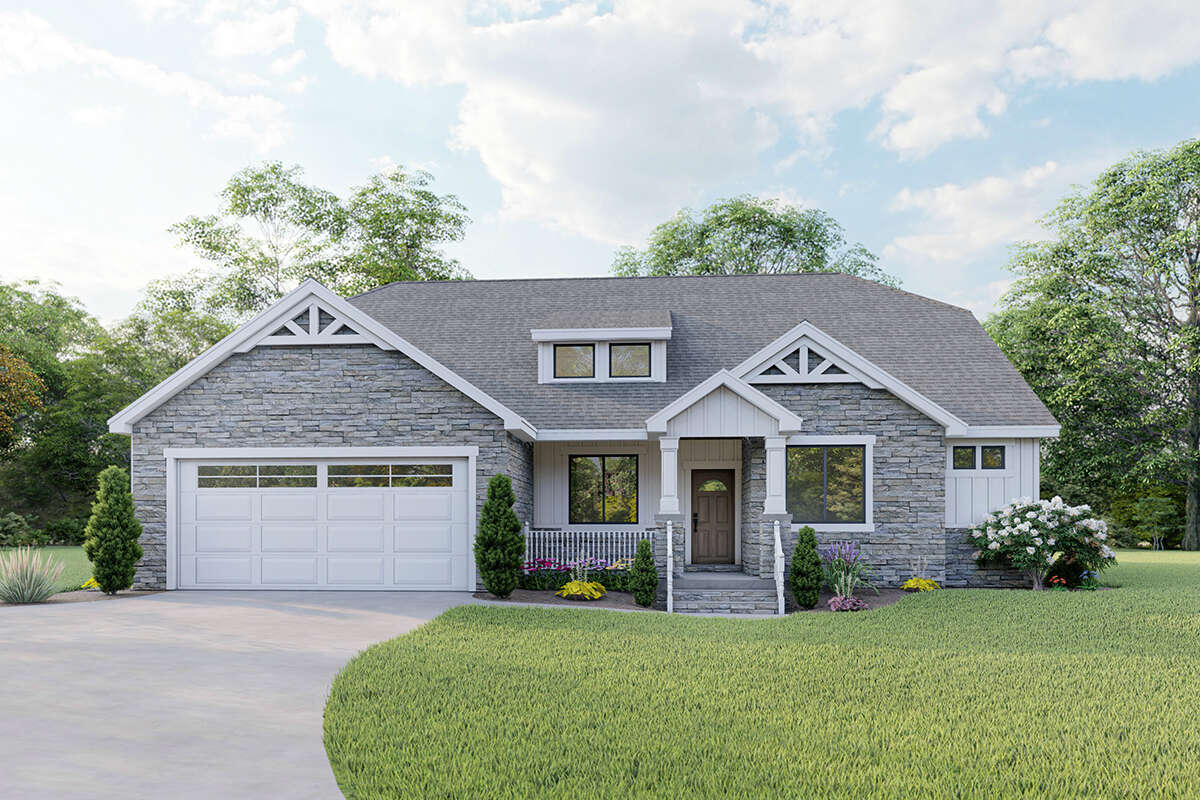

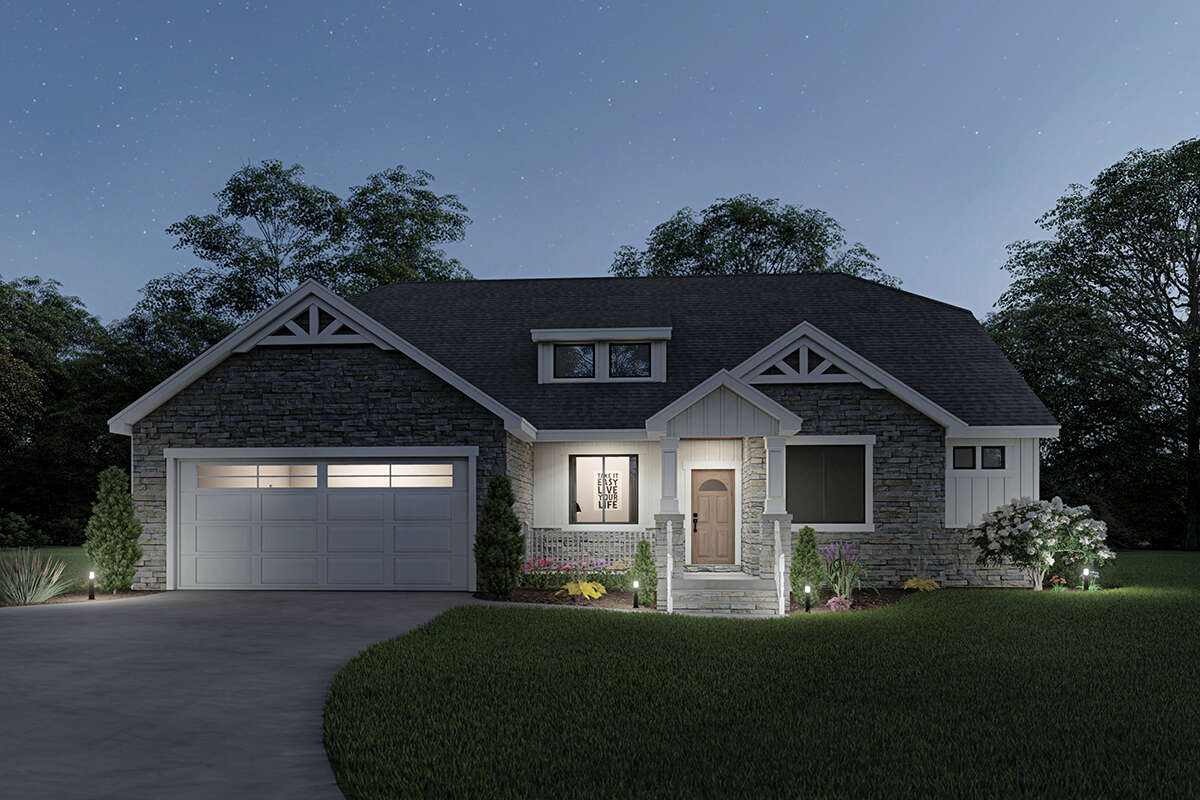

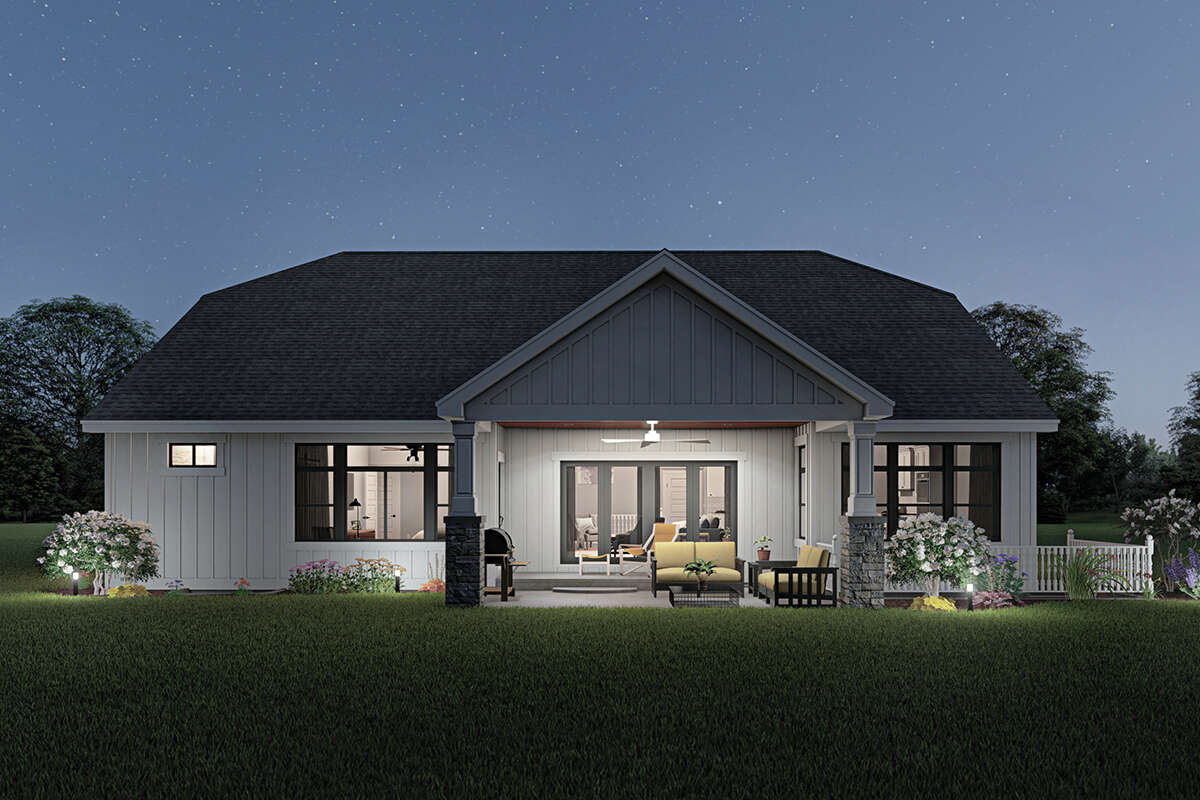

This darling exclusive Craftsman house plan delivers a welcoming exterior packed with wonderful curb appeal. The craftsman design details a mix of stacked stone veneer accent walls, decorative roofing, and board and batten siding. The three-car garage is front-facing for an easy drive-up and provides a pedestrian door and access to the interior through the mudroom, where the guest powder room can be found. The front porch beckons an invitation to sit with neighbors, enjoy sipping a refreshing glass of lemonade, or greeting guests into the home while being protected under the front covering. The rear porch is also covered and spacious enough to accommodate outdoor furniture and a grill.

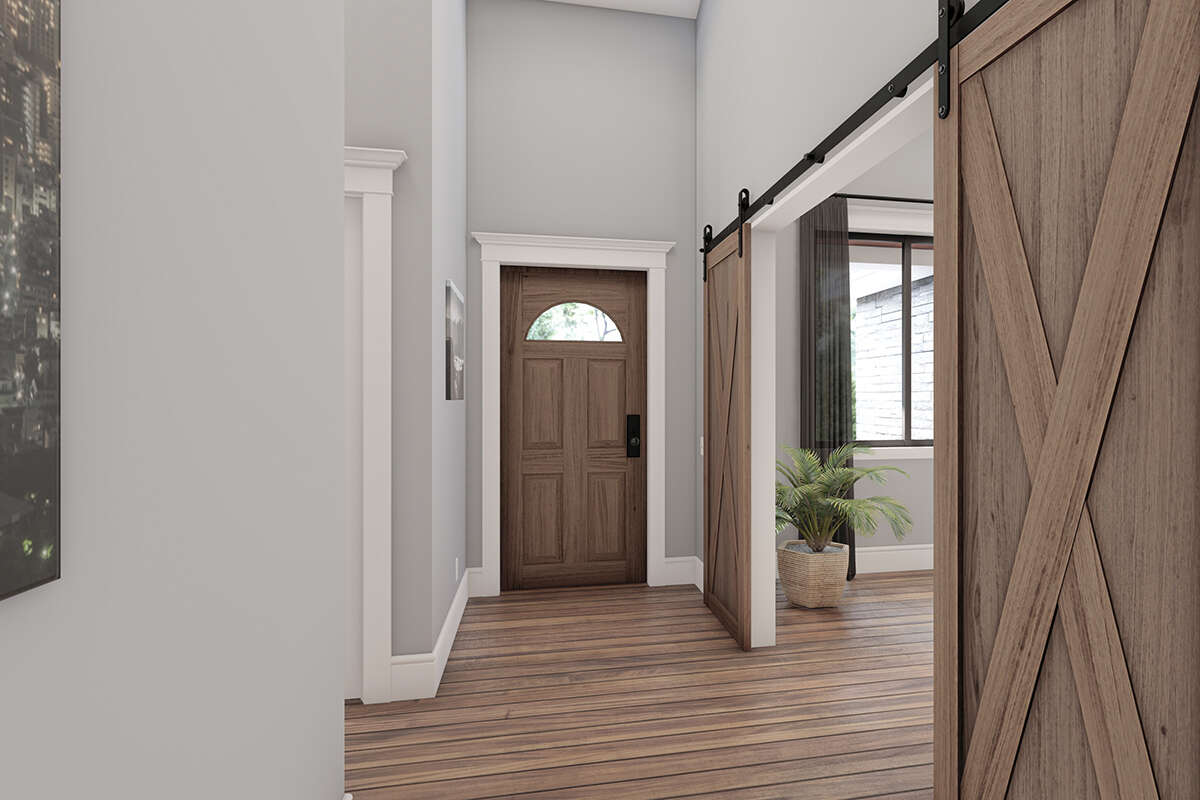

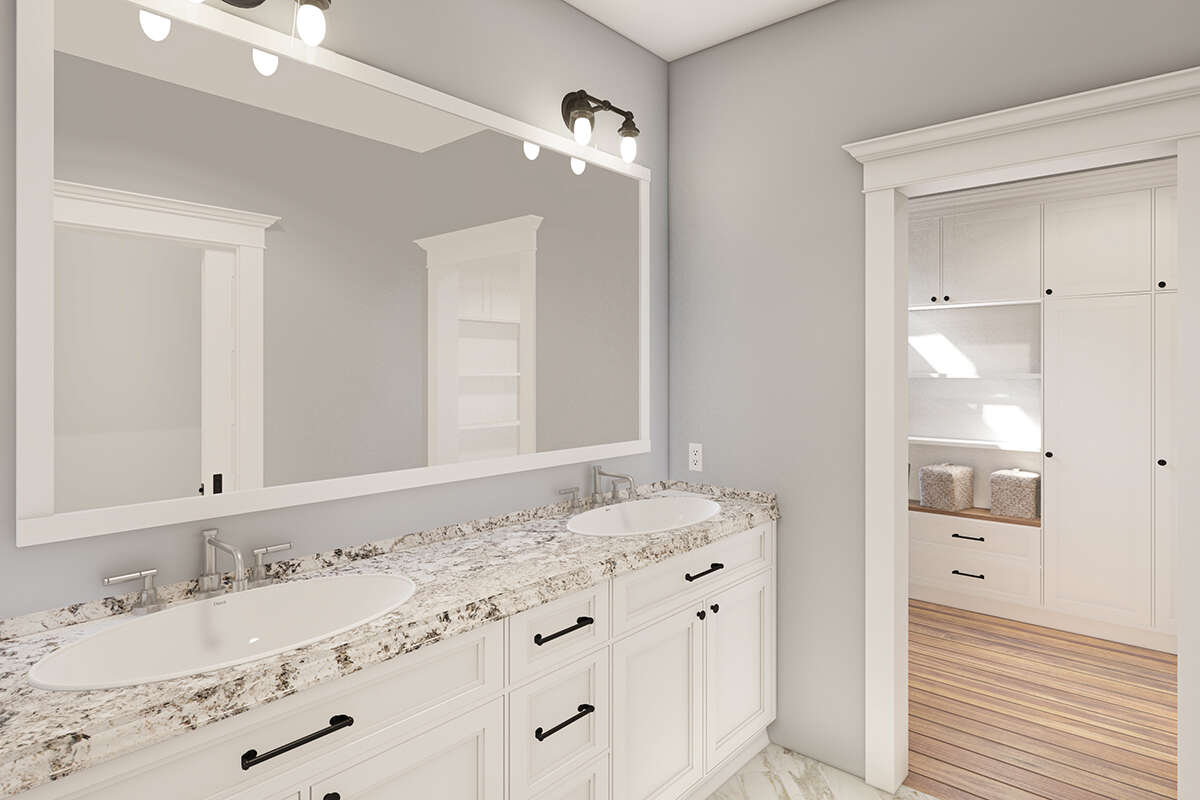

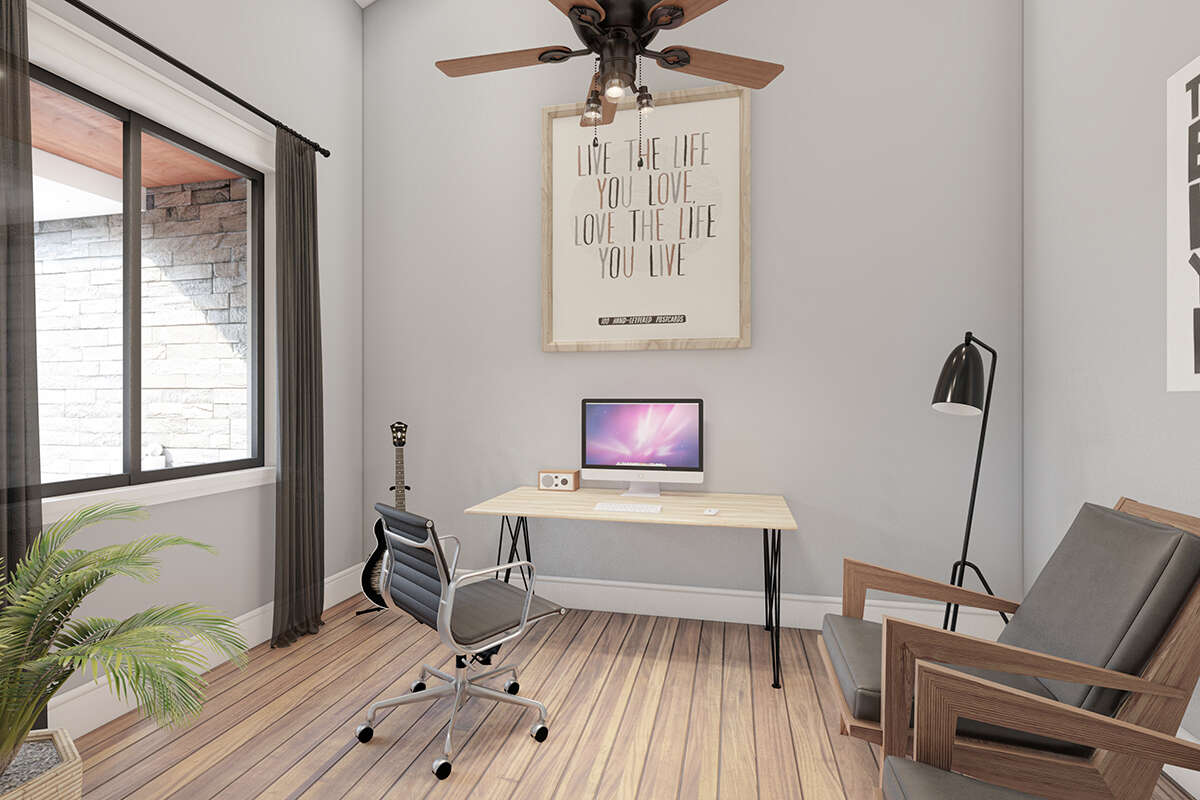

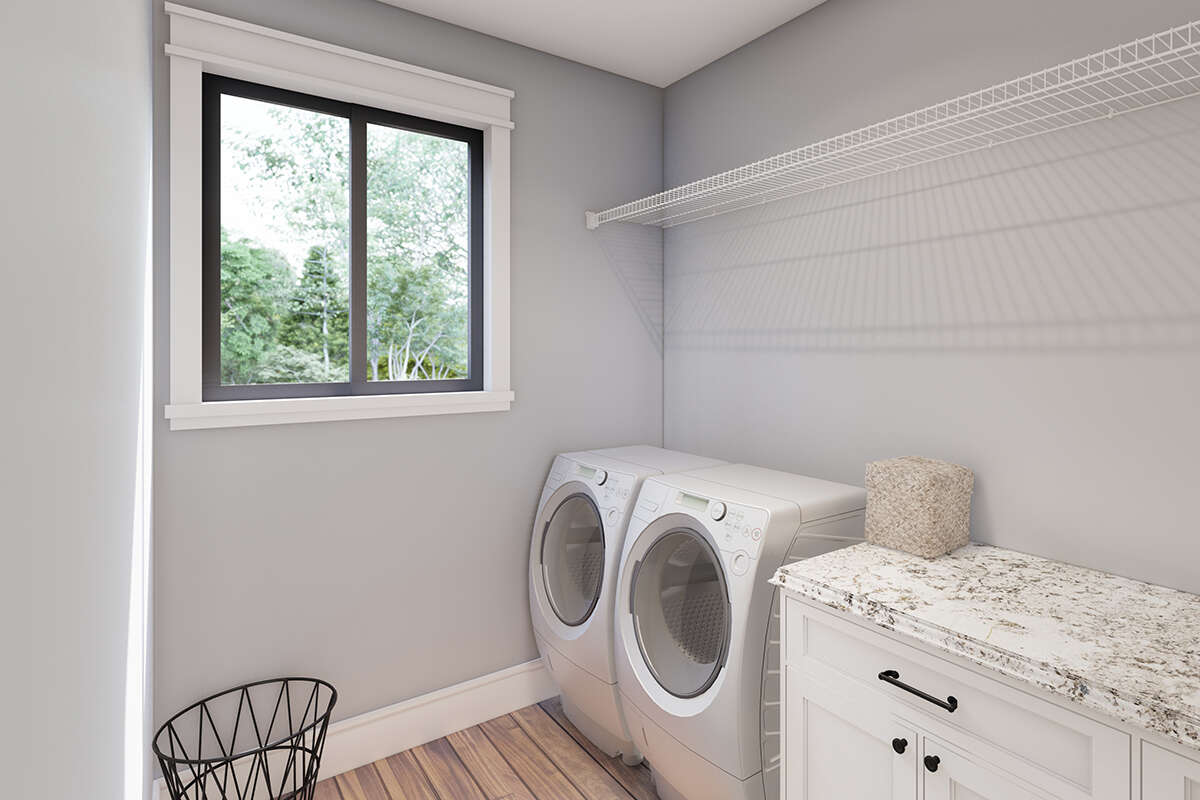

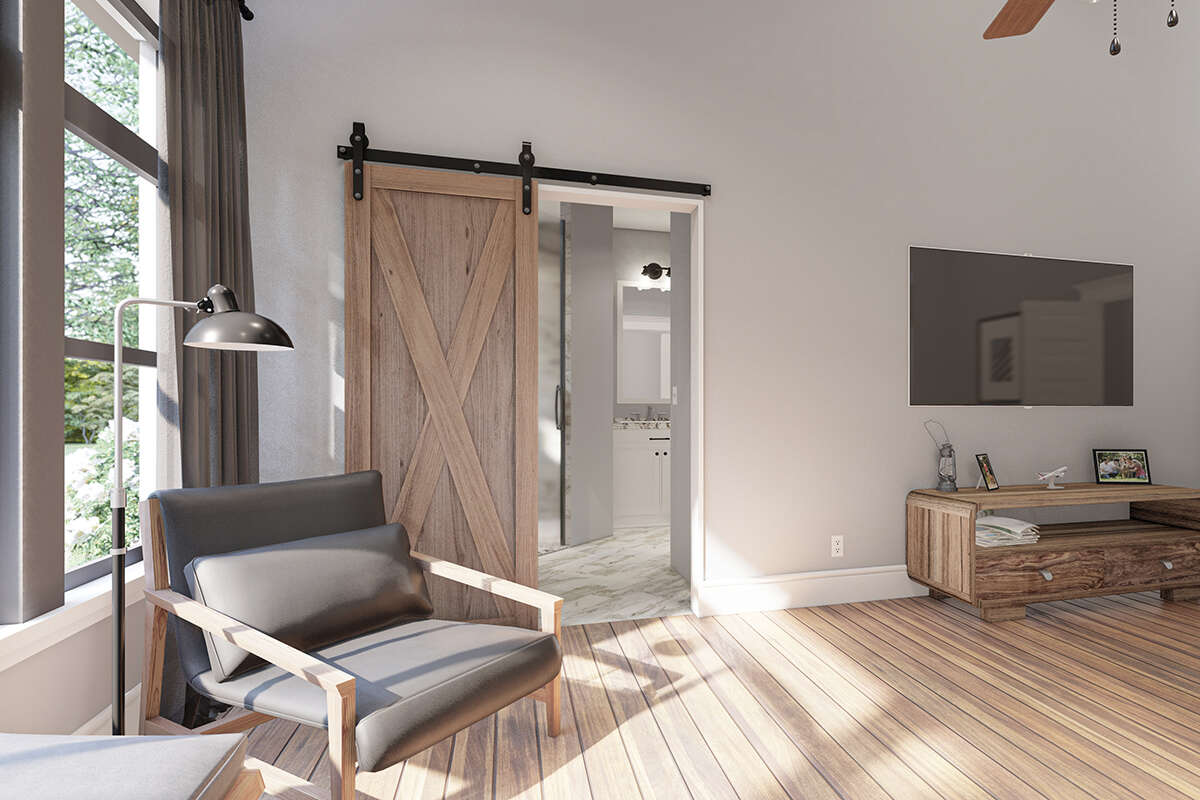

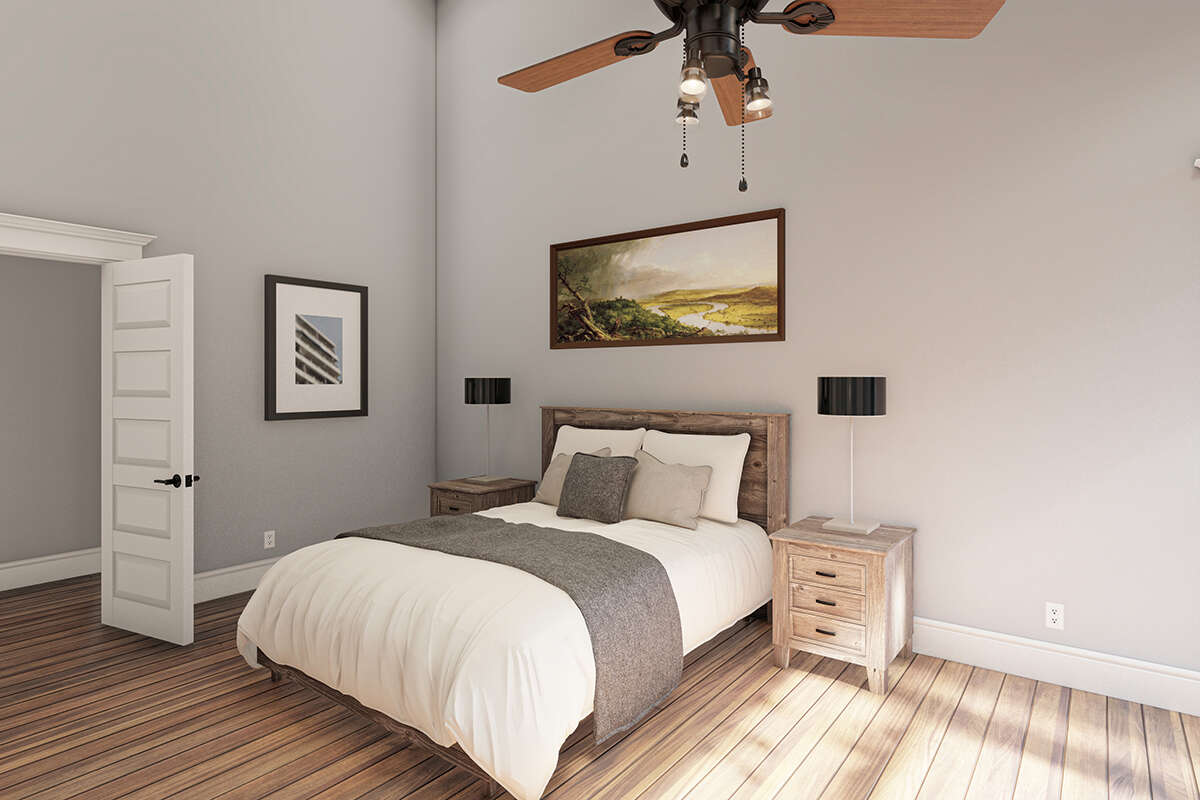

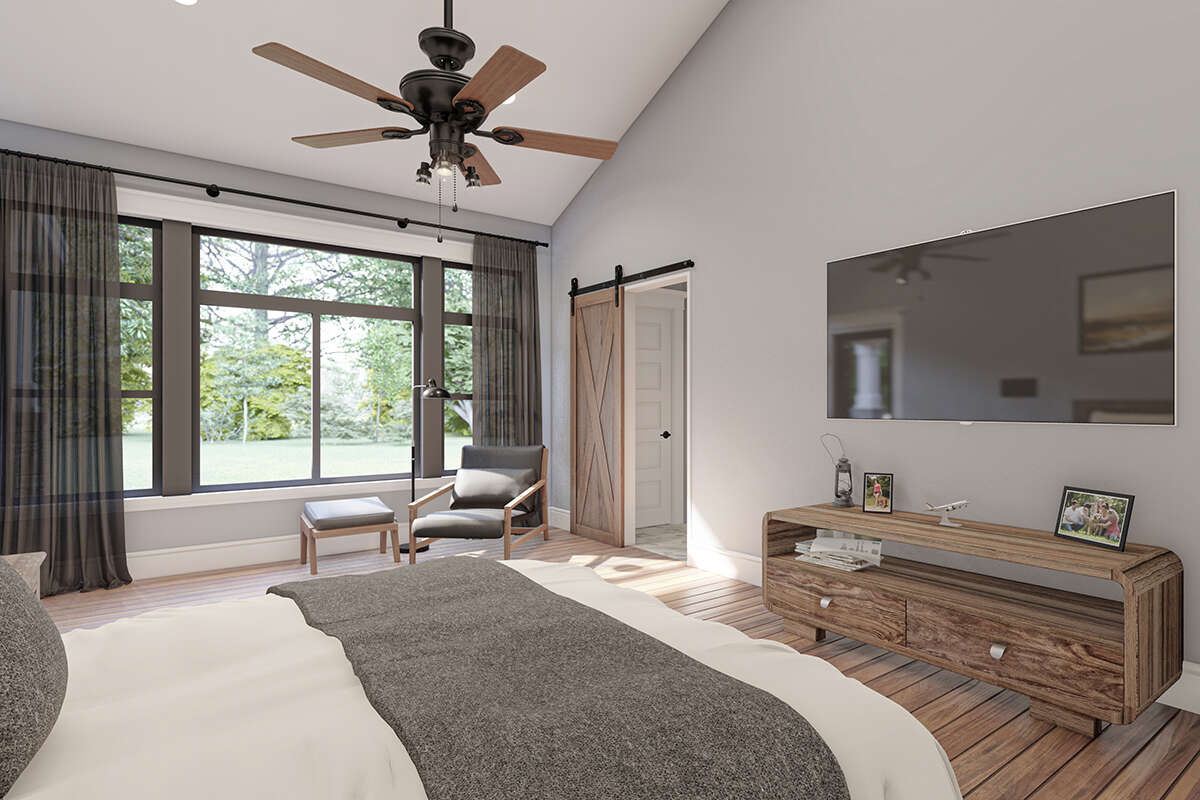

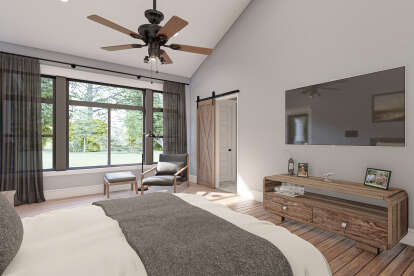

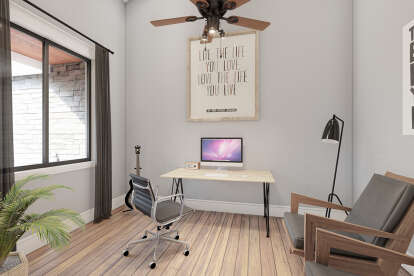

The interior measures approximately 2,178 square feet with three bedrooms and two plus bathrooms in a single-story home on a default basement foundation. The covered front porch leads into the foyer which is open to the home office and the secondary bedrooms; where both bedrooms enjoy ample closet space and share a hall bathroom with a tub/shower combination. The master suite shares the same side of the home with the laundry room separating it from the secondary bedrooms for a little extra privacy. With its approximate 12’6’ x 20’5” measurement, the master suite provides plenty of bedroom space with a back wall of windows and private access to the rear porch. The master bathroom is complete with double sinks, a linen closet, a corner shower with a window view, a private toilet, and a great walk-in closet.

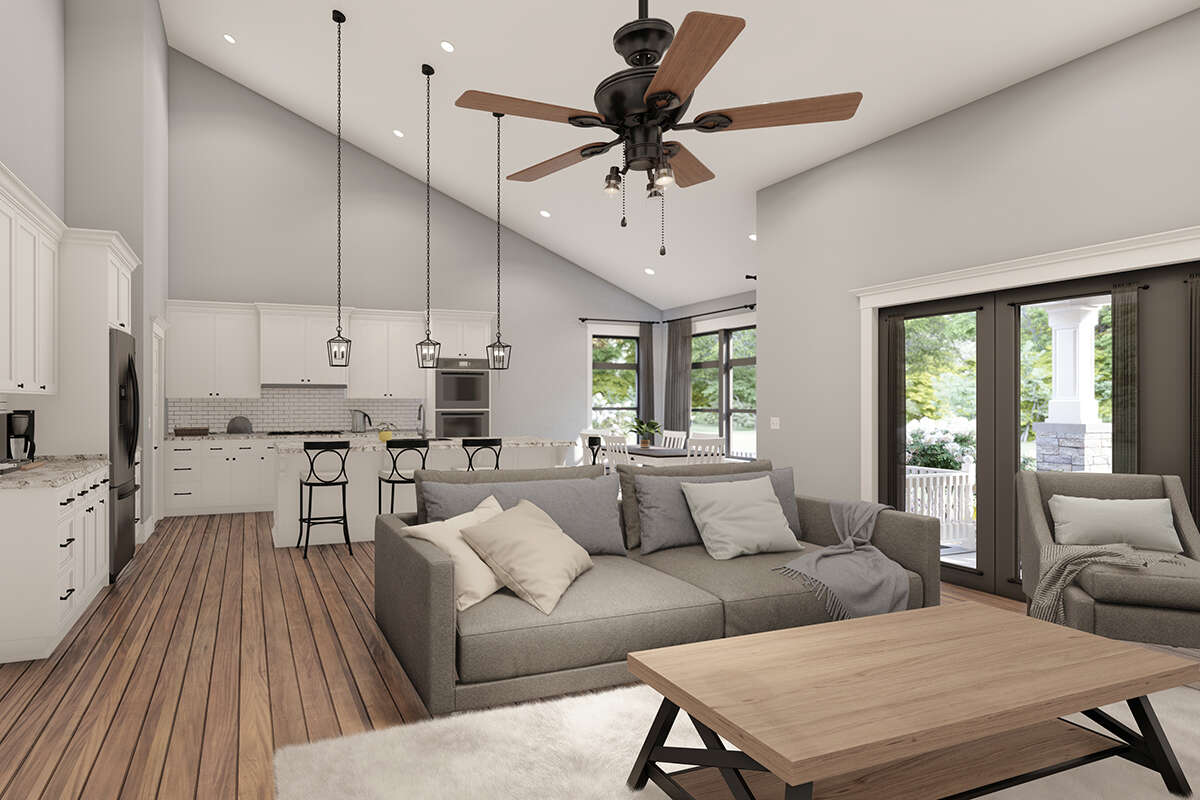

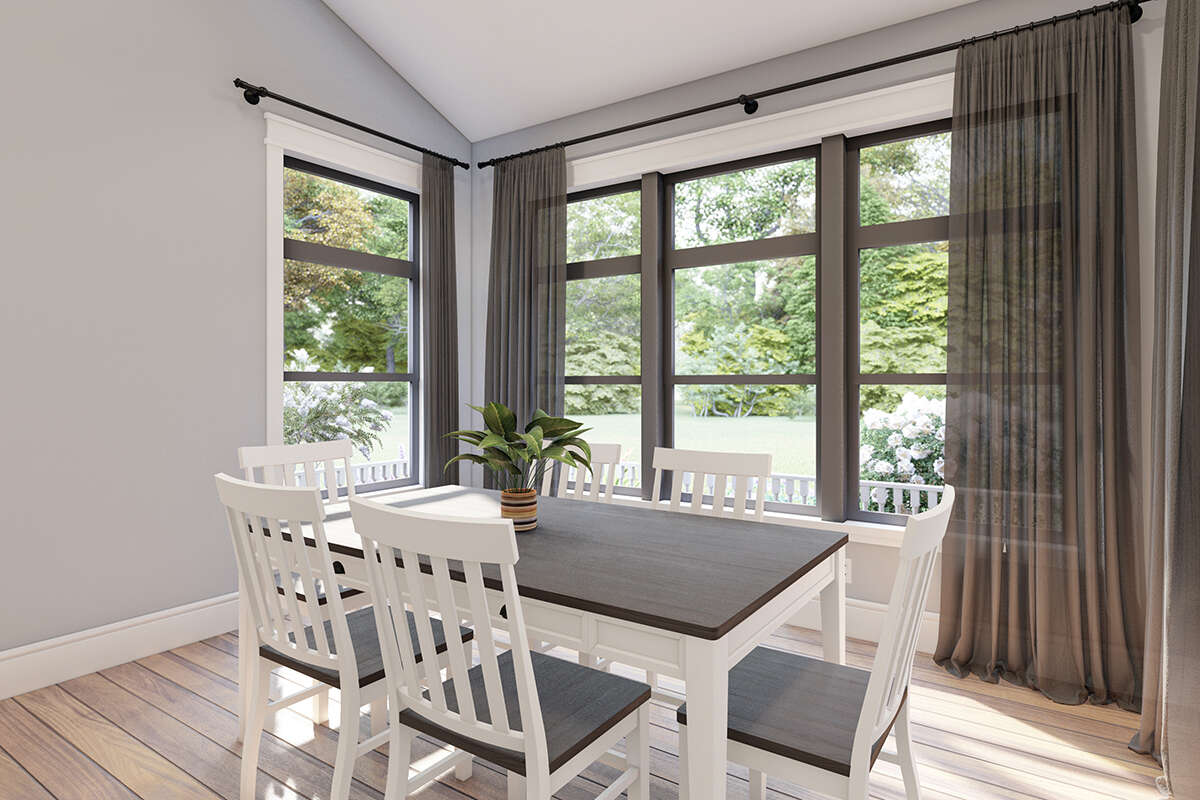

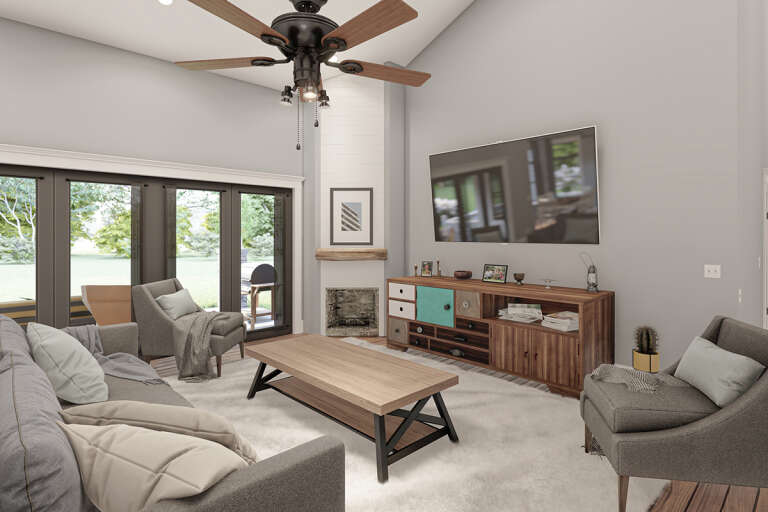

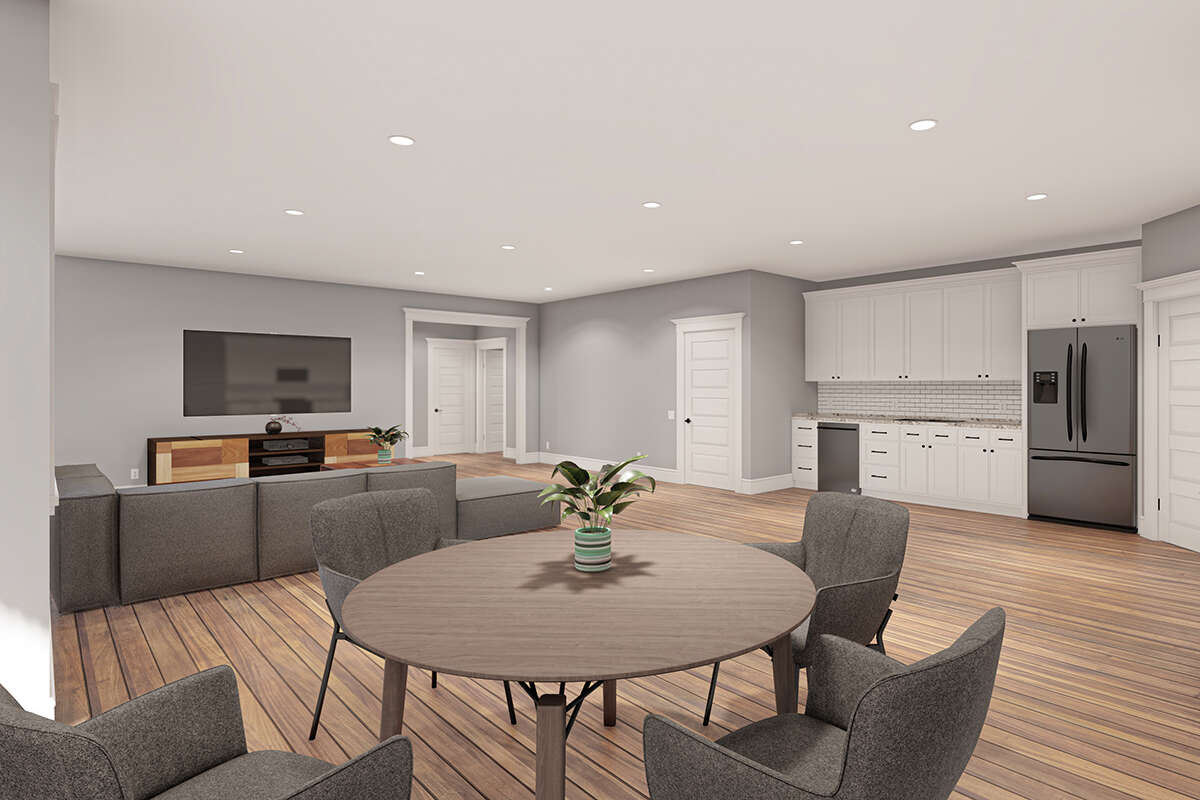

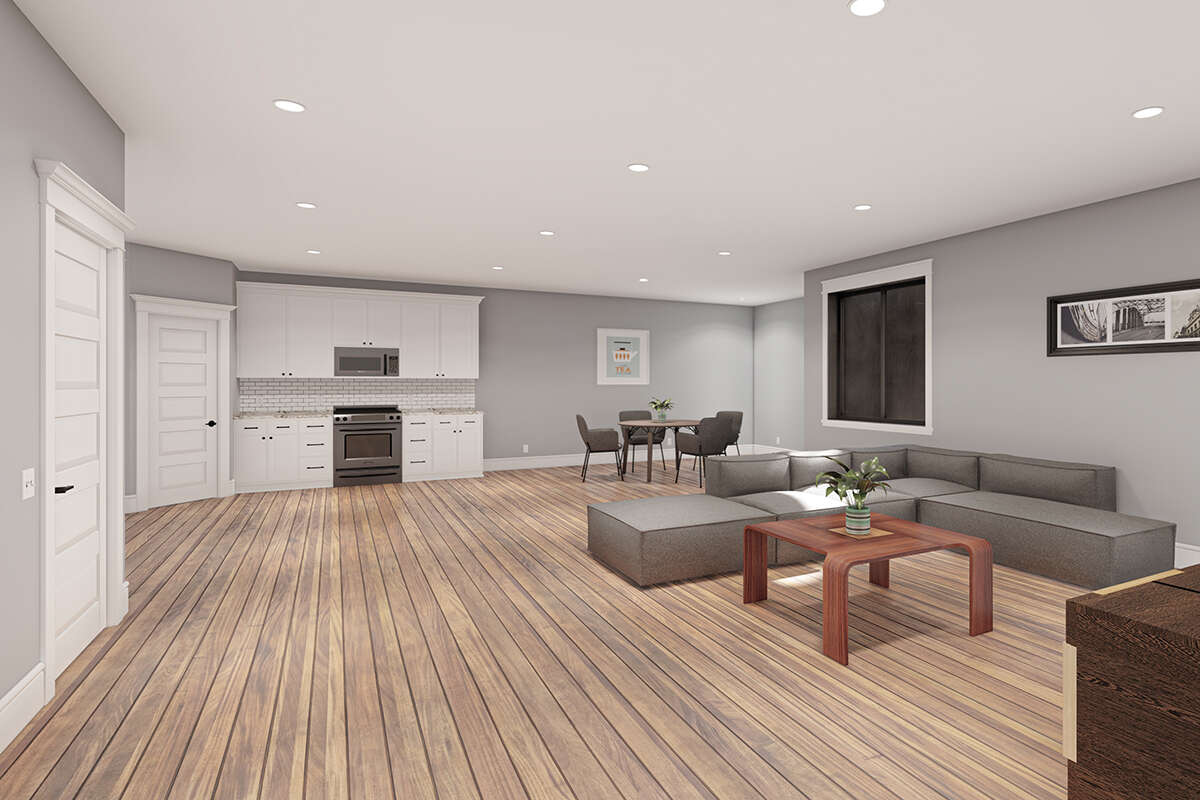

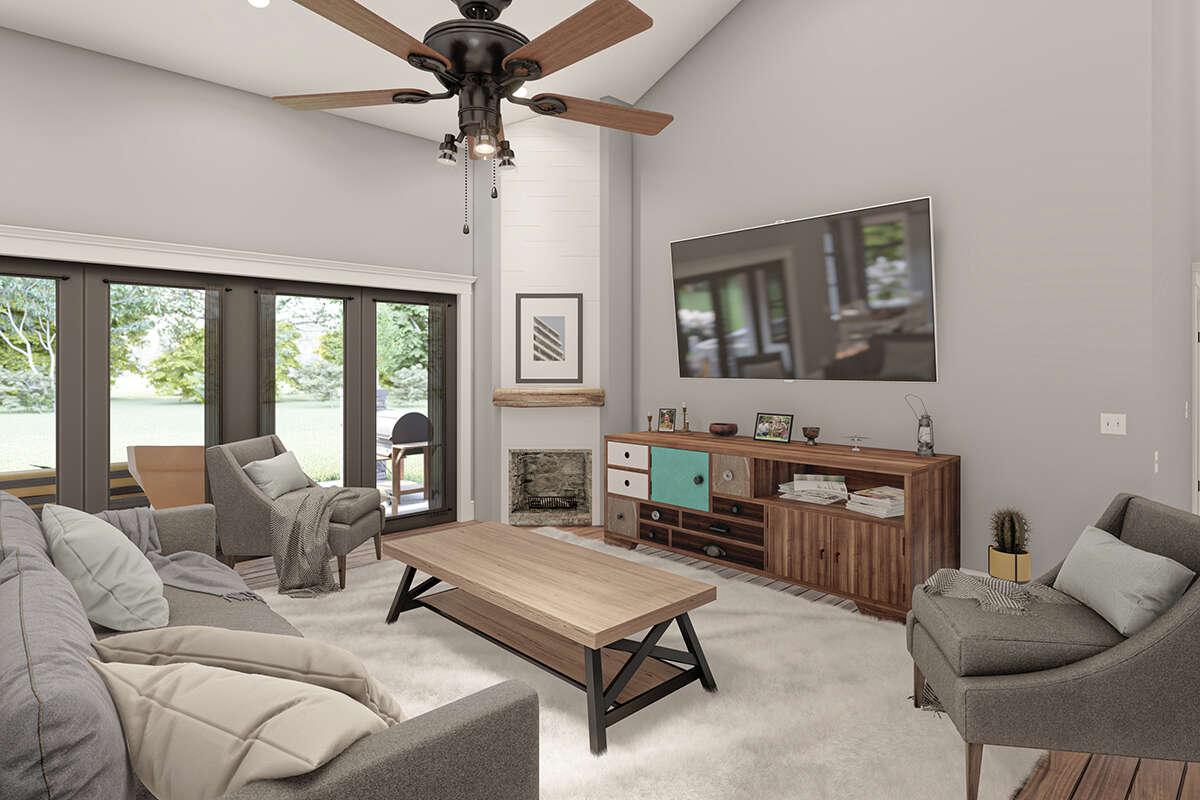

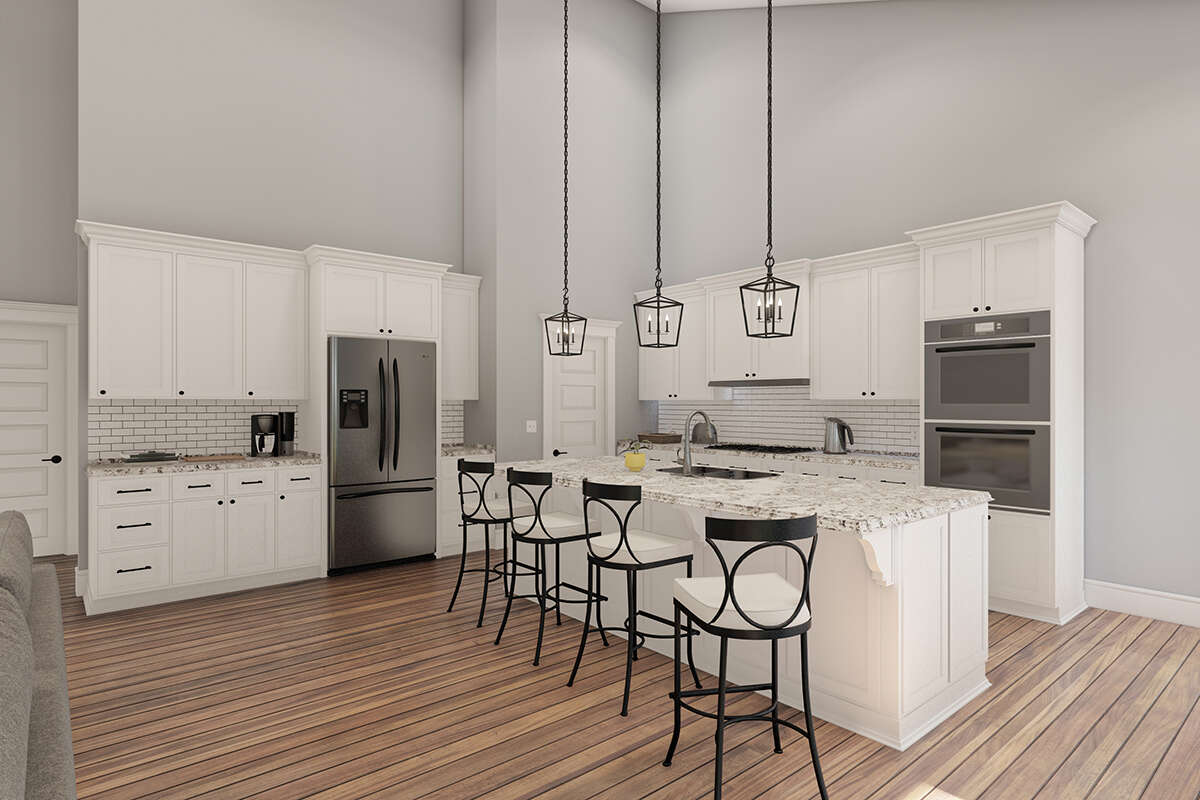

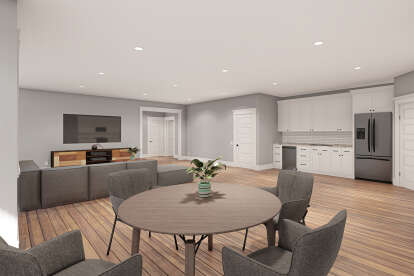

The common rooms enjoy a spacious open floor layout with the family room featuring a warming corner fireplace, sliding door access to the rear of the home, and the island kitchen. This kitchen hosts great space for cooking and entertaining with a huge walk-in pantry and a corner dining room surrounded by windows for optimal natural light. The basement foundation adds so much value to this home as well as extra space for entertaining and living. It mirrors the main floor with approximately 2,303 square feet and offers two additional bedrooms, one bathroom, an exercise room, and a second common area. The convenience of the second laundry room makes the space great for an in-law suite or an apartment for your older children while the separate entry offers the promise of privacy to come and go without disrupting anyone upstairs. The cold storage and mechanical room complete the basement which makes this exclusive Craftsman house plan a functional charming place to live.
