Northwest Plan 2802-00045

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,920
Beds 2
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 68' 6"
Depth 58'

Floorplan Drawings

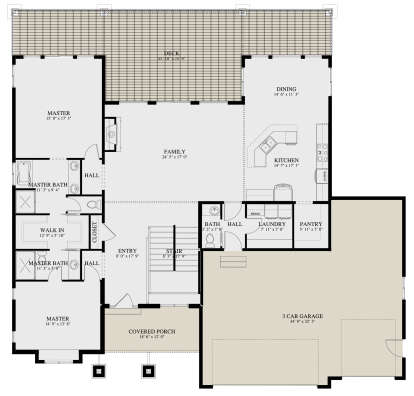

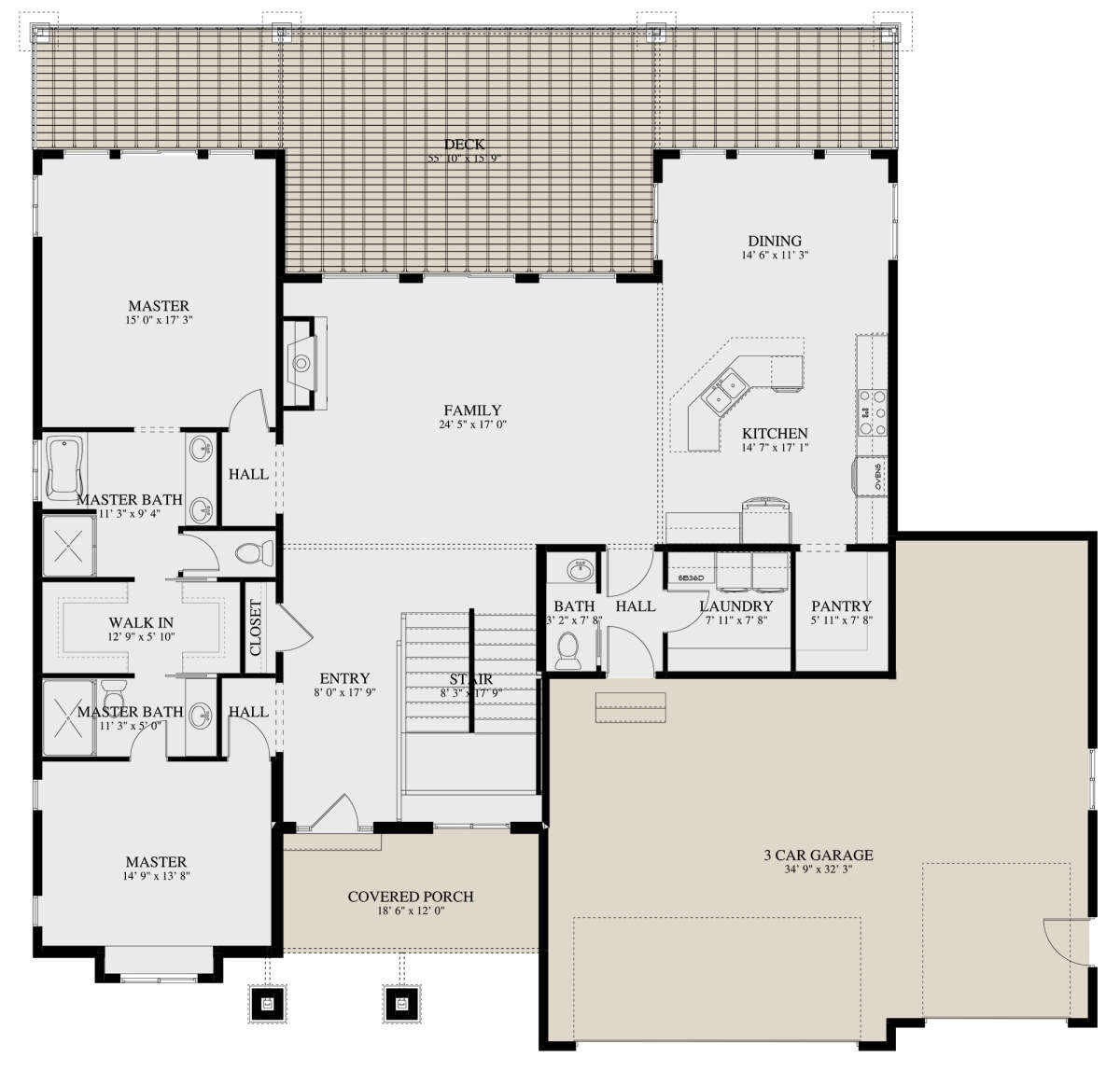

Main Floor
Main Floor for House Plan #2802-00045

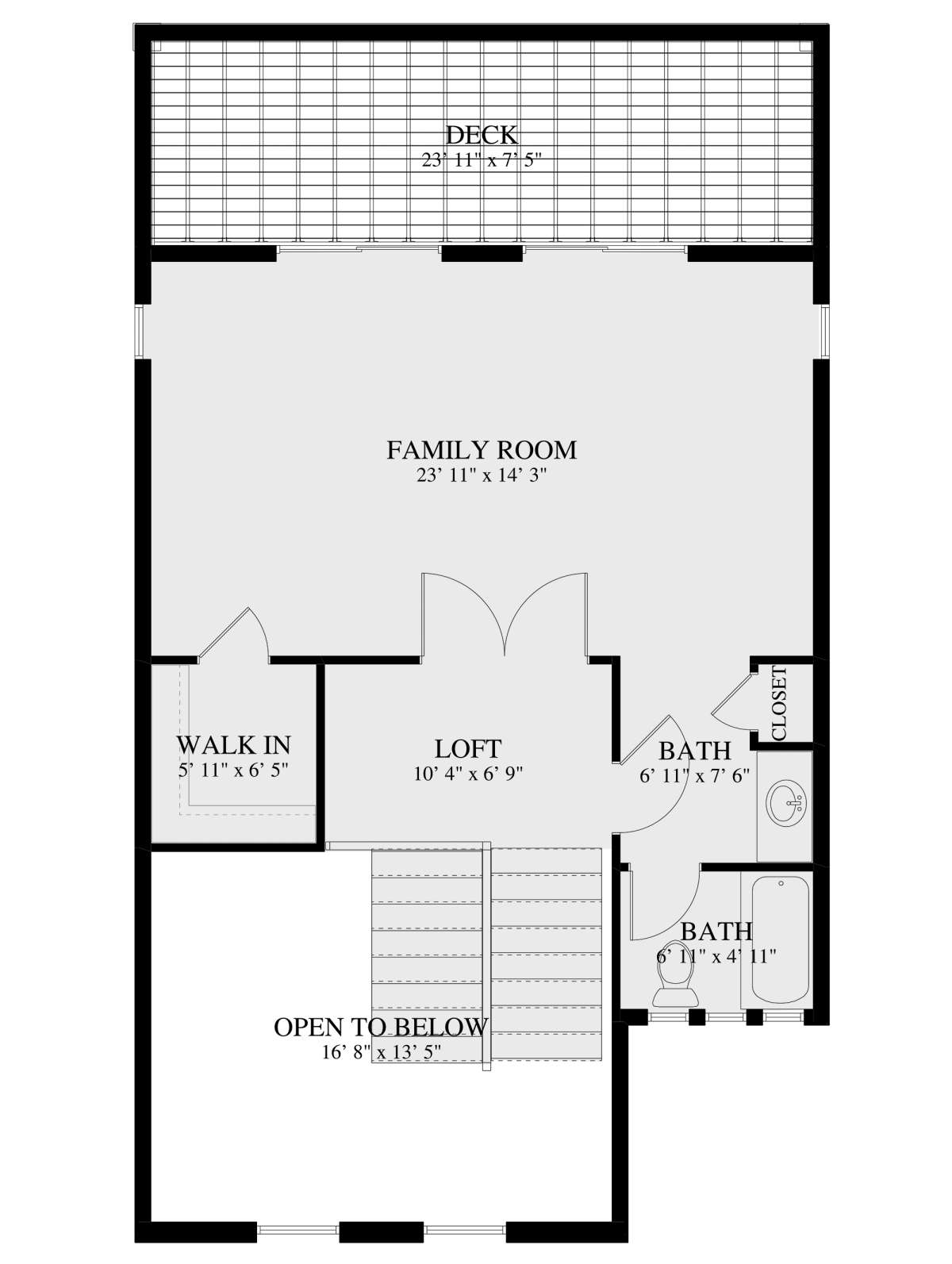

Second Floor
Second Floor for House Plan #2802-00045

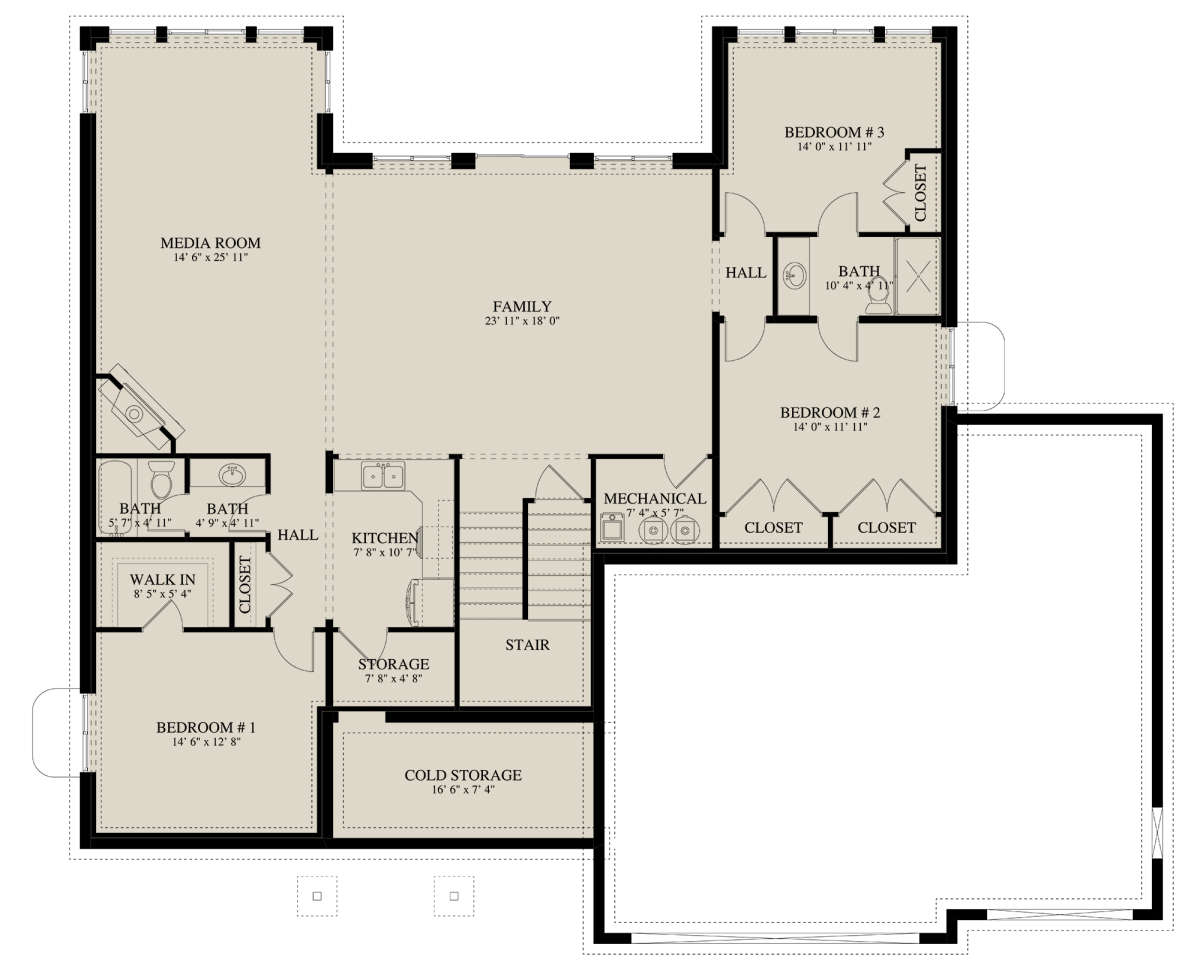

Basement
Basement for House Plan #2802-00045


What's Included in these plans?

  • Notes
  • Foundation/Basement Layout
  • Main Floor Layout
  • Upper Floor Layout (If Applicable)
  • Main Floor Floor Framing
  • Upper Floor Floor Framing (If Applicable)
  • Roof Framing
  • Front/Rear Elevations
  • Left Right Elevations
  • Cross Sections
  • Main Floor Electrical
  • Basement Electrical
  • Upper Floor Electrical (If Applicable)
  • Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 3 bathroom Northwest house plan features 2,920 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
