Craftsman Plan 2559-00865

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,261
Beds 5
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 54'
Depth 55' 6"

Floorplan Drawings

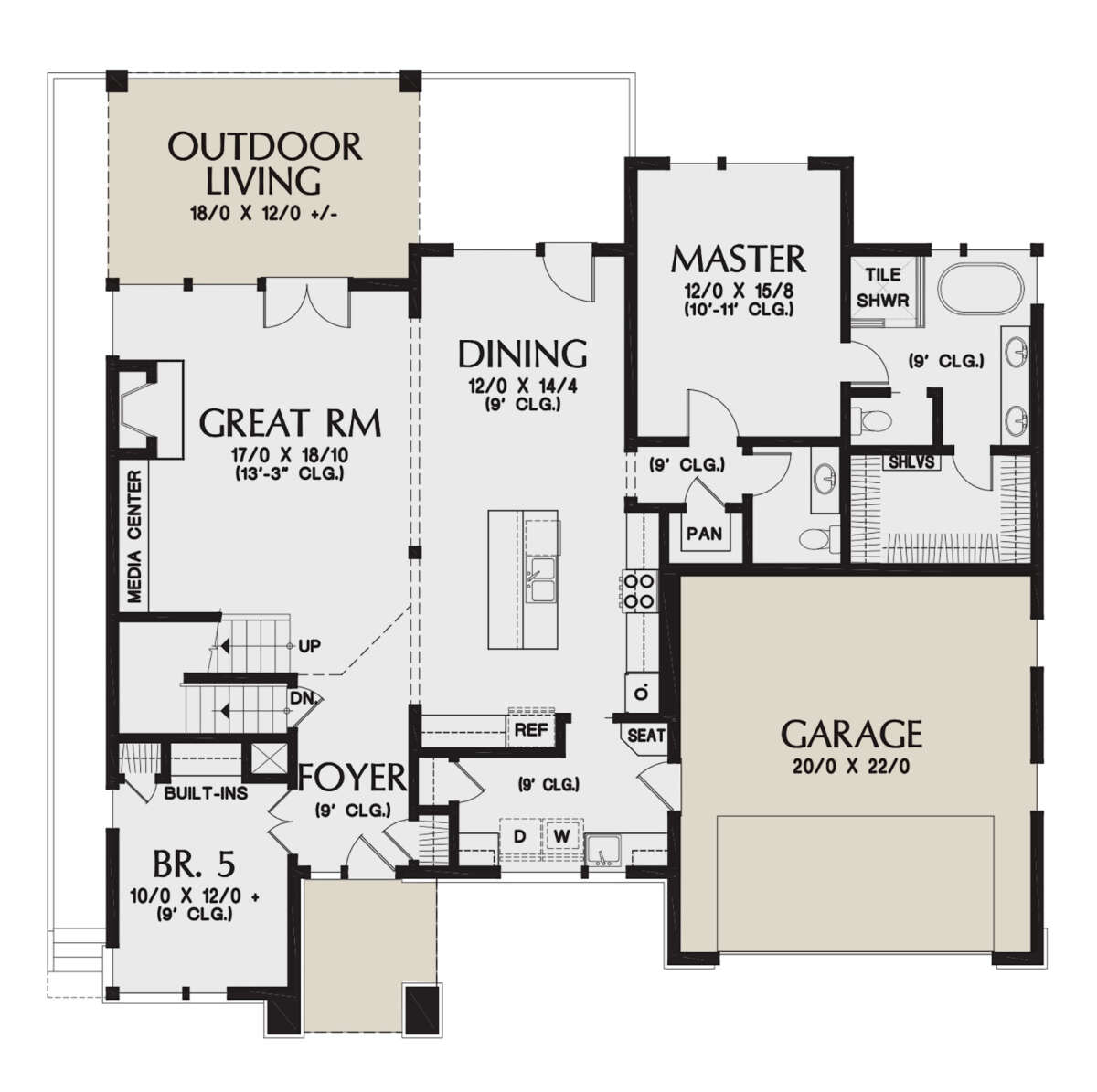

Main Floor
Main Floor for House Plan #2559-00865

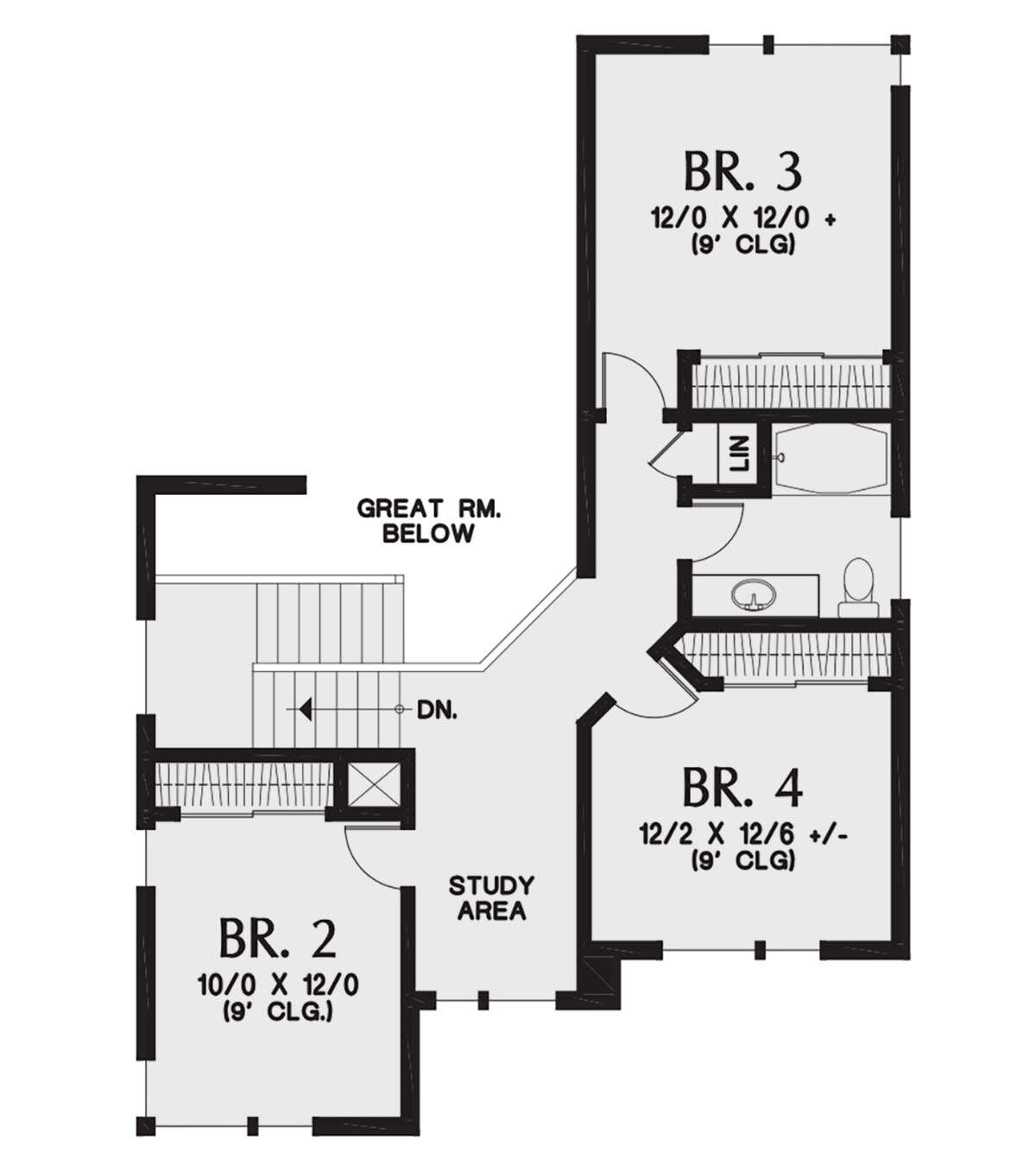

Second Floor
Second Floor for House Plan #2559-00865

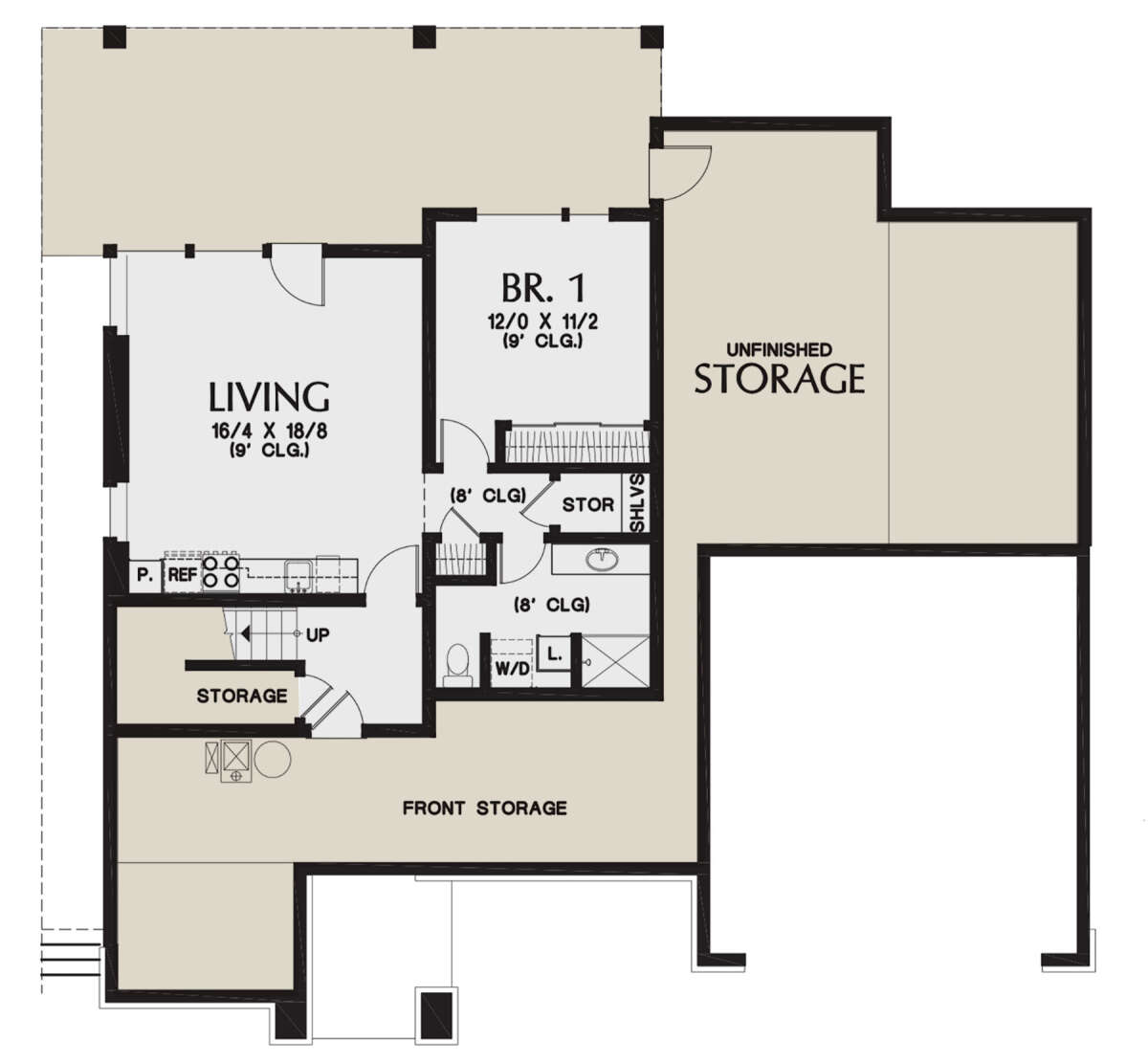

Basement
Basement for House Plan #2559-00865


What's Included in these plans?

  • Exterior Elevations - all at 1/4" scale and - usually two sheets.
  • Floor Plans - fully detailed with structural elements sized.
  • Cabinet Elevations - often included on the floor plans.
  • Electrical Fixture Layout - usually included on the floor plans.
  • Foundation Plan - crawlspace is standard but basements & slabs are available.
  • Wall Section - usually included on the foundation plans.
  • Building Sections - usually at least three or four but most different conditions are illustrated.
  • Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
  • General Notes & Details - includes structural and insulation specifications and standard details.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 5 bedroom, 3 bathroom Craftsman house plan features 3,261 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
