Craftsman House Plan #2559-00683 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,988

Beds 3

Bath 3

1/2 Baths 0

Car 2

Stories 1

Width 64'

Depth 54'

See What's Included

Select Package

PDF (Single Build)

$1,497.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,697.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,747.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,994.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $0.00

Basement Foundation $509.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $225.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

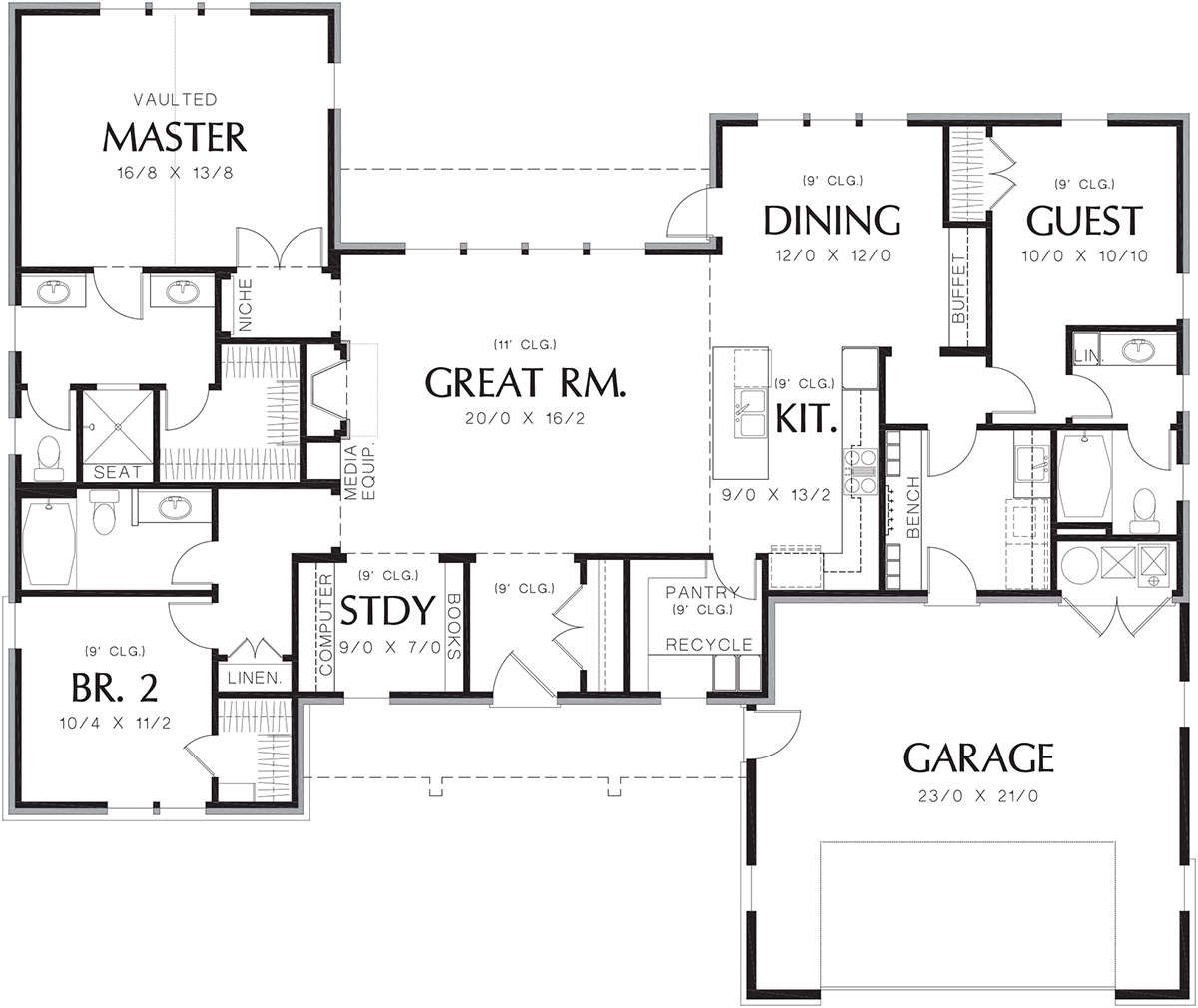

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Exterior Elevations - all at 1/4" scale and - usually two sheets.
Floor Plans - fully detailed with structural elements sized.
Cabinet Elevations - often included on the floor plans.
Electrical Fixture Layout - usually included on the floor plans.
Foundation Plan - crawlspace is standard but basements & slabs are available.
Wall Section - usually included on the foundation plans.
Building Sections - usually at least three or four but most different conditions are illustrated.
Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
General Notes & Details - includes structural and insulation specifications and standard details.

Ask Us A Question

About This Plan

With approximately 1,988 square foot, this Craftsman house plan details cedar shake siding mixed with natural elements to welcome your family home. The single-story layout outlines a comfortable living arrangement for years to come and is complete with three bedrooms and three bathrooms.

Upon front entry, there is a convenient coat closet in the foyer. The 11-foot great room flows wonderfully into the island kitchen and sunlit dining area with a built-in buffet table, and is equipped with a fireplace and a niche before the master. The study features a built-in computer desk and bookshelf while the kitchen features a sizable walk-in pantry. Both the secondary bedroom and the guest room details ample closet space and a bathroom with an enlarged vanity, a linen closet, and a separate toilet and shower/tub combination. The laundry room is spacious enough for a sink and a folding area. The master suite contains a vaulted ceiling with a walk-in closet, a walk-in shower with a seating area, and a private toilet.
