Craftsman House Plan 2559-00540

Sq Ft3,155
1/2 Baths1
Width78' 0"
Depth49' 0"

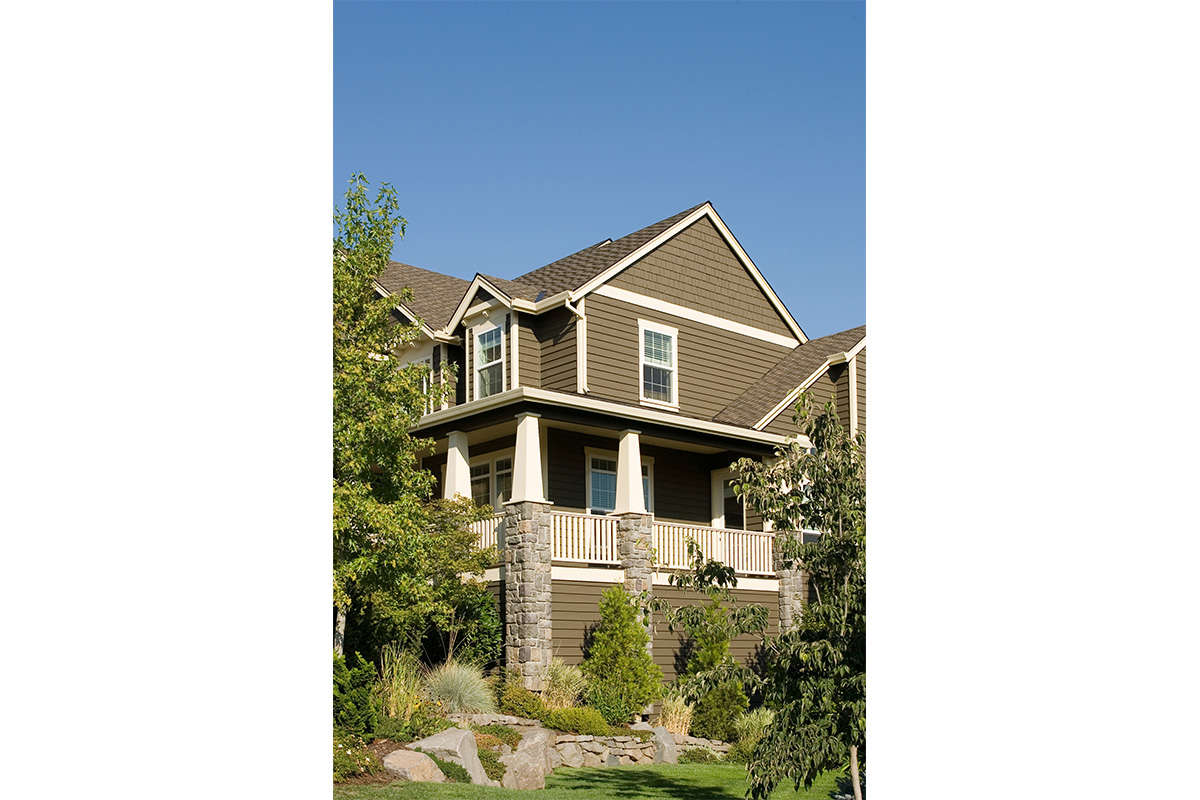

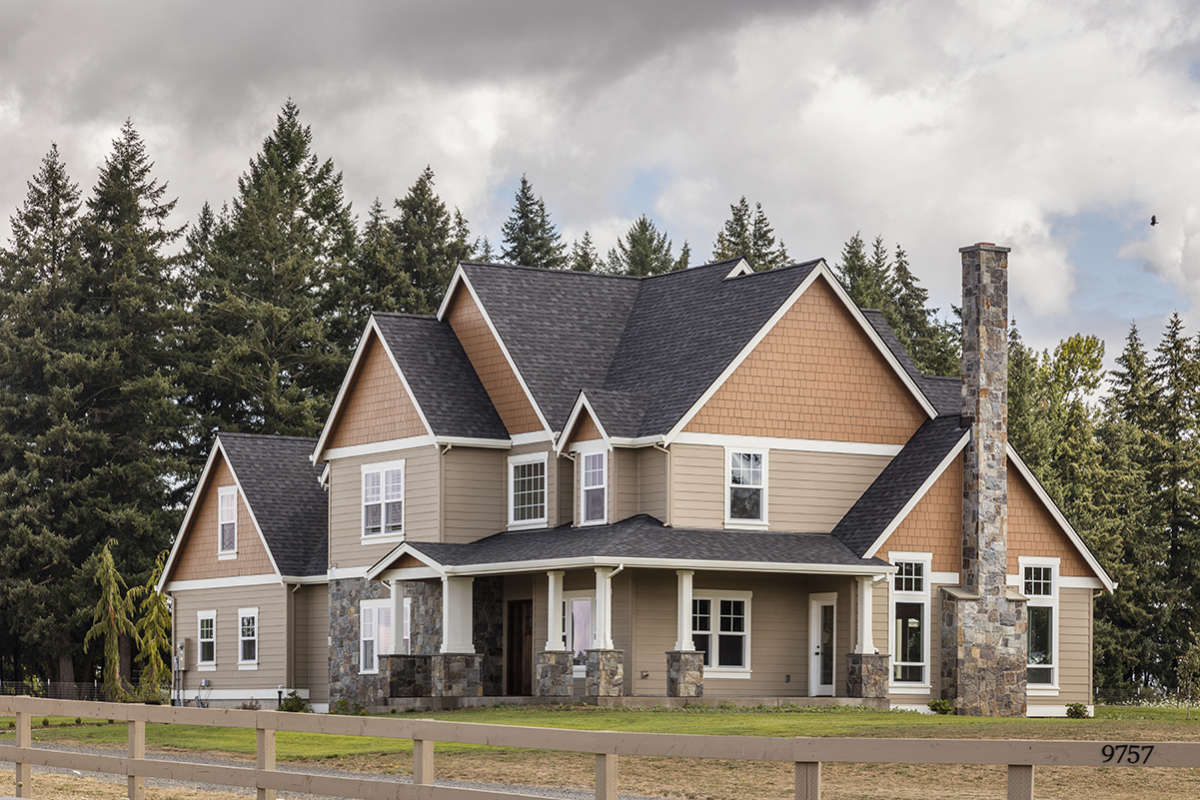

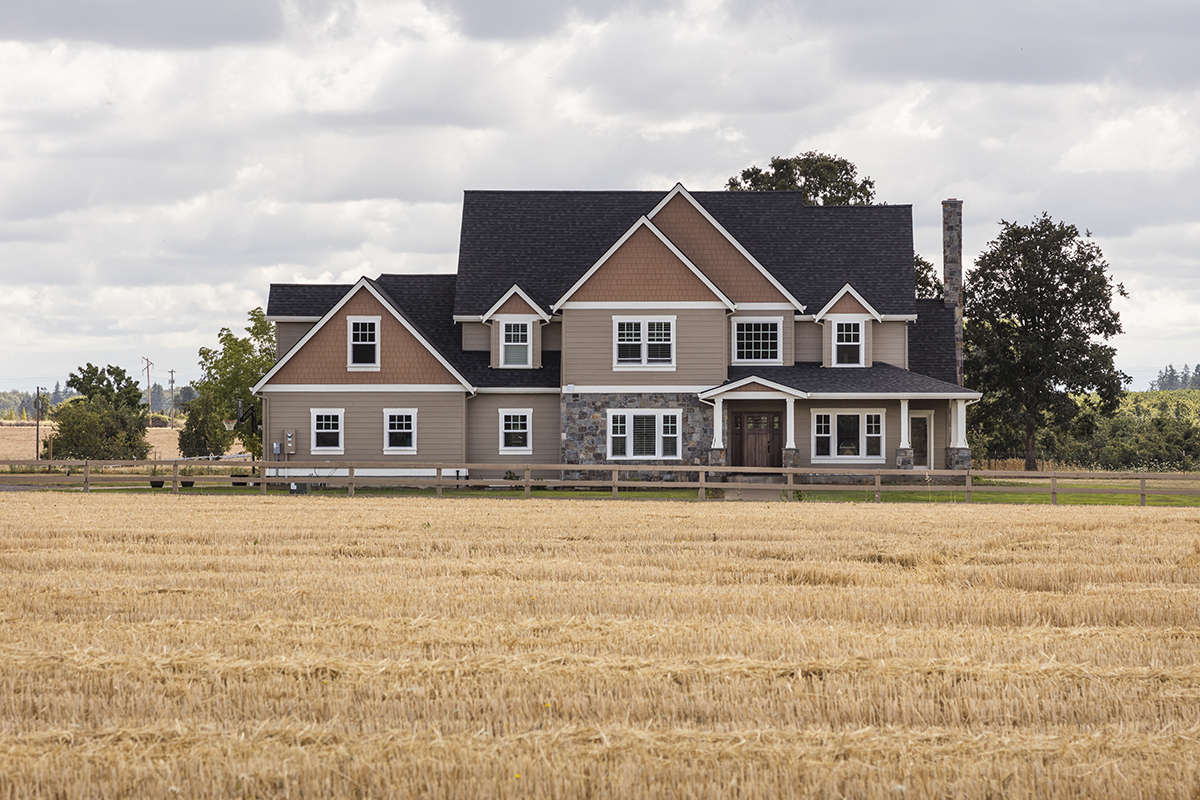

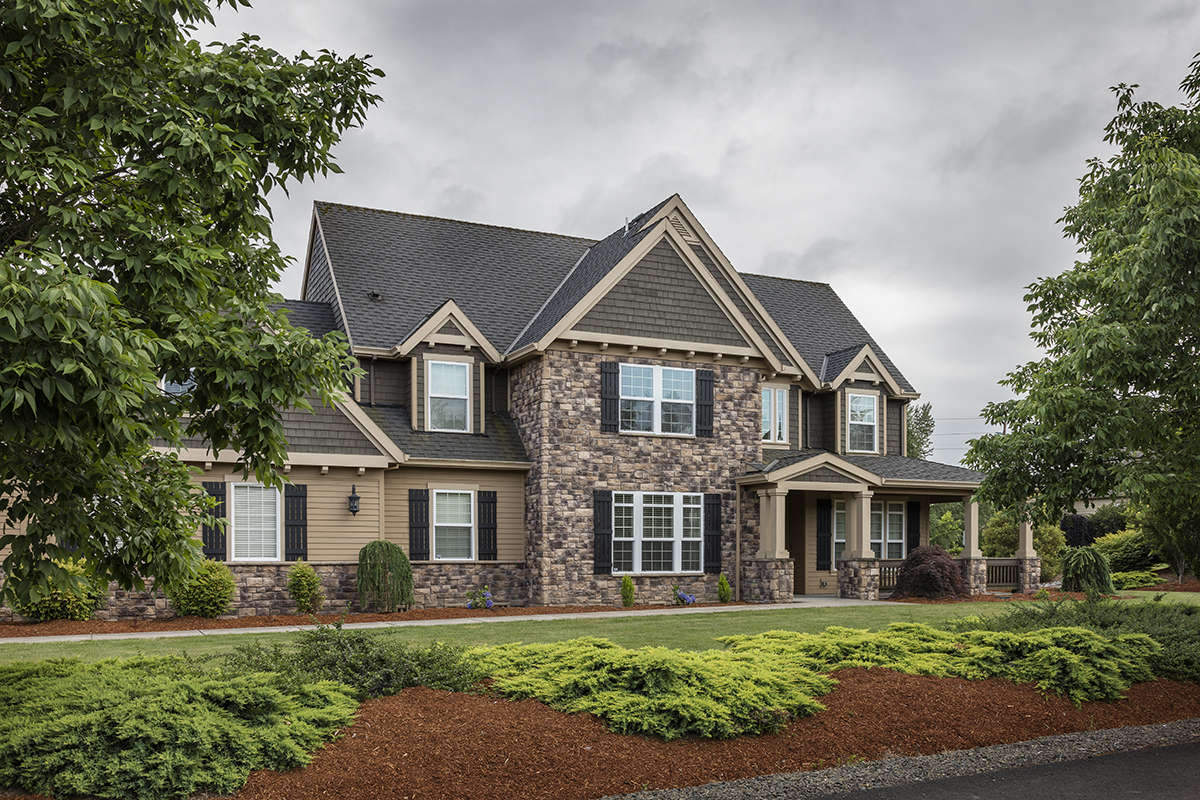

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

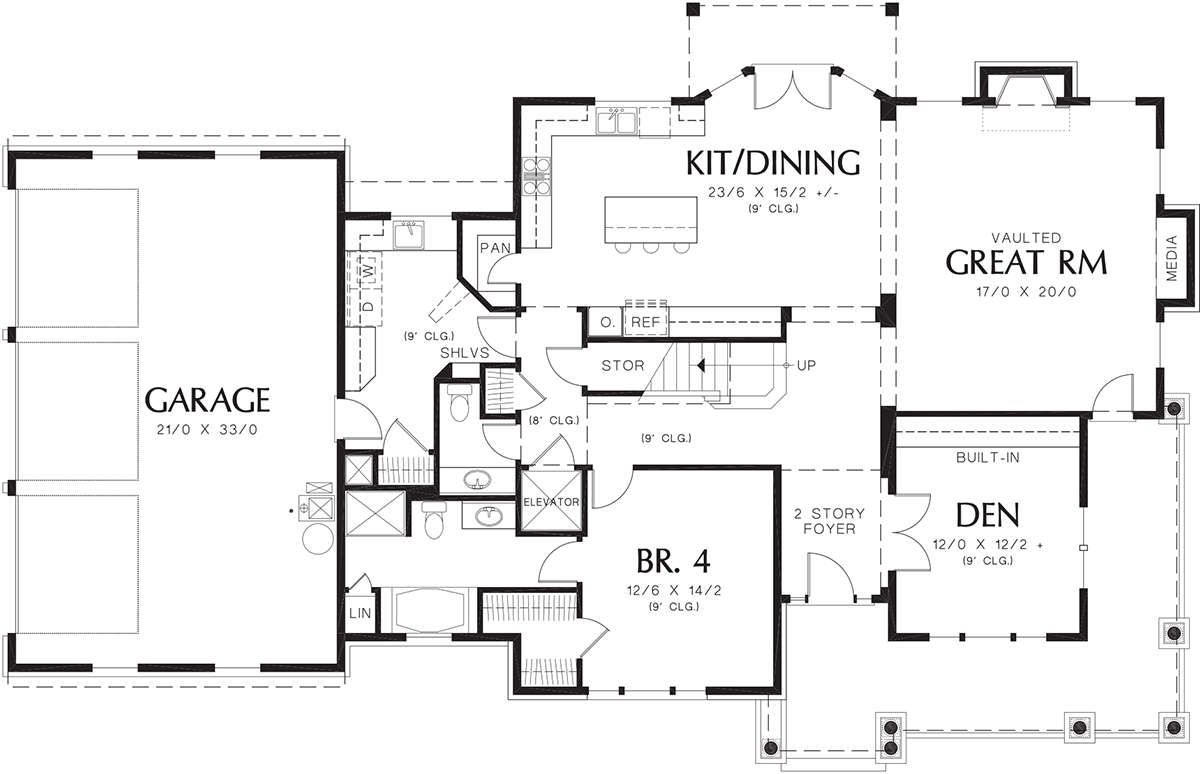

Main Floor  for House Plan #2559-00540

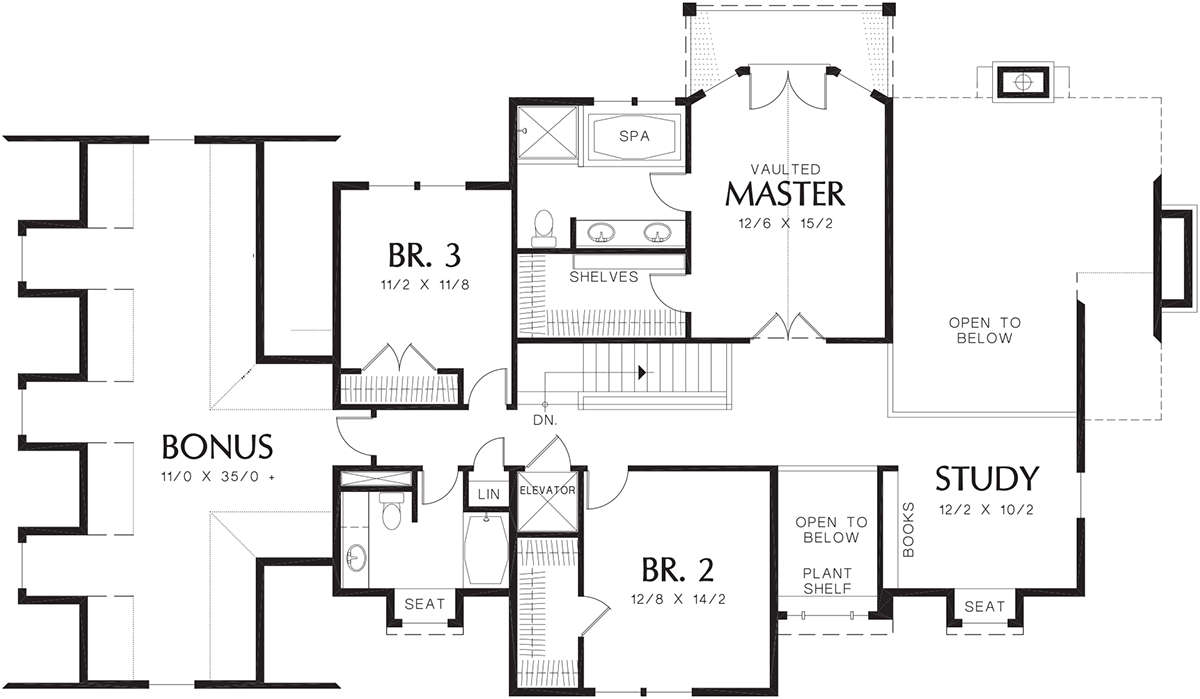

Second Floor for House Plan #2559-00540
Main Floor
Main Floor  for House Plan #2559-00540
Second Floor
Second Floor for House Plan #2559-00540

Frequently Asked Questions


What's Included in these plans?

  • Exterior Elevations - all at 1/4" scale and - usually two sheets.
  • Floor Plans - fully detailed with structural elements sized.
  • Cabinet Elevations - often included on the floor plans.
  • Electrical Fixture Layout - usually included on the floor plans.
  • Foundation Plan - crawlspace is standard but basements & slabs are available.
  • Wall Section - usually included on the foundation plans.
  • Building Sections - usually at least three or four but most different conditions are illustrated.
  • Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
  • General Notes & Details - includes structural and insulation specifications and standard details.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

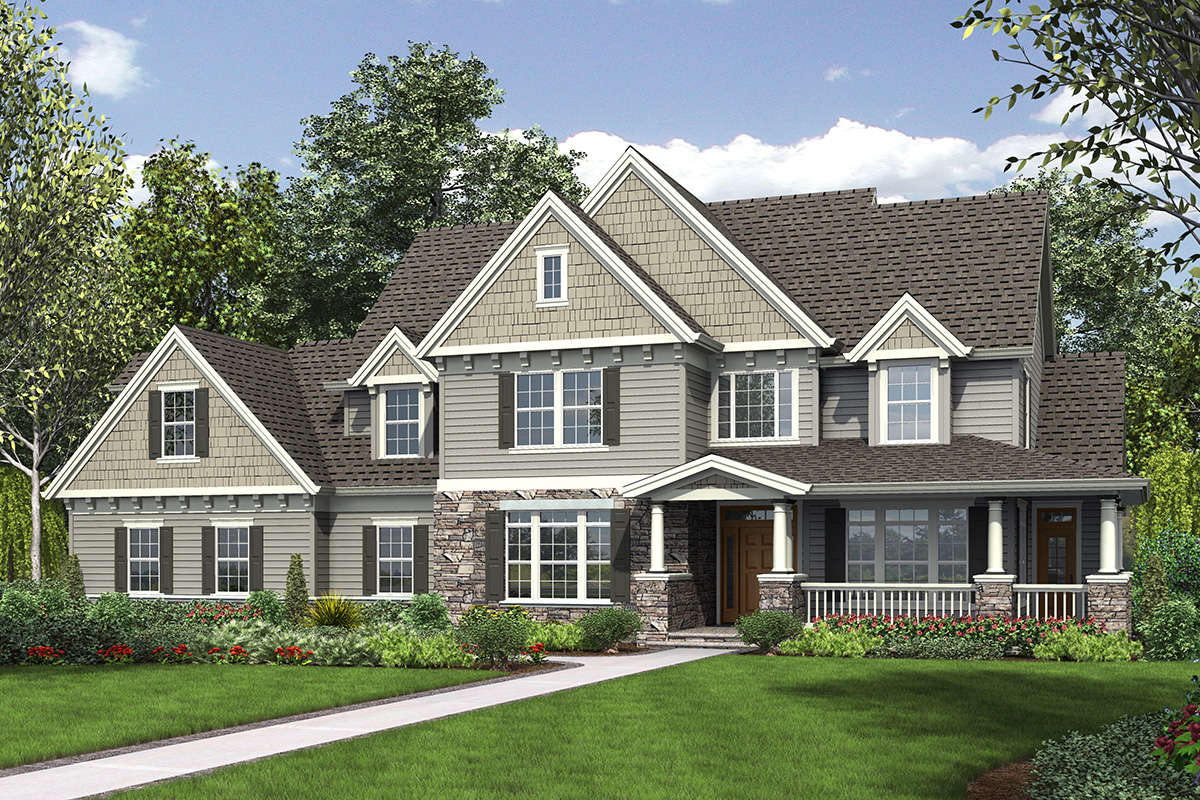

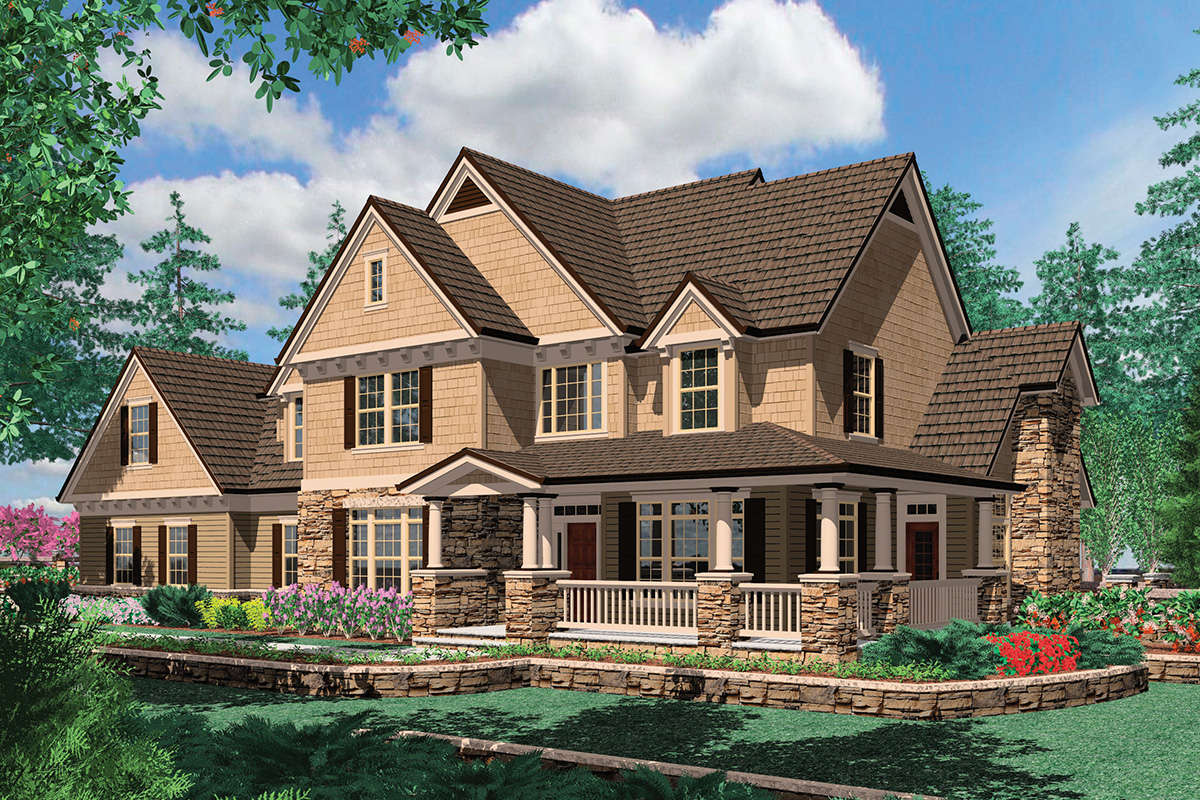

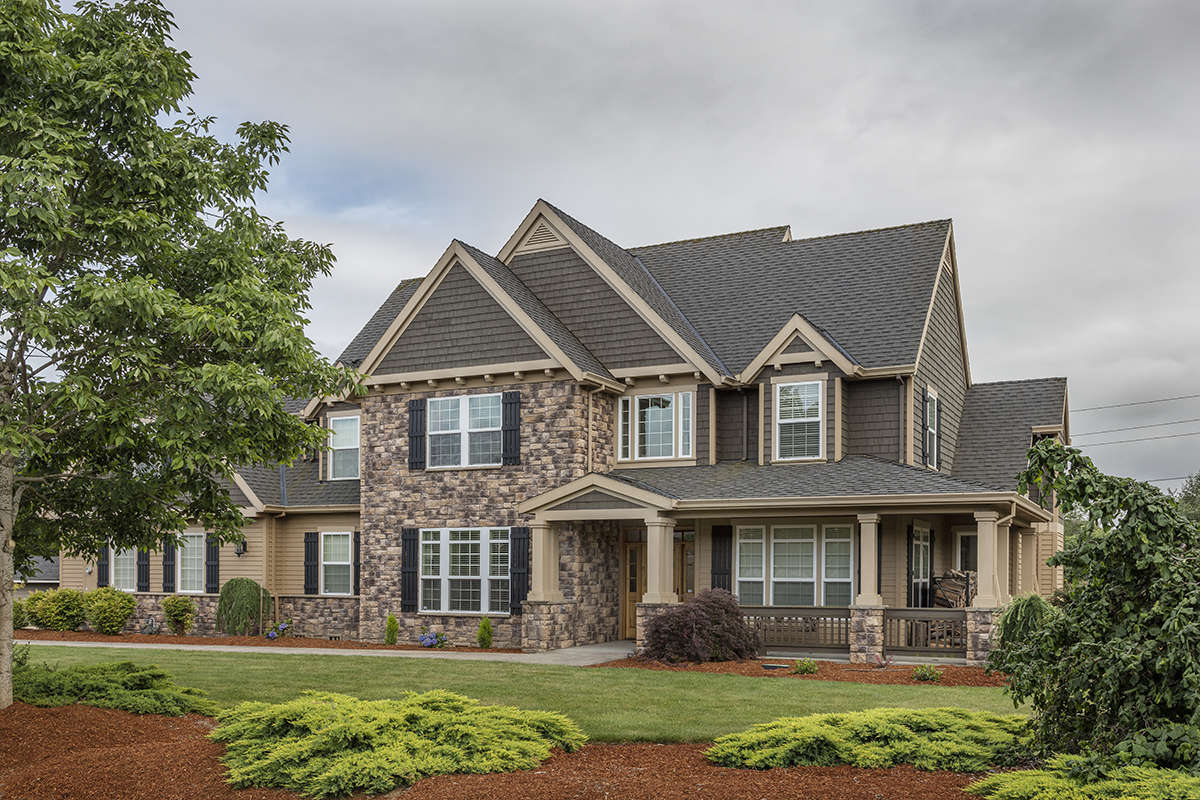

Beautiful, large and a gorgeous interior design are all highlighted in this luxuriously styled Craftsman house plan. An abundance of charming exterior design elements is arranged on the façade of the home and includes amazing window views, multiple gables highlighted with exposed rafters, stone accents and features walls and a large L-shaped front covered porch. The porch is outlined with stone pillars, substantial beams and plenty of space to welcome family and friends. The interior floor plan contains approximately 3,155 square feet of living space with four bedrooms and three plus baths. There is a three car side entry garage with plenty of vehicle and storage space before entering the home’s interior where there is a large laundry room with sink and counter space and a coat closet; around the corner is a second closet and the guest powder room. The main entrance of the home is through the two story foyer where there is den access through French doors with plenty of window views onto the L-shaped porch. The vaulted great room and kitchen/dining space is located nearby and features great space to entertain as well as prepare and enjoy family meals. The great room is spacious with a warming fireplace, great window views and access to the front L-shaped porch. The dining room features access onto the rear porch and the adjacent kitchen is highlighted with a center island, great counter and cabinet space and a walk-in pantry. There is a guest suite/fourth bedroom located on the main floor; it is spacious with a walk-in closet and there is a private bath that includes vanity space, a toilet area, a shower, linen closet and a garden tub.

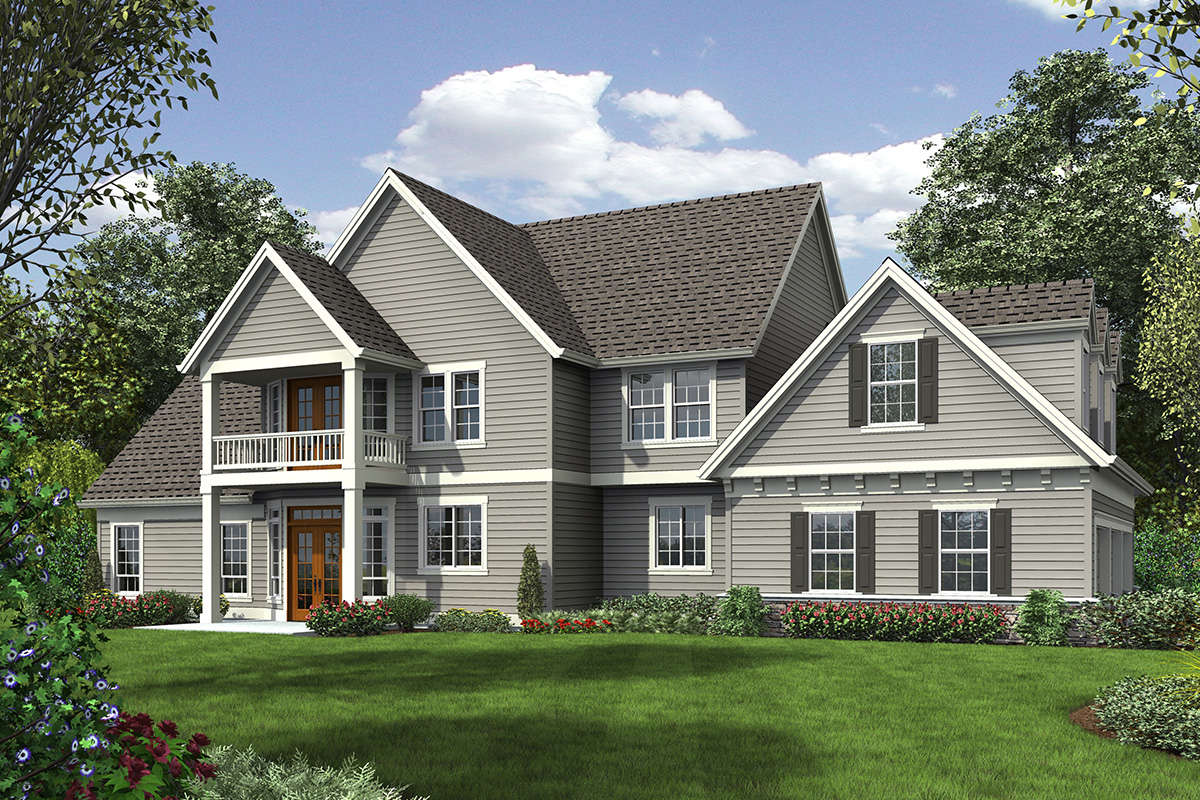

The second floor is great family space; three bedrooms, a study and a bonus room are situated on this floor. Bedrooms two and three feature good floor space, great closet space and double window views. There is a hall linen closet and a shared bath with an extended vanity, a toilet area and a tub/shower combination is nearby. The master suite is highlighted with vaulted ceiling heights and a slightly bowed bay window view with French door access onto the rear covered porch. An attached walk-in closet as well as a beautifully designed master bath with a spa tub, a separate shower, dual vanities and a toilet area are also included with the suite. The study is located on one end cap of the hallway with built-in cabinetry, a window seat and good study or homework space. The bonus room which measures in excess of 560 square feet is situated at the opposite end of the hallway; it is a large space with dormer window views and could be utilized as bedroom/bath space, a multi-purpose family room or a home office. This lovely Craftsman home features strong exterior architectural appeal, a large and functional floor plan and plenty of additional flex space to personalize for your family needs.
