Southwest House Plan 2559-00102

Sq Ft972
1/2 Baths0
Width50' 0"
Depth32' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

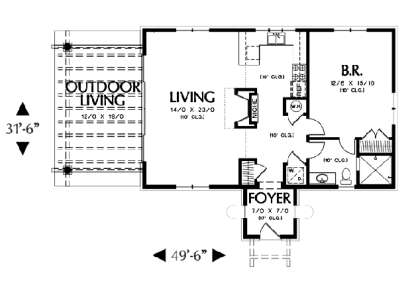

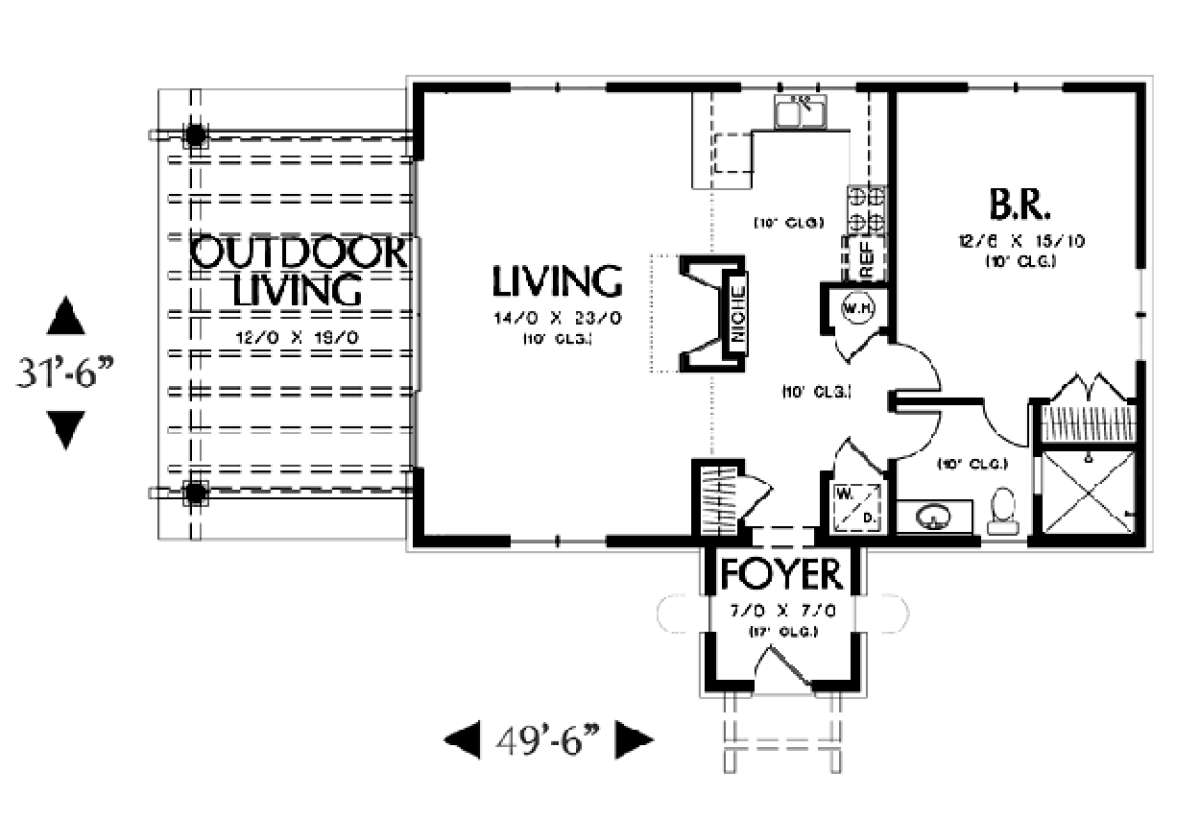

Floorplan 1 for House Plan #2559-00102
Floorplan 1
Floorplan 1 for House Plan #2559-00102

Frequently Asked Questions


What's Included in these plans?

  • Exterior Elevations - all at 1/4" scale and - usually two sheets.
  • Floor Plans - fully detailed with structural elements sized.
  • Cabinet Elevations - often included on the floor plans.
  • Electrical Fixture Layout - usually included on the floor plans.
  • Foundation Plan - crawlspace is standard but basements & slabs are available.
  • Wall Section - usually included on the foundation plans.
  • Building Sections - usually at least three or four but most different conditions are illustrated.
  • Roof Plan - 1/4" scale with structural sizes and often including both tile & comp/shake versions.
  • General Notes & Details - includes structural and insulation specifications and standard details.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

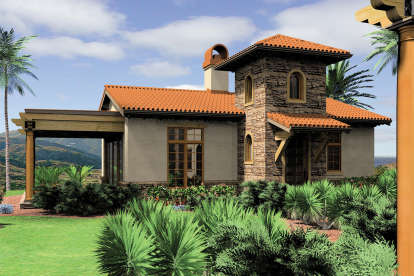

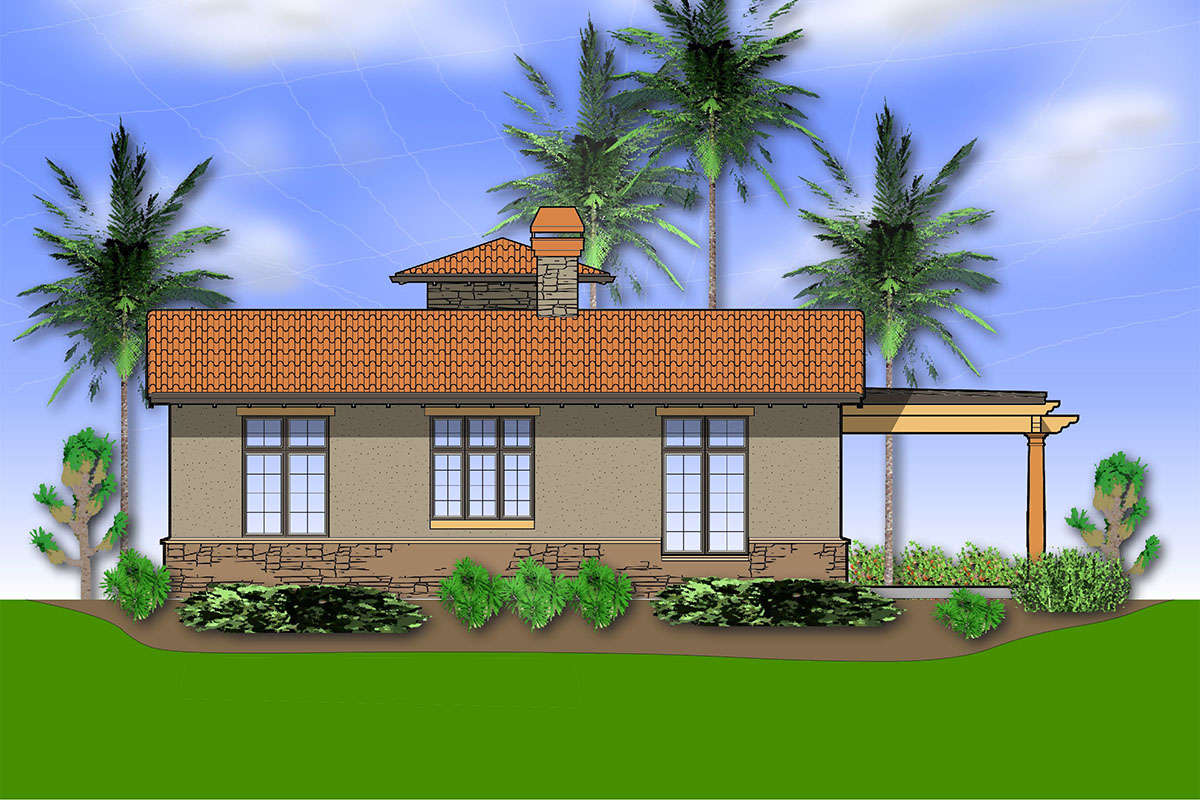

This Southwestern single story house plan features a Spanish Mission exterior full of warmth and character. Deep earth tones richly detail the façade of the home and include a burnt sienna colored tile roof, a smooth stucco wall exterior and a stacked stone feature wall outlining the grand entrance. Substantial beams outline the outdoor covered living room that is set to the side and the front covered entrance features a permanent awning inspired structure for beauty and shade. The interior floor plan contains approximately 972 square feet of living space including one bedroom, one bath and open living spaces with 10’ ceiling heights throughout the home. The front foyer is spacious and sets the tone for the remainder of the home with it soaring ceiling heights. There is a convenient coat closet for guests off the foyer which extends to the rear of the home allowing for a spacious feel to the home’s interior. The living room is fantastic entertaining space; it measures 14’x23’, has a warming fireplace and graciously flows onto the outdoor living space. There is a fully functional kitchen with breakfast bar and modern amenities lining the side and rear wall that opens onto the living room and the laundry facilities are cleverly tucked into a nook. The bedroom enjoys a large footprint with wonderful window views, an attached spacious closet and private access to the main bath. The bathroom features a separate entrance for guests and contains a shower, toilet area and large vanity. The home is highlighted with an aesthetically pleasing exterior that requires little maintenance and yet, “packs a punch” while the interior of the home is efficient and comfortable.
