Name: Barn Recreation Plan - 3,205 Square Feet, 1 Bedroom, 1 Bathroom | Floor Plan #2464-00212 | America's Best House Plans
Brand: America's Best House Plans
SKU: 2464-00212
Price: 1250.00 USD
Availability: InStock

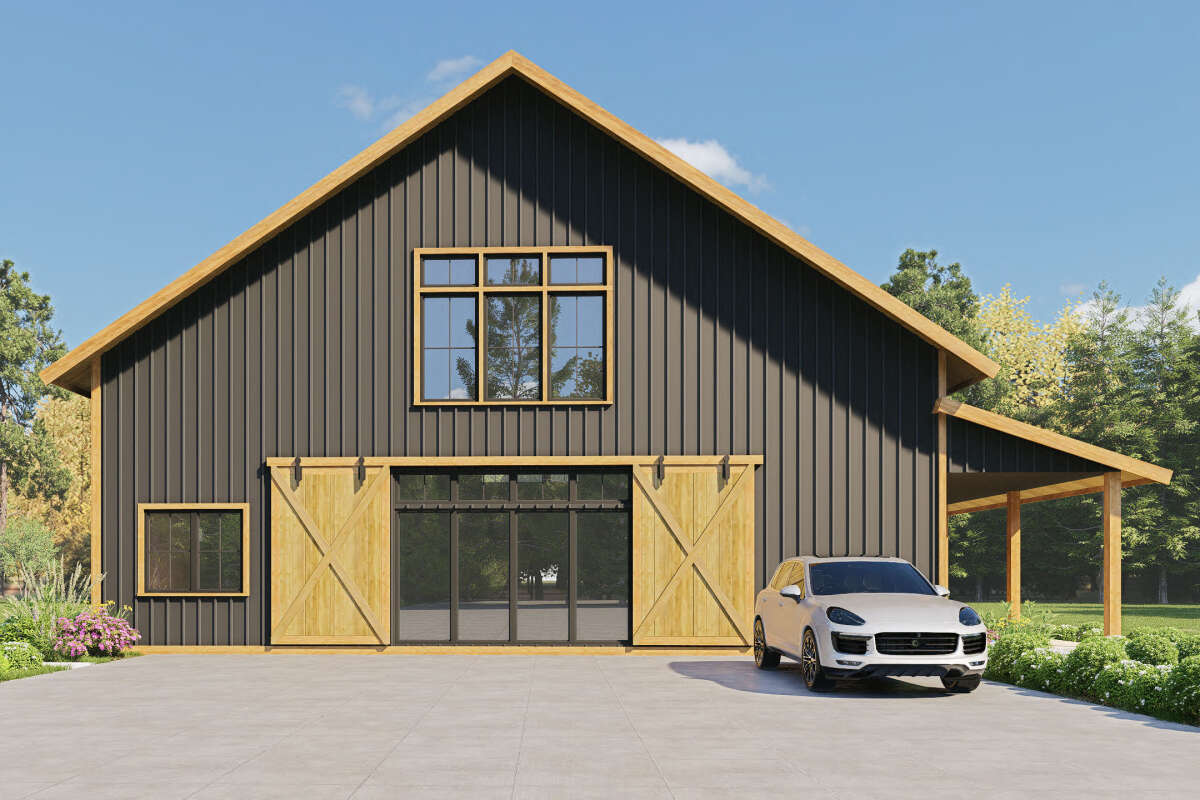

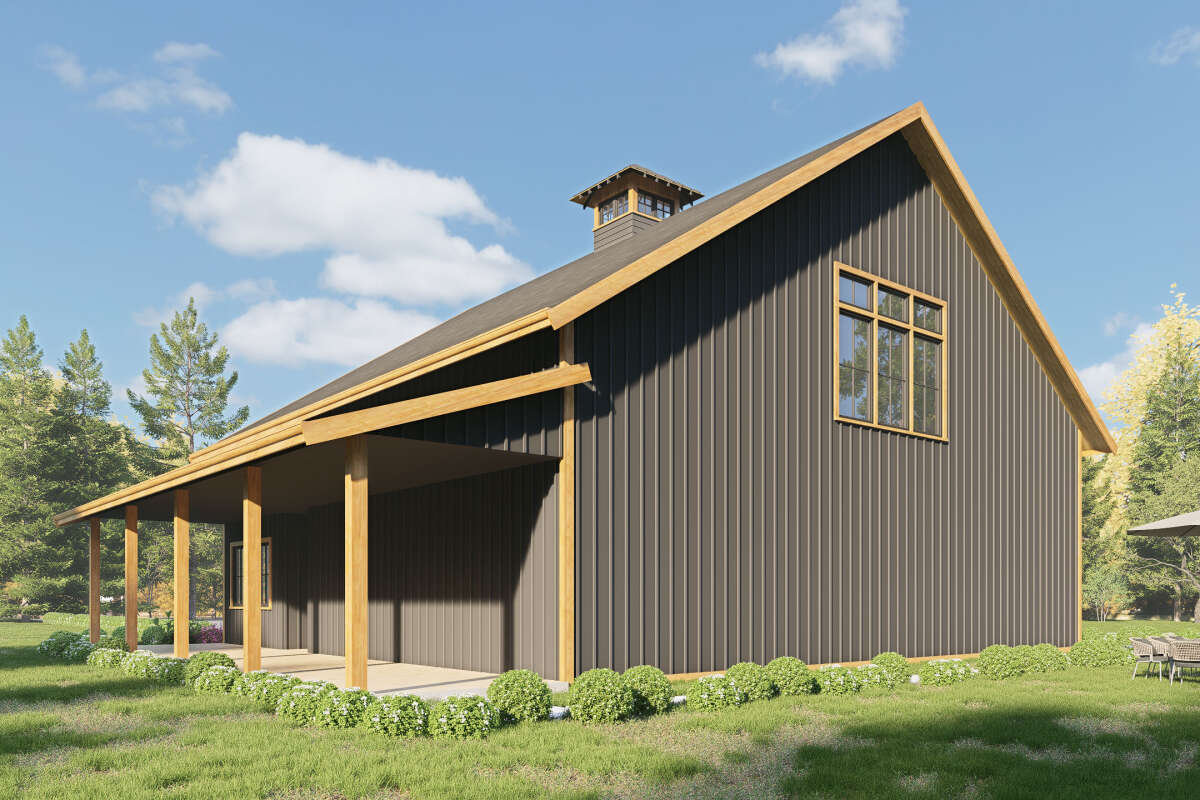

Barn House Plan #2464-00212 Elevation Photo

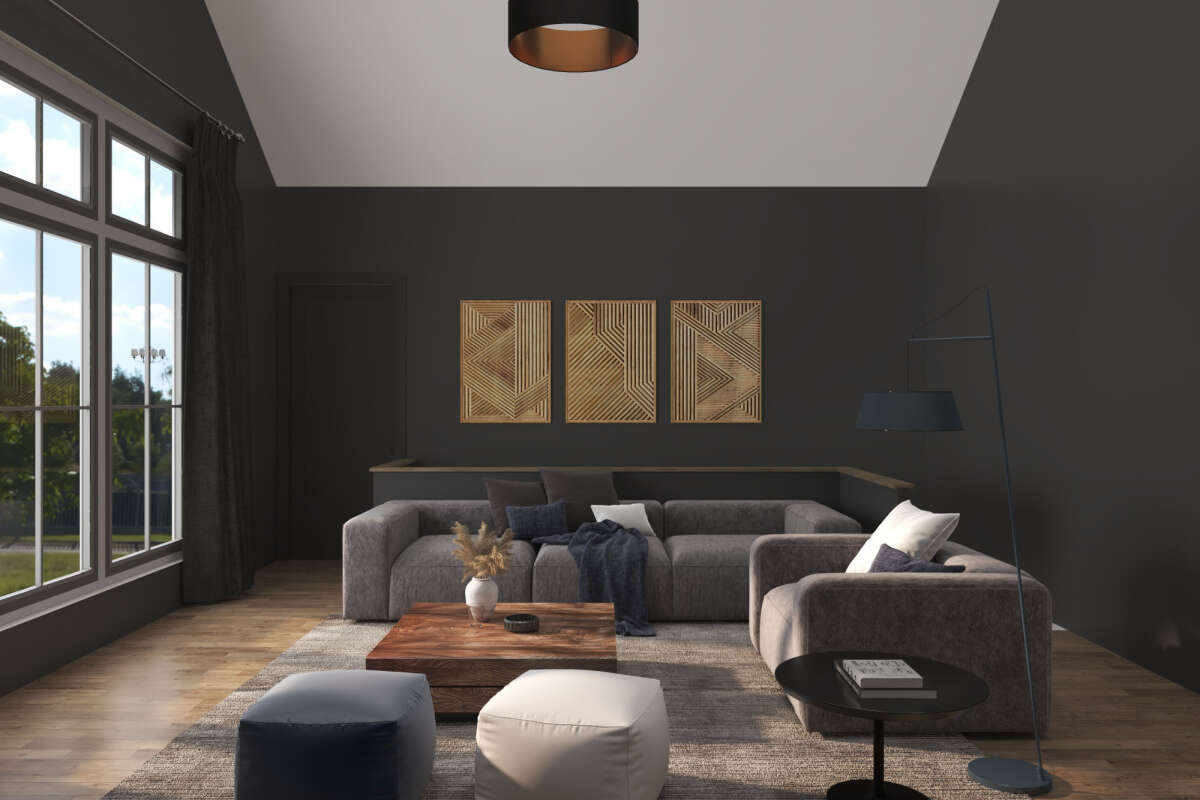

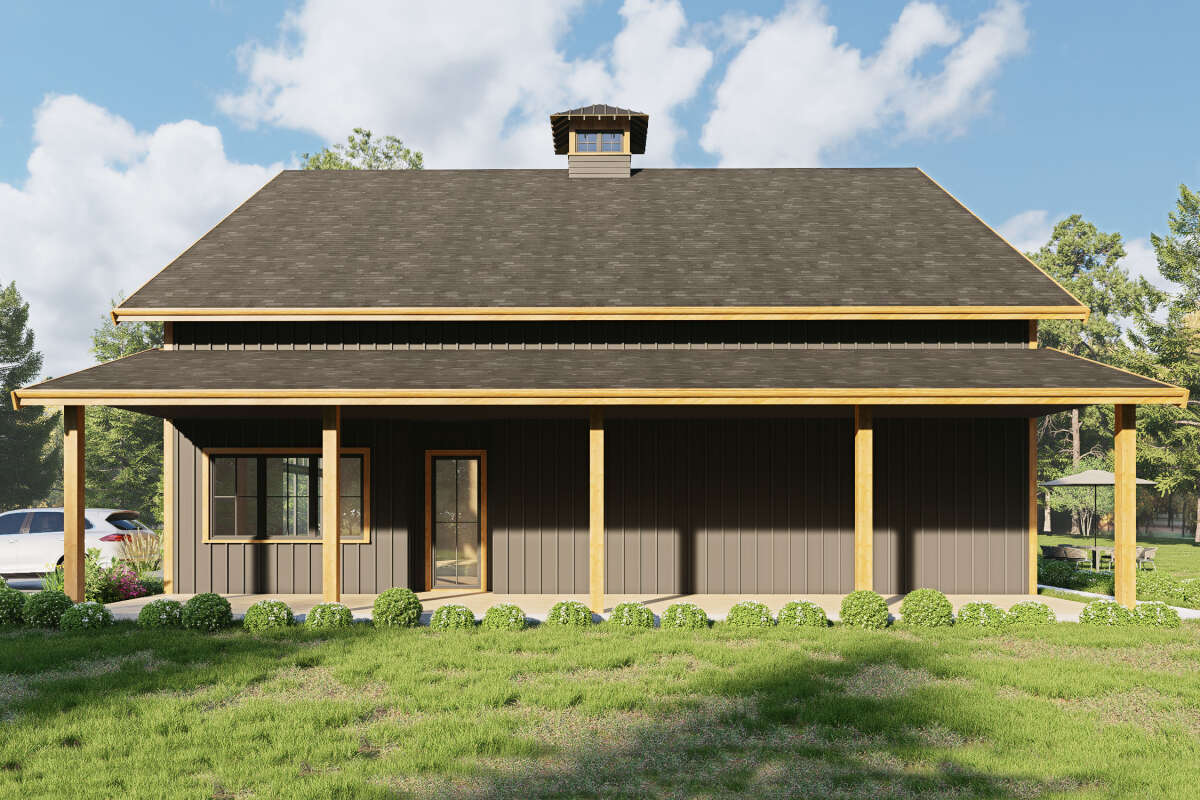

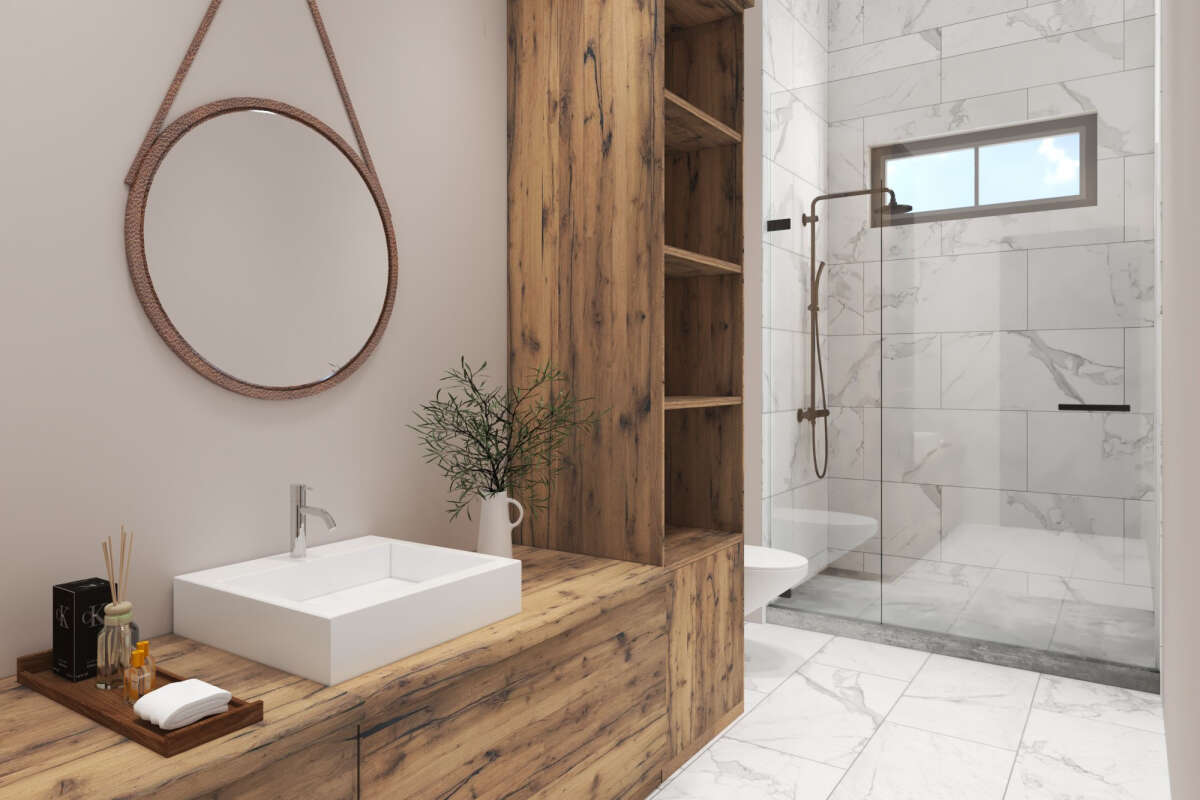

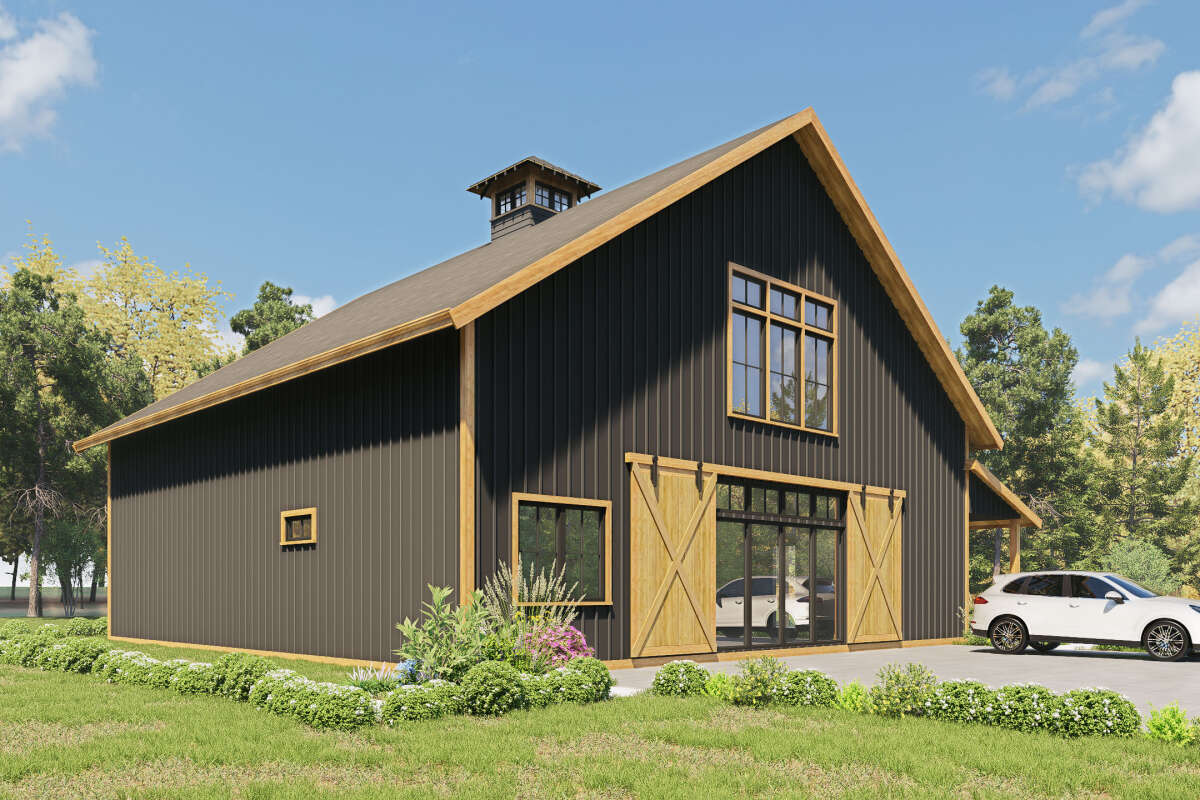

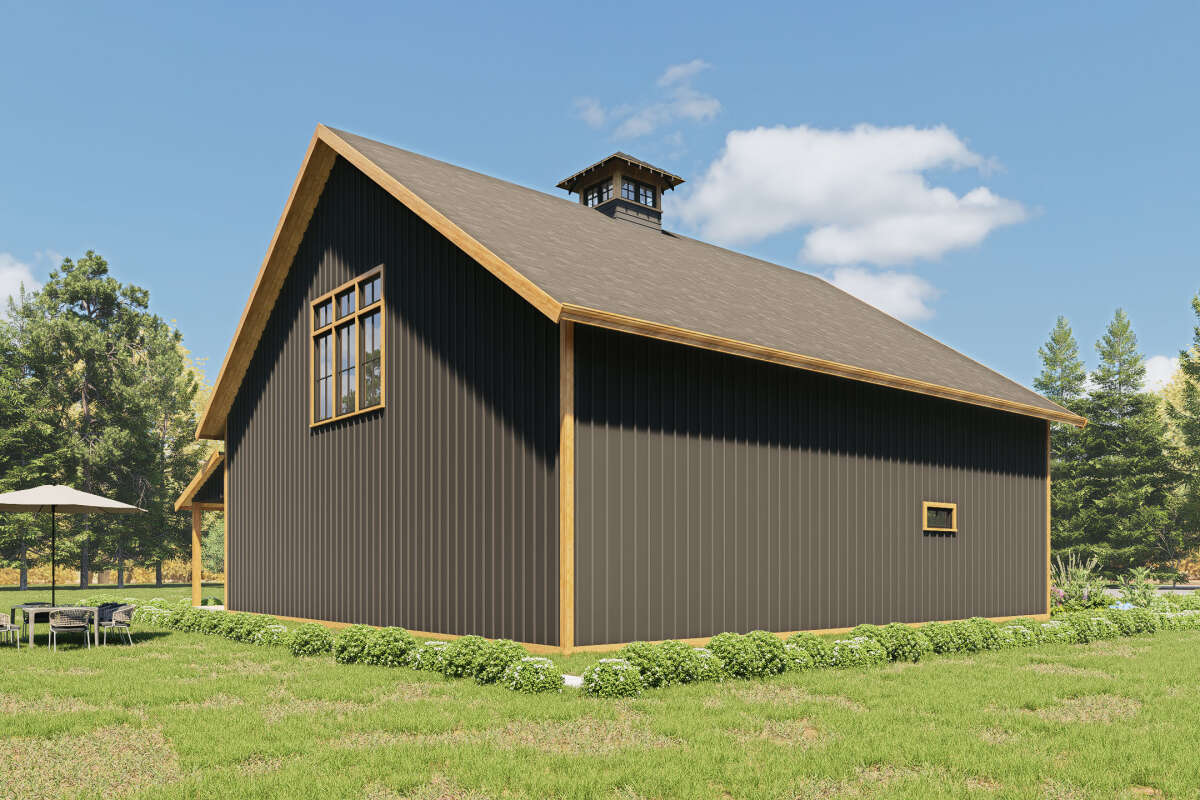

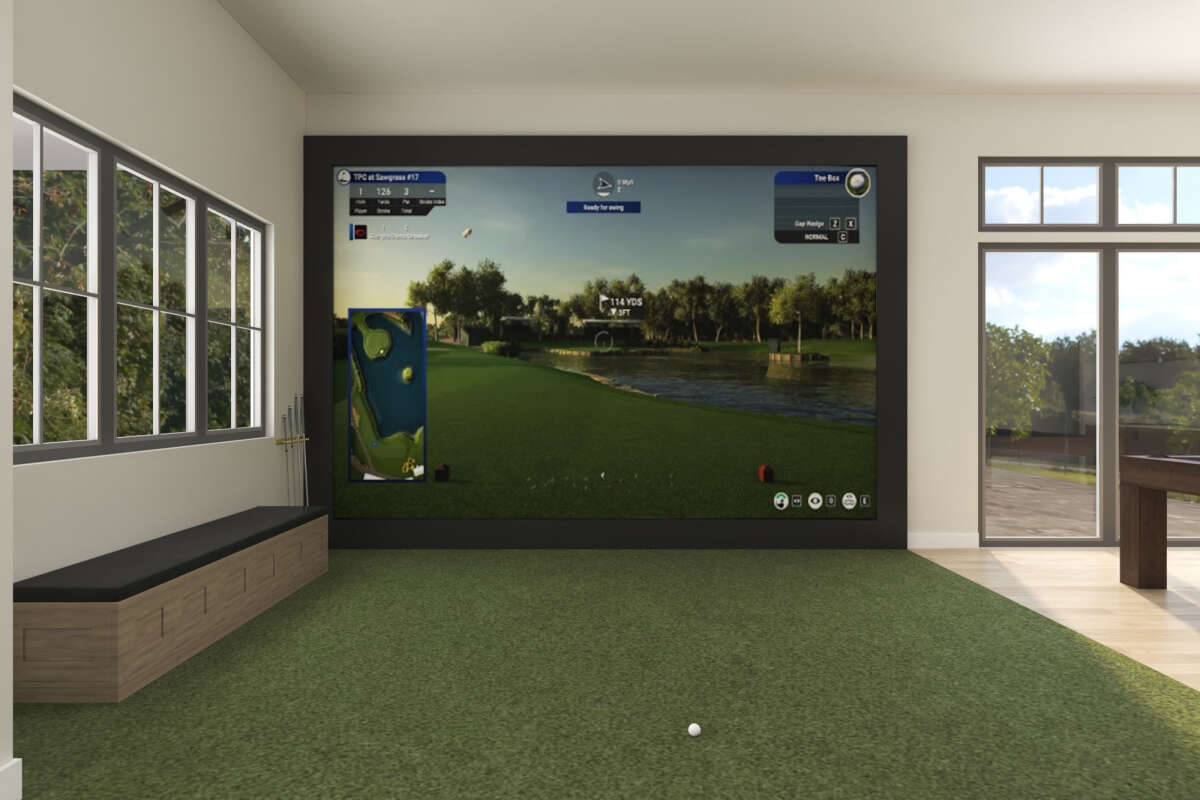

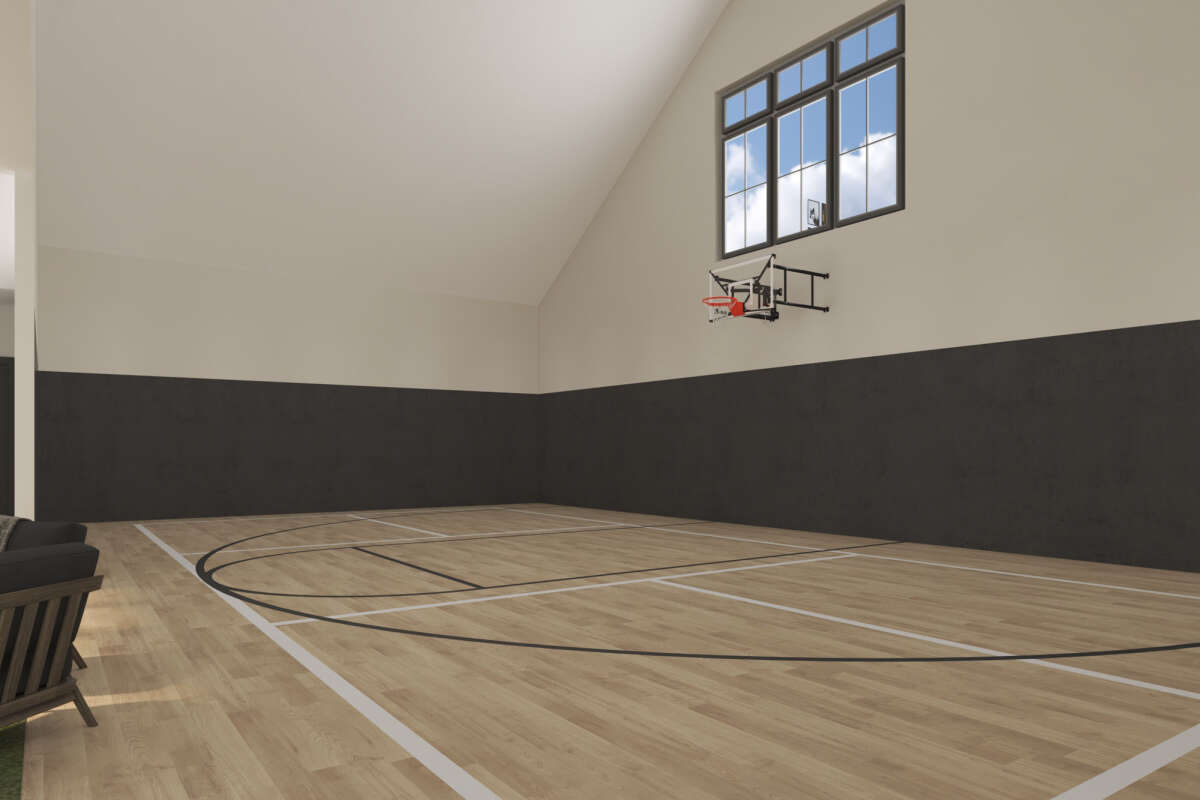

Barn House Plan #2464-00212 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Unfin Sq Ft 427

Fin Sq Ft 2,778

Baths 1

1/2 Baths 0

Width 60'

Depth 50'

See What's Included

Select Package

PDF (Single Build)

$1,250.00

ELECTRONIC FORMAT Recommended
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally.

5 Sets Plus PDF (Single Build)

$1,700.00

One Complete set of construction drawings emailed to you in PDF format, along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally.

CAD Files (Single Build)

$1,900.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $195.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $325.00

A complete material list for this plan plus purchased options excluding right reading reverse, windows and doors and any modifications. Product requires 5-7 business days to complete.

View Sample ABHP Material List

Need a different option?

Get a free modification quote

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

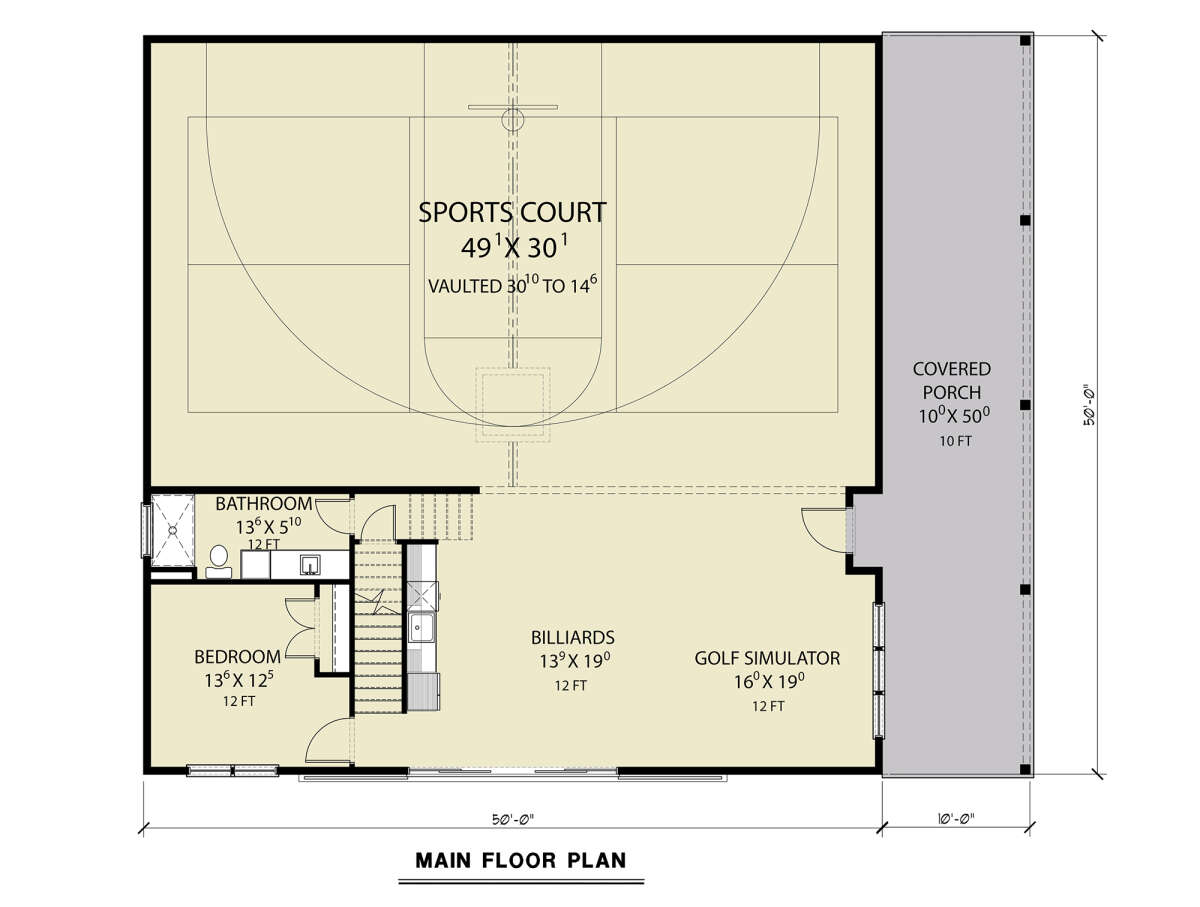

Main Floor

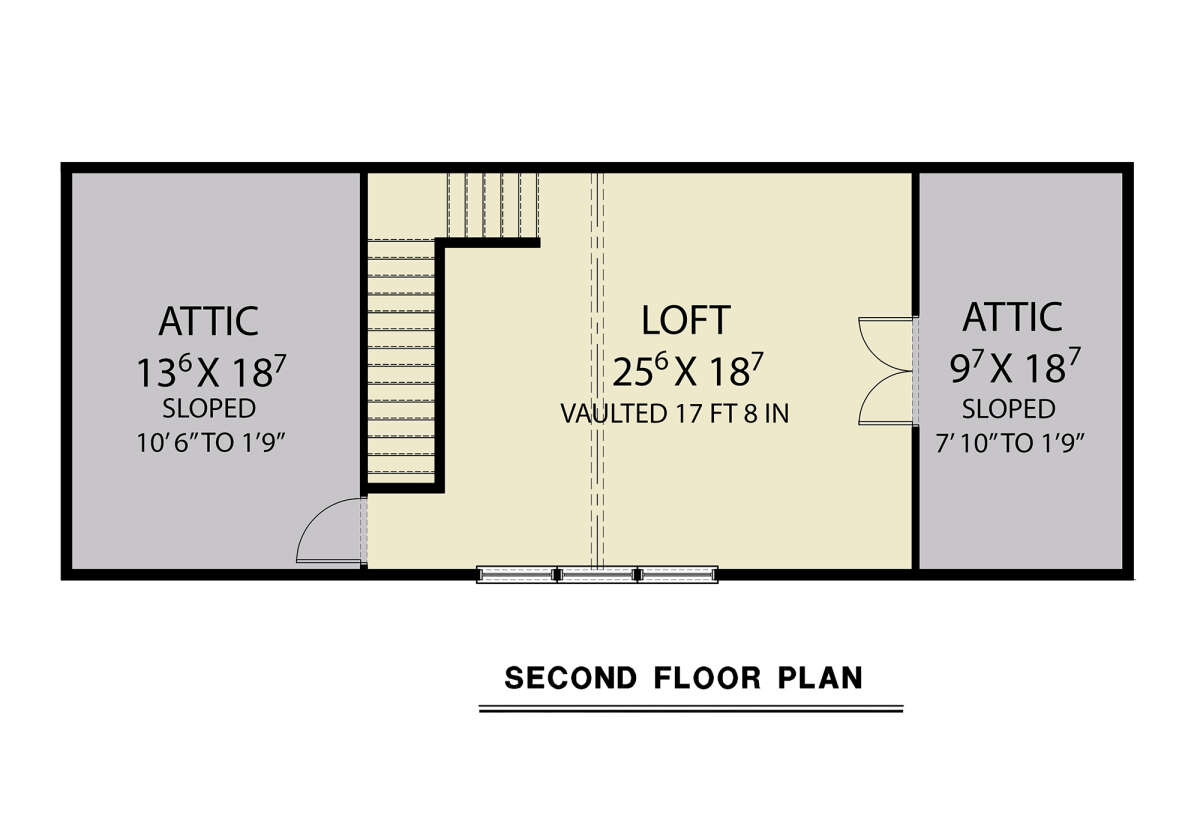

Second Floor

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 2,778 sq. ft. First Floor: 2,306 sq. ft. Second Floor: 472 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 427 sq. ft. Storage Area: 427 sq. ft.

PORCH & PATIO Sq Ft

Total Porch/Patio Area: 514 sq. ft. Side Porch: 514 sq. ft.

Bedrooms: 1

Full Baths: 1

Floors: 1.5

Width: 60ft.

Depth: 50ft.

Height: 40ft.

Foundation:

Slab Foundation

Main Roof Pitch: 8:12

Exterior Framing:

2x6 Wood

CEILING HEIGHTS

First Floor: 12 feet

Second Floor: 17.8 feet

What's Included in these plans?

Four Exterior Elevations
Main Floor Plan
Second Level Floor Plan – if Applicable
Basement Floor Plan – if Applicable
Bonus Floor Plan – if Applicable
Building Sections
Typical Wall Detail
Foundation Plan and Details
Second Floor Framing Plan – if Applicable
Roof Framing Plan
Electrical Plan

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This Barn Recreation Plan offers a total covered area of 0 sq. ft. Plan 2464-00212 has the following features: Kitchen, Storage, Bathroom and Sports Court. America's Best House Plans offers high-quality Recreation plans from professional architects and home designers across the country with a best-price guarantee. All of our Recreation Plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
