Barn Plan 2464-00117

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,521
Beds 1
Bath 1
1/2 Baths 0
Car 2
Stories 1.5
Width 62'
Depth 48'

Floorplan Drawings

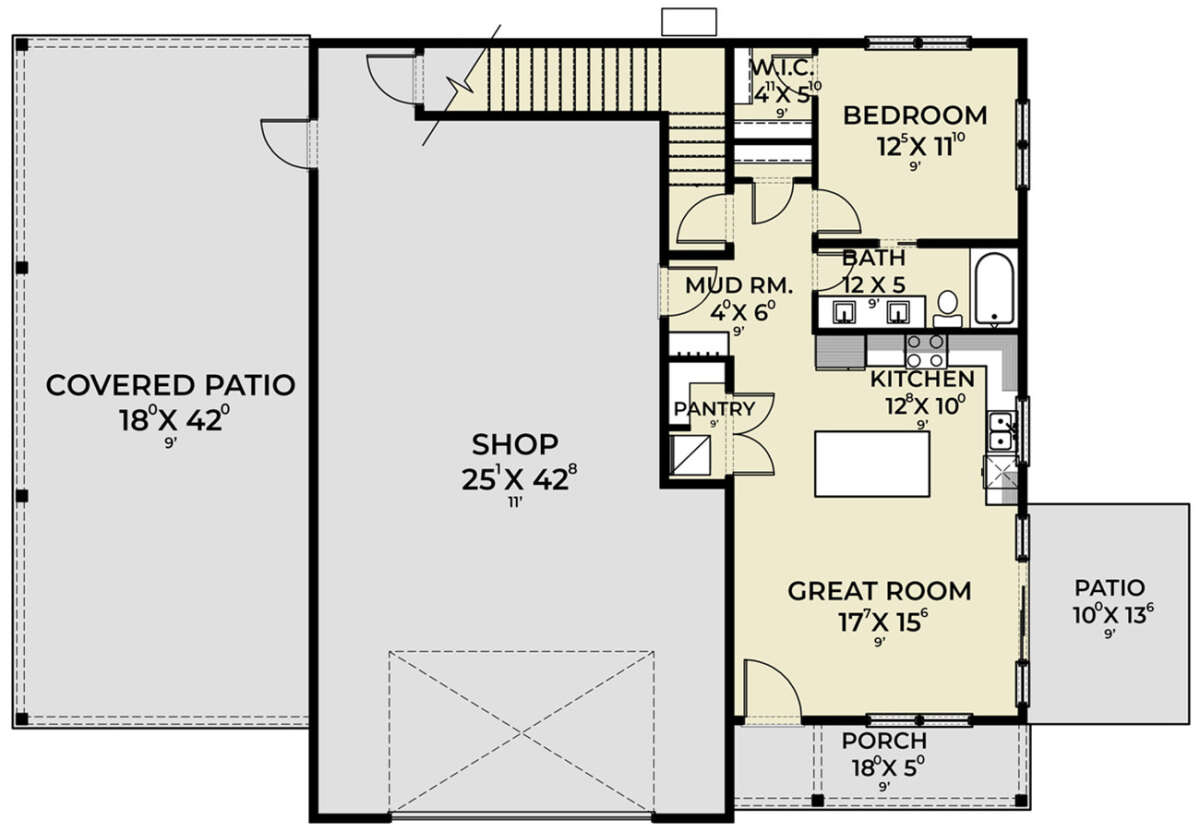

Main Floor
Main Floor  for House Plan #2464-00117

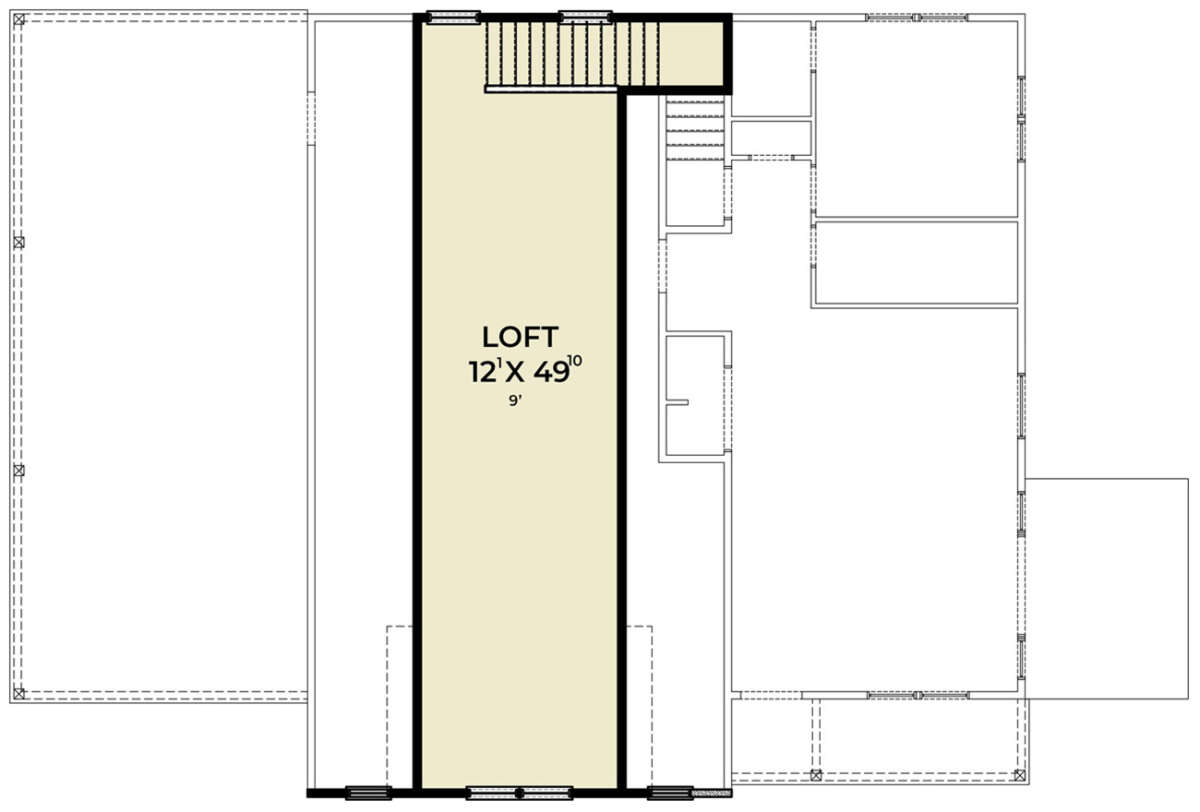

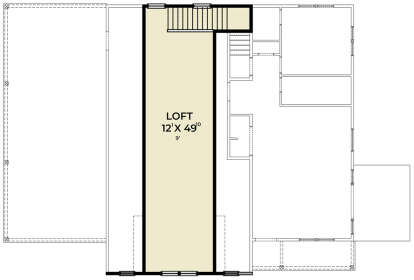

Loft
Loft for House Plan #2464-00117


What's Included in these plans?

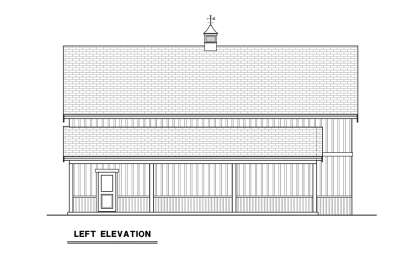

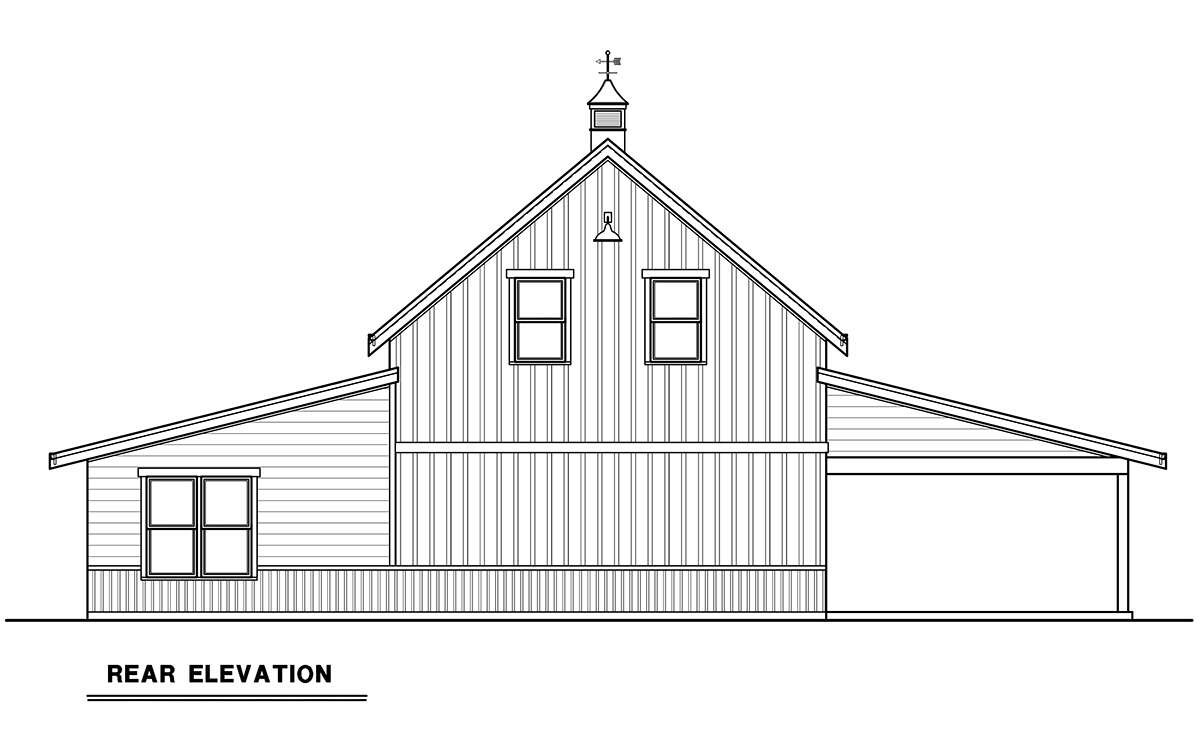

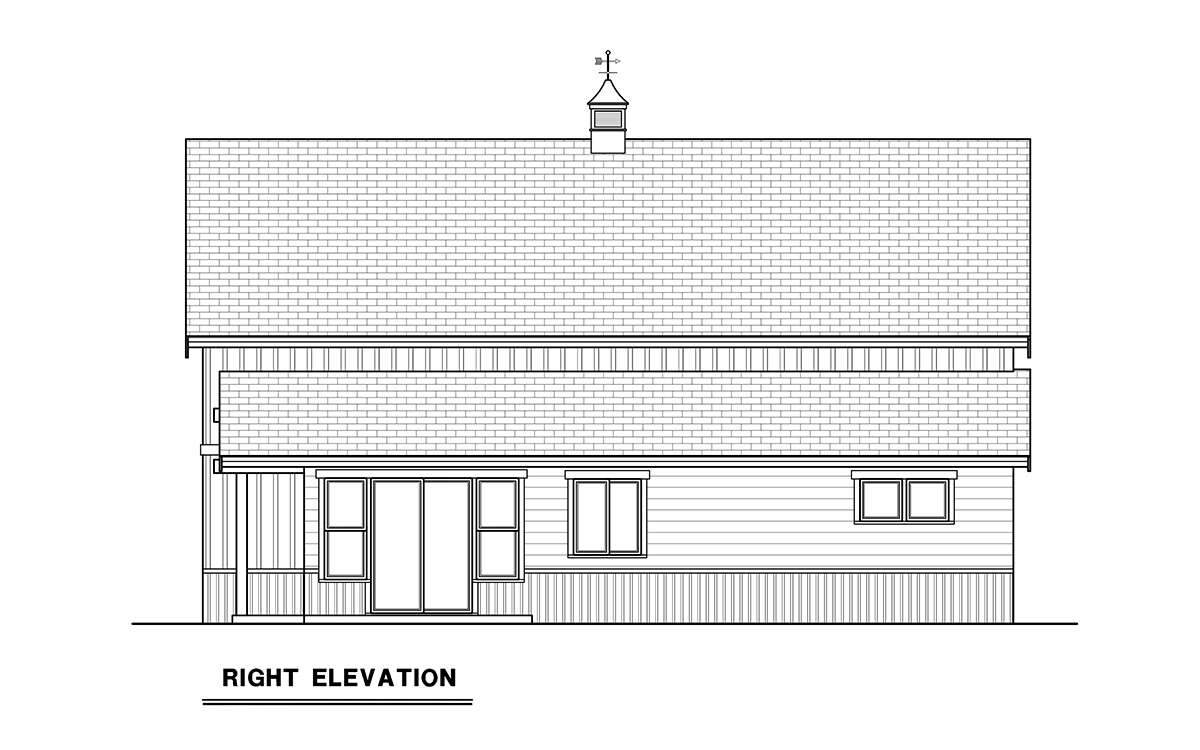

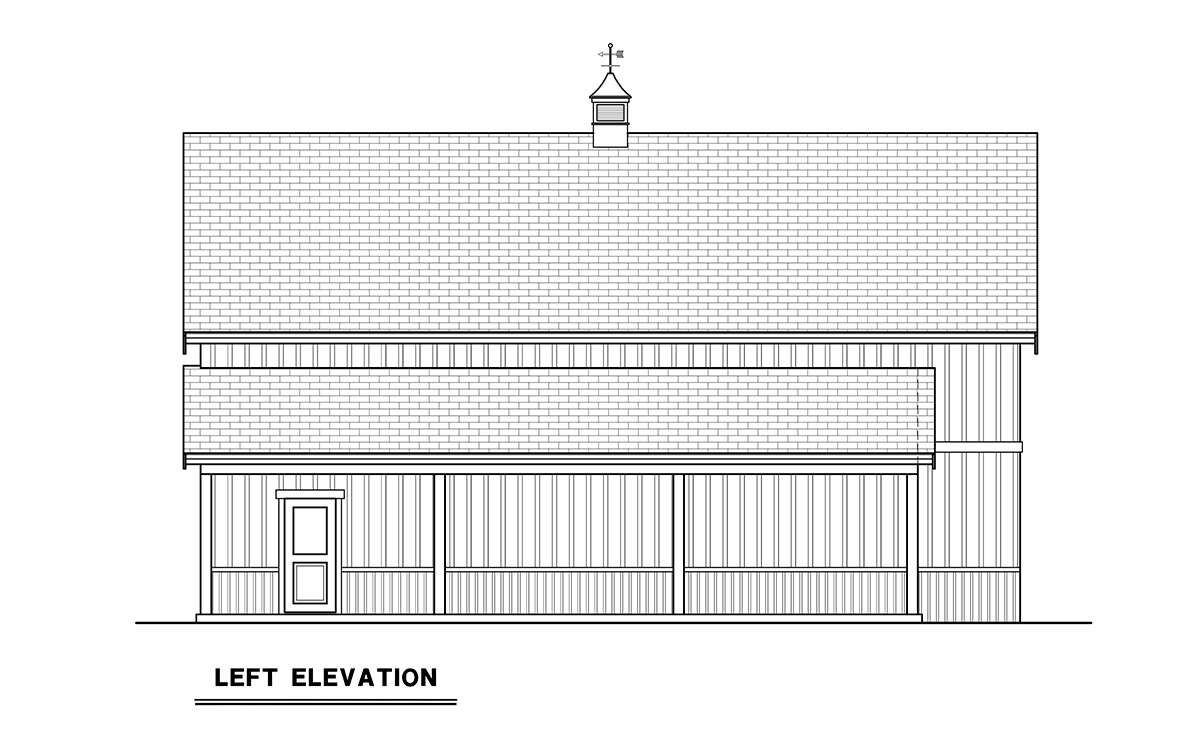

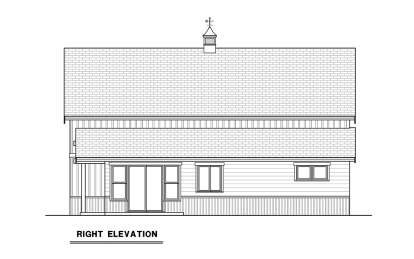

  • Four Exterior Elevations
  • Main Floor Plan
  • Second Level Floor Plan – if Applicable
  • Basement Floor Plan – if Applicable
  • Bonus Floor Plan – if Applicable
  • Building Sections
  • Typical Wall Detail
  • Foundation Plan and Details
  • Second Floor Framing Plan – if Applicable
  • Roof Framing Plan
  • Electrical Plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1 bedroom, 1 bathroom Barn house plan features 1,521 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
