Passive Solar House Plan 192-00016

Sq Ft2,149
1/2 Baths0
Width44' 0"
Depth78' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #192-00016
Floorplan 2 for House Plan #192-00016
Floorplan 1
Floorplan 1 for House Plan #192-00016

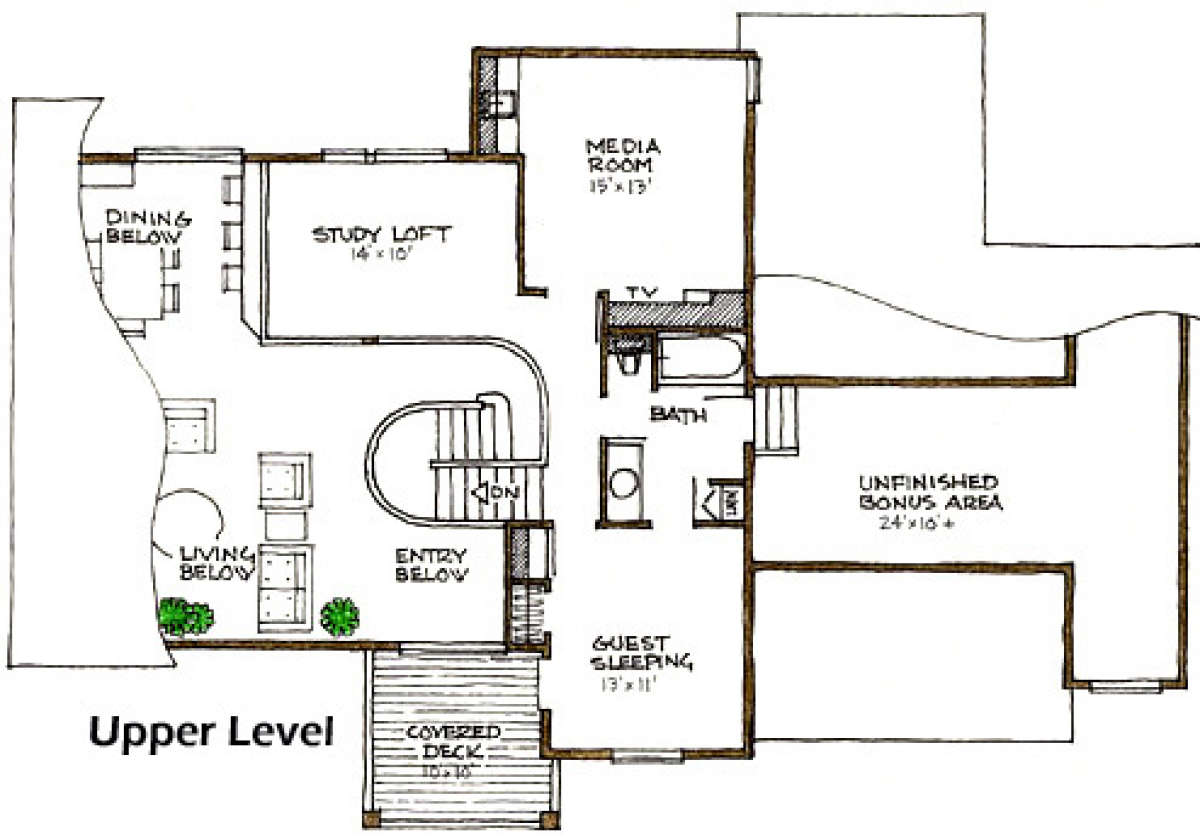

Floorplan 2
Floorplan 2 for House Plan #192-00016

Frequently Asked Questions


What's Included in these plans?

    Slab on Grade: Most of these designers plans are designed with a raised slab to reduce heat loss and give owners the best option for radiant floor heating.
    Crawl Space:  Type of foundation can be viewed on each plan's detail page.
    Basement:  Our basement is indicated as lower level floor plan and detailed appropriately.
    Floor plans are drawn at ¼" scale and incorporate 24" module framing for material conservation.
    Exterior walls are drawn as 2' x 6' framing with optional insulation detail provided in our Conservation Guide included with all plans.
    House plans include a roof framing and drainage sheet and truss profiles where appropriate.
    Each house plan includes four sides, elevations as well as any special exterior details.
    Showing interior framing i.e. stairs, structural beams, joists, rafters, truss, and interior elevations.
    In general, each house plan set includes an electrical plan showing lights, fans, switches, special receptacles, and mechanical equipment locations.
    Includes energy recovery ventilation design (optional air-to-air heat exchanger).  Where applicable: radiant floor heating layout, solar air distribution system, night flush economizer system, and location of mechanical appliances.
    123-page book emailed to you in PDF form, which covers energy-efficient concepts that won this designer the National Gold Energy Value and Green Builder of the Year awards from the National Association of Home Builders and the US Department of Energy.  This material is included to help you evaluate energy conservation features and equipment you choose to incorporate in your new home.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

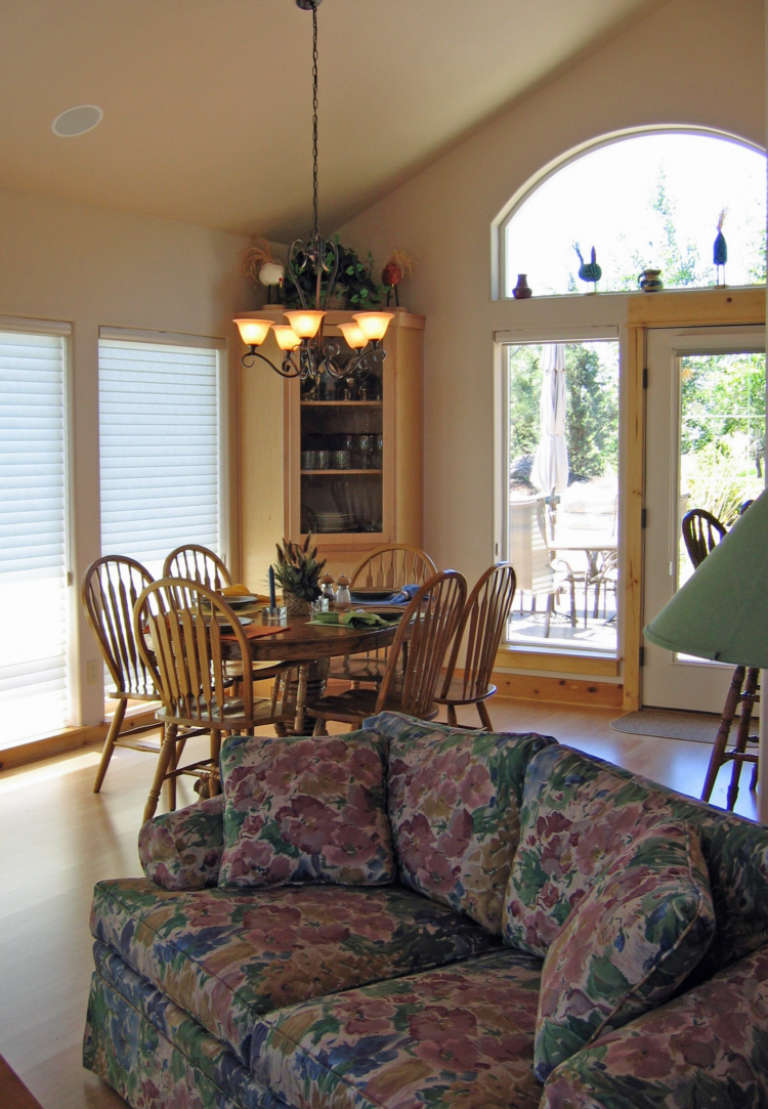

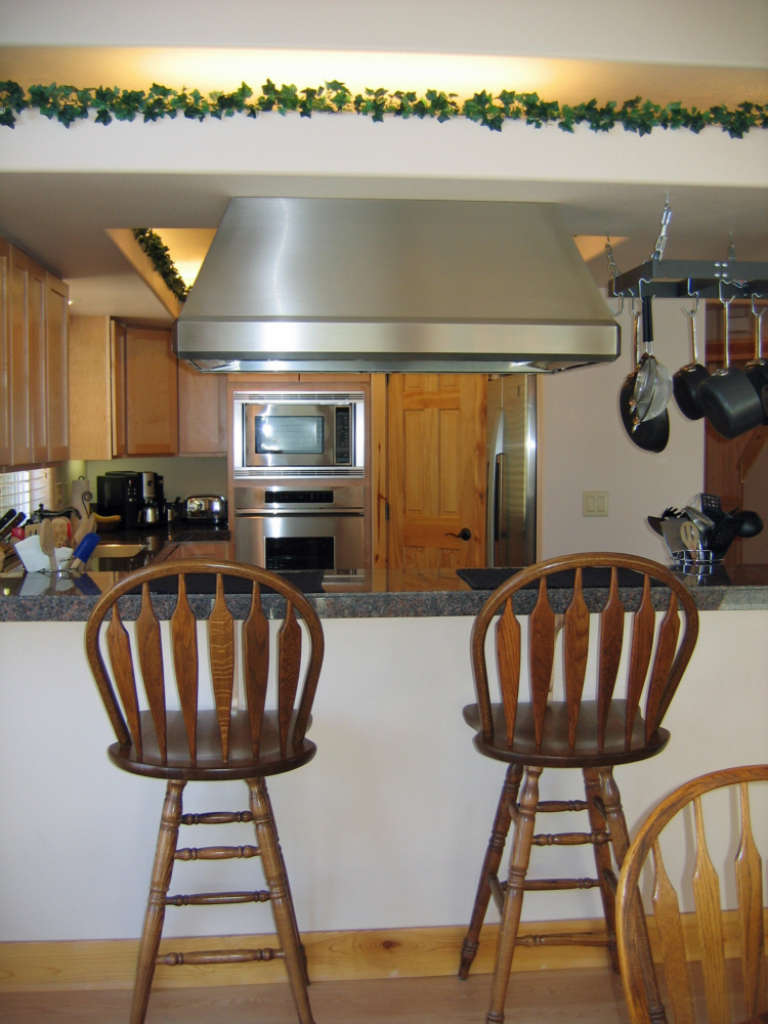

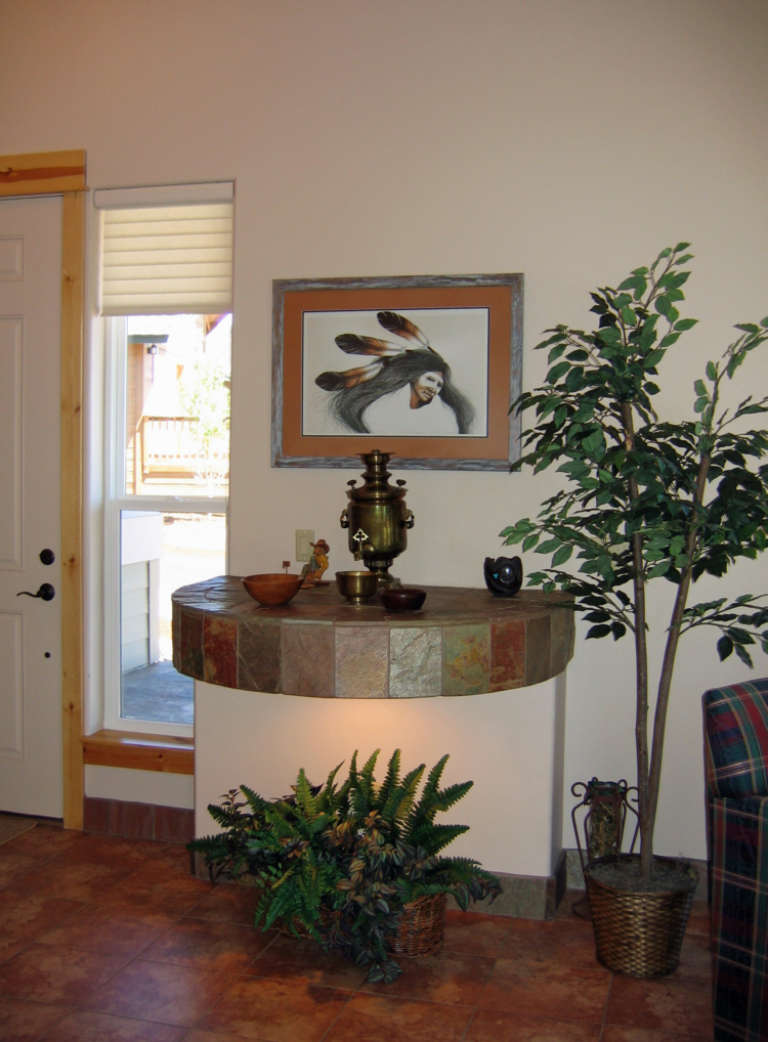

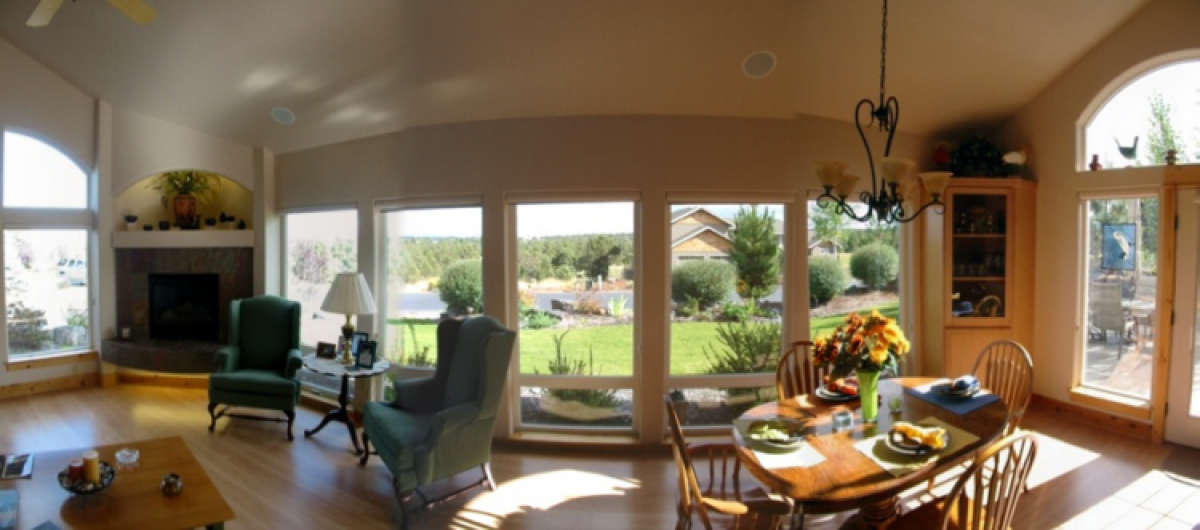

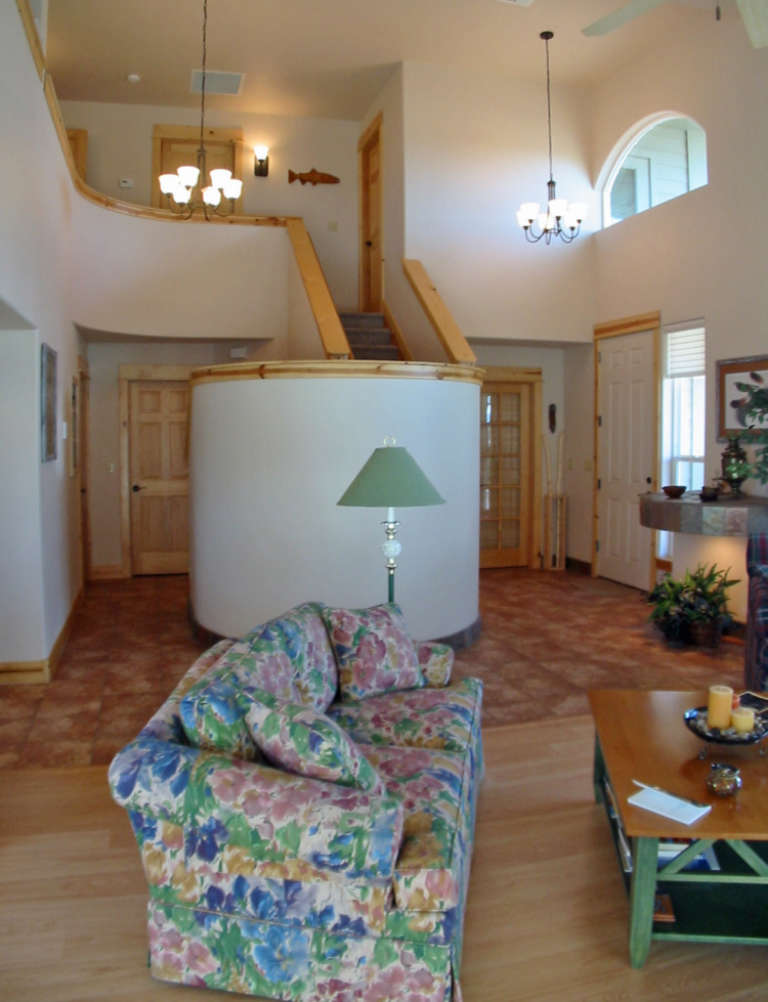

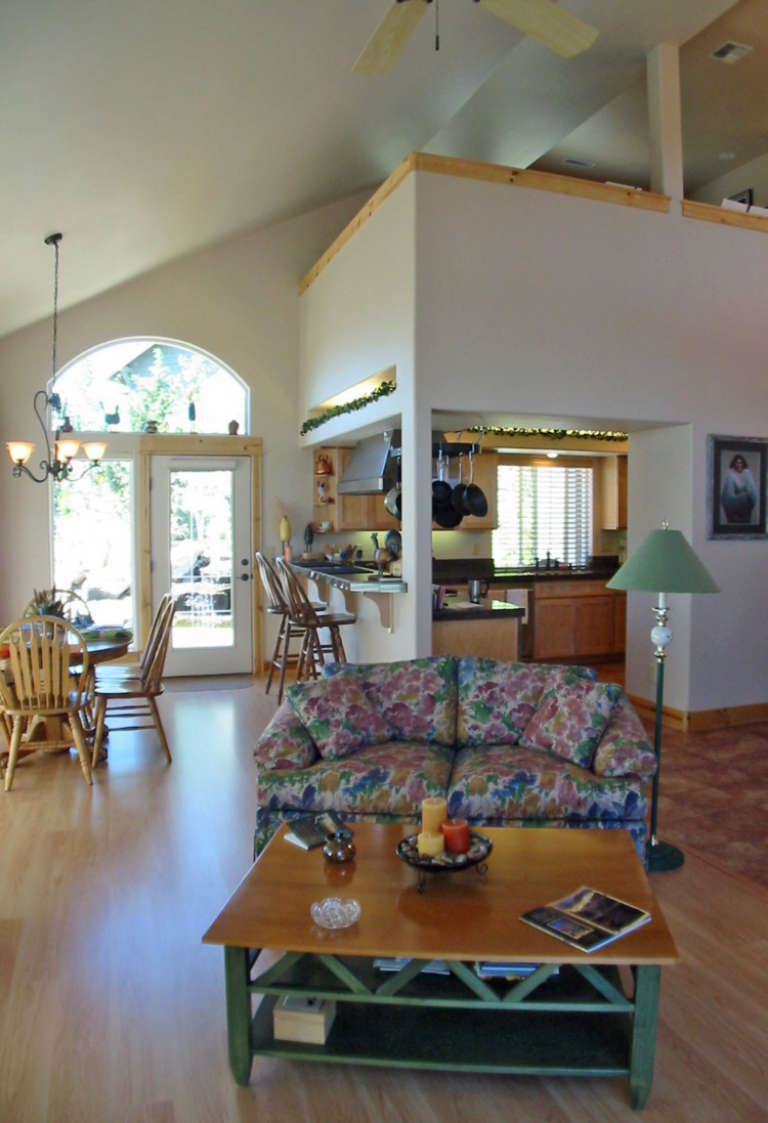

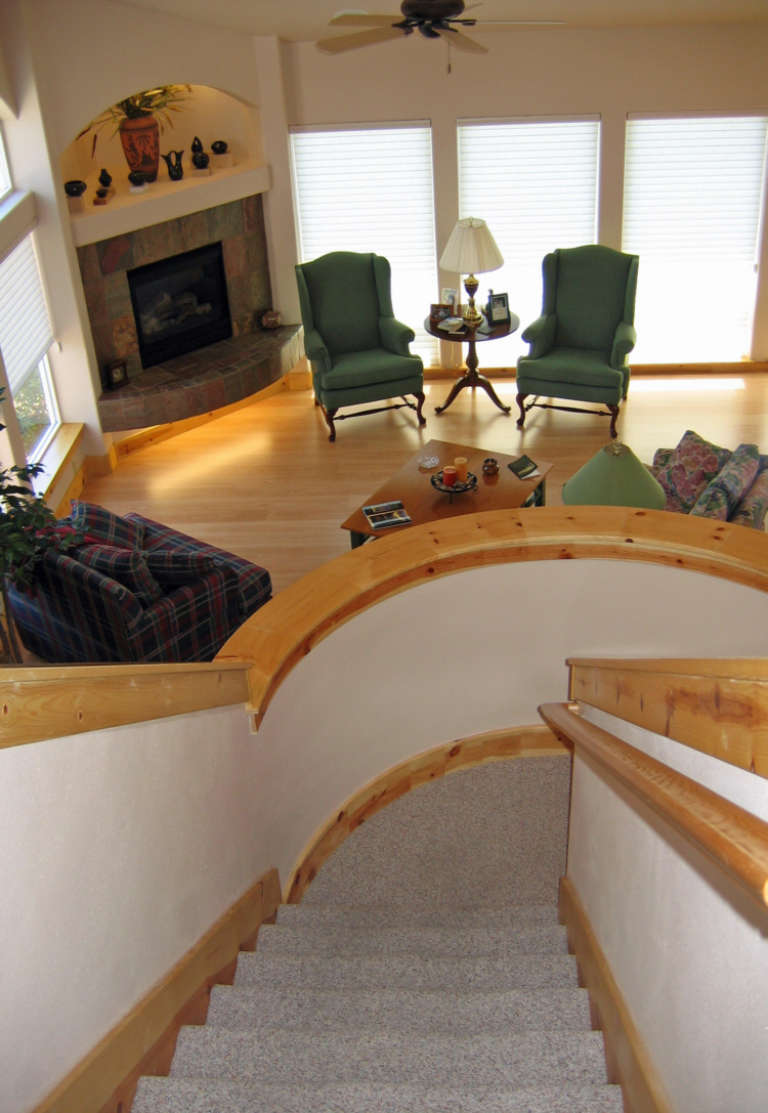

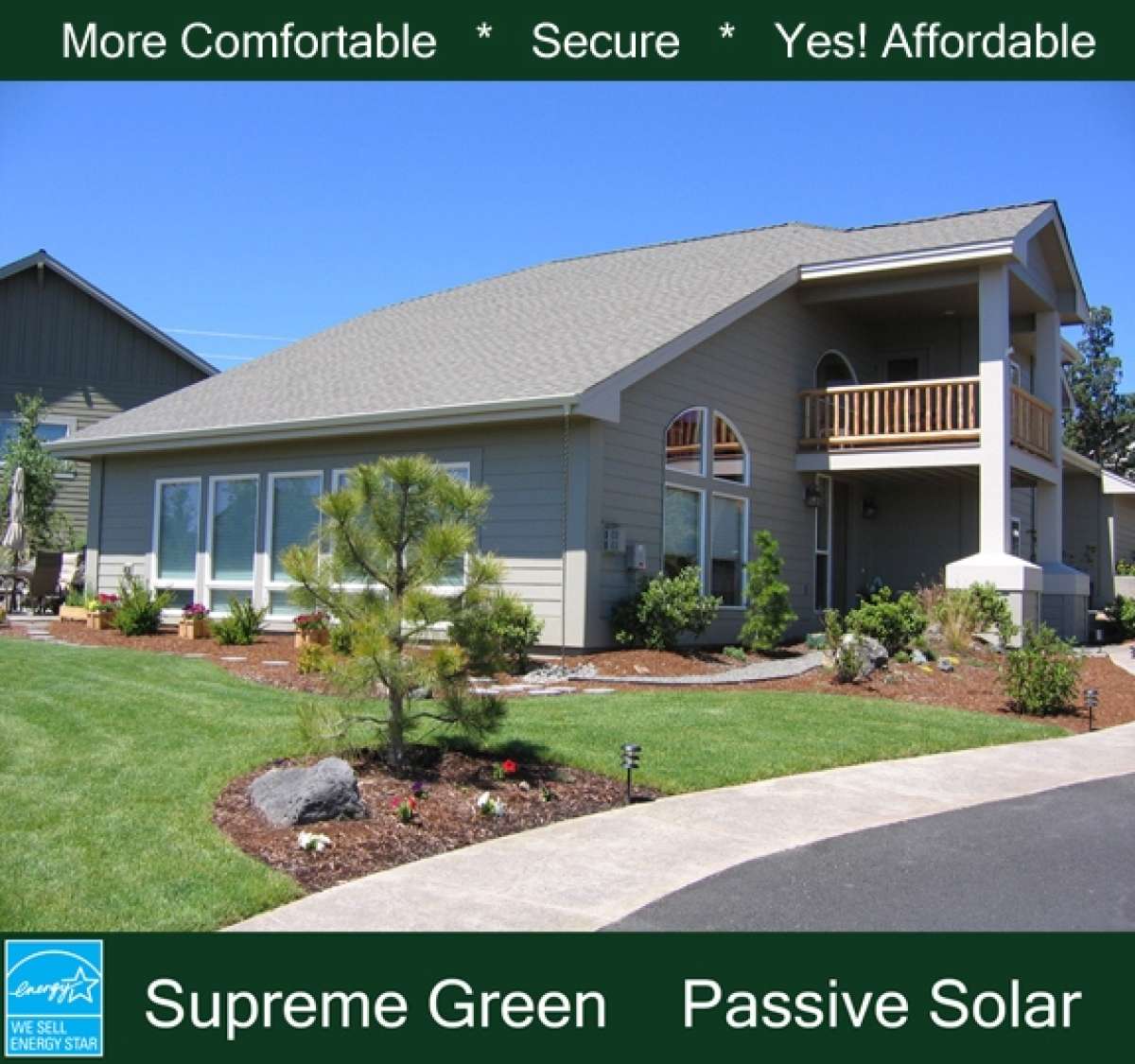

Supreme green and a passive solar design are featured in this attractive one and half storied home along with an Energy Star rating; the trusted symbol assigned to energy efficient products designed for costs reduction and protection of the environment. Panoramic window vistas abound in the home along with wide open interior spaces and vaulted ceilings giving this passive solar home an “all star” appearance and rating. The home features approximately 2,149 square feet of living space containing three bedrooms and three baths. The bonus room adds an additional 288 square feet while the three car garage is perfect for vehicle and other gear storage with its 873 square feet. This is a large home complemented with captivating living space on the interior and exciting outdoor space. The covered front porch leads to the expansive two story foyer which houses a guest coat closet and unique radius second story staircase. The open concept living and dining spaces feature a large living room containing vaulted ceilings and a handsome fireplace. The adjoining dining room is spacious and the gourmet kitchen features an open breakfast bar, a separate pantry and an abundance of additional counter and cabinet space. The rear patio is centrally accessible from the main living spaces, is quite large and the hot tub is a great feature for relaxing. There is a cozy front office with closet space which could function as a private space or additional bedroom with an adjacent full bath and linen closet. A huge interior utility room is situated off the garage for ease and convenience. The massive garage houses plenty of vehicle storage space and part could be set up as a workshop. The main level master suite features an outstanding footprint; there is a large bedroom with private patio access and an oversized walk-in master closet. The beautifully designed bath is highlighted by dual vanities, a large garden tub, separate shower, a huge linen closet and a private toilet area.
The second story landing features a balcony overlook onto the main living spaces below and provides great space for a family lounge, library or homework station for the children. There are a multitude of flex spaces on the second floor which could be used as bedrooms, media rooms and the enormous bonus room would be perfect as a multi-purpose family room, hobby room or artist’s studio. There is a full bath with a large vanity, linen closet, a private toilet area and a shower/tub combination. Additionally, there is a covered upper deck designed for second floor outdoor enjoyment as well. This large home was designed with passive solar through the living/dining room wall and originally built with an air-to-water heat pump providing warm or cool water to the radiant floor heating/cooling system on the first level and forced-air heating system in the upper level makes this home very comfortable in all seasons. The 102-page Conservation Guide providing the latest in building science and proven cost-effective, energy-saving features that you may incorporate in the construction of your new home is also included.
