Your Dream Home is Waiting! Save 15% Off & Free Ground Shipping

Limited plans not eligible for discounts

Cottage House Plan 1785-00171

Sq Ft1,501
Beds3
Baths2
1/2 Baths0
Stories1
Cars1
Width48' 0"
Depth44' 2"

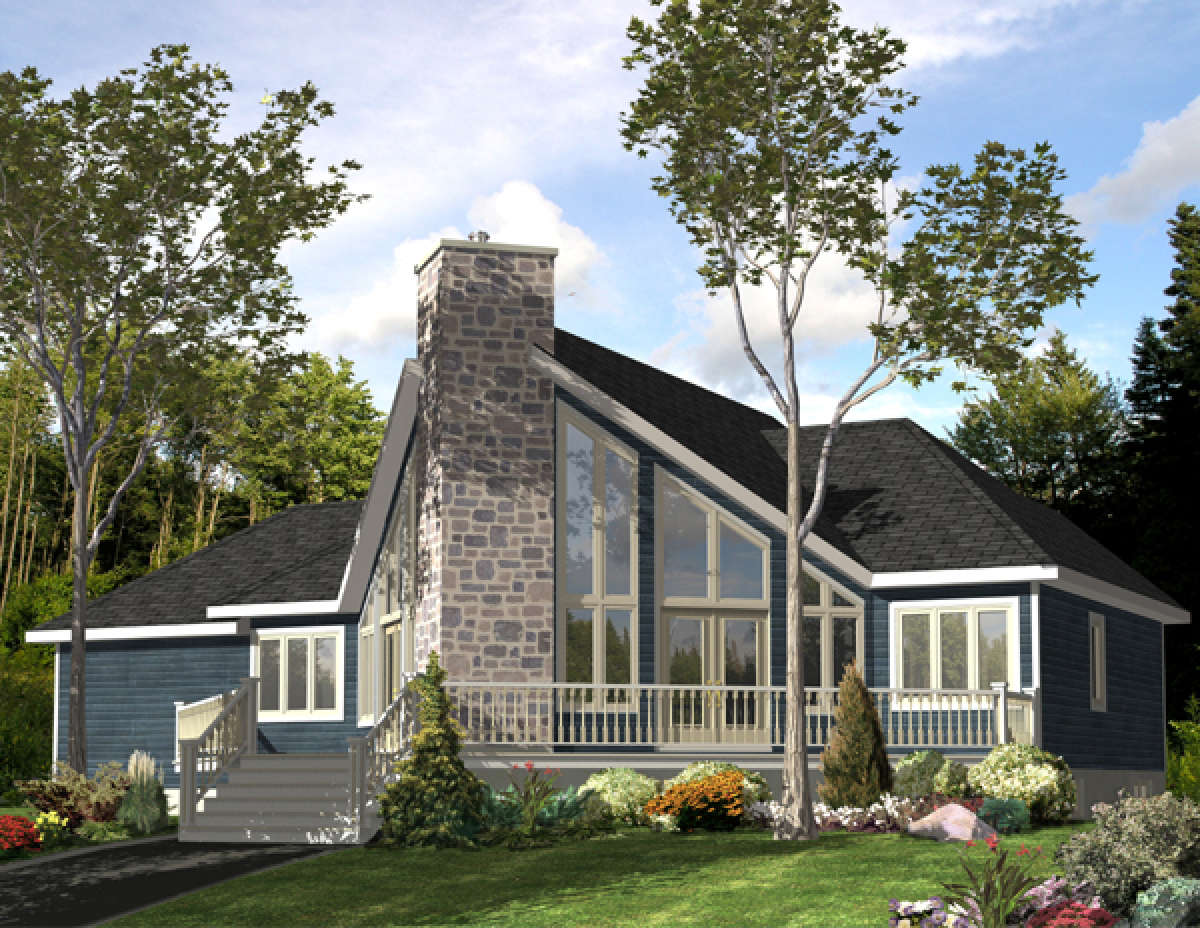

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

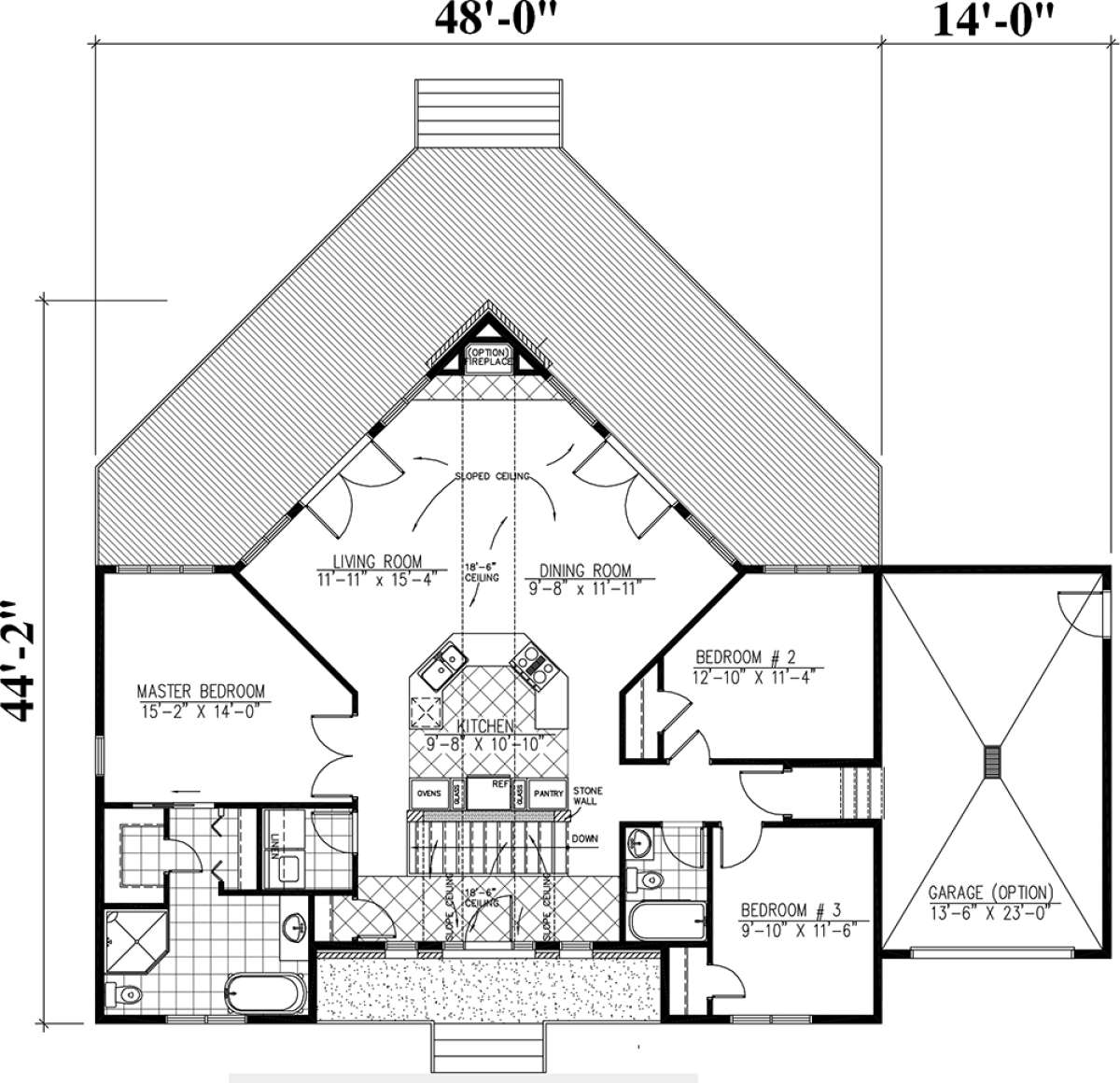

Floorplan 1 for House Plan #1785-00171
Floorplan 1
Floorplan 1 for House Plan #1785-00171


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
  • Electrical Plan are include with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Foundation Plan and Details
    *Each Stock house plan set includes one foundation type.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Plan
    Each house plan set may include a roof plan which will show the layout of all roof sections.

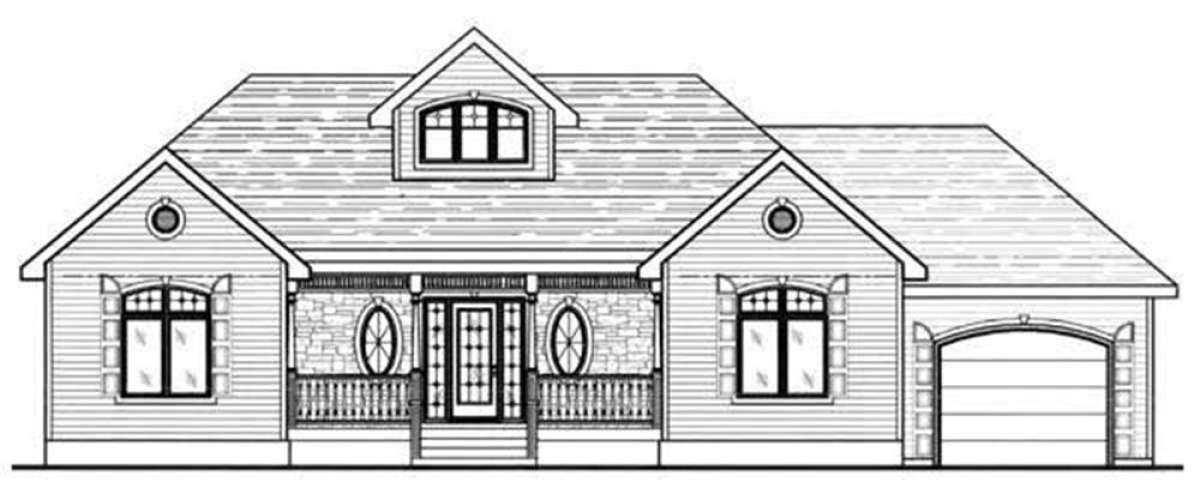

  • Exterior Elevations
    In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
  • Building section
  • Truss section
  • Wall and floor section and construction details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This approximate 1,501 square foot Cottage house plan would make an outstanding choice as a vacation or “forever” home. Situated on a tranquil lakefront or mountain top, this home would showcase excellent outdoor space and floor to ceiling windows designed for panoramic window views. The exterior façade includes horizontal siding, a triangular exterior stone chimney juxtaposed between a multitude of window inserts and a huge open deck. Three bedrooms, two baths and wide open common rooms highlight the interior along with an unfinished basement foundation that exactly mirrors the main level square footage. The home’s front entrance features an extended covered porch and spacious interior foyer which dramatically sets the tone for the remainder of the interior. A stone wall feature is highlighted on the rear kitchen wall and passage is allowed on either side into the kitchen where there are flanking dining and living spaces. The grand kitchen is highlighted with a wraparound bar that houses a cook top, double sinks, loads of work and prep space while the rear wall houses a separate pantry and modern amenities. The living and dining rooms veer out from the kitchen and feature soaring ceiling heights, an optional fireplace and on-point spacious rooms for maximizing the views and furniture placement. There is French door access onto the V-shaped open deck from both sides of the room; this enormous deck is continued entertaining and relaxing space and perfectly reflects the concept of bringing the outdoors in whether through the expansive window views or open doorways. Two family bedrooms are situated on one side of the home’s geometrical floor plan; each bedroom is spacious with plentiful closet space and a shared hall bath offers a vanity space, a toilet area and a tub/shower combination. The side hallway features passage to the optional 336 square foot garage for convenience. The master suite’s location provides privacy and French door access into the bedroom. There is an attached master walk-in closet and the en suite bath is highlighted with a large vanity, a separate shower and a soaking tub. This home features a unique and functional floor plan and an exterior designed for entertaining and relaxing with large groups of family and friends.
