Luxury Plan 1785-00166

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,850
Beds 4
Bath 2
1/2 Baths 1
Car 3
Stories 2
Width 71' 4"
Depth 50' 3"

Floorplan Drawings

Floorplan 1

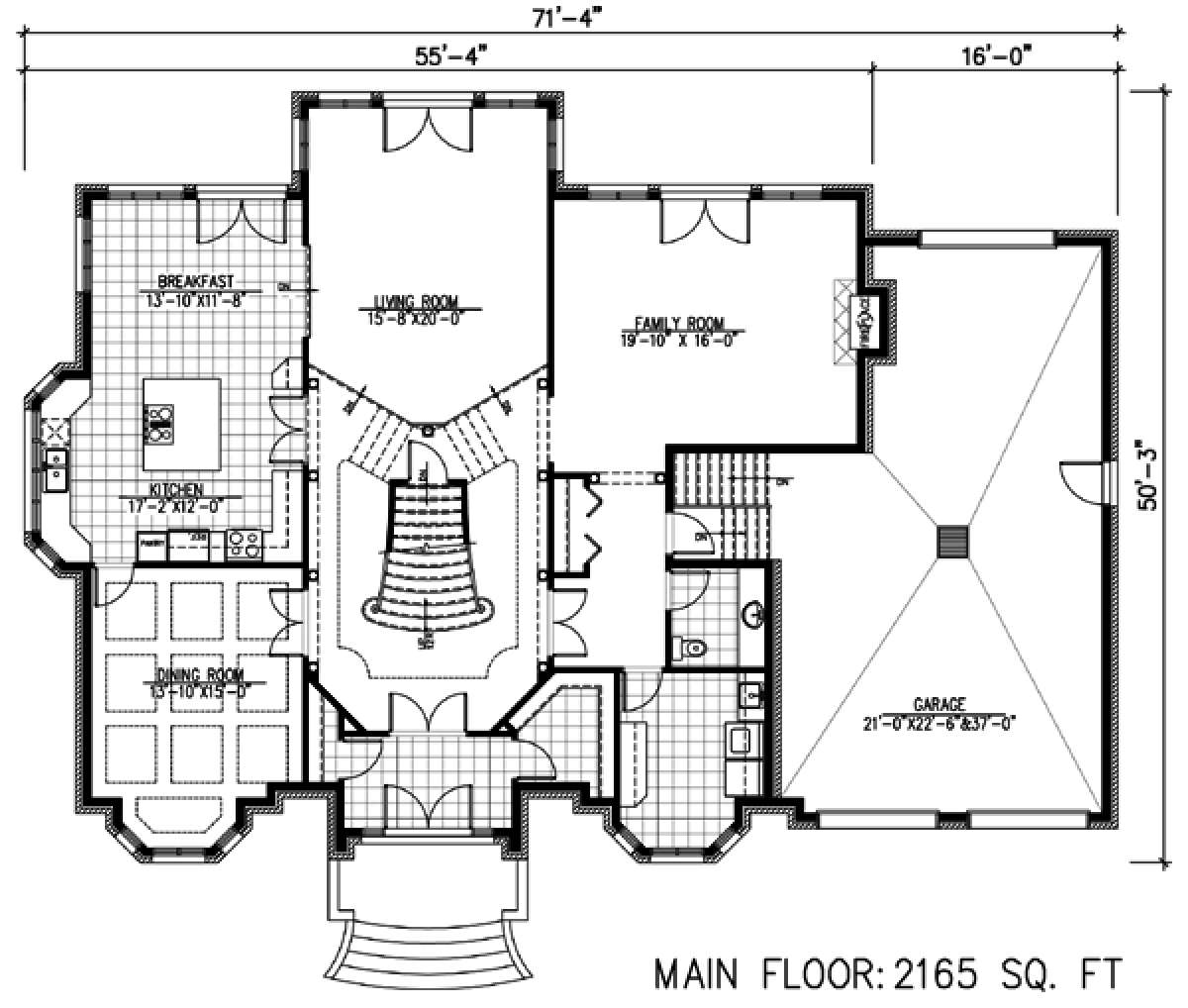

Floorplan 1 for House Plan #1785-00166
Floorplan 2

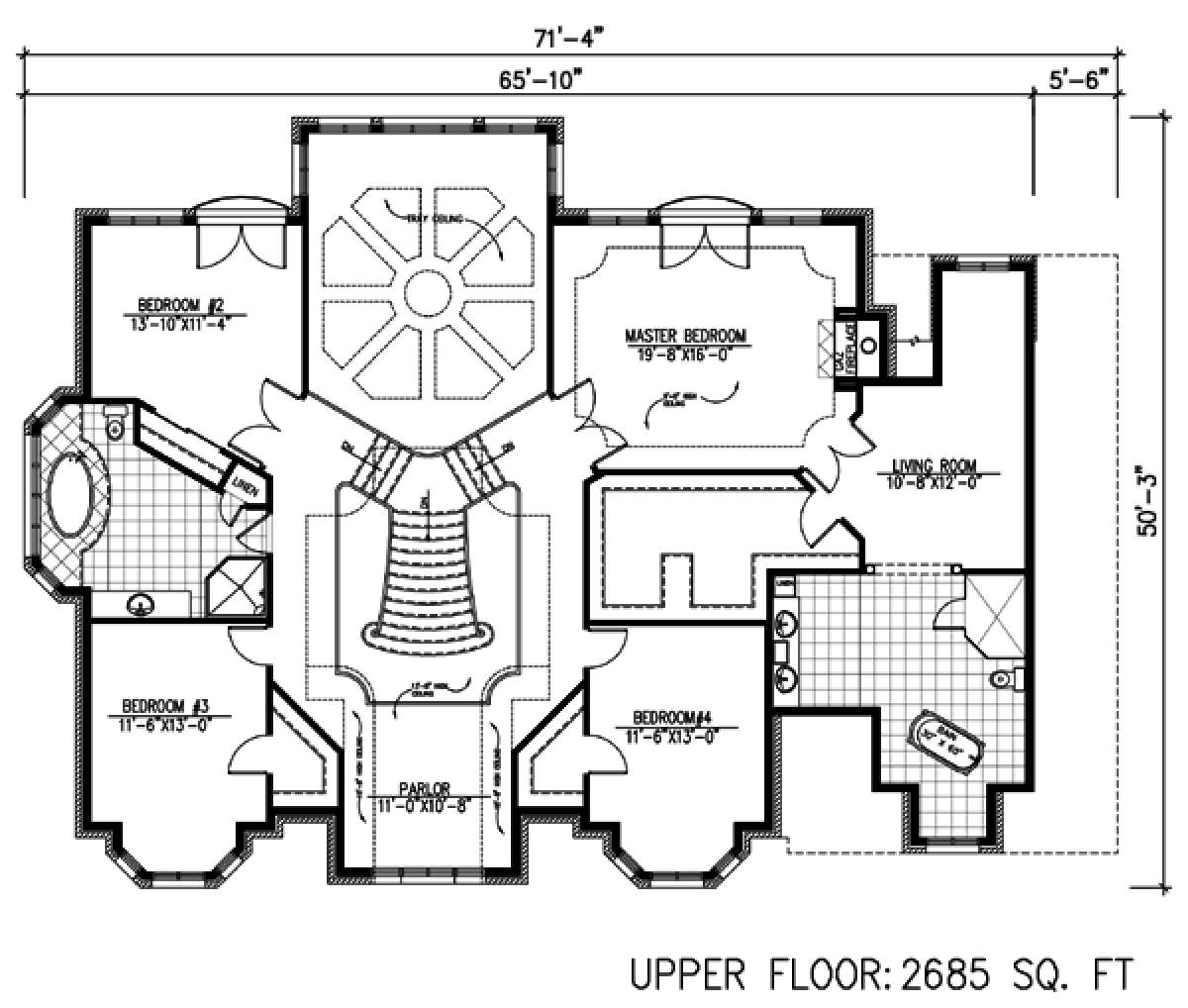

Floorplan 2 for House Plan #1785-00166


What's Included in these plans?

  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
  • Electrical Plan are include with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Foundation Plan and Details
    *Each Stock house plan set includes one foundation type.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Plan
    Each house plan set may include a roof plan which will show the layout of all roof sections.
  • Exterior Elevations
    In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
  • Building section
  • Truss section
  • Wall and floor section and construction details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 2 bathroom Luxury house plan features 4,850 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
