Traditional House Plan 1785-00149

Sq Ft874
1/2 Baths0
Width26' 0"
Depth34' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

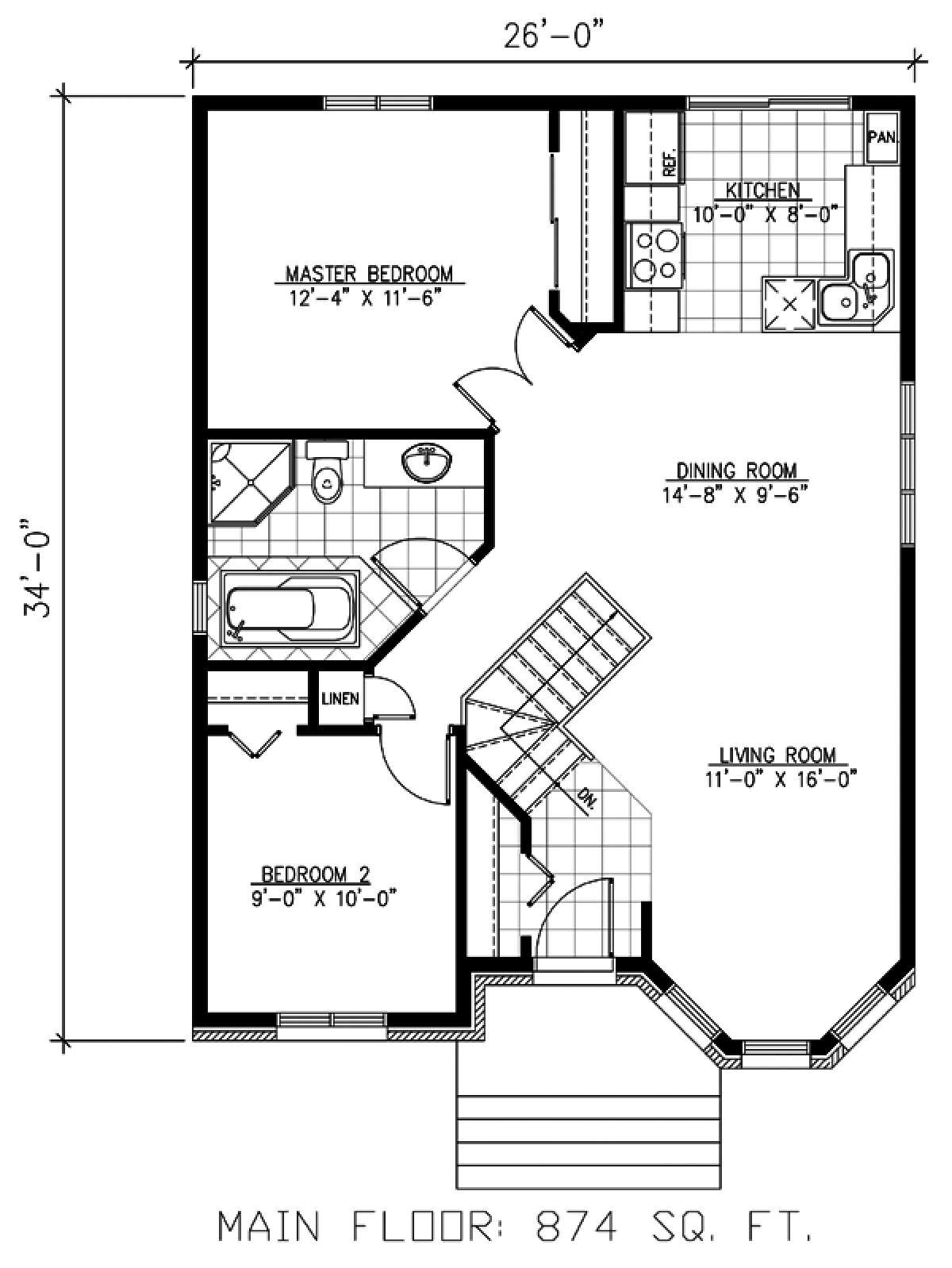

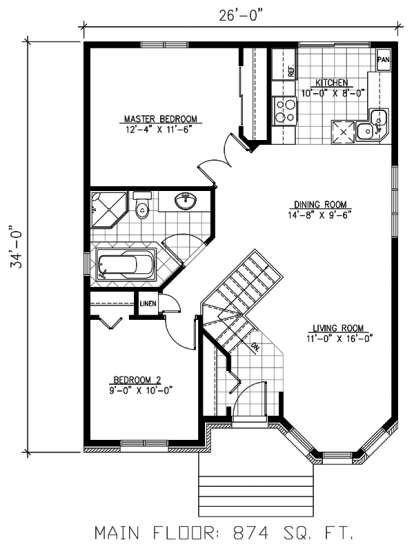

Floorplan 1 for House Plan #1785-00149
Floorplan 1
Floorplan 1 for House Plan #1785-00149

Frequently Asked Questions


What's Included in these plans?

  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
  • Electrical Plan are include with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Foundation Plan and Details
    *Each Stock house plan set includes one foundation type.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Plan
    Each house plan set may include a roof plan which will show the layout of all roof sections.
  • Exterior Elevations
    In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
  • Building section
  • Truss section
  • Wall and floor section and construction details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

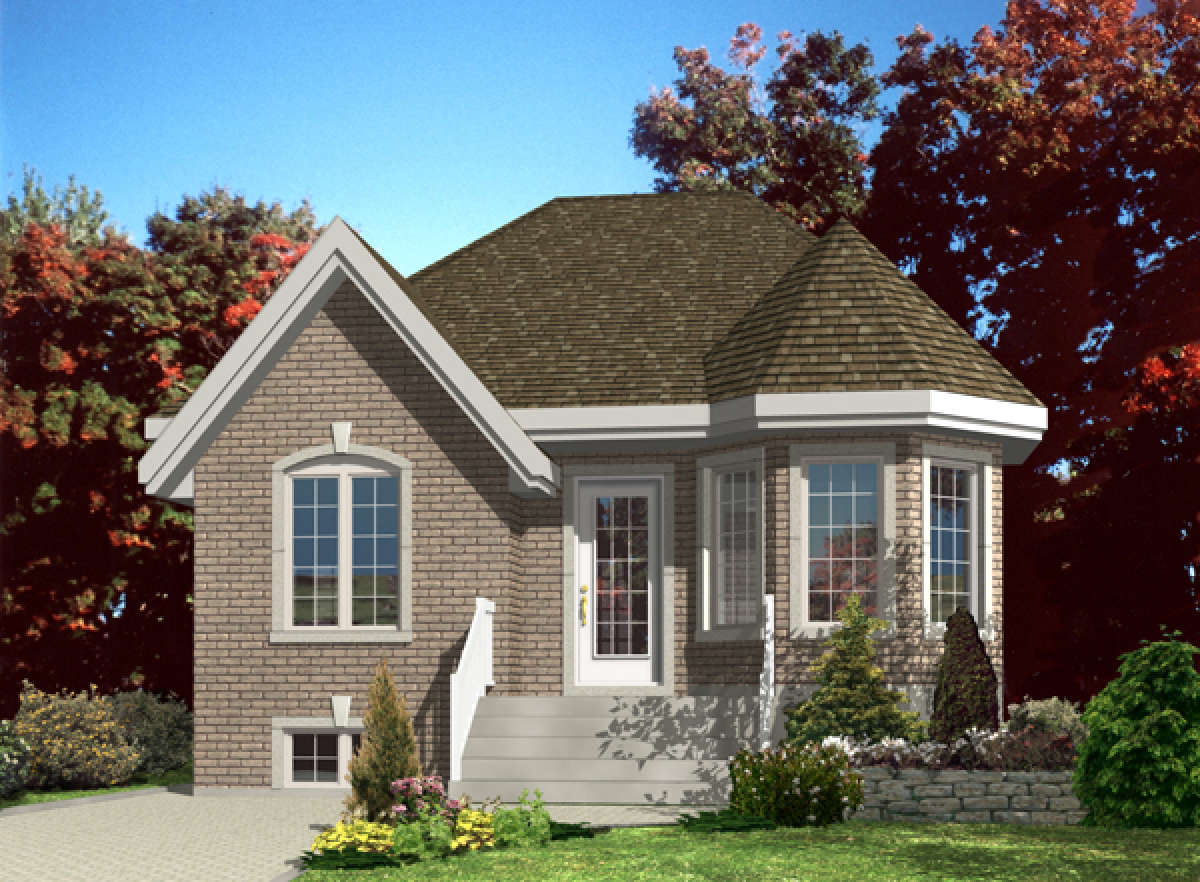

This Traditional house design features an assortment of modern amenities for a young professional couple just beginning their journey or empty nesters desiring to downsize their lifestyle. The single story home contains approximately 874 square feet of living space consisting of two bedrooms and one bath. A striking exterior façade is highlighted with low maintenance brick, plentiful window views, a turret inspired wall feature and a front covered porch. The home’s drawings come complete with a basement foundation which precisely mirrors the main floor’s usable living space. Endless possibilities abound as to the lower level expansion purposes; a second entertaining area, a hobby/craft room or an additional bedroom and bath could be easily added. A complete teen-ager suite or in-law apartment could be configured in the space providing much needed assistance with an elderly or infirmed family member. The width and depth dimensions, 26’ and 34’ respectively are conveniently suited for a narrow and/or small lot. The greeting foyer houses a large coat closet and the staircase to the lower level before opening onto the spacious living room. The sun drenched living room is comfortably sized and features a large bayed window. There is an adjoining dining room that has a triple window wall and anchors the living room and kitchen. The kitchen is ideal for the family chef and is highlighted with an abundance of counter and cabinet space, a separate pantry and sliding glass doors access the rear of the home.
The second bedroom has double window views and generous closet space and could be used as a guest suite or home office. There is a hall linen closet and the comprehensive shared hall bath enjoys a large footprint where a large vanity, toilet area, a separate shower and large soaking tub is revealed. The master bedroom is accessible through French doors, is comfortably sized with a double window views and contains a closet that spans nearly the length of the room. The home while compact features modern amenities and design features usually found in larger and/or more expensive home that result in a gratifying lifestyle.
