Small Plan 1785-00130


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,565
Beds 3
Bath 2
1/2 Baths 1
Car 1
Stories 1
Width 32'
Depth 30'

Floorplan Drawings

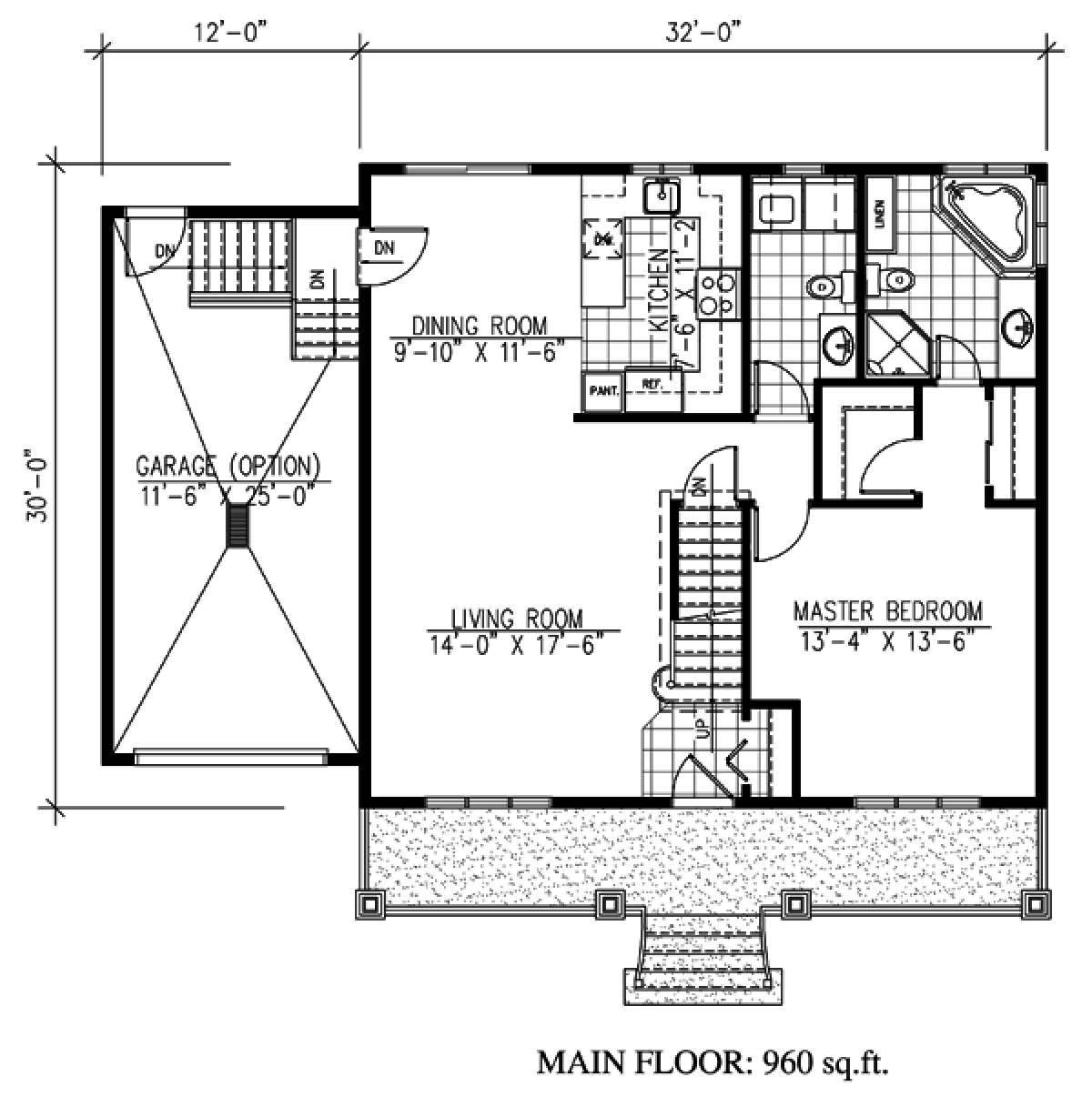

Floorplan 1

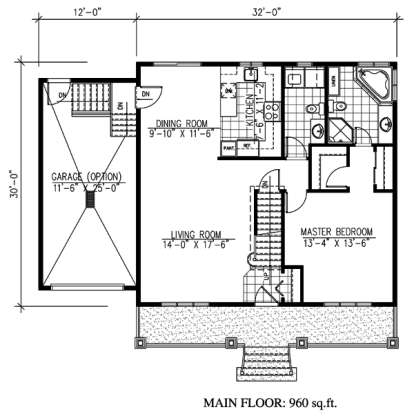

Floorplan 1 for House Plan #1785-00130

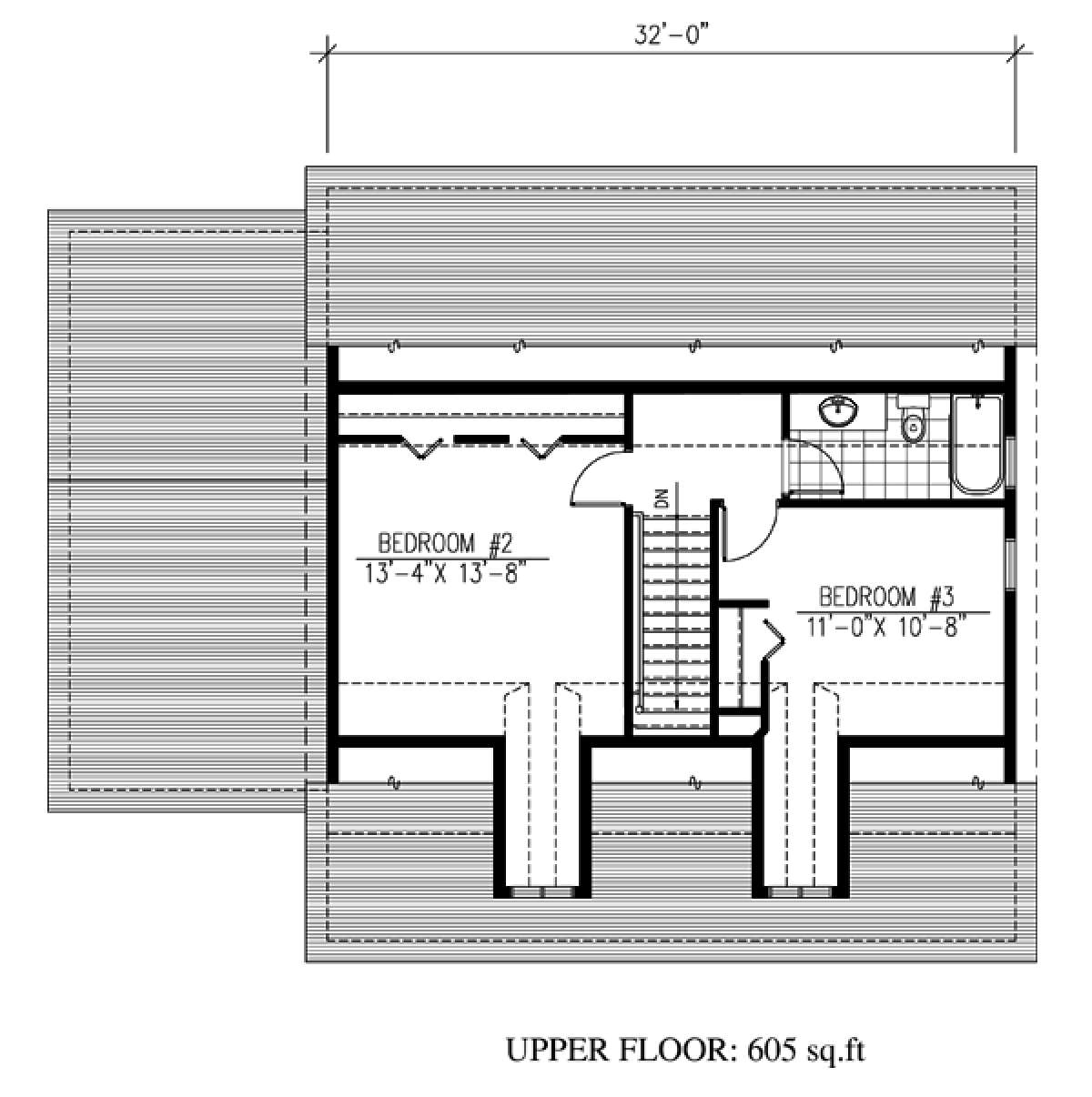

Floorplan 2

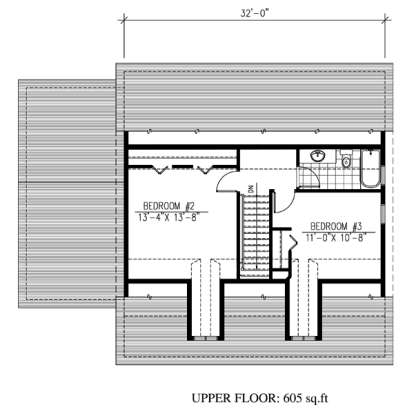

Floorplan 2 for House Plan #1785-00130

What's Included in these plans?

  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
  • Electrical Plan are include with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Foundation Plan and Details
    *Each Stock house plan set includes one foundation type.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Plan
    Each house plan set may include a roof plan which will show the layout of all roof sections.
  • Exterior Elevations
    In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
  • Building section
  • Truss section
  • Wall and floor section and construction details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

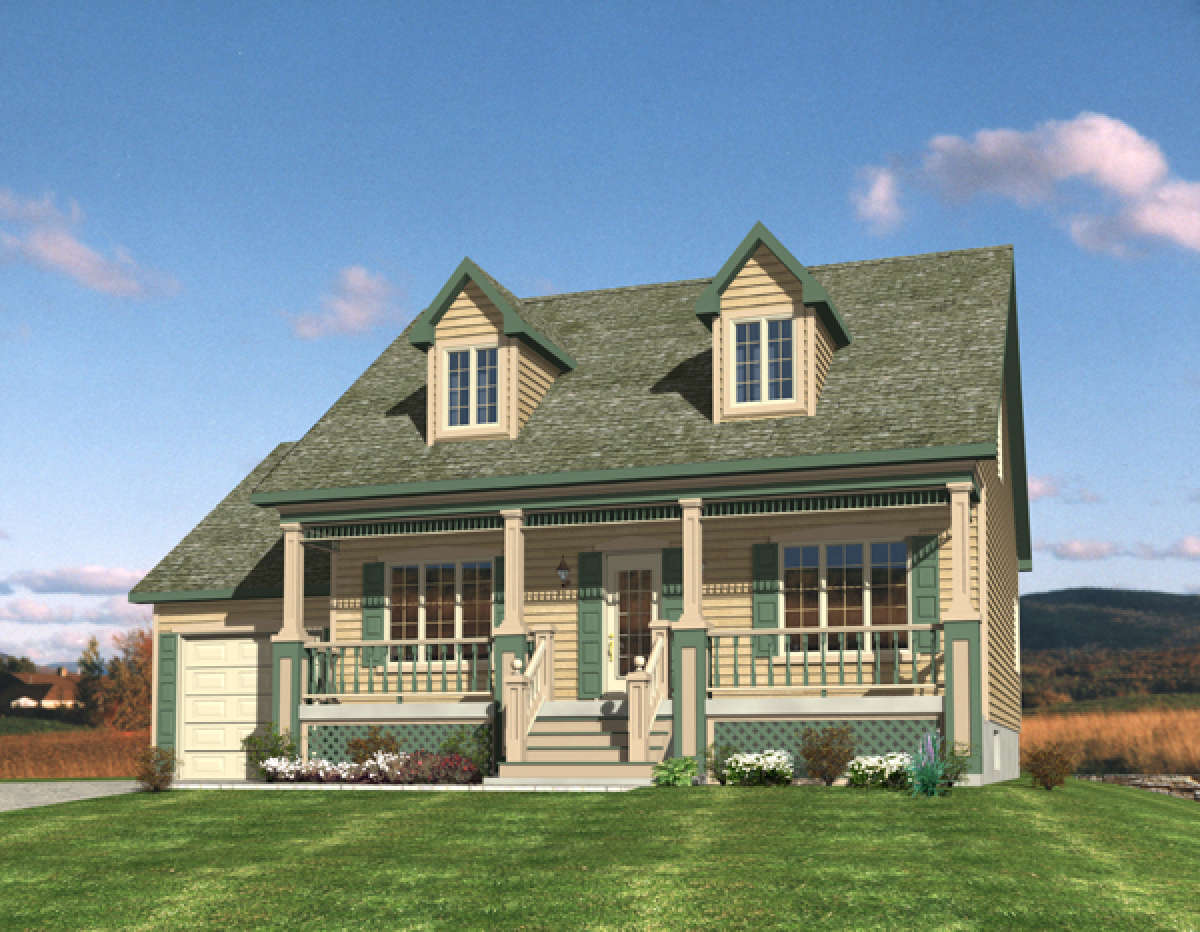

This Country house plan features an All-American exterior that exudes a charming and welcoming feel to the home’s facade. A large rocking chair front covered porch features expansive space to greet family and friends while relaxing and enjoying the outdoor weather. Double window dormers sit atop the simple construction roof and abundant window features allow for a sun drenched interior. The interior floor plan is highlighted with three bedrooms and two plus baths in approximately 1,565 square feet of living space. Width and depth dimensions, 32’ and 30’, respectively, allow for the home to be built on a small and/or narrow lot while the basement foundation offers valuable expansion space. There is a centrally located second level staircase incorporated into the greeting foyer. An expansive living room is situated directly off the foyer and features large entertaining space while the rear dining room opens onto the kitchen. The U-shaped kitchen is highlighted with an abundance of counter and cabinet space, a separate pantry and double window sink views. There is a one car garage with additional storage space conveniently located off the dining space. A main level master suite offers privacy and an oasis of comfortable and modern amenities including a spacious master bedroom with a triple window wall overlooking the front covered porch. There is an attached walk-in closet for her and generous closet space for him. The en suite master bath is all inclusive featuring a separate shower, corner whirlpool tub encased in window views, a large vanity space and interior linen closet. The second floor bedrooms feature dormer window views and spacious footprints in the bedrooms. Bedroom two features plentiful closet space that spans the width of the room and the third bedroom features ample closet space. There is a shared hall bath with an extended vanity, a toilet area and a tub/shower combination. This charming 3/2 All-American home exudes warmth and character, a spectacular exterior and a fully functional and expandable floor plan.
