Cottage House Plan #1785-00118 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 987

Beds 2

Bath 1

1/2 Baths 0

Car 0

Stories 1

Width 34'

Depth 34'

See What's Included

Select Package

PDF (Single Build)

$1,273.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$1,897.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

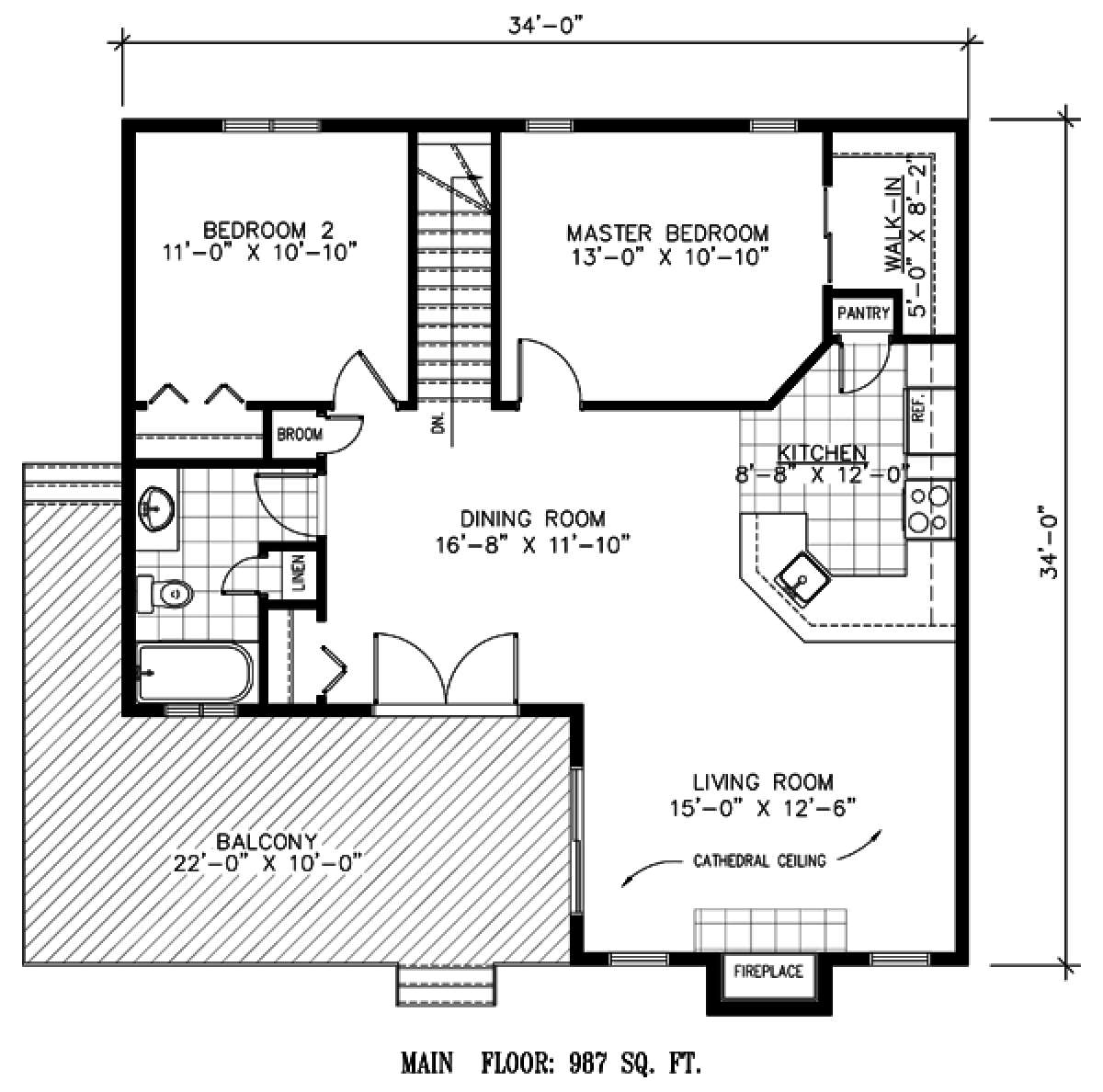

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
Electrical Plan are include with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Foundation Plan and Details
*Each Stock house plan set includes one foundation type.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Roof Plan
Each house plan set may include a roof plan which will show the layout of all roof sections.
Exterior Elevations
In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
Building section
Truss section
Wall and floor section and construction details

Ask Us A Question

About This Plan

Great Cottage plan, ideally suited for a mountain or lakefront property lot, and featuring loads of charm and personality is featured. Outdoor space, wonderful window views and rustic elements are highlighted on the exterior of the home. The interior, while small, features a large open floor plan, two bedrooms and one bath in the single story home. There are approximately 987 square feet of living space; however, the home is situated on a basement foundation which is perfect for expansion. The home’s dimensions, both 34’ in width and depth are ideal for a narrow and/or small property lot and can easily be configured on a wide range of challenging or sloping lots with the adjoining basement foundation. The outdoor balcony offers great space for relaxing, entertaining and hosting a bar-b-q for family and friends; it is deeply set, widely proportioned and wraps around the side of the home as well. Entering the interior from the balcony, there are a set of French doors and overhead transom window which allow a good deal of natural light to flow into the home’s interior. Once inside, the floor plan showcases an open floor plan for ease of access and conversation. There is a large living room boasting of cathedral ceiling heights which enhance the spaciousness of the room along with a warming fireplace and picturesque window views. The dining room features good floor space and plenty of room to dine with family and friends comfortably. The adjacent kitchen is highlighted with an angled breakfast bar, a separate pantry and plenty of additional counter and cabinet space. A coat closet and broom closet are situated on either side of the bath for guests and storage items.

The bathroom features good space and offers a vanity space, a toilet area, an enclosed linen closet and a tub/shower combination. The second bedroom measures in excess of 11’ x 10’, has double window views and there is plentiful closet space. The master bedroom is spacious with a double set of windows and there is a large walk-in master closet for clothing and other personal items. This charming Cottage house plan is perfect for small families, young professionals and empty-nesters as either a permanent residence or vacation home.
