Cottage Plan 1785-00117

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 808
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 30'
Depth 28'

Floorplan Drawings

Floorplan 1

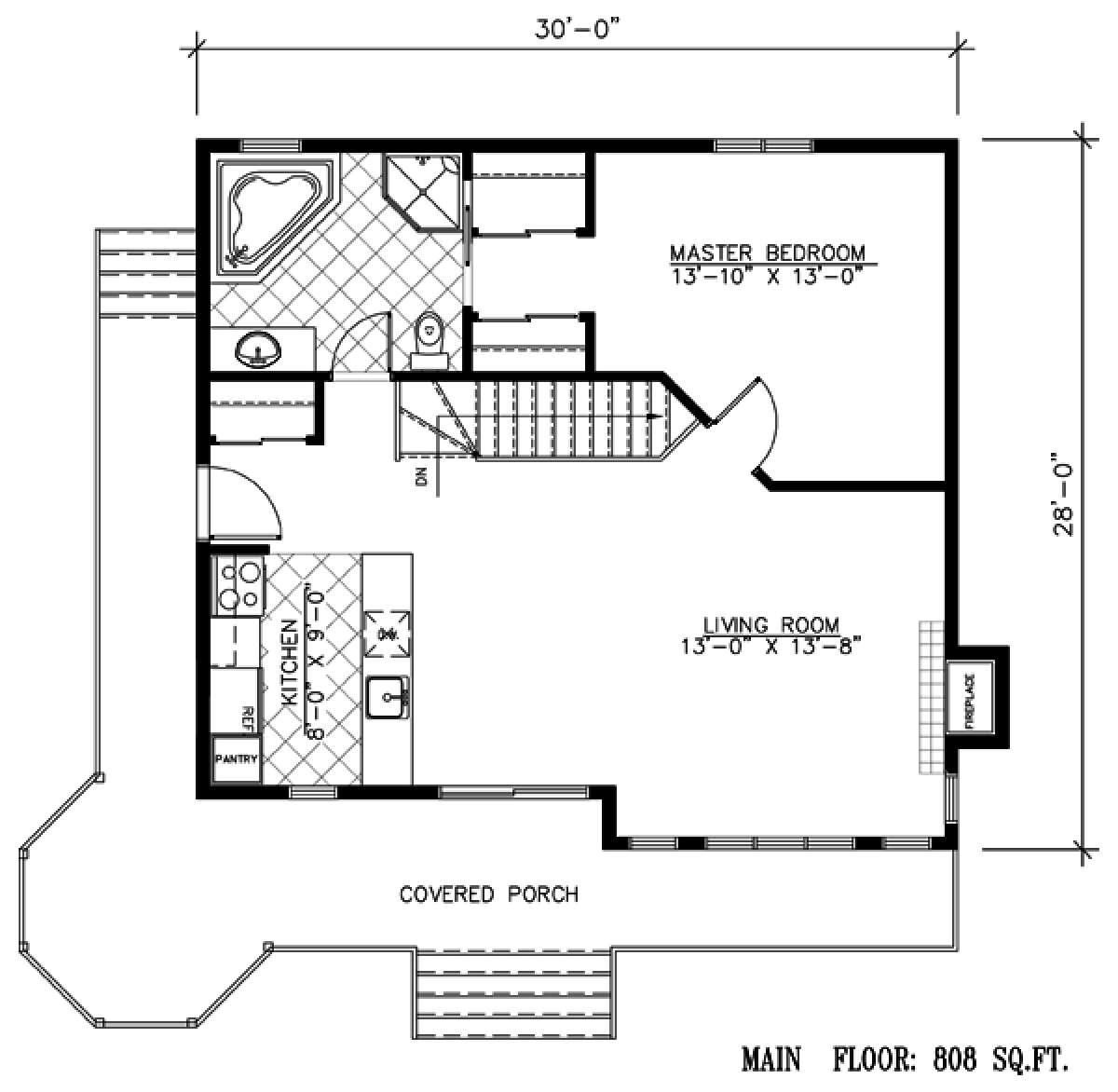

Floorplan 1 for House Plan #1785-00117


What's Included in these plans?

  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
  • Electrical Plan are include with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Foundation Plan and Details
    *Each Stock house plan set includes one foundation type.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Plan
    Each house plan set may include a roof plan which will show the layout of all roof sections.
  • Exterior Elevations
    In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
  • Building section
  • Truss section
  • Wall and floor section and construction details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming 808 square foot home features a Victorian Cottage inspired exterior with excellent outdoor space. There is a front open deck with an overhead Palladian style window feature and a decorative trimmed gable. There is a side gazebo and a wraparound porch that travels down the side of the home to be used as luxurious outdoor space. This awesome space is ideal for curling up in a cozy chair while reading or comfortably entertaining a large group of family and friends. The interior floor plan is highlighted with an open layout, one bedroom and one bath. The 30’ width and 28’ depth dimensions allow this home to be built on a small and/or narrow city lot and the home’s renderings include a basement foundation for future expansion possibilities. The double door entrance into the home reveals a large living room that is sun drenched and boasts of a warming fireplace. There is space for a casual dining table and the U-shaped kitchen features a separate pantry and plentiful counter and cabinet space along with access onto the side porch. A large coat/storage closet and staircase to the lower level lie at the far end of the living/dining space for a tidy layout. The bedroom enjoys a large footprint with double closets and private access into the bathroom. An extended vanity, toilet area, a separate shower and corner whirlpool tub are featured highlights of the bath which is also accessible from the main part of the home. This house plan would make a lovely home situated in a seaside community, lakefront property or urban lot; no matter the setting this is a perfect vacation or “forever” home for a young professional couple, small family or empty nesters.
