Split Foyer House Plan 1785-00002

Sq Ft982
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width34' 0"
Depth30' 0"
  REVERSE    Images copyrighted by the designer, and may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

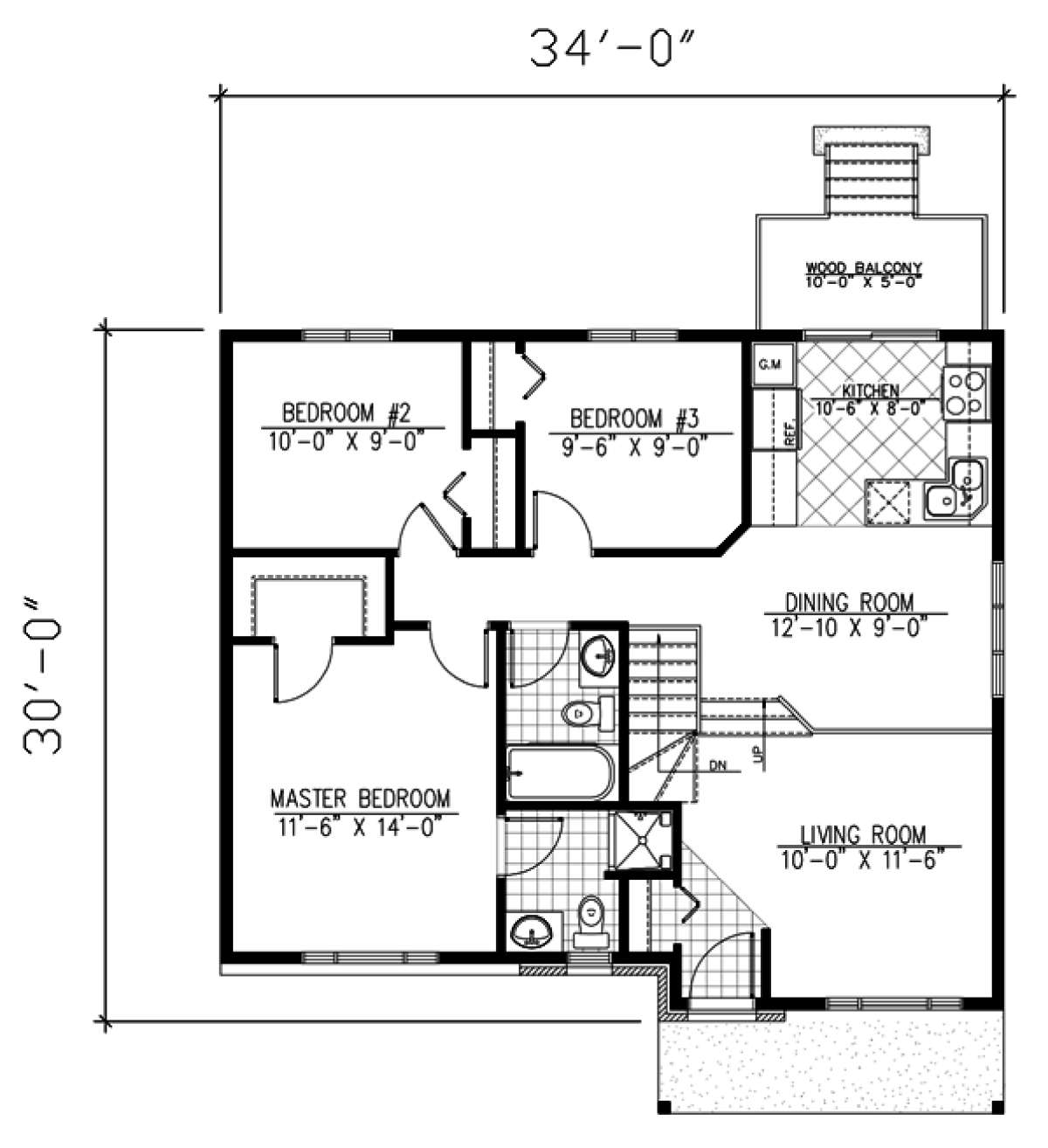

Floorplan 1


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window size. Floor plans fully detailed with structural sized
  • Electrical Plan are include with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Foundation Plan and Details
    *Each Stock house plan set includes one foundation type.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Roof Plan
    Each house plan set may include a roof plan which will show the layout of all roof sections.
  • Exterior Elevations
    In general, each house plan set includes all applicable front at ¼'' scale, sides and rear elevations at 1/8'' scale.
  • Building section
  • Truss section
  • Wall and floor section and construction details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This split foyer house plan features a main floor with an open layout, three bedrooms and two baths in approximately 982 square feet of usable living space. There is an unfinished basement foundation which could substantially increase the home’s square footage, if needed, or the basement could serve as massive storage space. The home’s exterior features closed gables, picturesque window views and a front covered porch that is warm and inviting. The home’s drawings include 34’ and 30’, width and depth dimensions that are perfect for a narrow and/or small property lot. Welcoming family and friends into the home, a greeting foyer and coat closet is revealed before stepping into the open layout. There is a spacious living room with a step-up into the dining room and both rooms boast of triple window walls for an airy and sun lit space. The U-shaped kitchen features plenty of counter and cabinet space and a wood timber balcony is accessible from the kitchen.
The central hallway features two family style bedrooms with double window views and plentiful closet space. There is a shared hall bath with vanity space, a toilet area and a tub/shower combination. The master suite is highlighted with good floor space, wonderful window views and an attached master walk-in closet. The en suite bath features modern amenities that include a vanity and toilet area and a shower. This compact home is fully functional, makes efficient use of the floor space and allows for future expansion possibilities.
