Luxury House Plan 168-00095

Sq Ft7,893
Beds5-6
Baths7
1/2 Baths1
Stories2
Cars3
Width102' 6"
Depth120' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

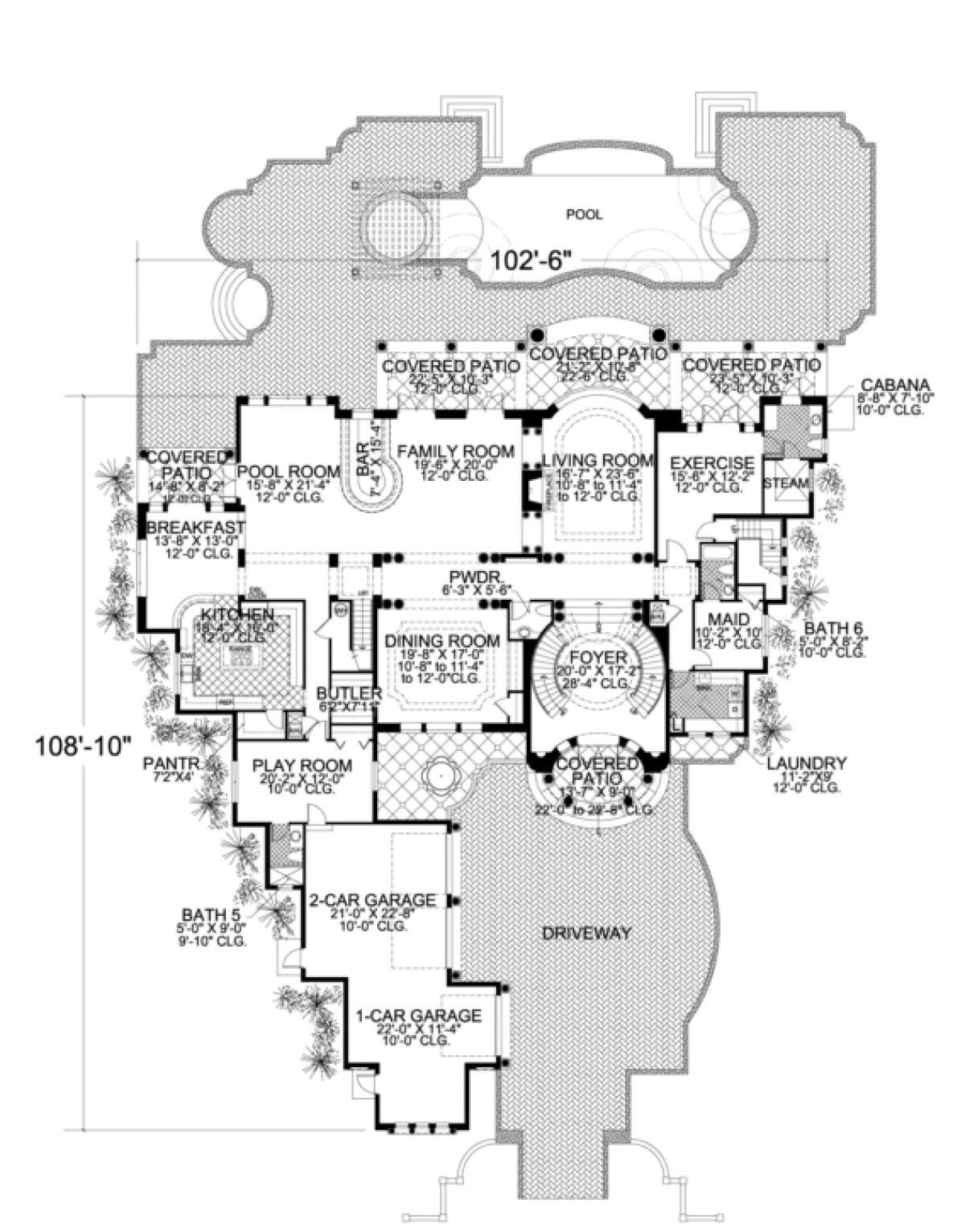

Floorplan 1 for House Plan #168-00095

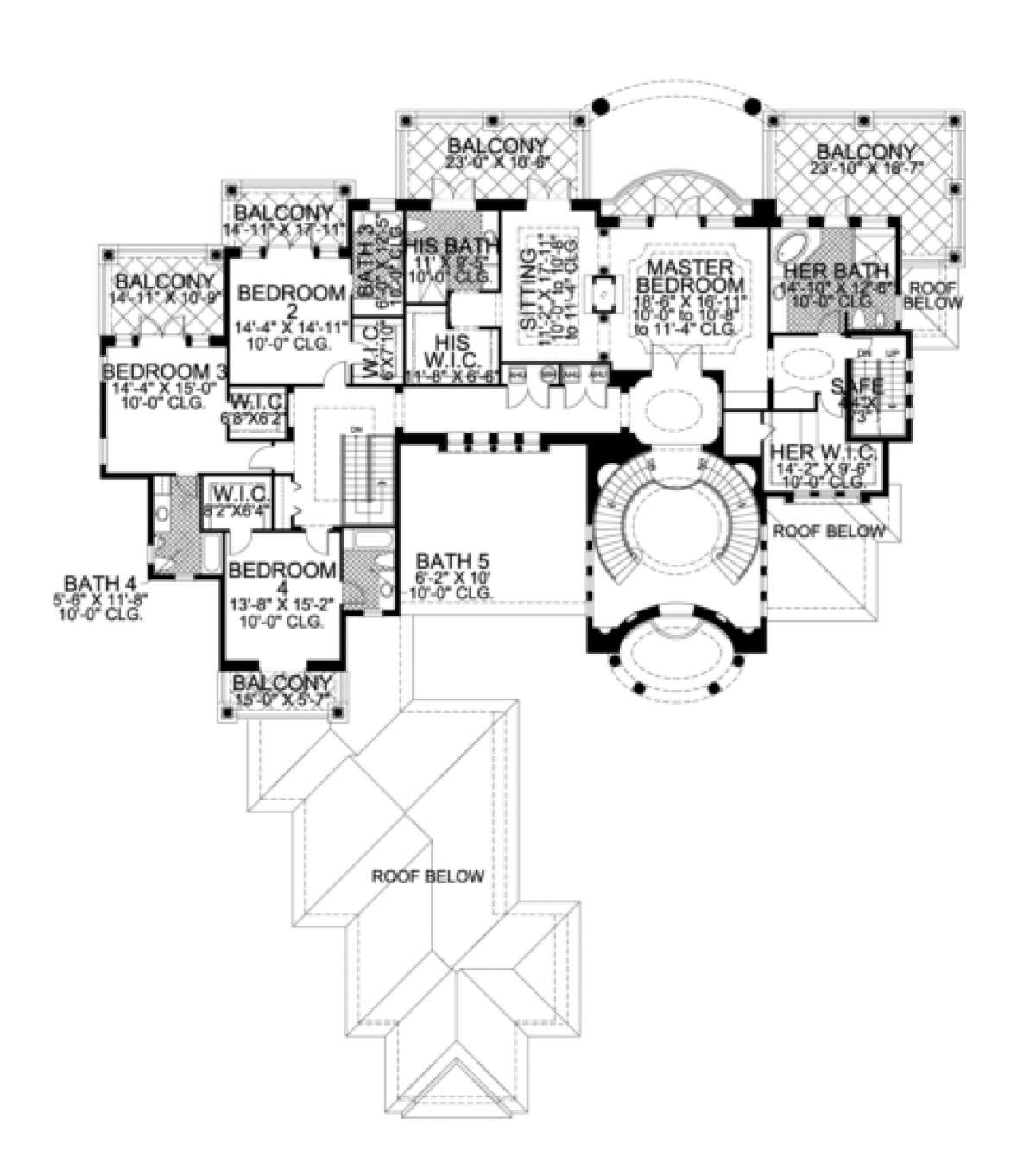

Floorplan 2 for House Plan #168-00095
Floorplan 1
Floorplan 1 for House Plan #168-00095
Floorplan 2
Floorplan 2 for House Plan #168-00095


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful multi-leveled home speaks of old world charm with Spanish influence while offering a contemporary floor plan. The masterful use of arched windows, stately columns and beautifully crafted balconies lend to the artistic feel and grand style of the home. As you drive up to the home, you are greeted with a three car garage with a double and single bay along with additional storage space and a courtyard entrance. The front covered patio graciously leads into the dramatic two story foyer making a lasting and unforgettable first impression. The large, open living room has a 20’ ceiling and stately fireplace which gives warmth and depth to the room. On the far side of the room, you are granted beautiful window views to the rear covered patio. Escape from your cares and relax as you enjoy the exercise room, steam room which offers a cabana bath and double French doors leading to the rear patio, deck and pool. A maid’s quarter with private bath and large utility room are provided for privacy and convenience. The large, formal dining room boasts of a double trey ceiling and is open to the family room which has an open bar and pool room. The enormous kitchen features an oversized island, butler’s pantry and is open to the large breakfast room. An oversized playroom has a generous closet and private bath; it could also be used as a downstairs office or study. The second level of the home offers architectural details and design elements which define grandeur and luxurious living and truly make the home come alive with spectacular storybook charm. There are three bedrooms, each of which boasts of a walk-in closet, private bath and private balcony access through French doors. The master retreat is perfection as it brings home the feeling of spaciousness and elegance with its large bedroom with “Juliet” balcony, a conveniently located morning kitchen and an amazing sitting room with balcony access. On either side of the bedroom are separate his and her baths which include a shower and vanity for him and a large spa tub, separate shower for her along with a large vanity area. There are also oversized his and her walk-in closets located on either side along with a private safe for her. Each dressing area provides access to separate balconies which add to the grand style of the master retreat. The third level of the home features a game and media room with bar, a large playroom with double door access, walk-in closet and private bath and an abundance of storage. This home is spectacularly magical and modernly 21st century; a juxtaposition of design elements that mix and match beautifully and elegantly to afford you a luxurious floor plan you will be proud to call home.
