Mediterranean Plan 168-00087


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,412
Beds 7
Bath 7
1/2 Baths 1
Car 3
Stories 2
Width 80'
Depth 58' 11"

Floorplan Drawings

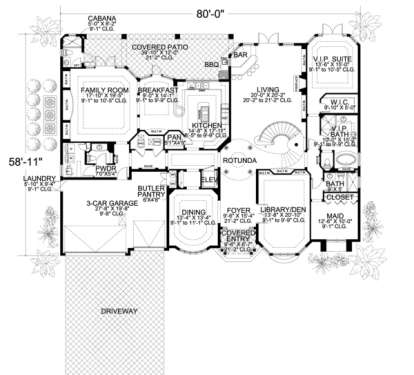

Floorplan 1
Floorplan 1 for House Plan #168-00087
Floorplan 2
Floorplan 2 for House Plan #168-00087

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A richly themed Mediterranean style home approximately 6,400 square feet of living space and amazing curb appeal. Architectural details like the red tiled roof, smooth stucco siding and multiple courtyards are accented with lots of stone and brick. The Spanish themed home is also home to spectacular wrought iron detail and multiple balconies. The towering covered front entryway provides a luxurious opening to the spacious two story foyer which anchors the stunning, formal dining room and the stylish library/den which features French door access, built-in cabinetry and high ceilings. Adjacent to the dining room, are the butler’s pantry and elevator which will provide your elderly guests another option to reach the second floor. Directly in front of the foyer, is a rotunda which leads to the dramatic, curved staircase. The formal living room is approximately 20’x20’ and features a gas log fireplace, built-in cabinetry, bar area and double French door access to the rear yard. The first floor guest suite has a private entrance, walk-in closet and full private bath. There is a maid’s quarter as well with double closets and a private bath. The designer kitchen offers a large center island, separate walk-in pantry and is open to the breakfast room which is highlighted with built-in cabinetry and rear covered patio access. A large family room is open to the kitchen and breakfast room and offers heightened ceilings, built-in cabinetry and French door access to the rear patio where you will find a cabana bath and summer kitchen. A powder room and three car garage completes the first level of the home. The “wow” factor continues as you travel upstairs and discover four generous size bedrooms, all with their own private bath, three of which have walk-in closets and private balconies. A second floor laundry is provided for convenience and ease. The master retreat is truly luxurious and is accessed through French doors which lead to the master bedroom with soaring ceilings and a private covered balcony. Off the bedroom, is the sitting room which features a triple bow window and access to the master bath. The master bath is highlighted with a generous footprint and includes a roman tub, oversized shower, separate dual vanities and two toilet areas. Located at the opposite side of the master retreat are oversized his and her walk-in closets and a dressing area. This home offers a visually stunning exterior and a spectacular floor plan designed to enhance your lifestyle and the way you relax and entertain.
