Mediterranean House Plan 168-00086

Sq Ft6,217
1/2 Baths1
Width58' 8"
Depth121' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

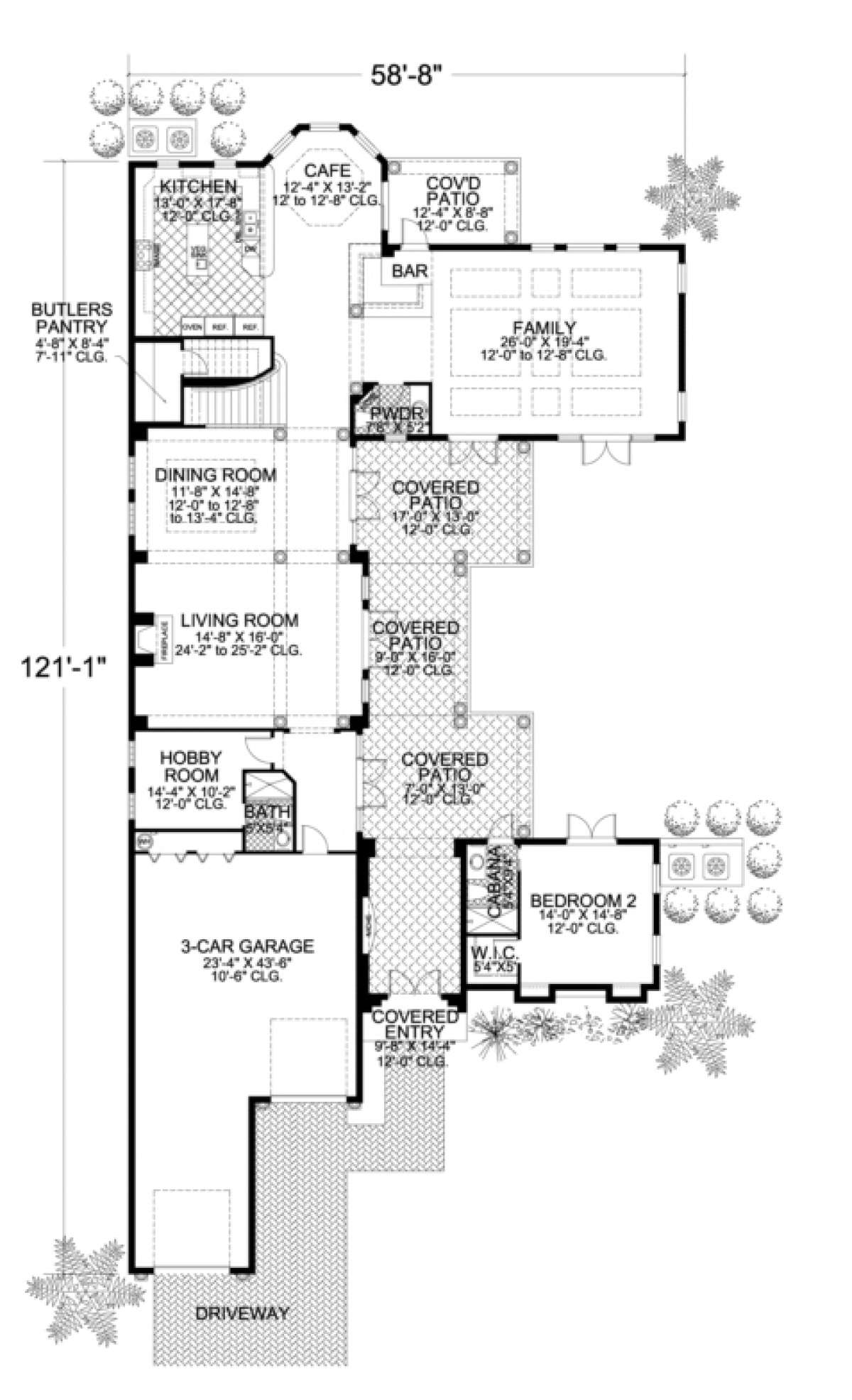

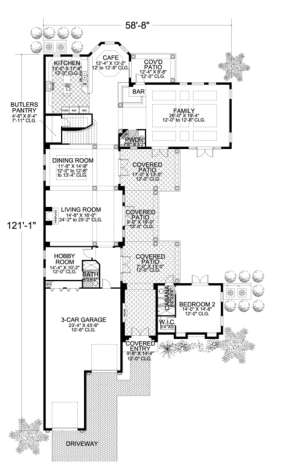

Floorplan 1 for House Plan #168-00086

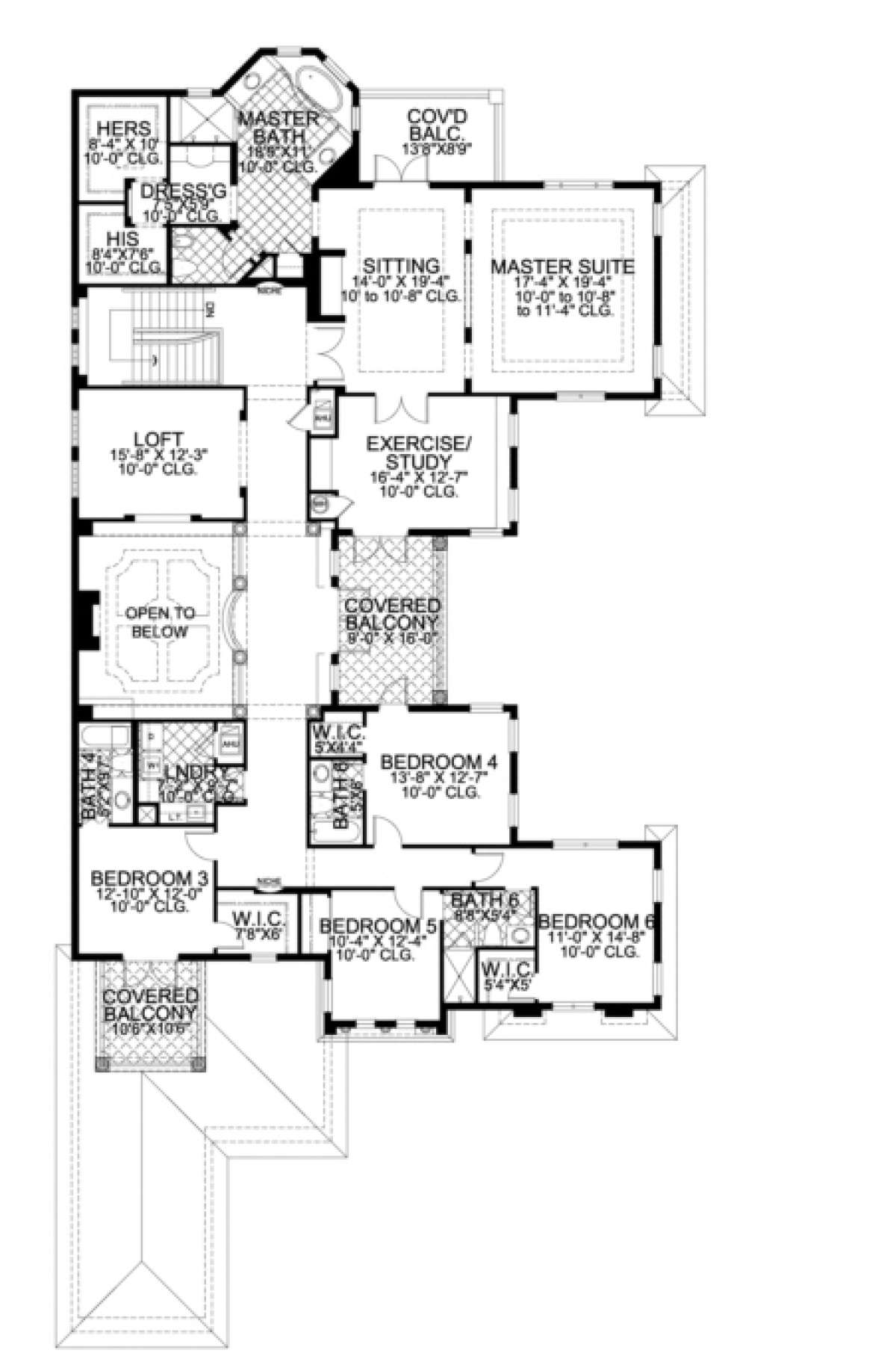

Floorplan 2 for House Plan #168-00086
Floorplan 1
Floorplan 1 for House Plan #168-00086
Floorplan 2
Floorplan 2 for House Plan #168-00086

Frequently Asked Questions


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This distinguished manor has enormous curb appeal and vibrant colors reminiscent of the Mediterranean coastline. The classic appeal of the home lies in the use of timeless architectural design features such as tile roofing, handsome ironwork and gorgeous balconies. The two story entrance provides a dramatic backdrop to the home and provides an inviting space in which to greet family and friends. This home’s interior floor plan is no less stunning than the exterior façade and offers approximately 6,200 square feet with seven bedrooms, five plus baths and a three car garage. The unique entrance offers a series of covered patios reaching out from many points of the home and providing outstanding entertaining possibilities. The guest suite is private with a generous bedroom, walk-in closet, full bath and private courtyard access. The formal living and dining rooms are large spaces separated with columned detailing and the living room features a stately fireplace. A large hobby/craft room has a private bath and is adjacent to the three car garage. The family space sits at the rear of the home and is highlighted by the beautifully coffered ceiling work in the sizable family room, a wet bar and rear covered patio accessibility. The gourmet kitchen features a center worktop island, butler’s pantry, separate breakfast bar and is open to the café with a triple bay window.
At the top of the second floor you will find a large loft area and exercise room situated across the hallway. Bedroom three and four each have a walk-in closet, a private bath and covered balcony access. The fifth and sixth bedrooms share a hall bath. The master retreat occupies the rear width of the second floor and offers a stunning visual space. The enormous sitting room is reached through French doors, has private access to a covered balcony, a trey ceiling and leads to either the exercise room or master bedroom which is quite large with a double step trey ceiling. His and her oversized walk-in closets share a dressing area and are located at the rear of the master bath. The bath has a gorgeous garden tub with triple bay window, a separate shower, dual vanities and a compartmentalized toilet. This home is an outstanding value for a large family and offers a multitude of space in which to entertain or relax.
