Mediterranean House Plan 168-00073

Sq Ft5,604
1/2 Baths1
Width90' 0"
Depth95' 8"
Mediterranean House Plan #168-00073 Elevation Photo
Floorplan 1

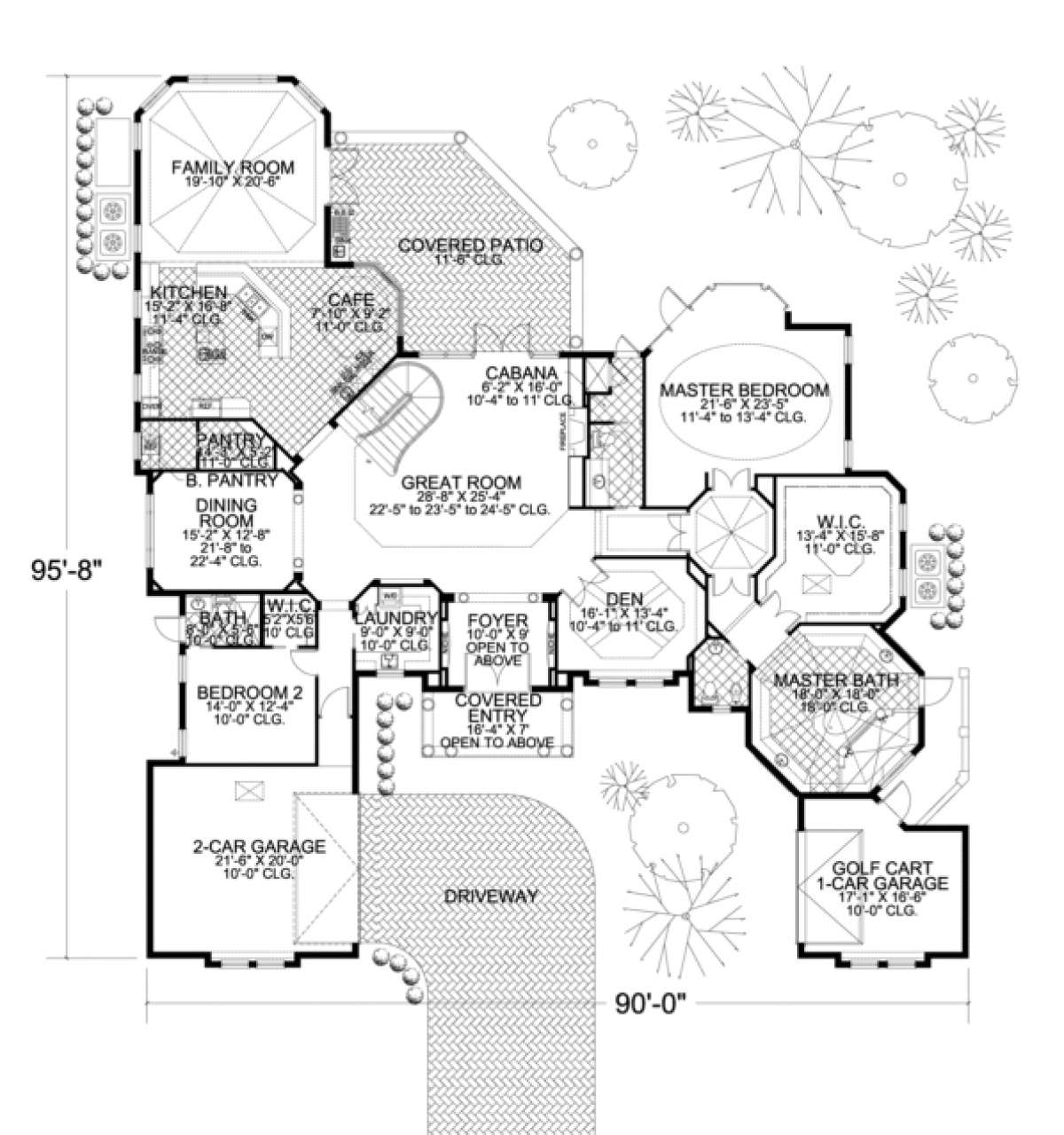

Floorplan 1 for House Plan #168-00073
Floorplan 2

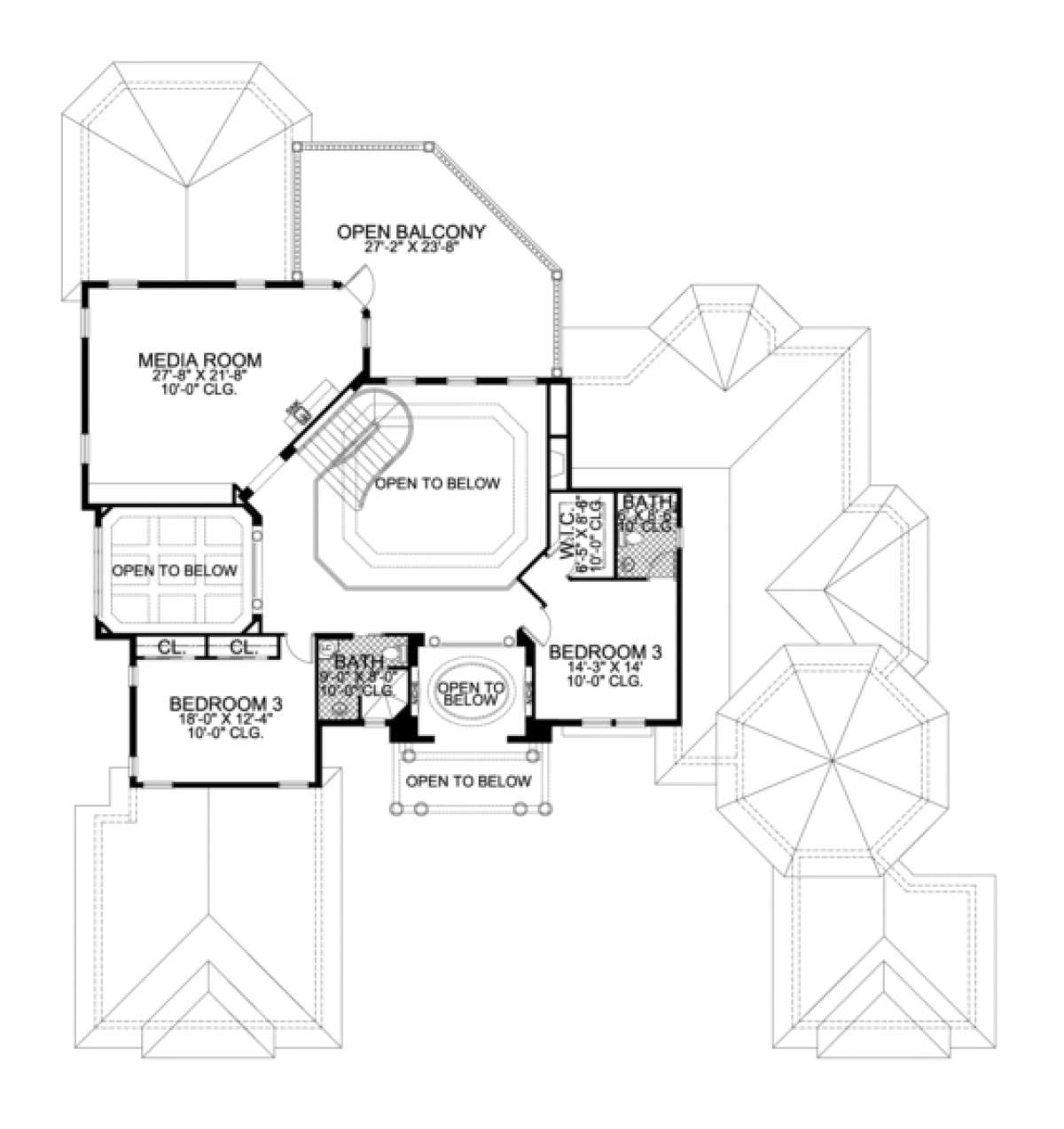

Floorplan 2 for House Plan #168-00073
Mediterranean House Plan #168-00073 Elevation Photo
Floorplan 1 for House Plan #168-00073
Floorplan 2 for House Plan #168-00073
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #168-00073
Floorplan 2 for House Plan #168-00073
Floorplan 1
Floorplan 1 for House Plan #168-00073
Floorplan 2
Floorplan 2 for House Plan #168-00073

Frequently Asked Questions


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This neutral Mediterranean manor is stately, spacious and boasts of approximately 5,600 square feet of living space with four bedrooms, four plus baths and a three car garage. The towering entrance features column detailing, a covered porch and double door entry. Double and a half garage bay flank the entrance and give the home balance and an abundance of vehicle and storage space. The majestic manor’s exterior façade is bold and exciting and the interior floor plan features an enormous amount of living space. The covered entrance spills into the foyer which is two storied and bridges into the sizable great room with fireplace, built-in cabinetry and rear covered patio access. The patio is a large and beautiful space for entertaining and provides access to the cabana bath. A private and cozy den also sits off the foyer and is ideal for entertaining intimate friends and business colleagues. A formal dining room is adjacent to the gourmet kitchen. The kitchen features a center island, breakfast bar, butler’s pantry and a separate walk-in pantry; it is open to the large family room and breakfast area. The family room boasts of beautiful ceiling work and has French door access to the rear covered patio with summer kitchen. The guest bedroom features a walk-in closet and private bath. The master suite occupies one wing of the main floor of the home and offers a large footprint. The master bedroom is stunningly created with an oval trey ceiling and outdoor access. A walk-in master closet would be an enviable size for a bedroom and leads to the octagon shape master bath which is simply stunning. The bath boasts of a walk-thru shower, garden tub, separate dual vanities and a compartmentalized toilet. The spacious laundry room completes the main level of living.
As you travel the spectacular winding staircase overlooking the great room, you come to the oversized media room with second floor balcony access. Bedroom three is a large room and offers double closet space and private bath access. Bedroom four features a walk-in closet and a private bath. This sprawling Spanish manor is luxurious both inside and out with first class amenities and design features which are sure to please you and your family.
