Luxury House Plan 168-00066

Name: House Plan 168-00066 - Luxury Plan: 5,176 Square Feet, 5 Bedrooms, 6 Bathrooms
Brand: America's Best House Plans
SKU: 168-00066
Price: 1700.00 USD

Sq Ft5,176

Beds5

Baths5

1/2 Baths2

Stories2

Cars3

Width63' 10"

Depth59' 11"

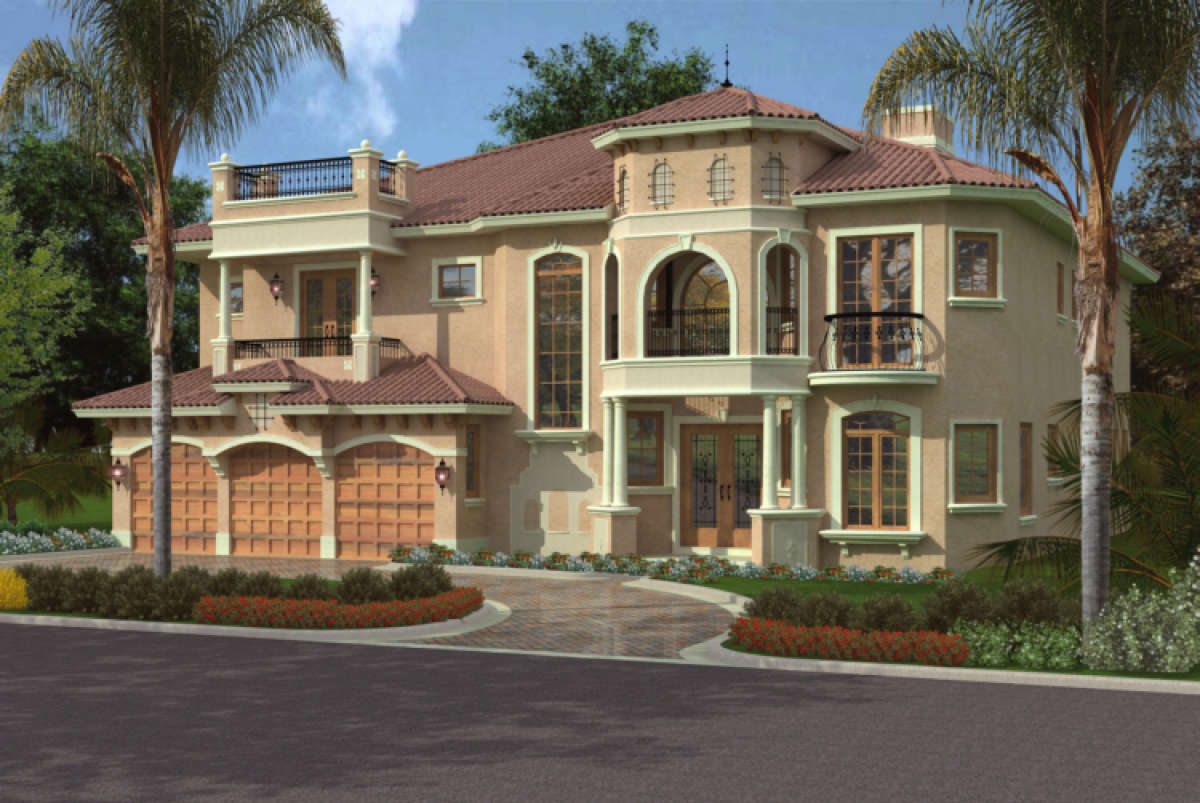

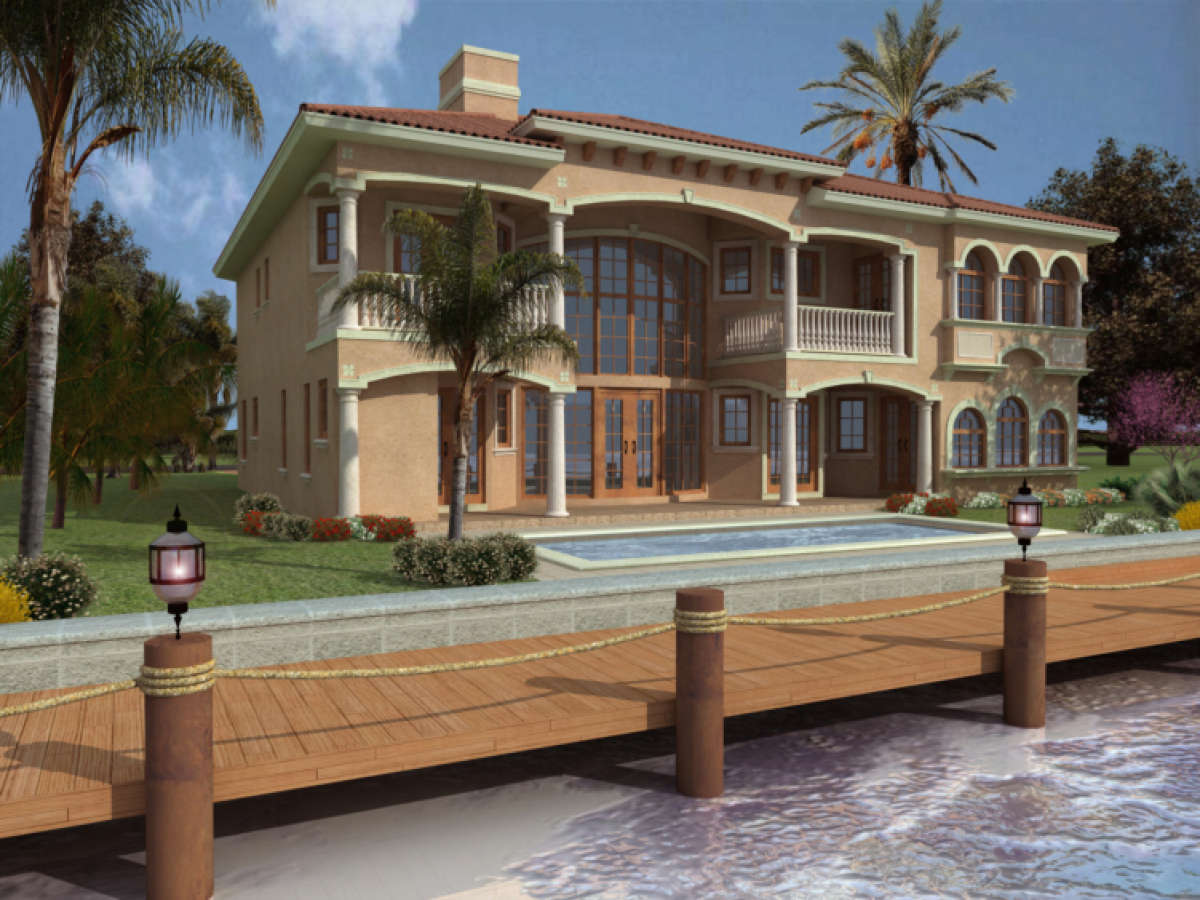

Luxury House Plan #168-00066 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM $1,700

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

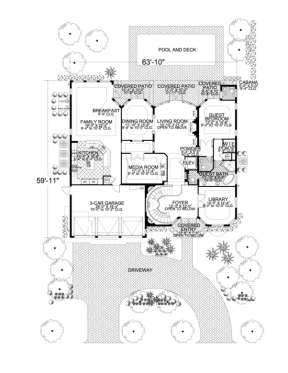

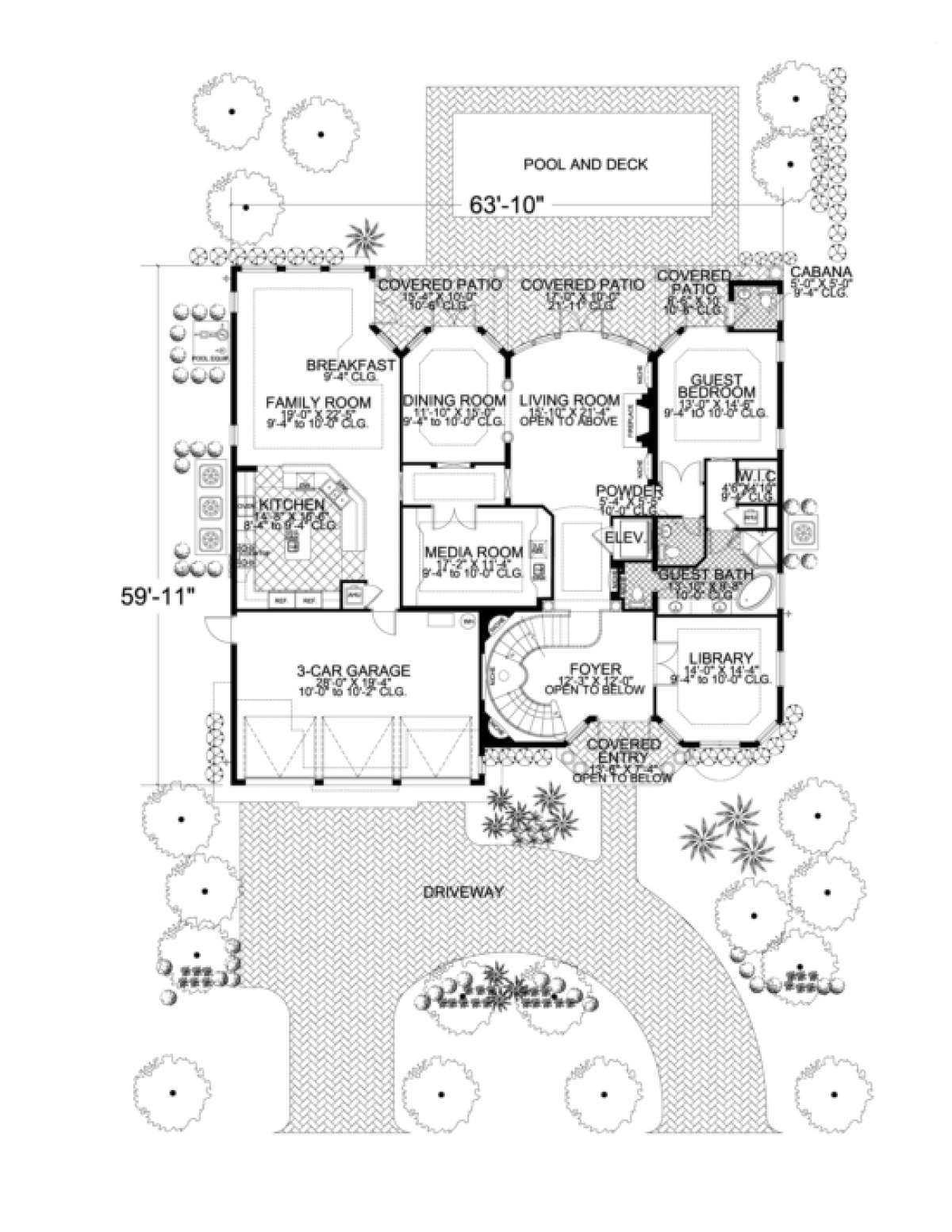

Floorplan 1

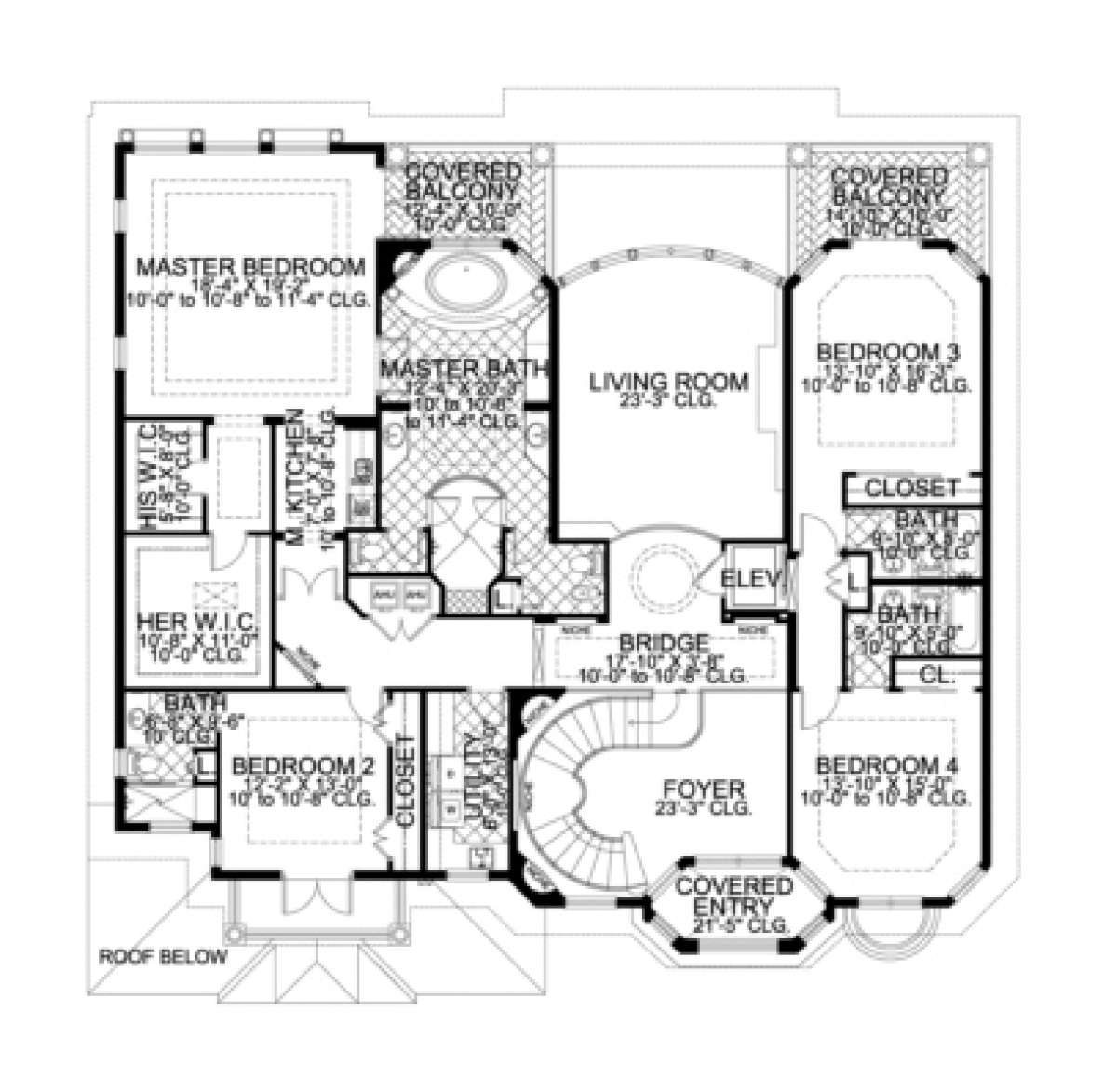

Floorplan 2

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:5,176 sq. ft.

-- First Floor:2,726 sq. ft.

-- Second Floor:2,450 sq. ft.

-- Garage:576 sq. ft.

Floors:2

Bedrooms:5

Bathrooms:5

Half Baths:2

Garages:3 car

Width:63ft.-10in.

Depth:59ft.-11in.

Height:31ft.-2in.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU BLOCK

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Second Floor:Varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bedroom 2 Coffered:	12-2 x 13 x 10-8
Bedroom 3 :	13-10 x 16-3 x 10-8
Bedroom 4:	13-10 x 15 x 10-8
Breakfast Nook:	x x 9-4
Bridge Up:	17-10 x 3-8 x 10-8
Cabana:	5 x 5 x 9-4
Covered Balcony BR 3:	14-10 x 10 x 10
Covered Balcony up:	12-4 x 10 x 10
Covered Entry:	13-6 x 7-4 x 21-5
Covered Patio main 1:	15-4 x 10 x 10-6
Covered Patio main 2:	17 x 10 x 21-11
Covered Patio Main 3:	8-6 x 10 x 10-6
Dining Room Coffered:	11-10 x 15 x 10
Family Room:	19 x 22-5 x 10
Foyer:	12-3 x 12 x 23-3
Garage 3 car:	28 x 19-4 x 10-2
Guest Bath:	13-10 x 9-8 x 10
Guest Bedroom:	13 x 14-6 x 10
Kitchen Main:	14-8 x 16-6 x 9-4
Kitchen Up:	7 x 7-8 x 10-8
Library:	14 x 14-4 x 10
Living Room:	15-10 x 21-4 x 23-3
Master Bath Coffered:	12-4 x 20-3 x 11-4
Master Bedroom Coffered:	18-4 x 19-2 x 11-4
Media Room:	17-2 x 11-4 x 10

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

This generous 5,000 + square foot home with five bedrooms, five and ½ baths and three car garage makes an outstanding first impression with its use of Mediterranean style architecture and 21st century luxurious floor plan. The classic Mediterranean styling is highlighted by its towering covered entrance, beautiful arches, stately columns and 8’ French doors with magnificent arched transom accent which beckons family and friends to come discover what awaits them indoors. The dramatic two storied foyer is highlighted by a beautiful curved staircase and opens onto the secluded library through French doors. The large living room features a dramatic two storied room with gas log fireplace, is open to the formal dining room and provides access to the rear covered patio through French doors. A beautifully appointed media room with wet bar is the perfect spot to relax with family and friends. A gourmet kitchen with a center island, breakfast bar and nook opens onto the spectacular family room. A private guest suite features a generous bedroom, private bath and walk-in closet. A powder room and elevator are also located on the main level along with a generous three car garage which provides plenty of additional storage space for sports or lawn equipment. At the rear of the home, you will be delighted with the covered patios, cabana bath and beautiful pool and deck area. Three bedrooms, each with generous closets and their own private baths await you upstairs and bedroom three is lucky enough to have its own covered balcony while bedroom two features an open balcony accessible through French doors. A large utility room is also located upstairs for convenience and as plenty of counter space. The master retreat provides a sanctuary from everyday living and offers a generous bedroom with a double step trey ceiling and access to the covered balcony. There is a morning kitchen; ideal for brewing the perfect cup of coffee or tea and adjourning to the balcony to relax and read the morning paper. His and her walk-in closets are also available as well as the master bathroom. The master bath has a large footprint and no detail has been overlooked; you are provided with dual vanities, an oversized shower, linen closet, compartmentalized toilet area and a roman tub which defines luxury and grandeur. This home’s architectural style, versatility and beautifully designed floor plan will provide you and your family many years of luxurious living.
