Mediterranean House Plan 168-00065

Sq Ft5,140
Beds4-5
Baths5
1/2 Baths0
Stories2
Cars3
Width79' 10"
Depth74' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

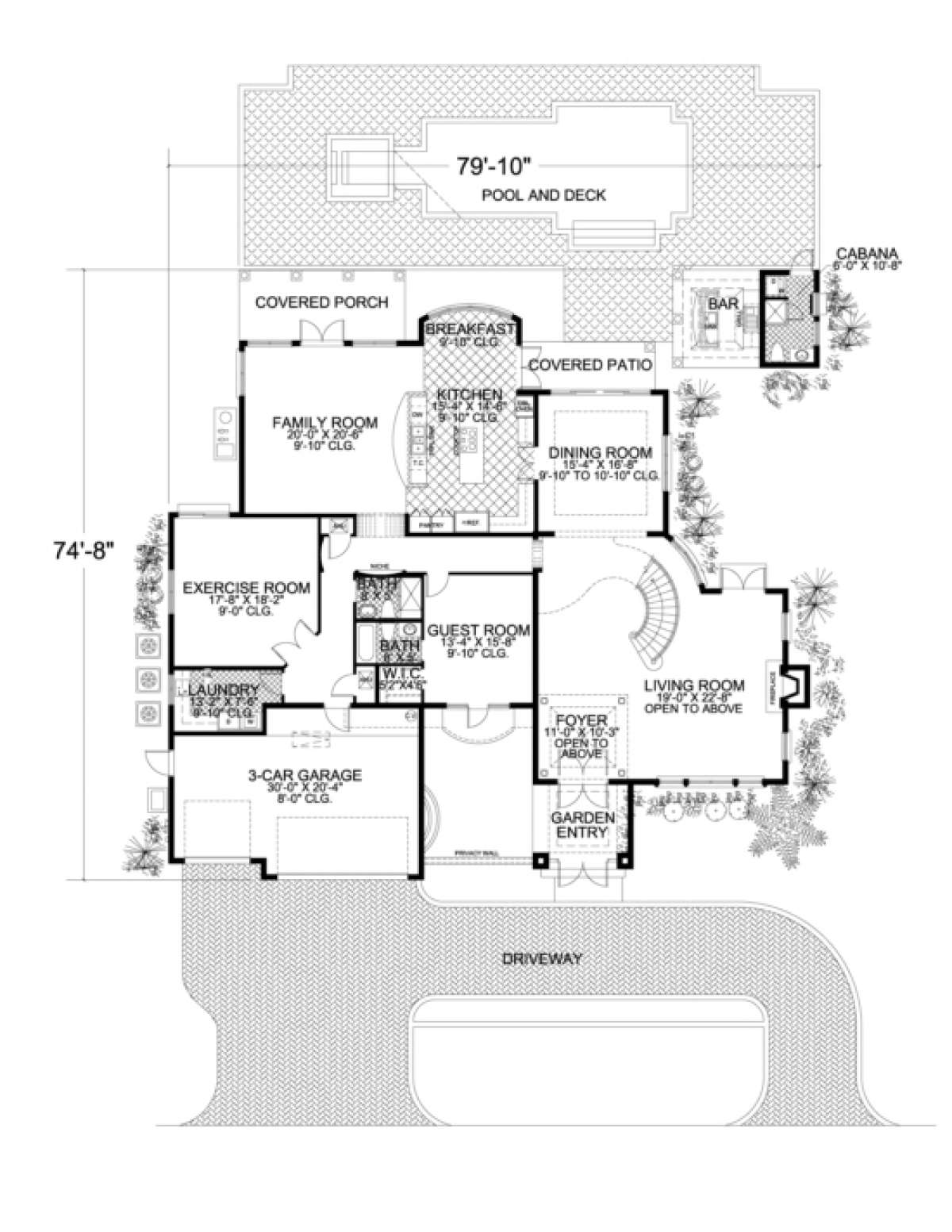

Floorplan 1 for House Plan #168-00065

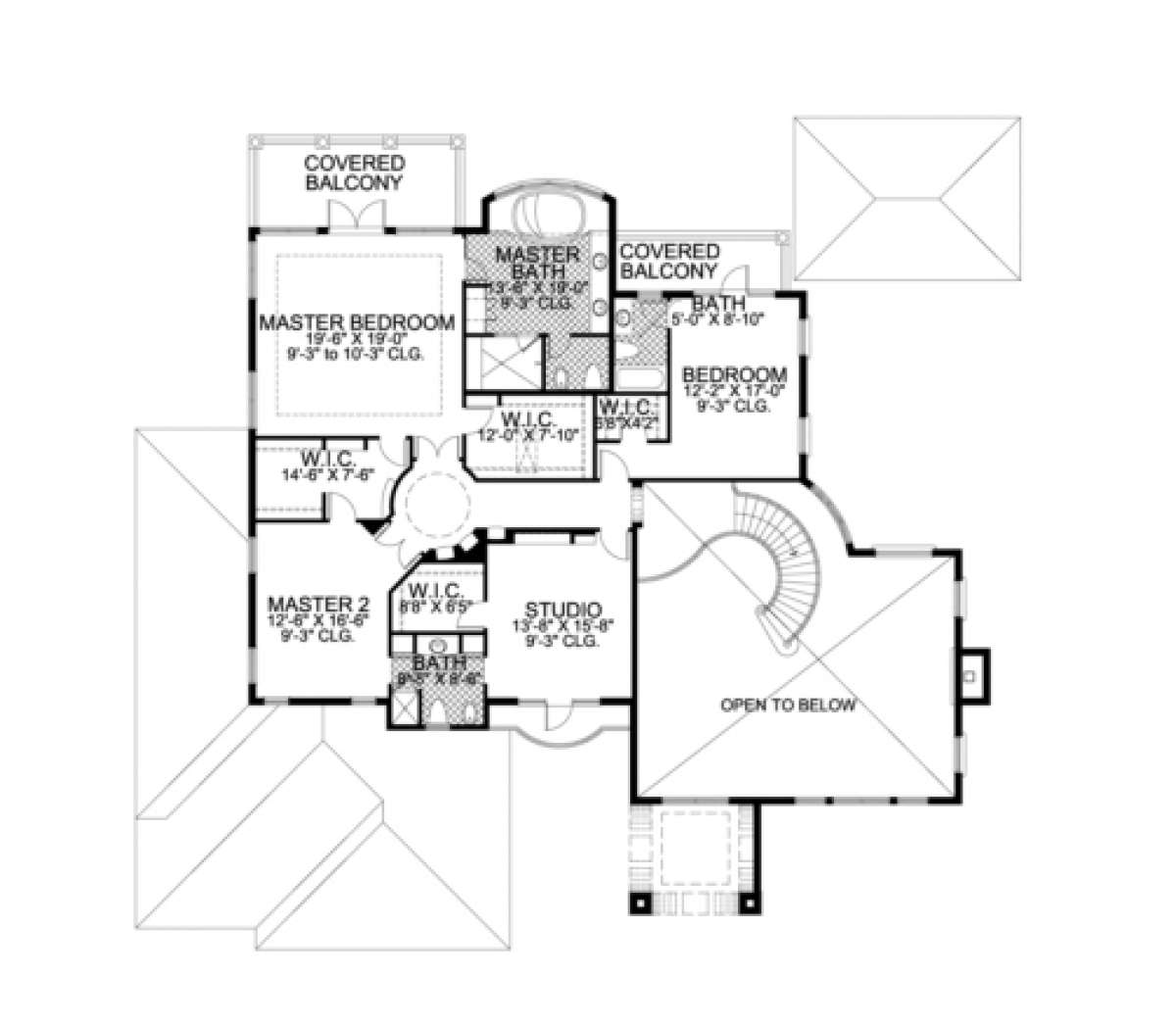

Floorplan 2 for House Plan #168-00065
Floorplan 1
Floorplan 1 for House Plan #168-00065
Floorplan 2
Floorplan 2 for House Plan #168-00065


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

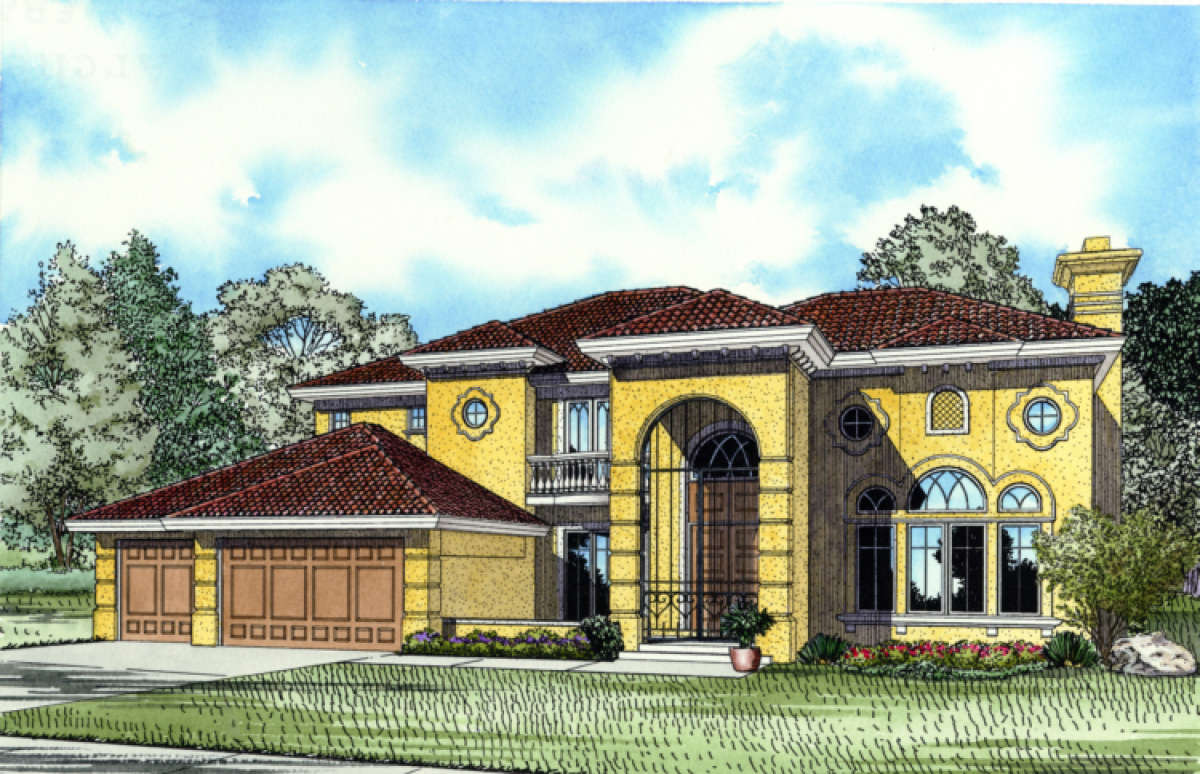

Handsome ironwork lends flair and stunning architectural visual interest to this Mediterranean style home. Traditional tile roofing, arched windows and balcony features further accentuate the Spanish detailing of the home. The combination of the bold exterior façade with the spacious interior floor plan gives this home a “first in class” status. The versatile floor plan offers four to five bedrooms, five plus bathrooms and a three car garage in approximately 5,100 square feet. The dramatic two story foyer and formal living room complements the manor feel of the home and the gorgeous winding staircase is a bonus feature. The huge center island kitchen anchors the formal dining room and informal breakfast area which boasts of a bowed window accent and leads to the rear covered patio. Additionally, there is a covered cabana bar and cabana bath which makes this the ideal spot for entertaining. The sizable family room is open to the kitchen and offers access to a private covered porch. The main floor guest suite has a walk-in closet and private bath. A large exercise room, utility room and powder room complete the main level of living.
The second story studio is private and would be perfect for an artist or this space could function as a home office or additional bedroom as it features a walk-in closet and private bath access. A second bedroom also features a walk-in closet, private bath and private covered balcony access. The master retreat is a masterful use of space with a trey ceiling bedroom and private balcony access. His and her walk-in closets add space for clothing and storage and there is a private room off one of the closets which could be used as a nursery or sitting room. The master bath is highlighted by a garden tub with a bowed window accent, a separate shower, double vanities and a compartmentalized toilet. This home offers versatility and a bold exterior and is ideally suited for a large family.
