Mediterranean House Plan 168-00064

Sq Ft5,110
1/2 Baths1
Width79' 8"
Depth74' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

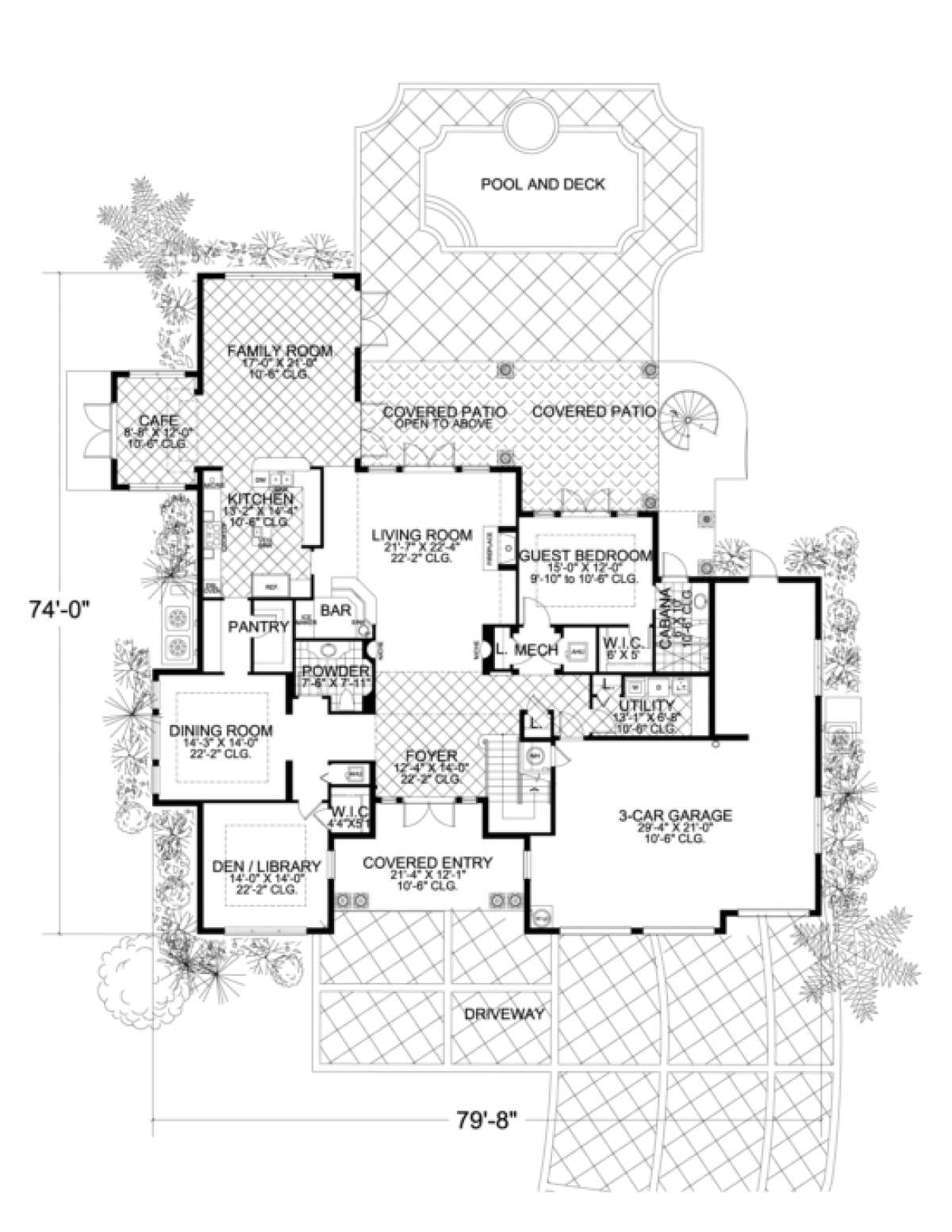

Floorplan 1 for House Plan #168-00064

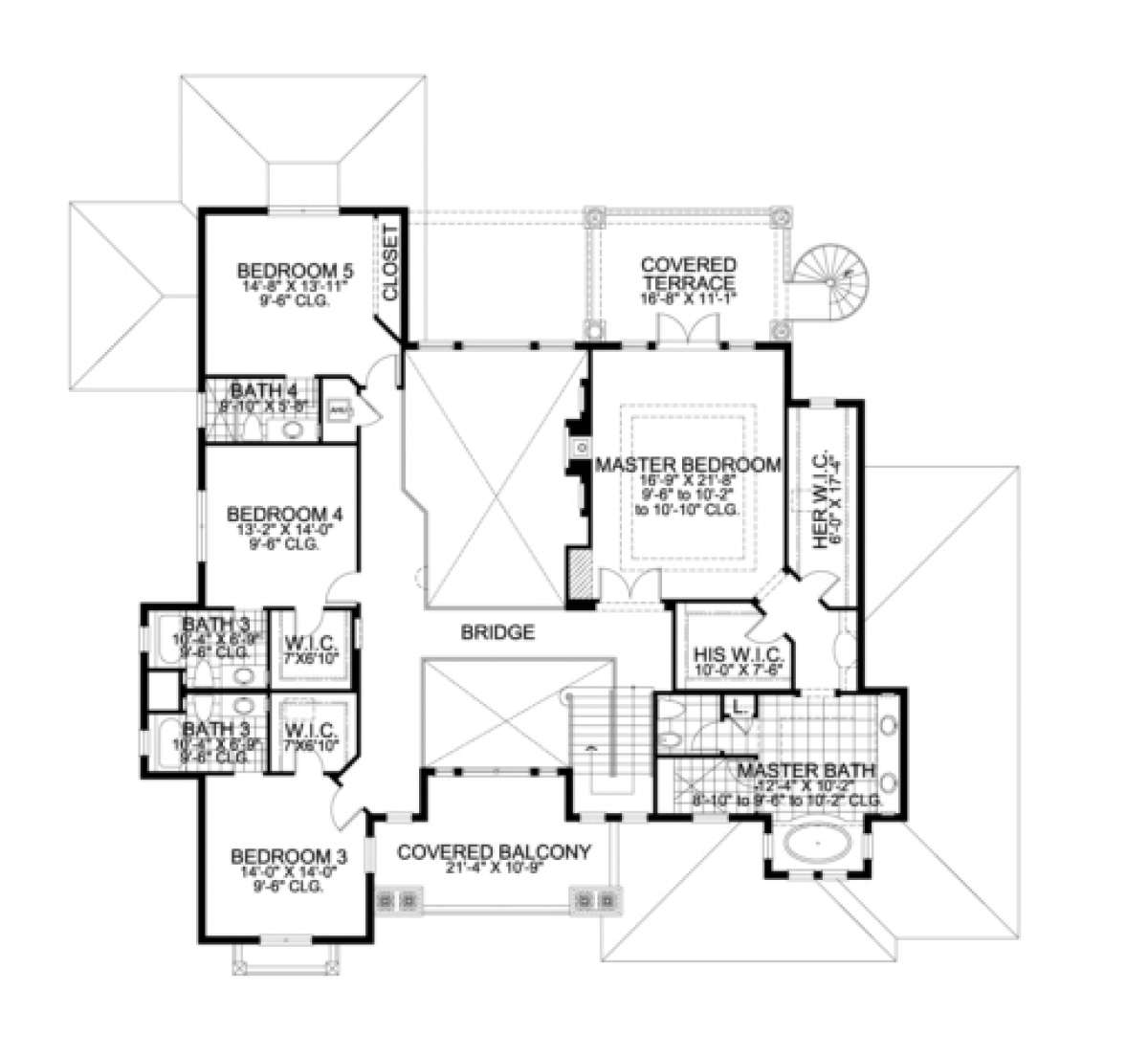

Floorplan 2 for House Plan #168-00064
Floorplan 1
Floorplan 1 for House Plan #168-00064
Floorplan 2
Floorplan 2 for House Plan #168-00064

Frequently Asked Questions


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Classic Mediterranean elegance and elaborate detailing are evident throughout this charming floor plan and exterior façade. This two story, five bedroom home has approximately 5,100 square feet of living space and outstanding curb appeal. The grand covered entrance is stunning with column detailing and wooden double paneled doors which lead to the two story foyer. The formal living room features soaring ceilings, a fireplace, built-in cabinetry, wet bar and French door access to the rear covered patio. The chef’s kitchen with a center island, breakfast and butler’s pantry anchors the formal dining room and informal care. The family room sits at the rear of the kitchen and café and affords a comfortable and private area in which to relax and unwind with family and close friends and leads to the pool and deck area. The den/library has a trey ceiling and sits at the front of the home making the space ideal for a quiet retreat or business meeting. The guest suite has a 15’x12’ bedroom with trey ceiling, walk-in closet and private entrance. A cabana bath and oversized utility room along with a three car garage completes the main level of the home. A bridge to either side of the second level awaits you at the top of the stairs along with a covered balcony. Bedroom three and four have private baths and walk-in closets while bedroom five has a private bath and generous closet space. The master retreat has contemporary amenities that highlights a double step trey ceiling and oversized his and her walk-in closets. The traditional Spanish style covered balcony is accessed through French doors and provides an excellent space in which to take morning coffee or relax at the end of the day. The master bath features a roman tub, oversized shower, dual vanities and a compartmentalized toilet. This home is a beautiful example of blending a modern floor plan and traditional Spanish details to create the ultimate in family living.
