Mediterranean House Plan #168-00063 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 5,088

Beds 5-6

Bath 4

1/2 Baths 1

Car 3

Stories 1.5

Width 87' 11"

Depth 110' 4"

See What's Included

Select Package

PDF (Single Build)

$1,700.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,600.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

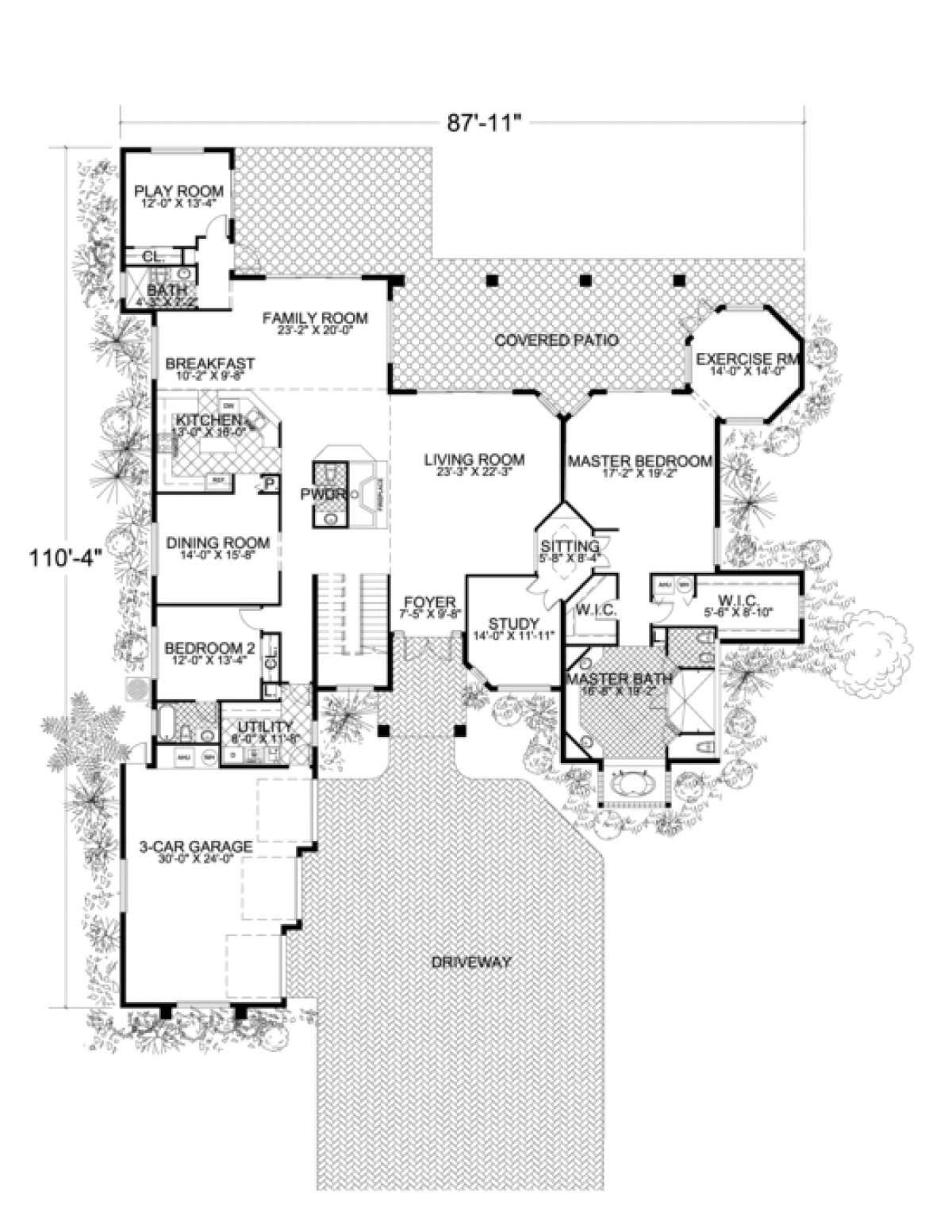

Floorplan 1

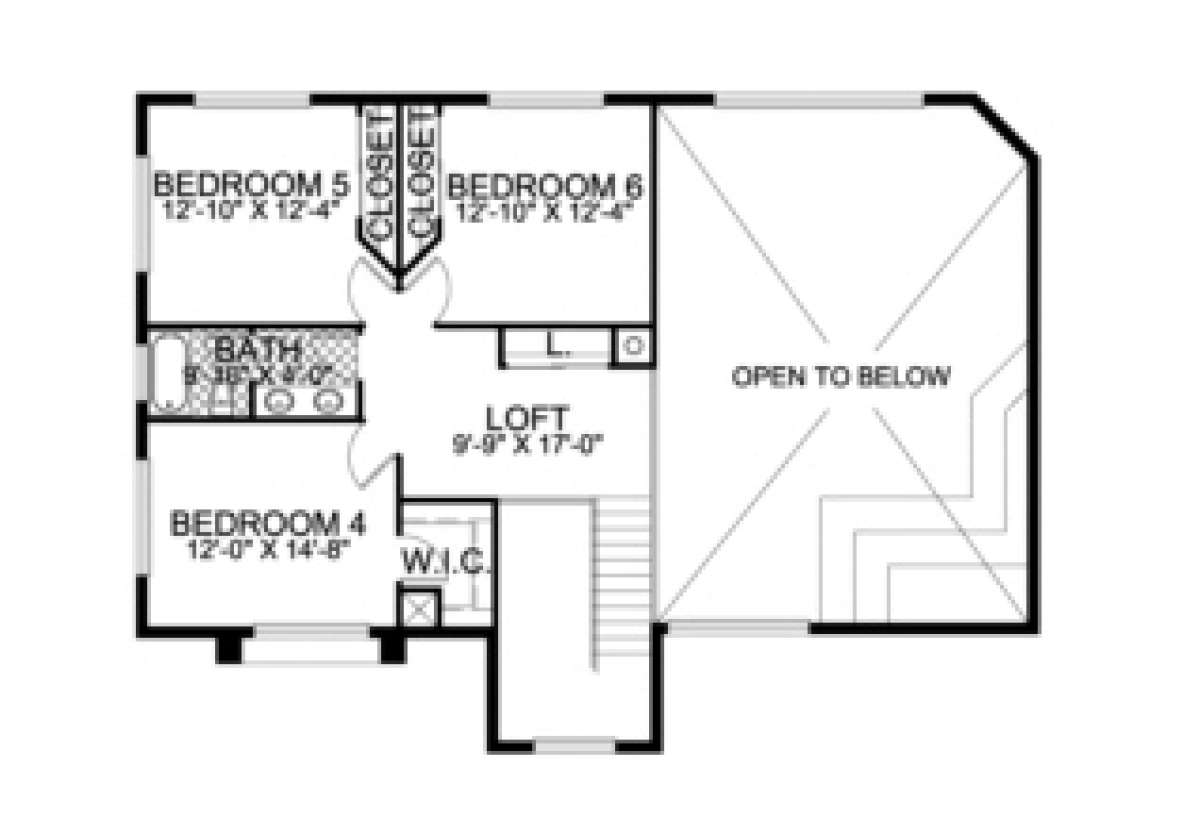

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This classic Mediterranean style home offers a spacious floor plan with and an exterior façade that is architecturally stunning. The use of arched windows, tile roof and stately columns give the home an old world feeling while the interior floor plan is definitely contemporary and open. This home’s unique house plan is reminiscent of traditional homes located on the Mediterranean Sea. The two story covered entrance leads into the foyer with open views of the formal living room. The living room is large with beautiful covered patio views, a fireplace and is open on two sides to the formal dining room and kitchen. The gourmet kitchen boasts of a center cook top island, breakfast bar and separate pantry. The kitchen is open to the breakfast and family room which offers rear patio views and access. At the rear of this space is a full bath and playroom with closet and could be used as a home office for its privacy and convenience. Either way, this large family space provides a cozy and intimate setting for family and close friends to relax and unwind. Bedroom two is located on the main floor and could be used as a guest suite with its private bath and generous closet space. A large utility room with plenty of counter space is located off the three car garage which is oversized and has additional storage space. The master retreat comprises one half of the first floor and offers a luxurious space to “get away from it all.” The master bedroom is large with a unique octagon shaped exercise room attached and private access to the rear patio. A cozy sitting area is situated on the other side of the bedroom along with a private study which enjoys a beautiful courtyard view. His and her walk-in closets line the hallway to the master bath which is highlighted by a roman spa tub, separate oversized shower, dual vanities and a compartmentalized toilet. Upstairs is an ideal spot for older children or teenagers; it has a loft area for relaxing or entertaining friends. There are three additional bedrooms, one with a walk-in closet; two with generous closet space that share a hall bath with dual vanities. This home is a lovely example of old world charm and a modern floor plan blending beautifully.
