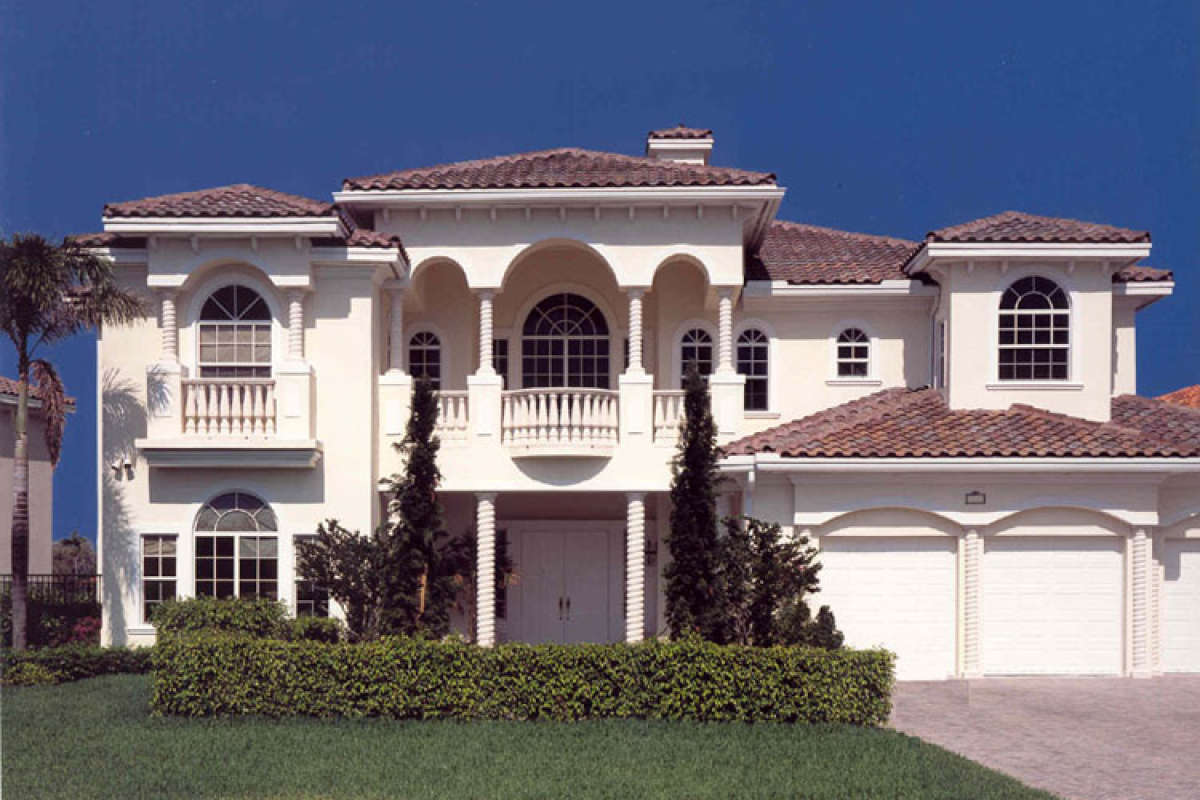

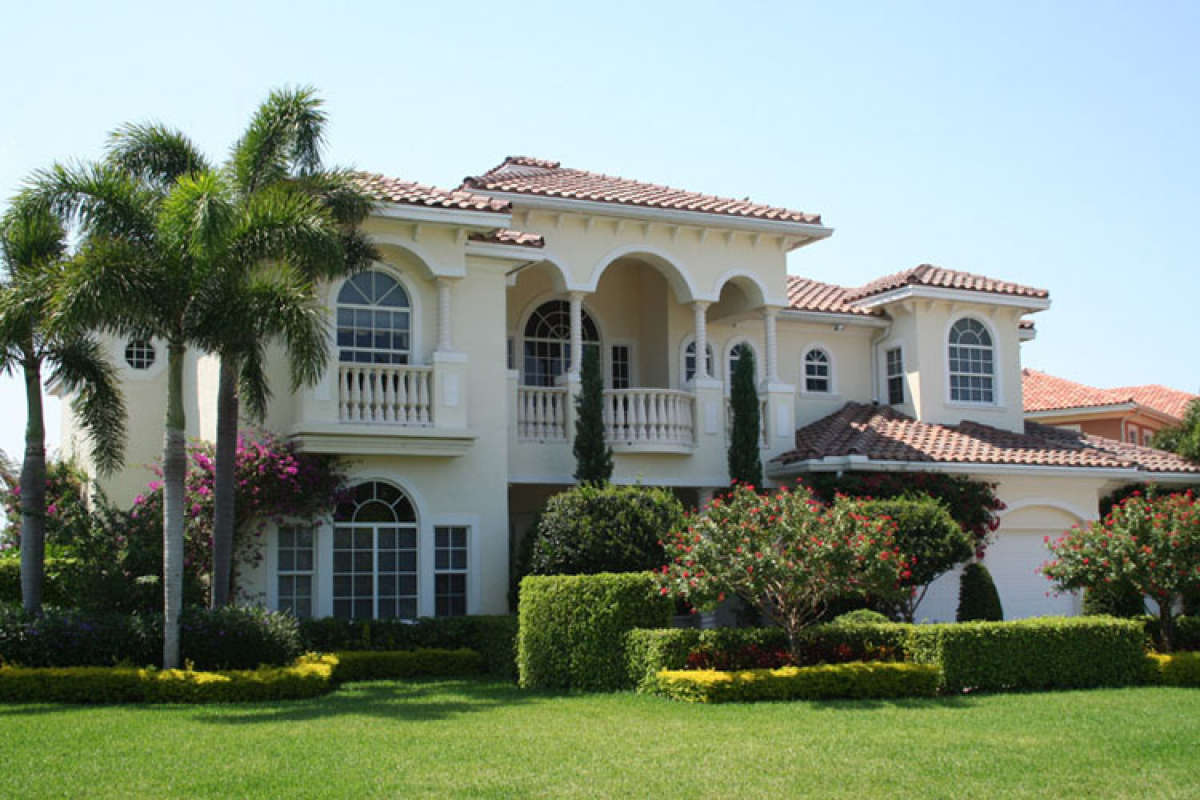

Luxury House Plan #168-00060 Elevation Photo

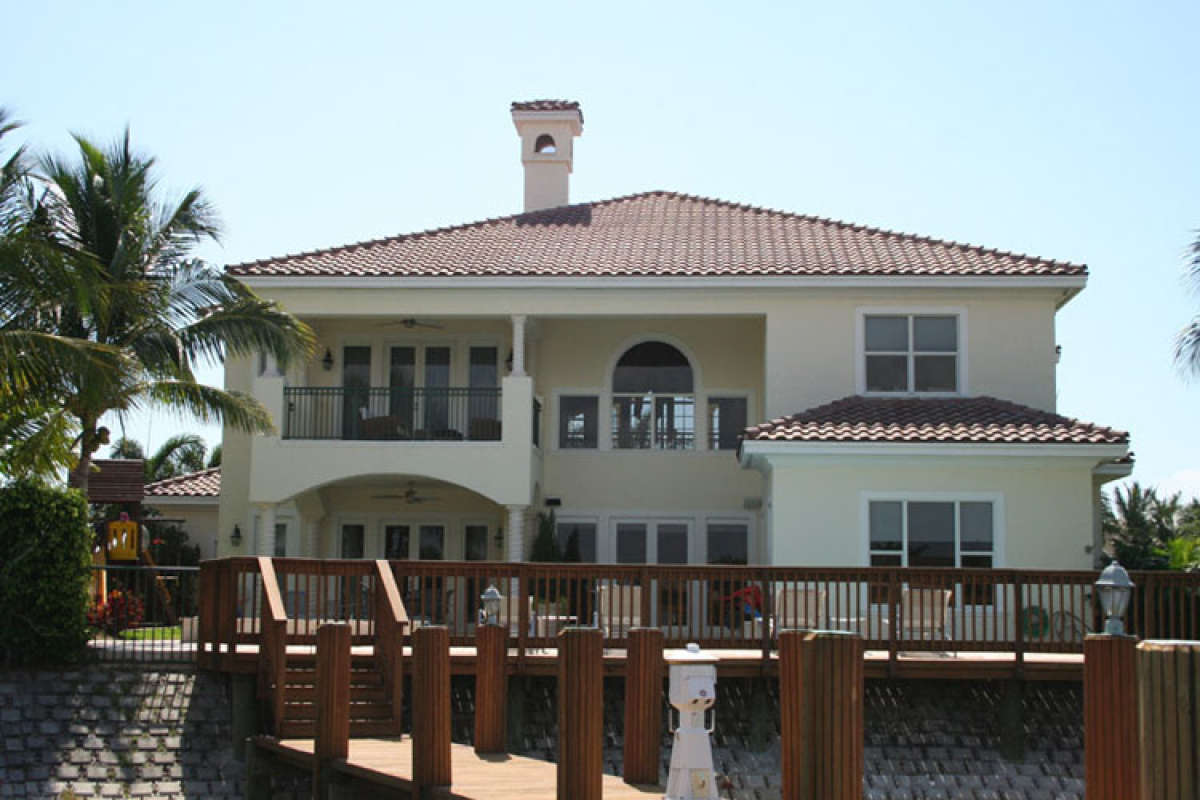

Luxury House Plan #168-00060 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,984

Beds 5-6

Bath 5

1/2 Baths 0

Car 3

Stories 2

Width 75'

Depth 74'

See What's Included

Select Package

PDF (Single Build)

$1,600.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,400.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

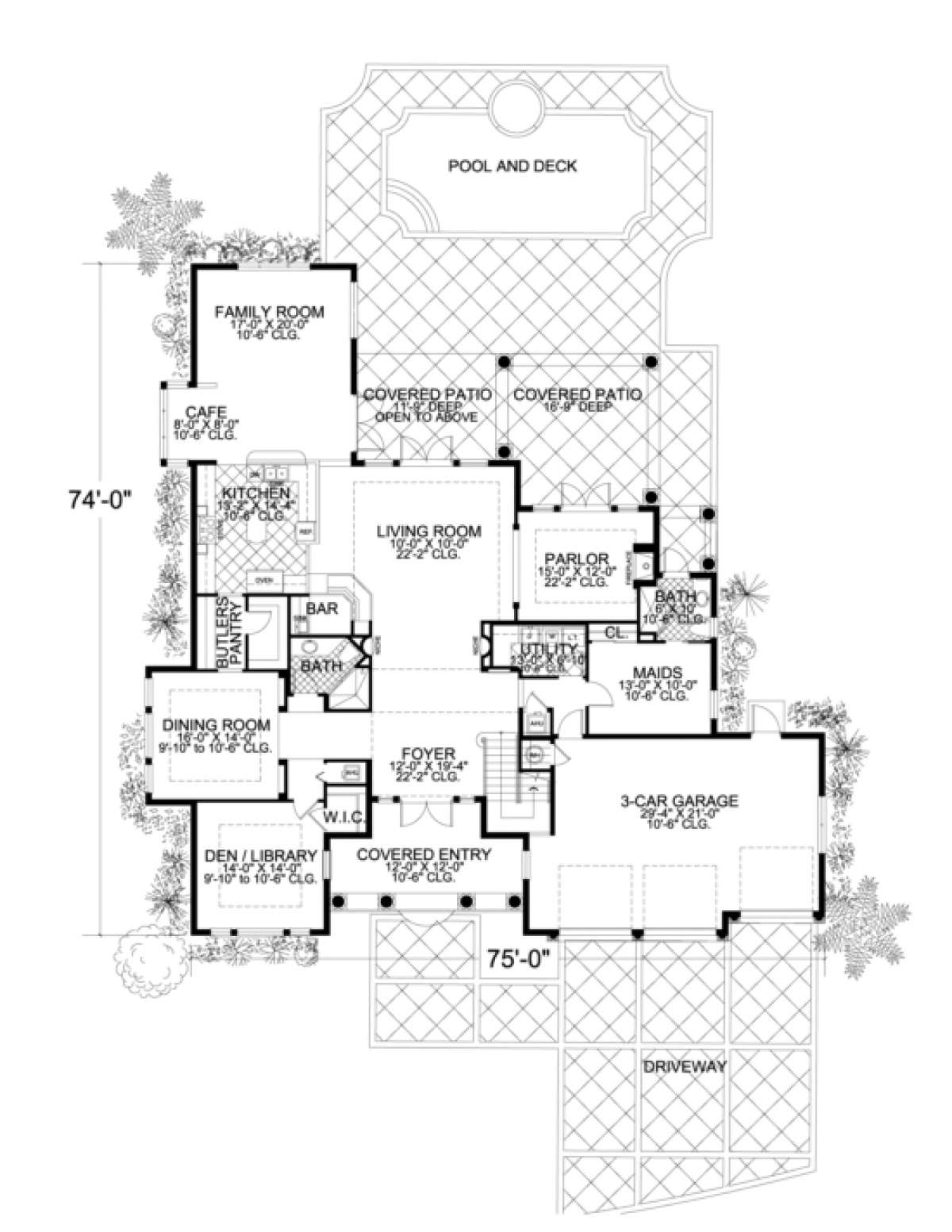

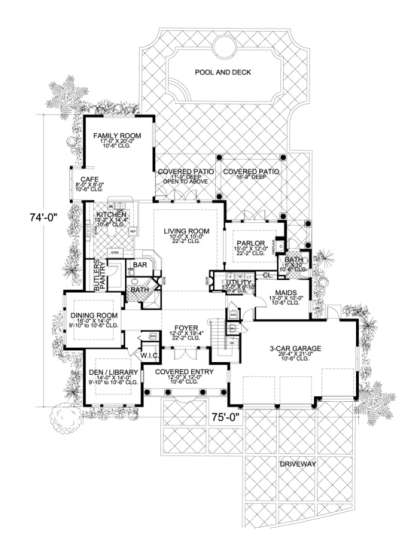

Floorplan 1

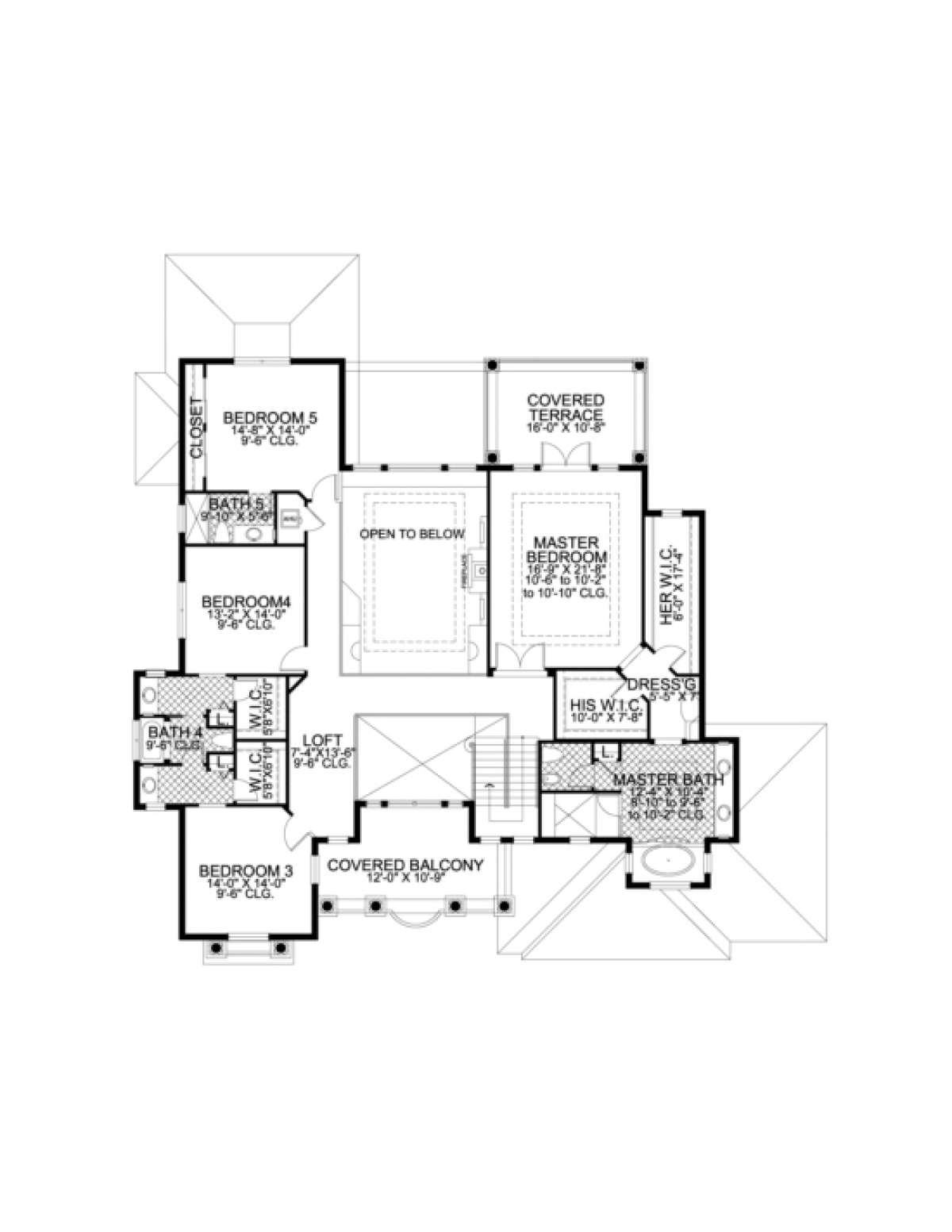

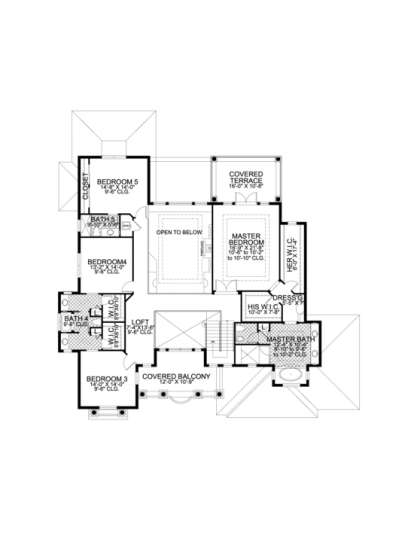

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.

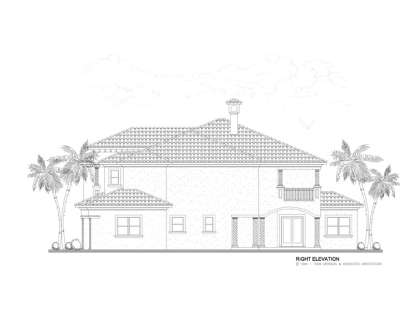

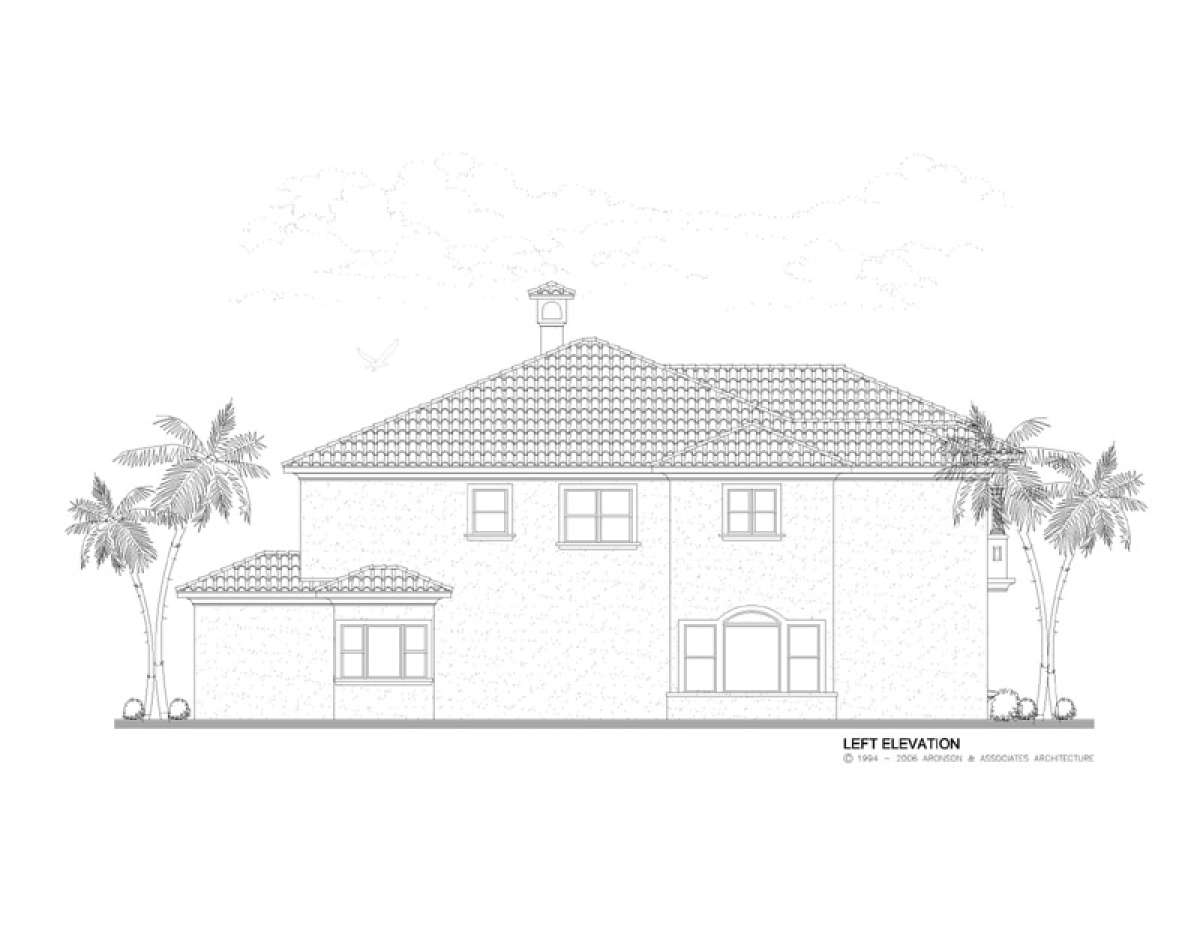

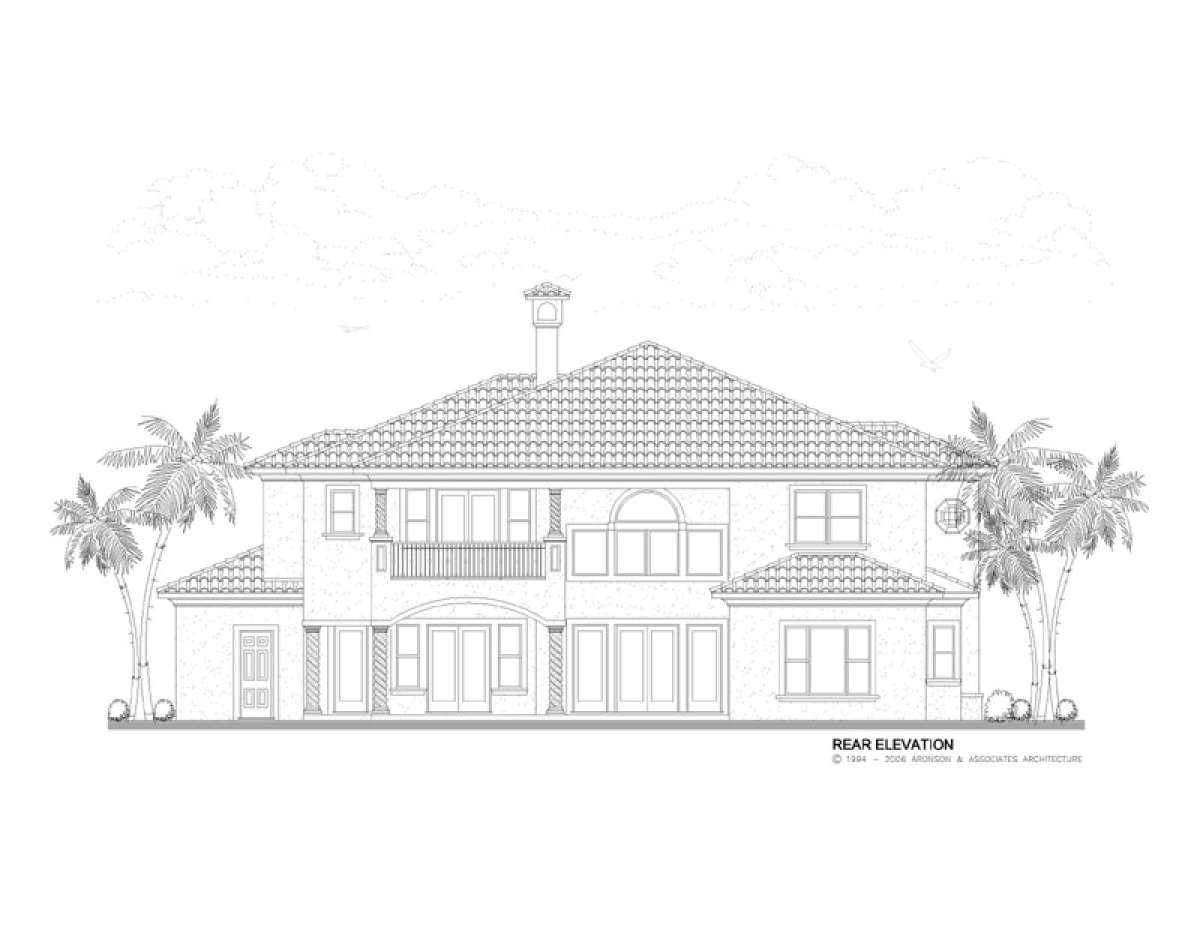

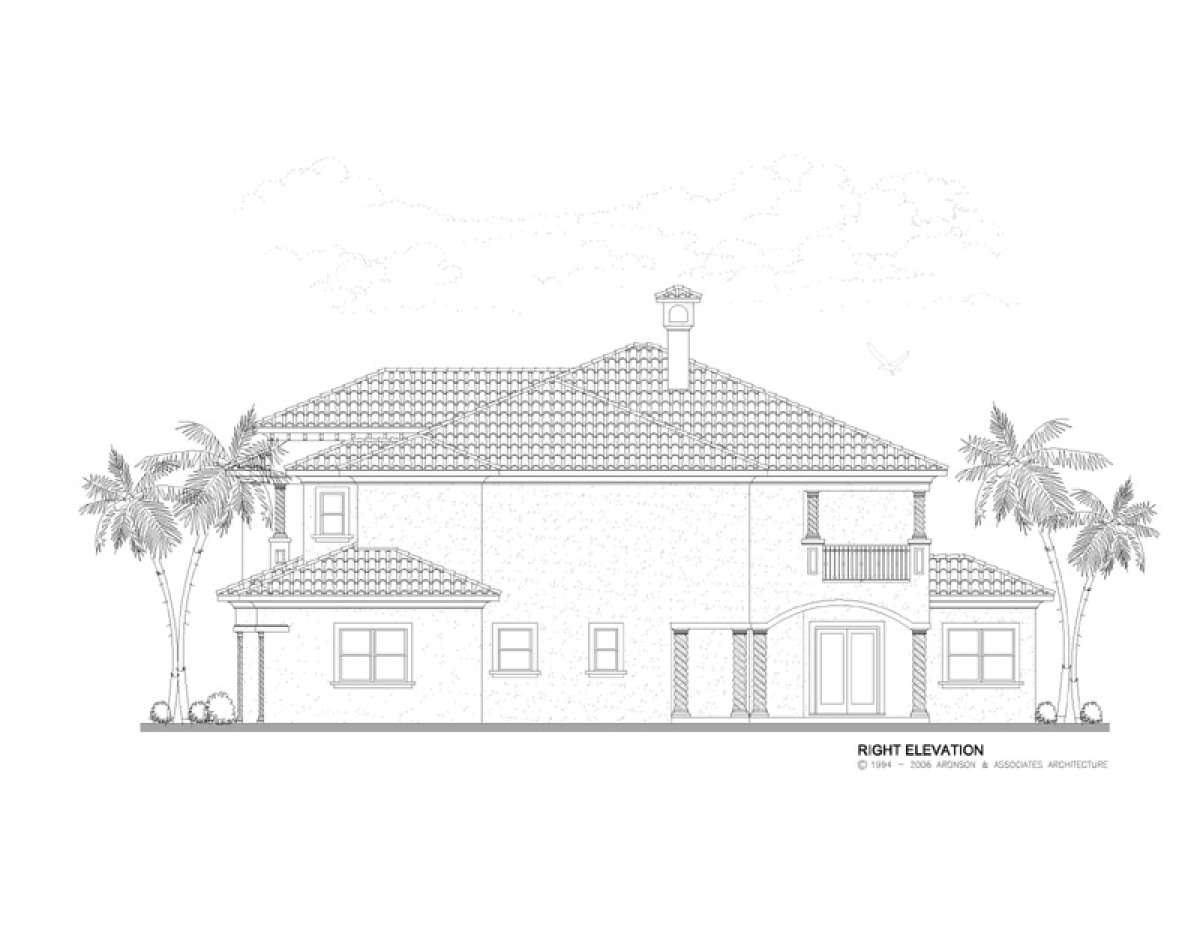

Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

In true Mediterranean style, this home offers an exciting and old world charm with its use of amazing balconies which highlight the exterior of the home. The roof tile, arched window detail and spiral columns also lend to the grand feeling of the home and bode well for the interior floor plan. This traditional home boasts of approximately 5,000 square feet with five bedrooms, five baths and a three car garage which provides additional storage. The dramatic two story entrance is highlighted with double paneled wooden doors which open onto the spacious foyer which then bridges into the formal living room. The living room has a soaring ceiling, wet bar, rear covered patio access and is flanked by the kitchen and parlor. The parlor offers an intimate spot in which to relax and entertain and features a fireplace and French door access to the covered patio. There is a maid’s quarters with spacious closet and private bath and large laundry room with all the space and amenities you could need. A large den/library with closet sits at the front of the home for privacy. The kitchen is sure to delight with its large center island, breakfast bar, butler’s bar and café which open onto the family room. This space is family centered and offers a private space in which you and your family can put your feet up and unwind. Upstairs, bedroom three and four share a jack and jill bath and each have their own walk-in closet. Bedroom five has a generous closet and a private bath. A centrally located loft area and covered balcony are located at the top of the stairs. The master retreat is access through French doors and features a large bedroom with double trey step ceiling and access to the private covered terrace. His and her walk-in closets include a dressing area and lead to the master bath. The master bath is highlighted by a garden tub surrounded by windows, oversized shower, dual vanities, a linen closet and a compartmentalized toilet. This home is ideal for a large family who values their private space yet, enjoys entertaining family, friends and business associates.
