Mediterranean House Plan 168-00053

Name: House Plan 168-00053 - Mediterranean Plan: 4,375 Square Feet, 5 Bedrooms, 4.5 Bathrooms
Brand: America's Best House Plans
SKU: 168-00053
Price: 1500.00 USD

Sq Ft4,375

Beds5

Baths4

1/2 Baths1

Stories2

Cars2

Width68' 5"

Depth84' 4"

Mediterranean House Plan #168-00053 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM $1,500

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

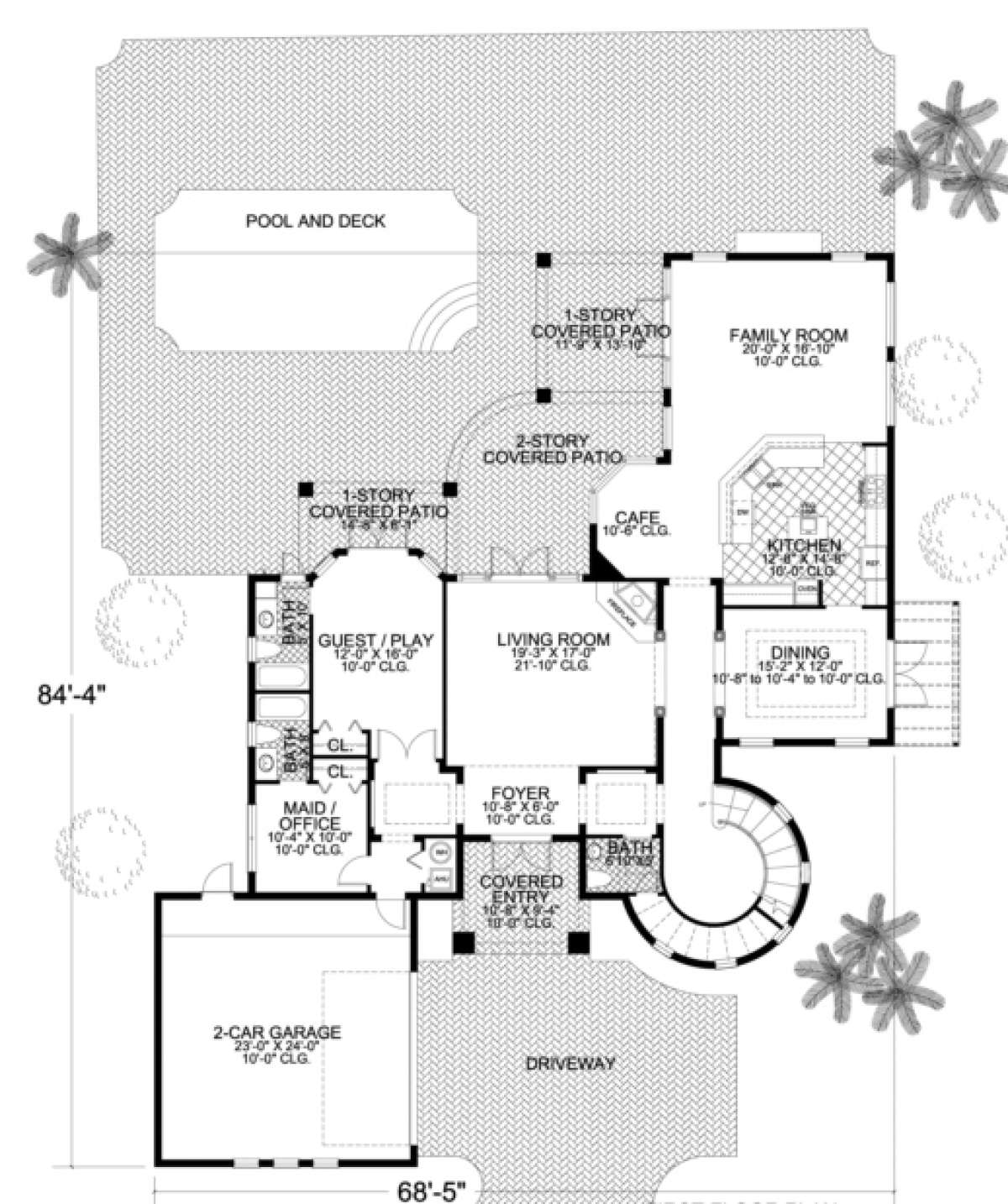

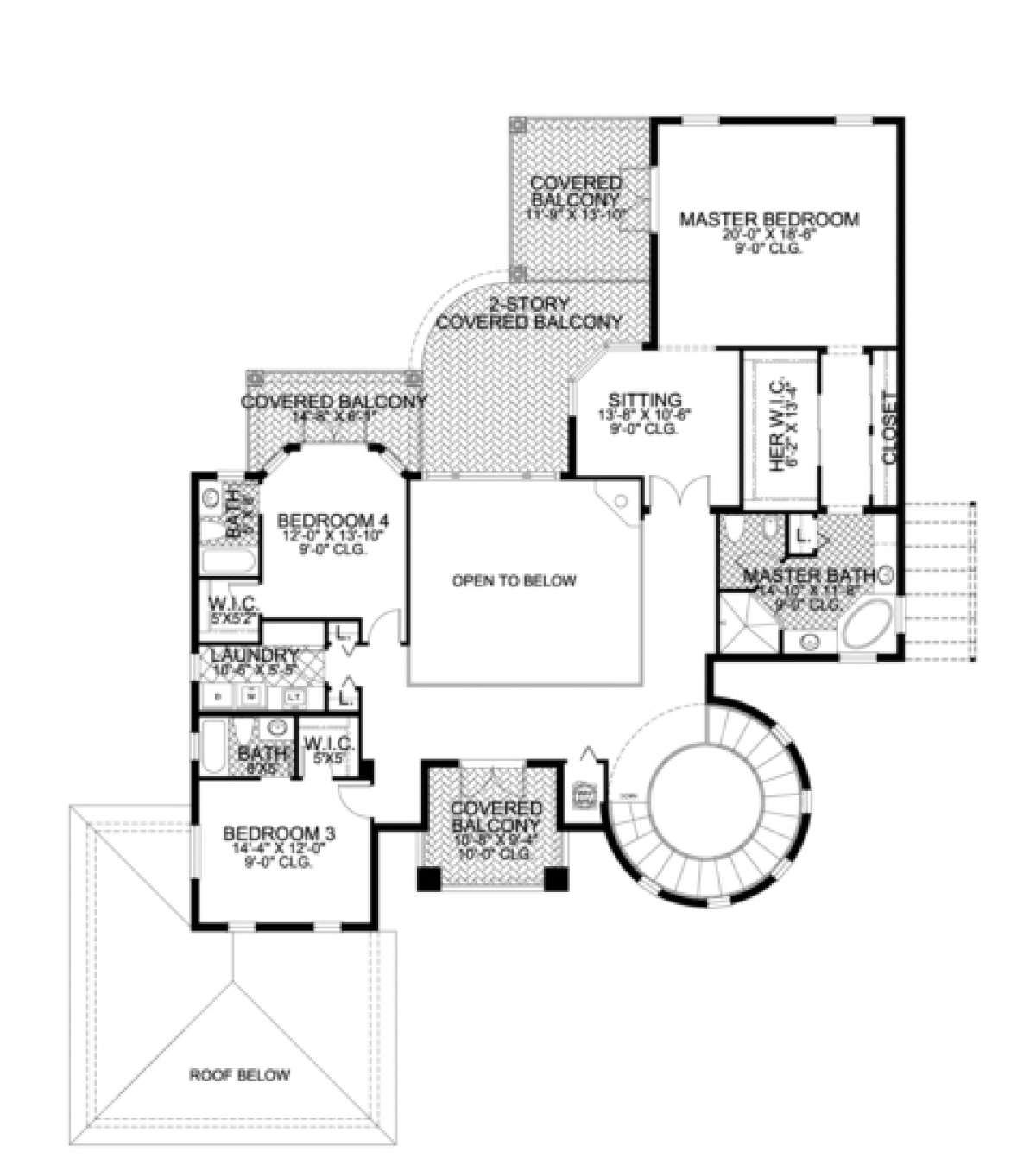

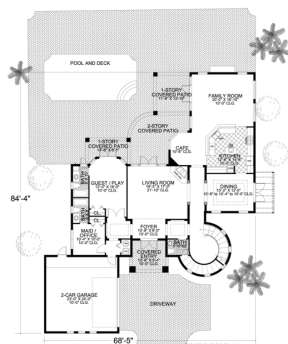

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

Floorplan 1

Floorplan 2

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:4,375 sq. ft.

-- First Floor:2,392 sq. ft.

-- Second Floor:1,983 sq. ft.

-- Garage:606 sq. ft.

Floors:2

Bedrooms:5

Bathrooms:4

Half Baths:1

Garages:2 car

Width:68ft.-5in.

Depth:84ft.-4in.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Second Floor:Varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bedroom 3:	14-4 x 12 x 9
Bedroom 4:	12 x 13-10 x 9
Covered Balcony:	10-8 x 9-4 x 10
Covered Entry:	10-8 x 9-4 x 10
Covered Patio:	11-9 x 13-10 x 14
Dining Room Coffered:	15-2 x 12 x 10
Family Room:	20 x 18-10 x 10
Foyer:	10-8 x 8 x 10
Garage:	23 x 24 x 10
Guest/Play:	12 x 16 x 10
Kitchen:	12-8 x 14-8 x 10
Laundry:	10-6 x 5-5
Living Room:	19-3 x 17 x 21-10
Maid/Office:	10-4 x 10 x 10
Master Bath:	14-10 x 11-8 x 9
Master Bedroom:	20 x 18-6 x 9
Sitting:	13-8 x 10-6 x 9

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

This spectacular floor plan features five bedrooms, five plus baths and a two car garage in approximately 4,400 square feet. The stunning Mediterranean inspired exterior façade offers vibrant and warm colors reminiscent of the coastline. Red tiled roofing, the grand entrance, arched windows and handsome ironwork combine beautifully to present outstanding curb appeal. The bold grand entrance features a covered balcony and double door entry into the foyer which leads to the formal living room with stately fireplace and access to the two story rear covered patio. The formal dining room sits directly across from the living room and is a large space with side yard access. The first floor guest suite and maid’s room each have a private entrance and bath and, if desired, the maid’s room could function as a home office. The gourmet kitchen is a chef’s dream with a center island, separate breakfast bar and an abundance of additional counter and cabinet space. It is open to the café with a triple bay window and family room which is a large space with tons of windows and French door access to the rear covered patio. There is a powder room for guests and a gorgeous winding staircase for second story access.
Upstairs, there is covered balcony access and a bridge hallway which leads to the master retreat wing or the additional bedrooms. One bedroom features a walk-in closet, a private bath and access to the balcony while the other has a walk-in closet, private bath and private access to the second of three upstairs covered balconies. The second story laundry room is a great feature for convenience and ease and is highlighted by a sink area and additional counter space. The gorgeous master suite features a sitting room and spacious master bedroom with private French door access to the covered balcony. His closet and her walk-in closet line the hallway to the sumptuous master bath which features a corner garden tub, separate shower, dual vanities, a linen closet and compartmentalized toilet. This home has unique architectural features and the bold exterior is castle inspired while the interior floor plan is versatile, comfortable and functional.
