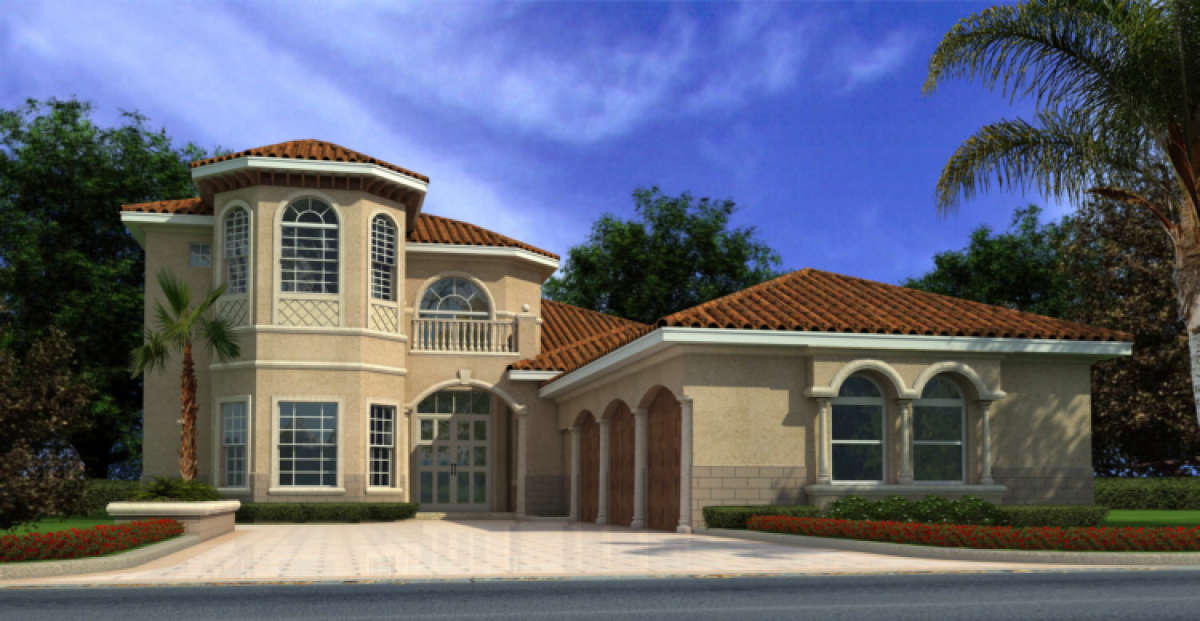

Mediterranean House Plan #168-00052 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,370

Beds 4

Bath 4

1/2 Baths 1

Car 3

Stories 1.5

Width 54' 9"

Depth 105' 9"

See What's Included

Select Package

PDF (Single Build)

$1,500.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,300.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

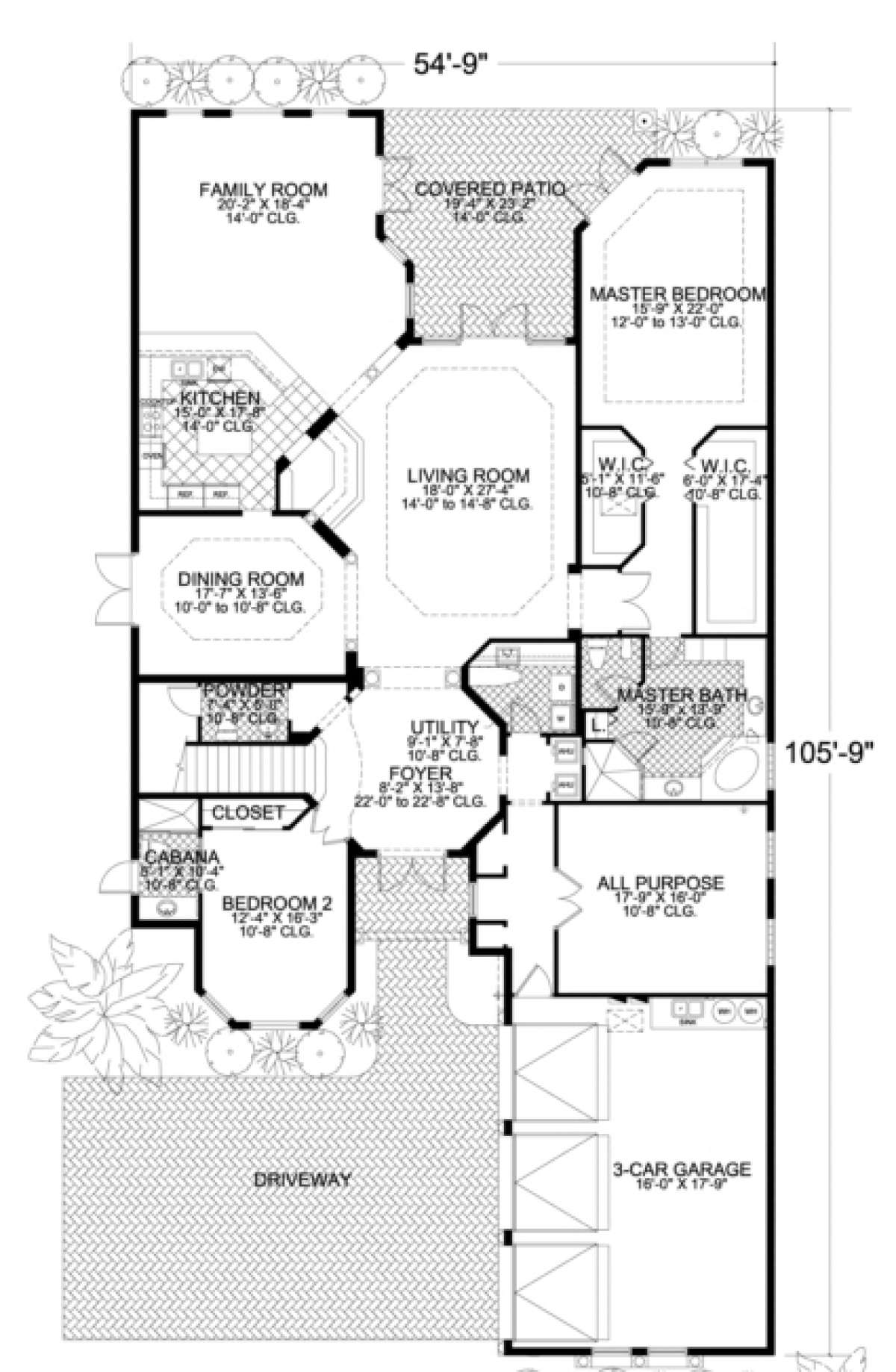

Floorplan 1

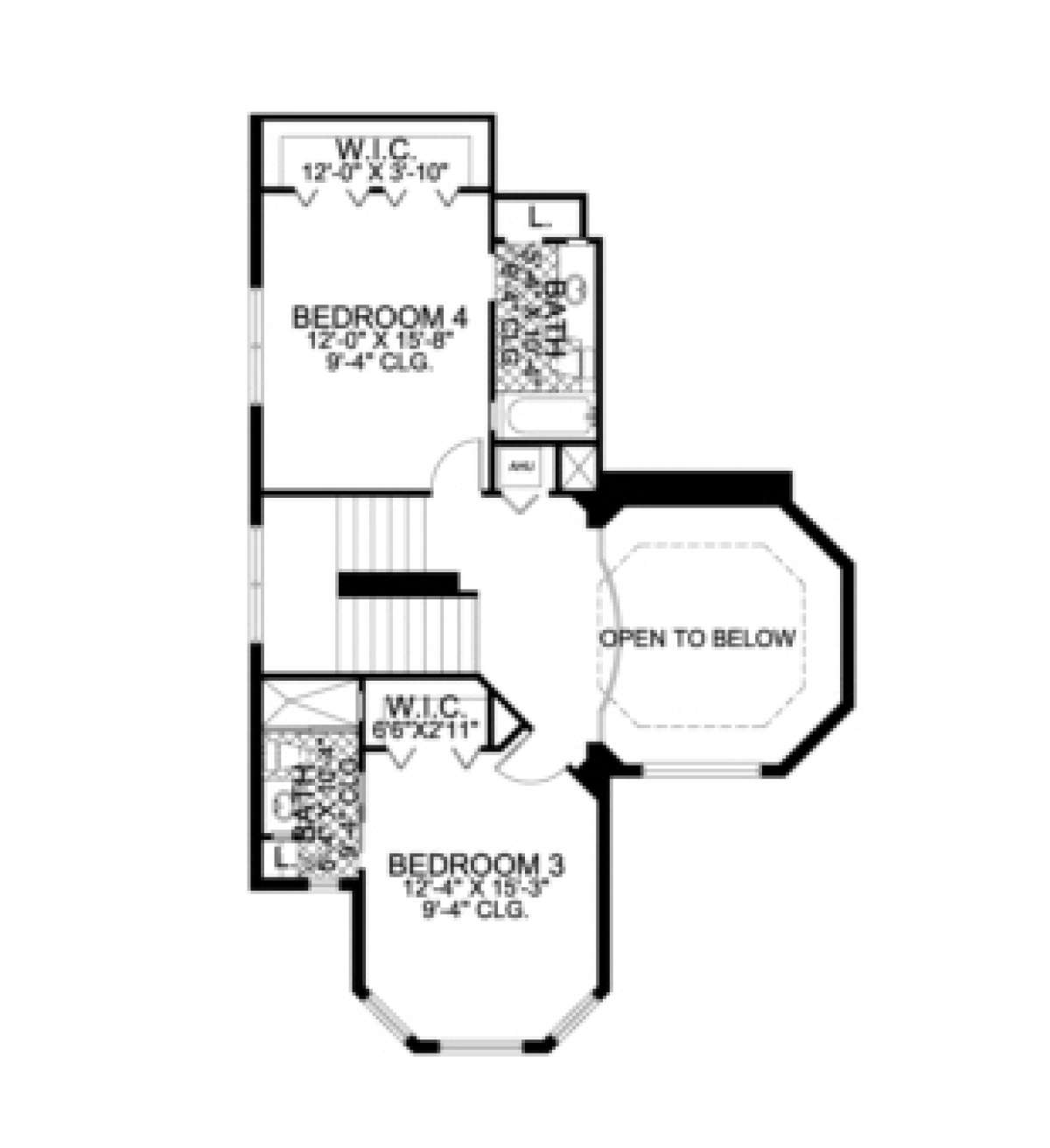

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This magnificent manor is influenced by the Mediterranean coastline which speaks of warmth and vibrancy. Column detailing, arched windows and a towering entrance combine beautifully in this inspiring exterior façade. The double door entrance with window features gives the home commanding access into the interior floor plan. There are approximately 4,400 square feet of living space in the home with four bedrooms, three plus baths and a three car garage. An all purpose room/flex space sits off the foyer and would function nicely as a home office or study due to its private placement in the home. There is a guest bedroom with ample closet space and cabana bath access situated on the opposite side of the foyer. The spacious foyer houses the staircase to the second floor and bridges into the centrally located living room which is massive with soaring ceiling heights and features French door access to the rear covered patio. The formal dining room has column detailing, is open to the living room and offers access to the side yard. These are substantial spaces and would be ideal for entertaining large gatherings of family and friends. The gourmet kitchen has a center island, large breakfast bar and is open to the family room which is sizable and features access to the rear covered patio. The master suite occupies one wing of the main level and is highlighted by the oversized bedroom with private patio access. His and her walk-in closets are massive and line the hallway to the master bath which features a corner garden tub, separate shower, dual vanities and a compartmentalized toilet. A powder room for guests, large utility room and the garage complete the first level of living.
Upstairs, you will find bedroom three with a triple bay window, walk-in closet and private bath along with another bedroom which features a walk-in closet and private bath. Both these bedrooms are oversized and offer a wonderful space for children or other guests. This home boasts of wide open spaces ideal for entertaining along with private, personal spaces perfect for relaxing and would provide years of comfort for you and your family.
