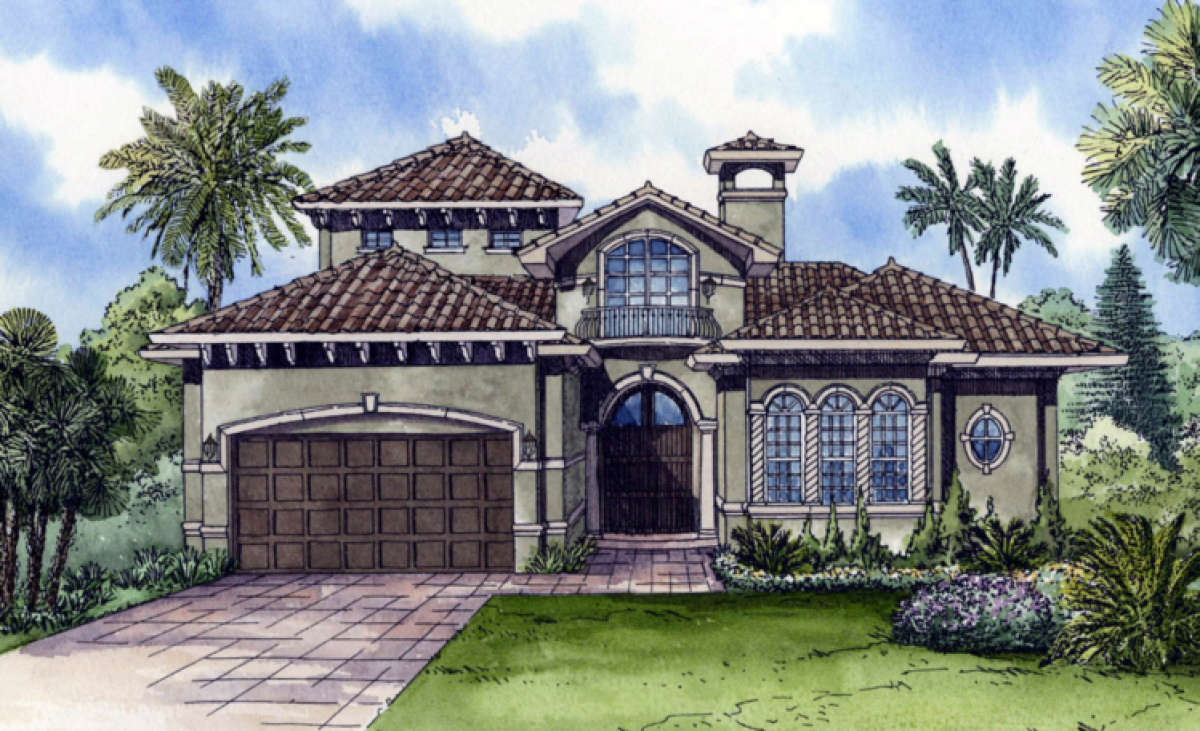

Coastal House Plan #168-00049 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,106

Beds 3-4

Bath 4

1/2 Baths 1

Car 2

Stories 1.5

Width 58'

Depth 97' 6"

See What's Included

Select Package

PDF (Single Build)

$1,500.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,300.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

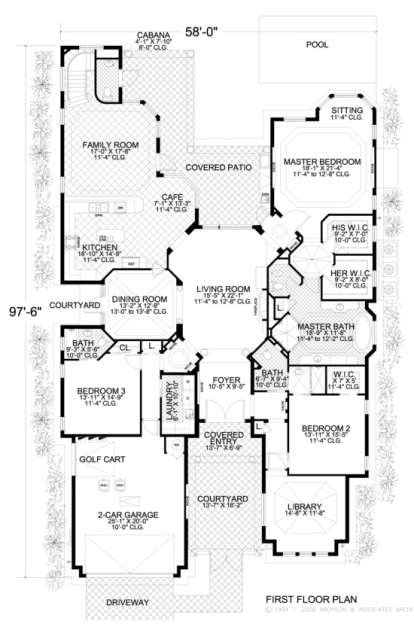

Floorplan 1

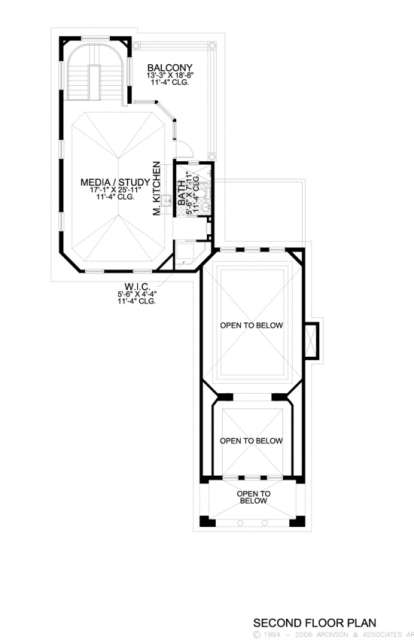

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This architecturally stunning Mediterranean home has a classic and timeless appeal with its opulent exterior façade. The vibrant and rich Spanish tones blend beautifully with spiral column detailing, tiled roofing, stunning ironwork and the grand entrance. The two story entrance with double doors and window detail add to the spectacular curb appeal of the home. The one and ½ story home has approximately 4,100 square feet of living space and a versatile floor plan. The lofty foyer bridges to the formal living room with built-in cabinetry, fireplace and is open to the striking formal dining room with side courtyard access. Quality family time is the key at the rear of the home which includes the kitchen, breakfast area and family room. The gourmet kitchen houses a center cook top island, elongated additional bar area and is open to the café which boasts of a triple bay window overlooking the rear covered patio. The large family room is ideal for watching movies or “hanging out” and enjoys expansive window views and courtyard access. There is a rear staircase leading to the second floor for convenience and comfort. A gorgeous library with stunning ceiling work sits at the front of the home for privacy. A guest or family bedroom is situated on the main living floor and features a walk-in closet and private bath access. The third bedroom features a private bath and ample closet space.
The master retreat occupies the rear wing of the floor and features an outstanding use of space. The master bedroom has a double step trey ceiling and triple bay window sitting area. His and her walk-in closets along with a dressing area line the hallway leading to the luxurious master bath. The master bath features separate, dual vanities, large garden tub, separate shower and a compartmentalized toilet. The two car garage is enormous and includes space for vehicles, golf carts and additional storage. The oversized utility room is off the garage for convenience and features sink and counter space. Upstairs, you will find a beautiful use of space which is highlighted by the expansive media room/study. There is a morning kitchen, walk-in closet and full private bath which completes the semi-self sufficient space. This home is gorgeous with bold exterior features and a versatile and spacious interior floor plan.
