Mediterranean Plan 168-00045


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,869
Beds 4
Bath 4
1/2 Baths 1
Car 2
Stories 2
Width 52' 8"
Depth 72'

Floorplan Drawings

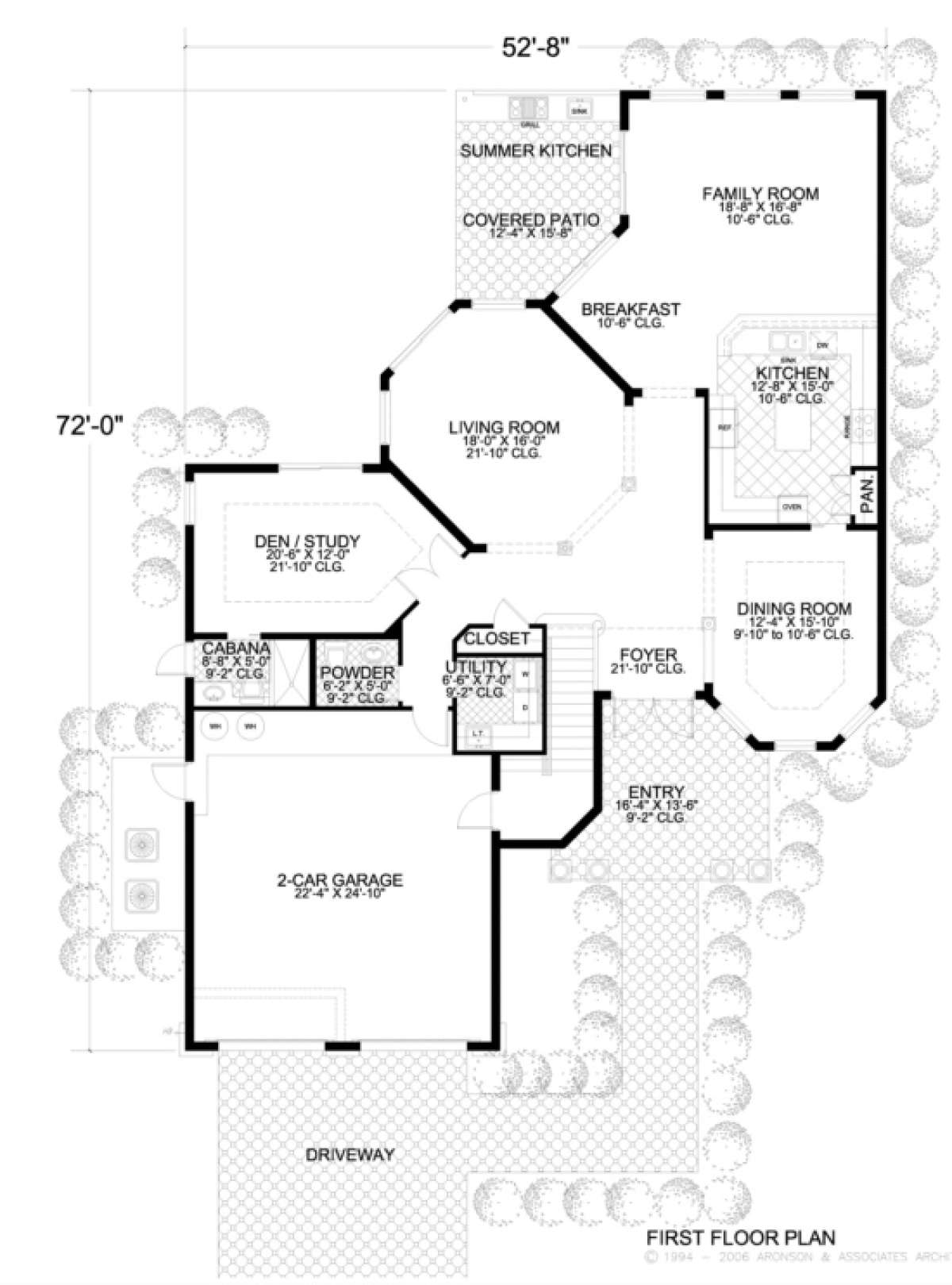

Floorplan 1
Floorplan 1 for House Plan #168-00045

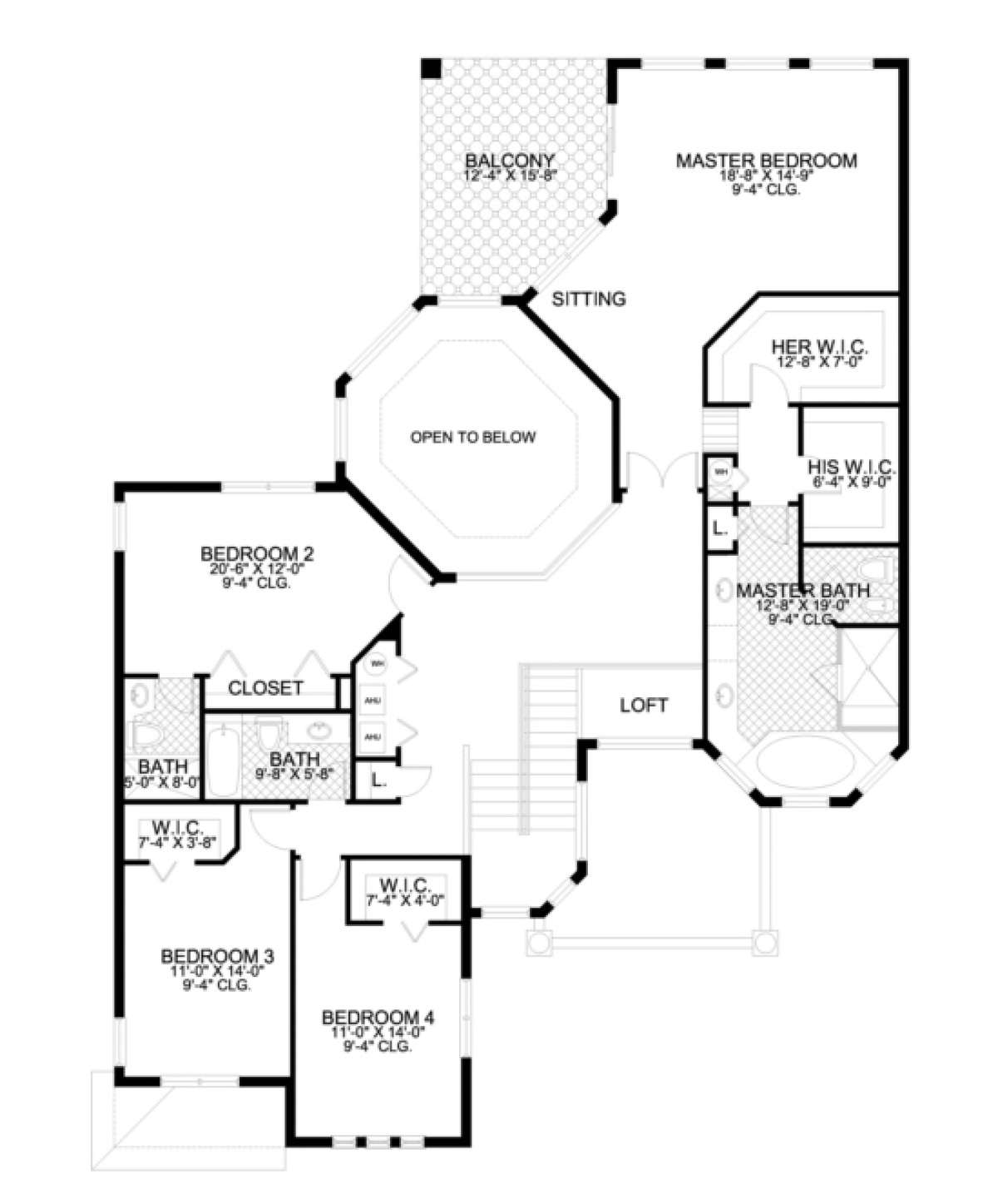

Floorplan 2
Floorplan 2 for House Plan #168-00045

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This two story beauty has traditional Mediterranean features and offers an abundance of charm. The courtyard entrance, tiled roofing and second story balcony combine to add warmth and vitality to the exterior façade. In classic Florida style, the grand entrance has column features and a double door entry which provide an inviting space to greet family and guests. This four bedroom home has three plus bathrooms and a two car garage in approximately 3,800 square feet. The spacious dining room has a triple bay window and sits opposite the octagon shaped, formal living room which offers access to the rear covered patio and summer kitchen. These living spaces were made for entertaining and capture the essence of living well. The den/study has a trey ceiling and offers a respite from the hustle and bustle of life; it is a warm, cozy space perfect for relaxing. In traditional Spanish style, the rear of the home features private family spaces including the kitchen, breakfast room and family room. The gourmet kitchen is a delightful space and provides the family chef with a functional and efficient space that features a center island, separate breakfast bar, loads of counter and cabinet space and a separate pantry. The breakfast room offers rear patio views and the family room is a large space perfect for the entire family to gather and “hang out.” A cabana bath, powder room, and large utility room along with the garage complete the first floor.
Upstairs, you will find a loft area and a beautiful overlook into the first floor along with the bedrooms. Bedroom two is an impressive size and has ample closet space and a private bath. Two additional bedrooms have walk-in closets and share a hall bath and linen closet. The exquisite master suite is amazing and occupies one half of the second floor. Double French door access leads to the sitting room and spacious bedroom; there are window views and access to the private balcony. His and her walk-in closets are oversized and adjacent to the master bath. The master bath is sumptuous and enjoys a large footprint. The highlight of the master bath is the garden tub with a triple bay window; additionally, you have separate dual vanities, a linen closet, a compartmentalized toilet and separate shower. This stunning home has a classic exterior façade and an exciting and versatile interior floor plan sure to provide years of comfort for your family.
