Mediterranean House Plan 168-00044

Sq Ft3,722
Beds4
Baths4
1/2 Baths1
Stories1.5
Cars2
Width54' 9"
Depth74' 9"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

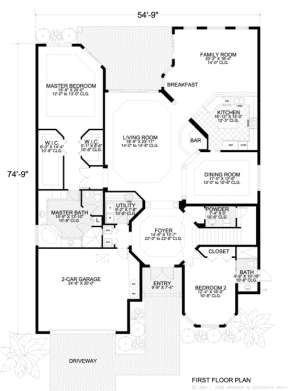

Floorplan 1 for House Plan #168-00044
Floorplan 2 for House Plan #168-00044

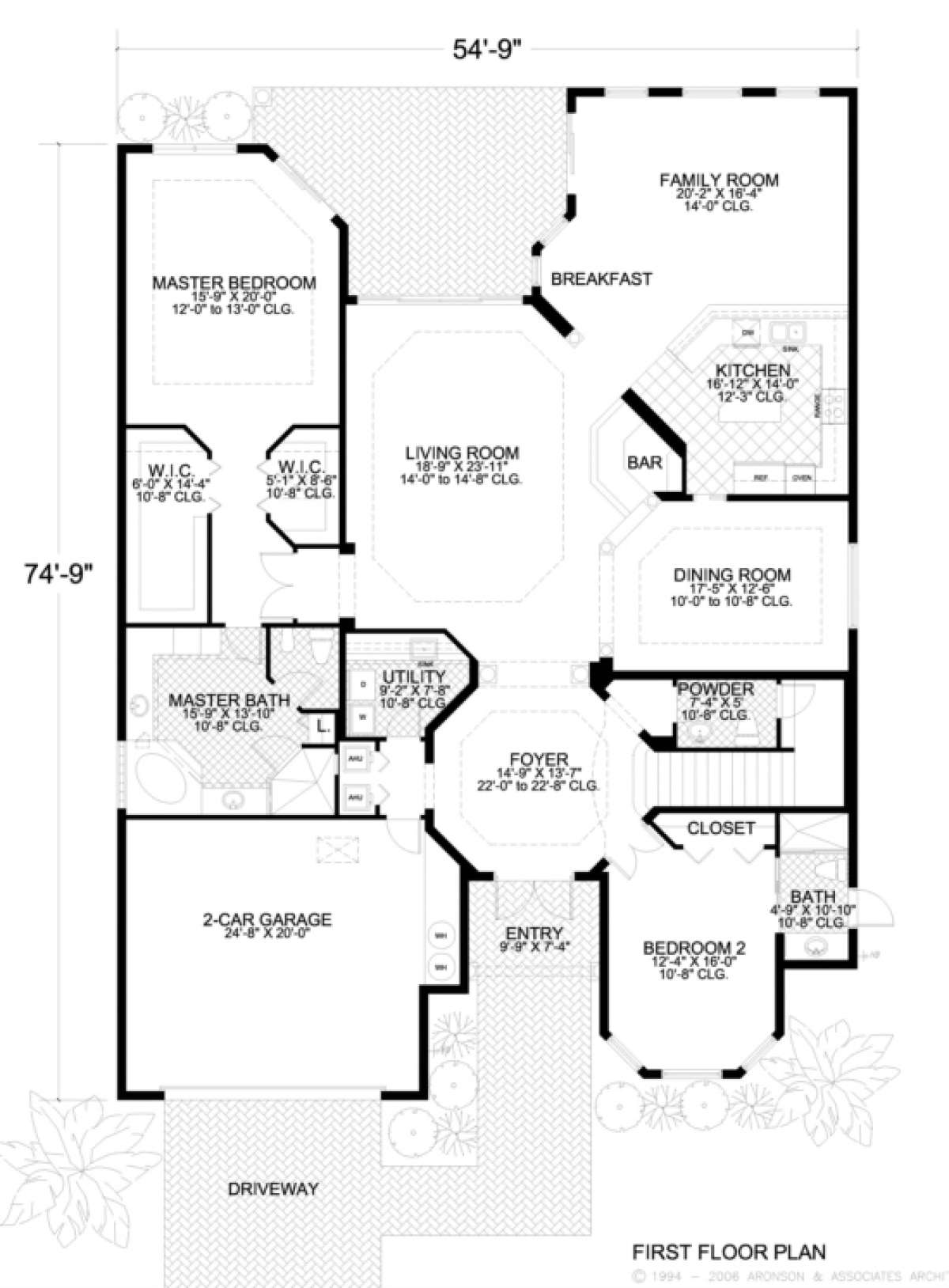

Floorplan 1
Floorplan 1 for House Plan #168-00044

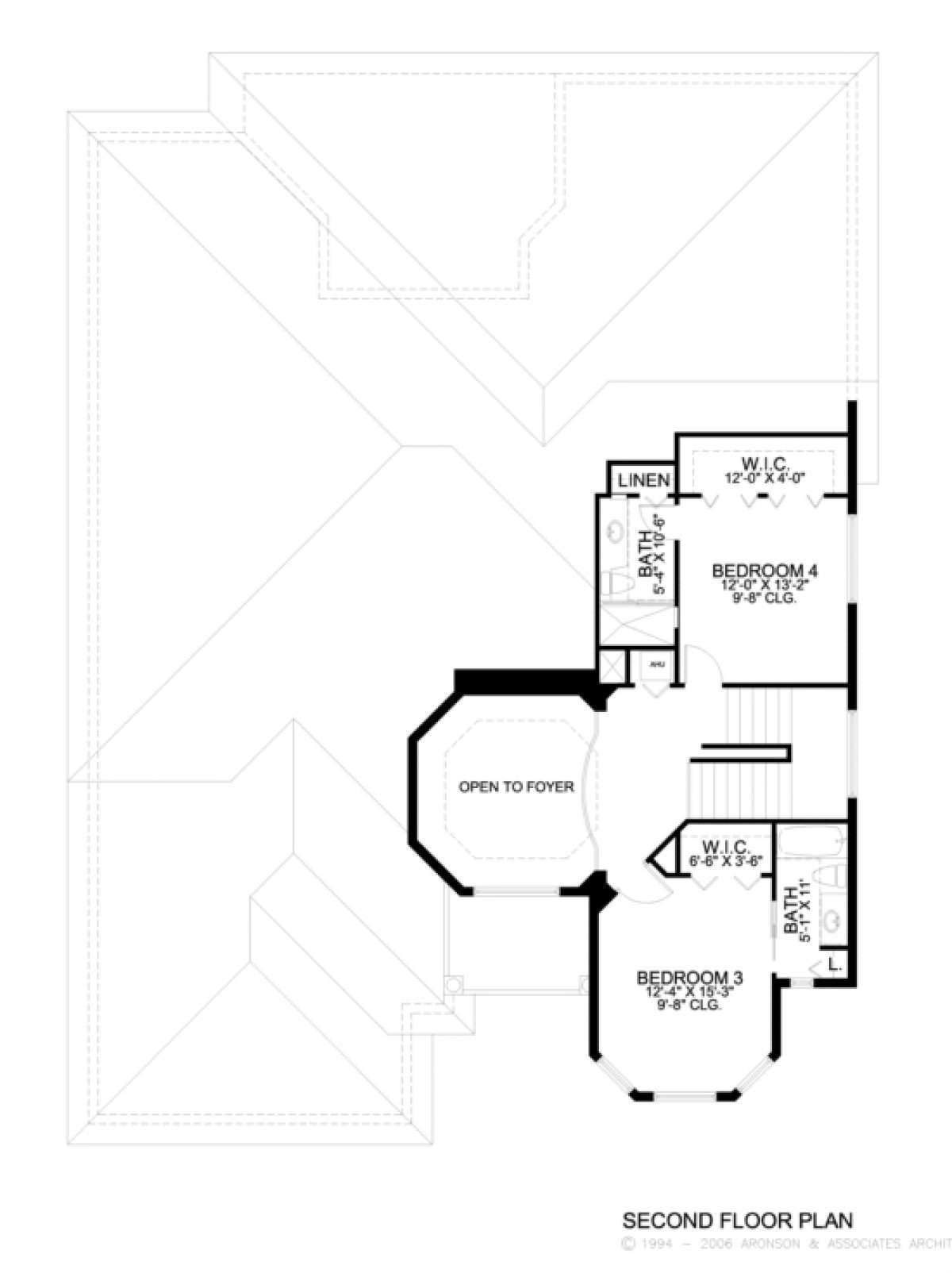

Floorplan 2
Floorplan 2 for House Plan #168-00044


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling Spanish manor features luxurious design features both inside and out. The exciting and bold exterior offers traditional Mediterranean architectural elements which include a double door grand entrance, tiled roofing, a covered balcony and gracefully arched windows. This four bedroom, three plus bath home has a two car garage and approximately 3,700 square feet in one and ½ stories. The octagon shaped dramatic foyer has soaring ceiling heights and bridges into the enormous formal living room with a wet bar and rear courtyard access. The formal dining room has column detailing and is a generous space. At the rear of the home, is the traditional family space which features a gourmet kitchen with a center island and an abundance of counter and cabinet space along with the light infused breakfast room. Both the kitchen and breakfast area are open to the family room which is sun drenched due to the rear wall of windows and it has rear courtyard access as well. A second bedroom sits at the front of the hall and features a triple bay window, ample closet space and a private bath. The master suite is located on the main floor of the home and is highlighted by a spacious bedroom with rear courtyard access. His and her oversized walk-in closets line the hallway to the master bath which features a corner garden tub, separate shower, dual vanities, a linen closet and a compartmentalized toilet. A powder room, large utility room and a two car garage completes the first floor of the home.
As you travel the staircase, you emerge onto the large balcony overlook which is flanked on both sides by the bedrooms. Bedroom three enjoys a triple bay window with a walk-in closet, linen closet and private bath while bedroom four is a generous size and also features a walk-in closet, linen closet and private bath. This large home is versatile and comfortable for a large family and provides a stunning exterior façade.
