Mediterranean House Plan #168-00036 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,117

Beds 4

Bath 3

1/2 Baths 1

Car 3

Stories 1.5

Width 76' 2"

Depth 76' 7"

See What's Included

Select Package

PDF (Single Build)

$1,350.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,050.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

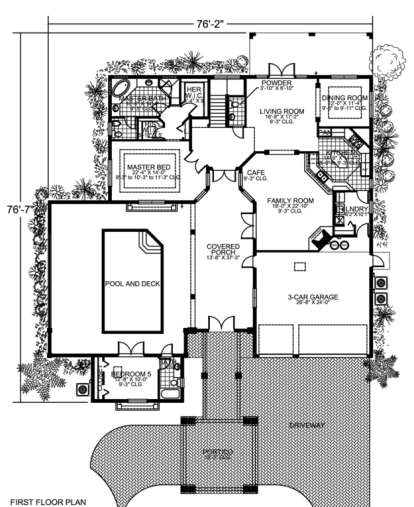

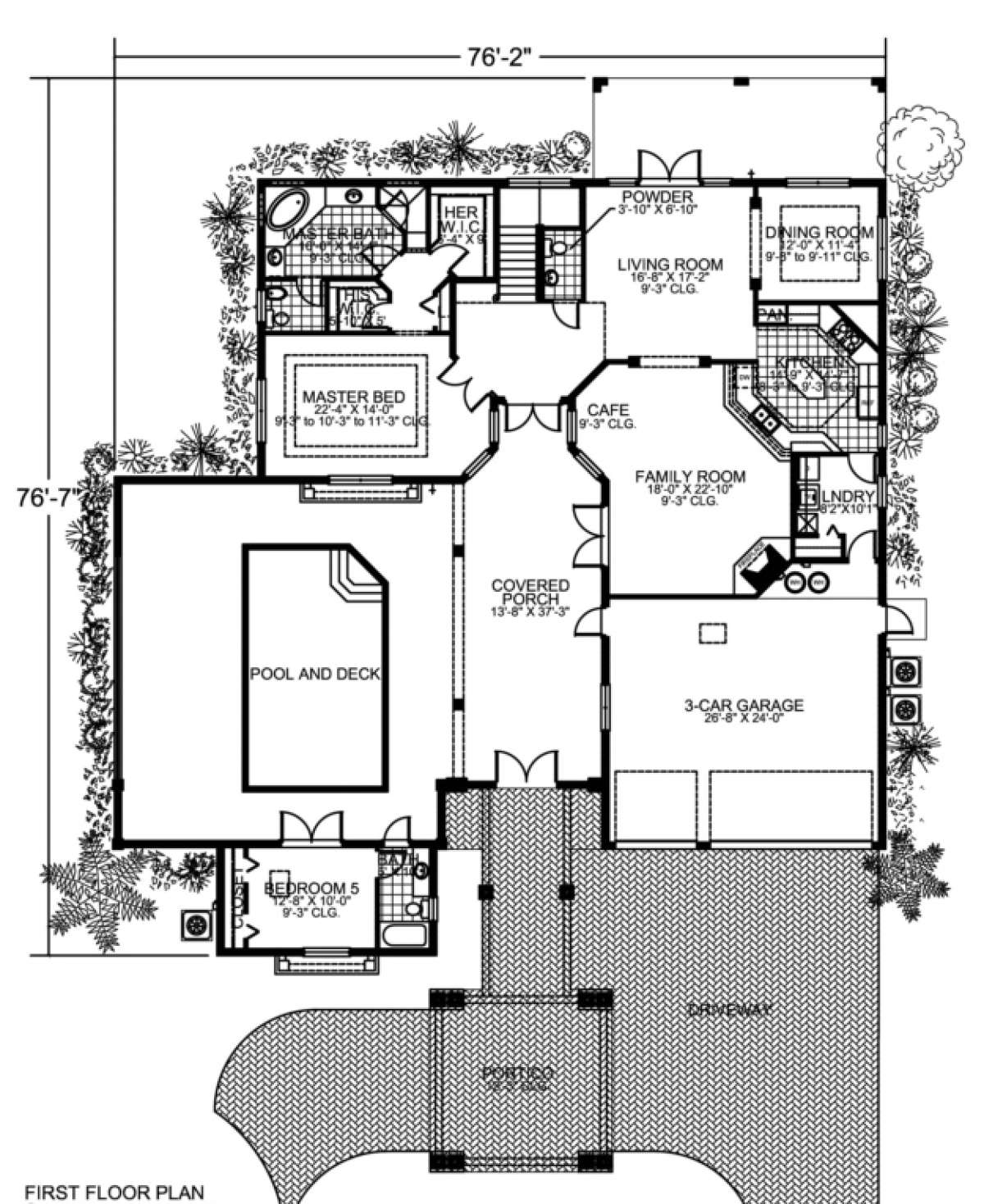

Floorplan 1

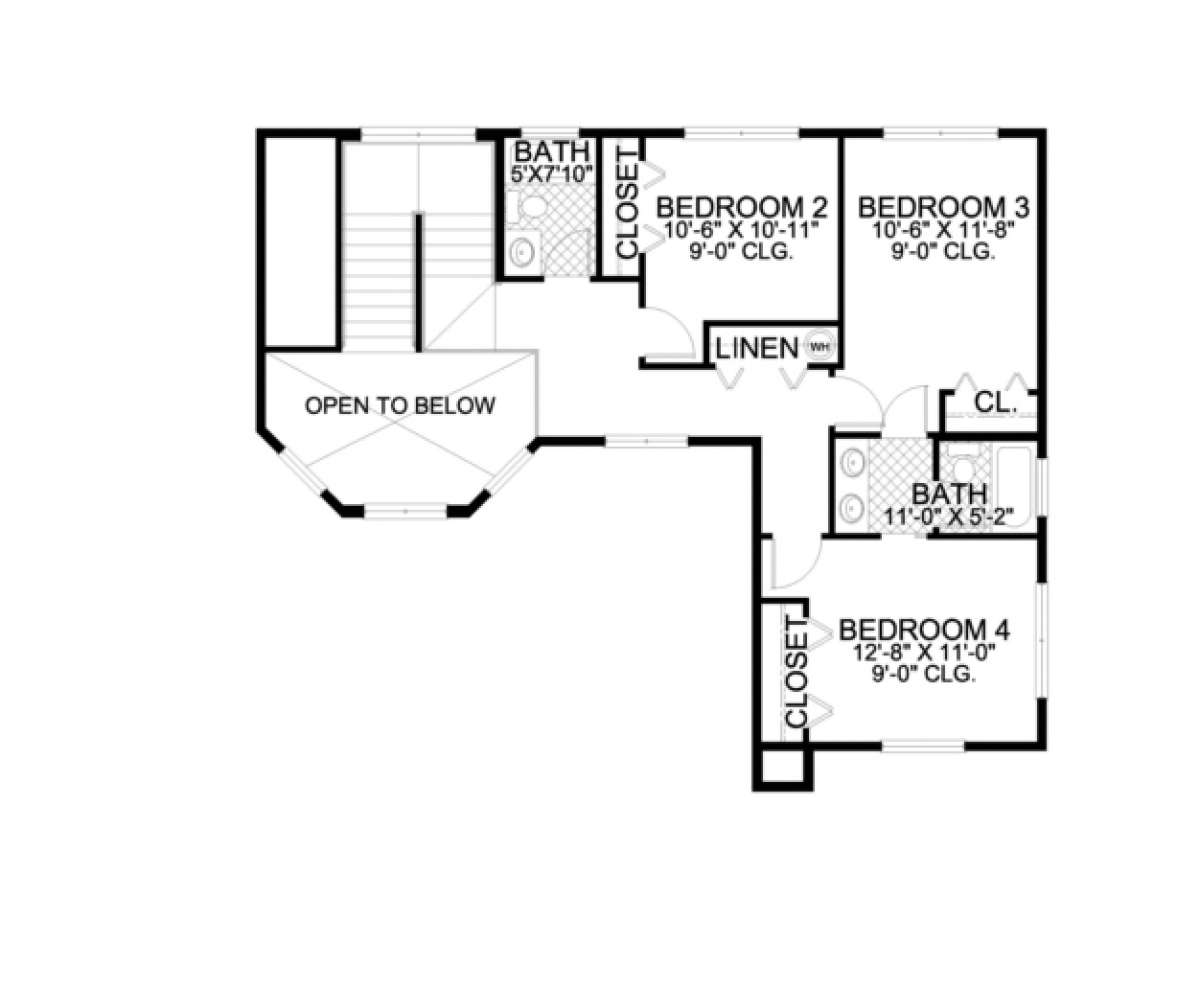

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This gorgeous Mediterranean home offers an abundance of traditional architectural details that enhance and strengthen the home’s curb appeal. Beautiful tiled roofing, column detailing, handsome ironwork and a grand entrance contribute to present an exciting exterior façade. This spacious floor plan features four bedrooms, three plus bathrooms and a three car garage in approximately 3,100 square feet. The front portico is a handsome addition to the home and leads to the gated breezeway and subsequent covered porch situated directly across from the pool and deck area. This is a private and inviting space in which to enjoy family time or entertain guests. A guest or fifth bedroom sits villa style away from the remainder of the home and features ample closet space and a private full bath. The three car garage exits onto either the side yard or front covered porch for convenience. You may enter the home from the porch into either a large common area or the family room. The family room is an impressive size with a corner fireplace and family café area that boasts of porch views. The gourmet kitchen features a breakfast bar, large center island, separate pantry and plenty of additional counter and cabinet space. A large laundry room contains a sink area and a large counter space and there is a guest powder room. The impressive formal living room sits at the rear of the home and is open to the formal dining room with trey ceiling. The master retreat is simply luxurious and offers an enormous bedroom with trey ceiling accessible through French doors. His and her walk-in closets are an impressive size and flank the hallway to the master bath. The master bath enjoys a large foot print with dual vanities, a separate shower, gorgeous corner garden tub and a compartmentalized toilet.
Upstairs, you will find bedroom two which features ample closet space and access to a private bath. Bedroom three and four each have good closet space and share a bath with dual vanities and a double size hall linen closet. This house plan is spacious and versatile; there are an abundance of open common living spaces for family and guest entertaining and cozy, private retreats to maximize your family’s comfort.
