Mediterranean House Plan 168-00029

Sq Ft4,355
Beds5
Baths4
1/2 Baths1
Stories1
Cars3
Width80' 0"
Depth99' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

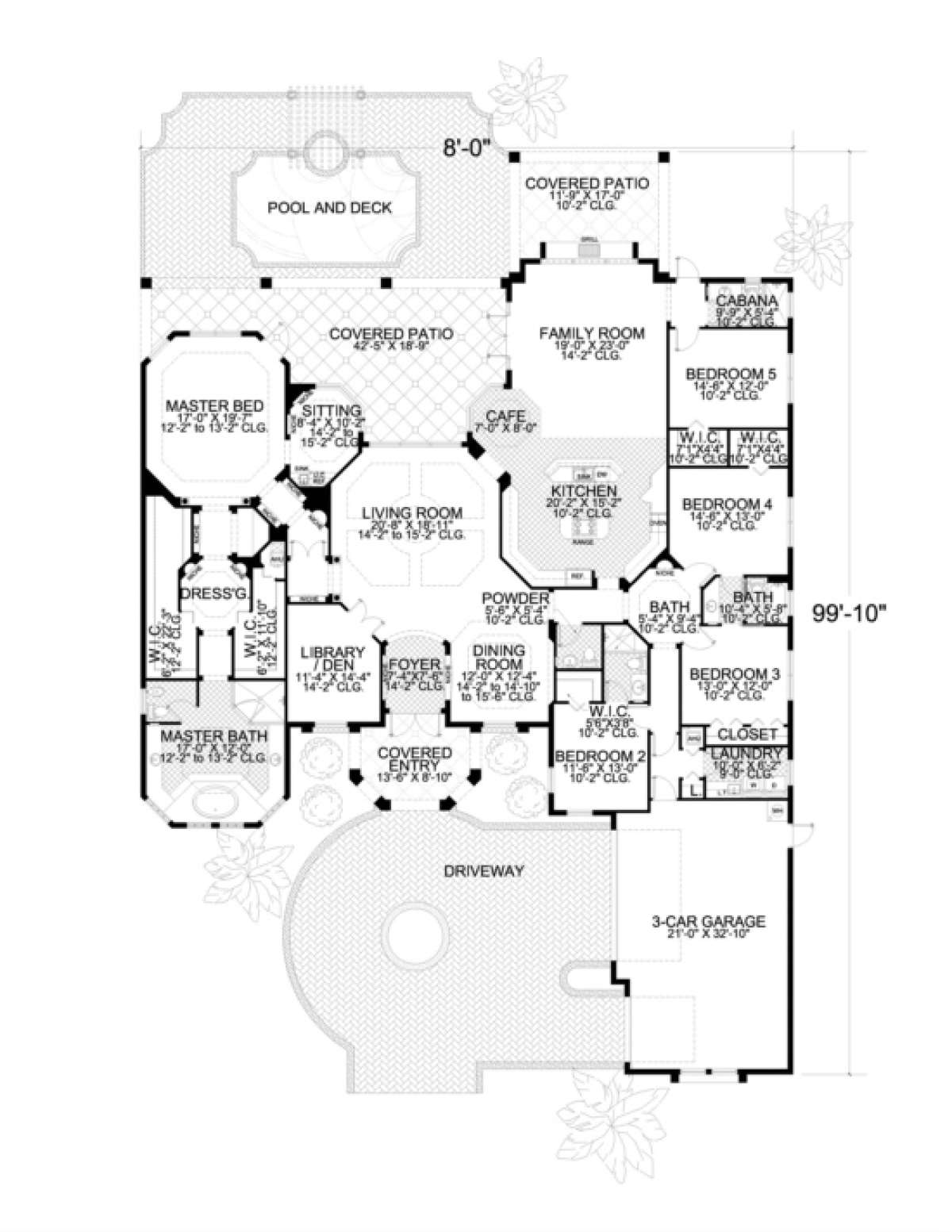

Floorplan 1 for House Plan #168-00029
Floorplan 1

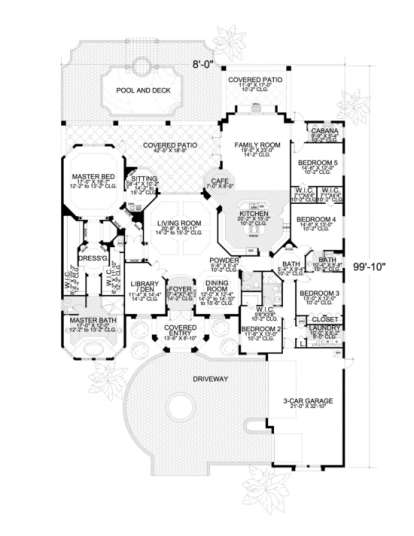

Floorplan 1 for House Plan #168-00029


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This is a beautifully crafted home in the style that has come to be associated with the warmth and vibrant colors of traditional homes located on the Mediterranean Sea. Often these homes have stucco facades, beautiful clay tile roofs and expansive floor plans. The traditional brick pavers lead to a towering covered entrance with French doors which dramatically spill into the spacious foyer. The large living room has soaring ceiling heights and outstanding covered patio views. The library offers a cozy retreat for relaxing and is accessed through French doors. The formal dining room is set off of the foyer and features a trey ceiling. The designer kitchen is huge with a center island, breakfast bar and an abundance of additional counter and cabinet space. It is open to the café and family room with French door access to the covered rear patio which makes this an ideal spot for the family to gather for dinner on warm summer nights or to relax. The pool and deck area can be reached beyond the covered rear patio and gives this home the special touch it deserves. This is a ranch, split bedroom plan which heightens the privacy for the master suite. The master suite is accessed through French doors and features a large bedroom with window views and access to the covered rear patio along with an additional sitting room. The his and her walk-in closets are an unbelievable size and there is also a dressing area attached. The master bath is beautifully designed with a roman tub, separate shower, separate dual vanities and a compartmentalized toilet. Four additional bedrooms, a powder room and large utility room with an additional linen closet are situated on the opposite side of the home. Bedroom two has a walk-in closet and private bath while bedroom three enjoys a private bath and generous closet space. Bedrooms four and five each have a walk-in closet and bedroom four has a private bath while bedroom five enjoys a cabana bath at the rear of the home. The three car garage is a nice offset from the brick pavers and provides a two car bay and an additional one car bay with plenty of additional storage and a side yard exit. This home provides an extensive array of unique living spaces and materials which offset the floor plan beautifully.
