Ranch House Plan 168-00021

Name: House Plan 168-00021 - Ranch Plan: 1,924 Square Feet, 4 Bedrooms, 3 Bathrooms
Brand: America's Best House Plans
SKU: 168-00021
Price: 977.50 USD

Sq Ft1,924

Beds4

Baths3

1/2 Baths0

Stories1

Cars2

Width40' 0"

Depth60' 0"

SALE

Ranch House Plan #168-00021 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM ~~$1,150~~ $977.50

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

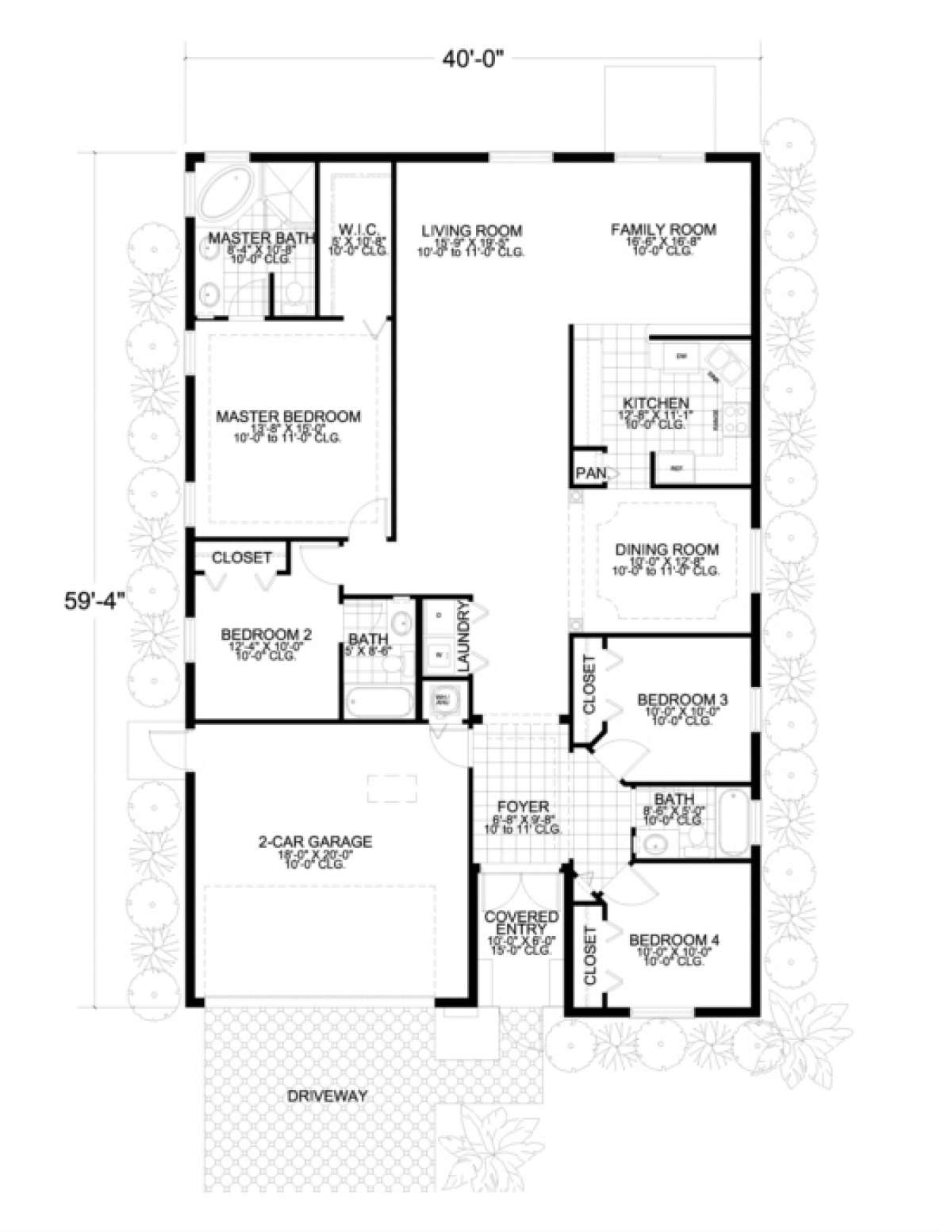

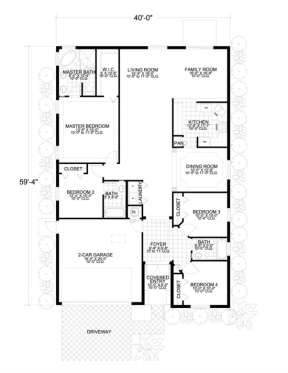

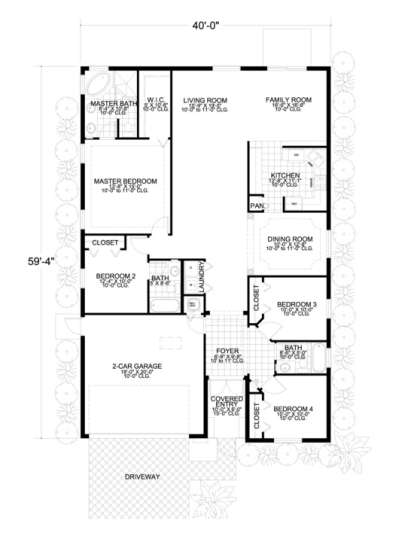

Floorplan 1

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:1,924 sq. ft.

-- First Floor:1,924 sq. ft.

-- Garage:403 sq. ft.

Floors:1

Bedrooms:4

Bathrooms:3

Garages:2 car

Width:40ft.

Depth:60ft.

Height:18ft.-10in.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:10-11 feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bath 2:	5 x 8-4 x 10
Bath 3:	8-6 x 5 x 10
Bedroom 2:	10 x 10 x 10
Bedroom 3:	10 x 10 x 10
Bedroom 4:	10 x 10 x 10
Covered Entry:	6 x 9-4 x 15
Dining Room Coffered:	11-8 x 10-4 x 11
Family Room:	24-8 x 12 x 10
Foyer:	6-8 x 9-8 x 11
Garage 2 car:	19 x 19 x 10
Kitchen:	12-8 x 11-1 x 10
Living Room:	12 x 15-4 x 10
Master Bath:	8-4 x 10-8 x 10
Master Bedroom:	13-8 x 15 x 11
Master Closet:	5 x 10-8 x 10

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

This gorgeous Mediterranean styled home has rich Spanish flavor and spectacular curb appeal. Architectural details such as the tiled roof and two story entrance present classic Mediterranean features and balance the home. The grand entrance is covered and offers a respite for your guests and an inviting area in which to greet your family and friends. The home is approximately 2,000 square feet with four bedrooms, three baths and a two car garage in one level of family living. The covered entrance leads to the spacious foyer which then fans out onto the hallway containing two bedrooms and a bath. Bedroom two and three are equivalent size with generous closet space and share a hall bath. The front bedroom could function as a home office, study or playroom for the children as it is a private space. The formal dining room has column detailing, a trey ceiling and access to the kitchen. At the rear of the foyer, is the luxurious living room; it is an outstanding and impressive sized space with window views to the rear yard. The kitchen anchors the dining and family room and has a separate pantry and a plethora of counter and cabinet space. The family room occupies the rear of the home and as is traditional in Mediterranean homes offers a sanctuary for the family to relax and unwind. There is rear yard access from the family room which opens up the space to enjoy family bar-b-ques and special occasions.
Bedroom two features a spacious bedroom with a large closet, side yard window view and a private bath. The master suite enjoys a large footprint and has a bedroom with a trey ceiling reaching 11’ ceiling heights. An oversized walk-in closet is situated at the rear of the bedroom. The master bath is true luxury and offers dual vanities, a sumptuous, corner garden tub, oversized shower and toilet area. A two car garage and interior laundry nook complete the home’s floor plan. This home offers spacious common living spaces and cozy private retreats which will enhance your and your family’s lifestyle.
